China Diffusion Type Portable Multi Gas Detector 4 Gas Monitor CH4 Co H2s O2 Gas Meter

Product Description

Why choose us?

A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung,Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions.

B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market

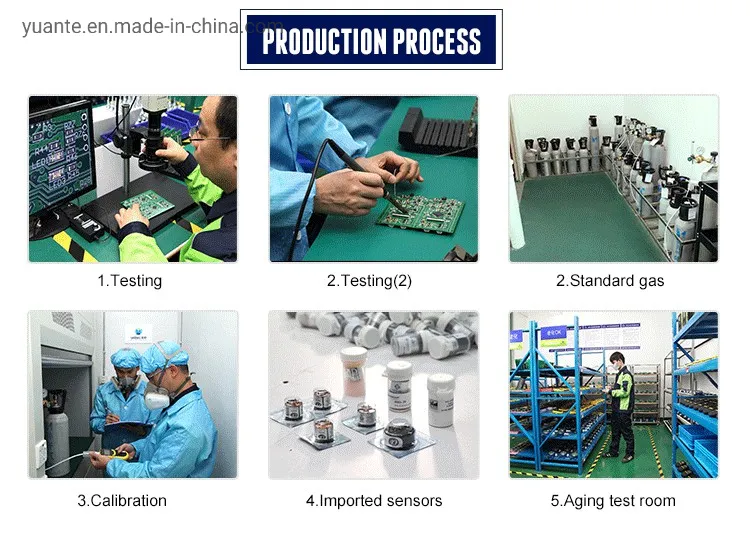

C Quality: international top brands sensor and IC /100% production test, make sure a good quality

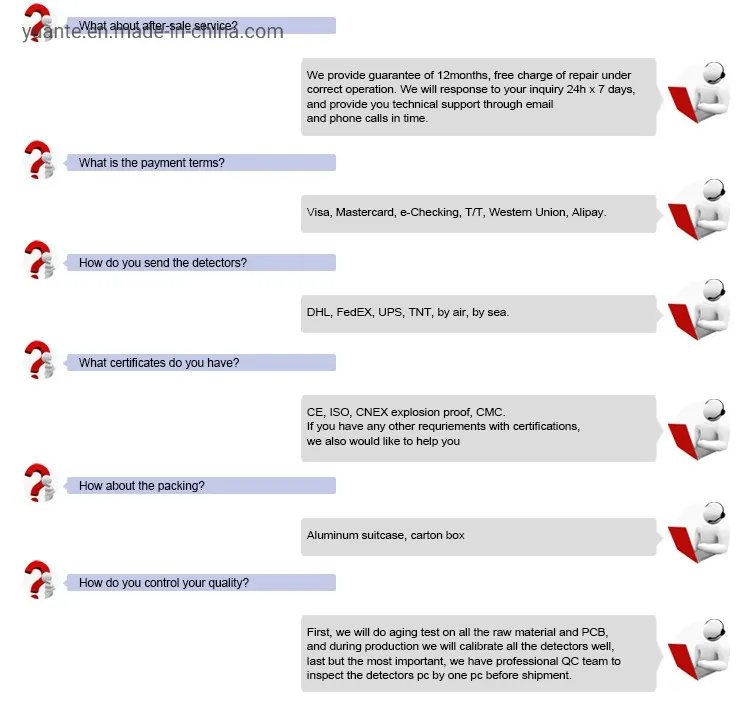

D Professional technical support: provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.

E Completed certifications:ATEX/CE/Rohs/ISO9001/, meet government standard as well guarantee your safety and health
Diffusion Type Portable Multi Gas Detector 4 Gas Monitor CH4 Co H2s O2 Gas Meter

Diffusion Type Portable Multi Gas Detector 4 Gas Monitor CH4 Co H2s O2 Gas Meter

Product Description

Product overview

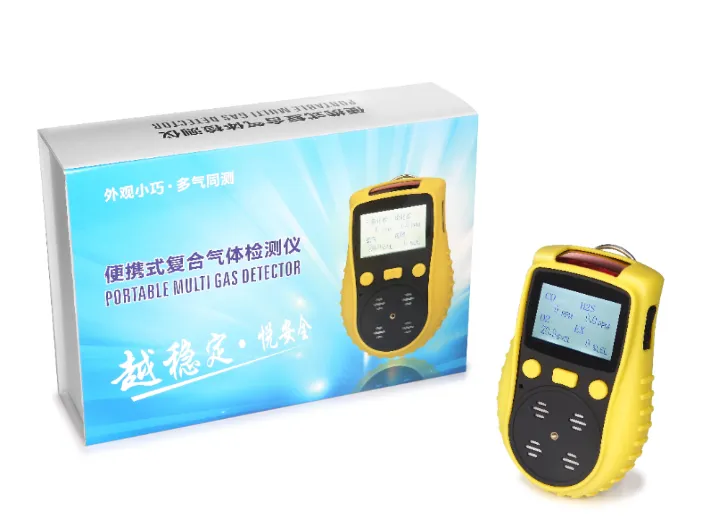

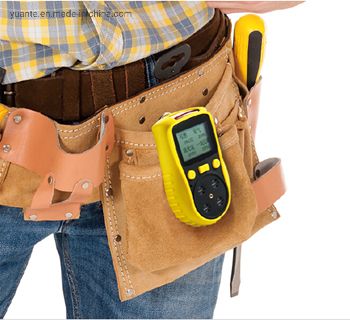

YT-1200H-S series gas detector is kind of mini size and high accuracy portable multi gas detector. Easy to operate, comprehensive functions, can measure 4 common gas hazards: carbon monoxide, hydrogen sulphide, flammablegases and oxygen depletion, other multi gases are available for customization. The detector is with back clip, protected by silicone case, suitable for different kinds of situations.

Product Advantages

1. Employ original imported high-precision sensor.
2. Four random gas sensors can be combined freely.
3. LCD dot matrix display,
4. Chinese and English operation.
5. The gas concentration unit PPM and mg/m3 can be shifted quickly.
6. The battery and voltage can be checked by one press.
7. One press to restore factory settings.Ultra-high buzzer alarm sound, alarm with sound, light and vibration at the same time.
8. Can record 100 sets alarm data, alarm record can b e checked on the device.
9. Data storage function, can record 100 thousand set data, historical data can be viewed on the device (optional function).
10. Rechargeable lithium polymer battery of large capacity, which ensure the device to work continuously for a long time.
11. Strong and upscale alligator clip, convenient to take along during operation.
12. Special engineering plastics housing of high intensity, strong and durable, exquisite and comfortable in touching.
Diffusion Type Portable Multi Gas Detector 4 Gas Monitor CH4 Co H2s O2 Gas Meter

Specificiation

Gas Detected	CO O2 H2S CH4
Detection principle	Electrochemistry& Catalytic combustion
Sampling Method	Diffusion
Measure Range	0-30%VOL(O2) /0-100ppm(H2S)/0-1000ppm(CO)/0-100%LEL(CH4)
Resolution	0.1%VOL(O2)/0.1PPM(H2S)/1ppm(CO)/1%LEL(CH4)
Precision	≤± 2-5% F.S.
Data recording	Storage capacity of over one hundred thousand sets. Interval time ranges from 10-3600seconds are settable. (Optional function)
Response Time	≤10S	Recovery Time	≤10S
Repeatability	≤±1%	Linearity error	≤±1%
Zero shift	≤±1%(F.S/year)	Display	Monochrome dot matrix display
Operating language	Chinese/English	Gas unit	ppm, mg/m3,%VOL,%LEL
Temperature	-20ºC~50ºC	Humidity	0-95%RH
Explosion-Proof	Exiia IICT4	Degree of protection	IP66
Alarm mode	Sound, light, vibration	Operating time	14 hour continuously
Dimensions	1318335mm	Weight	240g
