Product Description

High Quality Universal Testing Machine with Factory Price

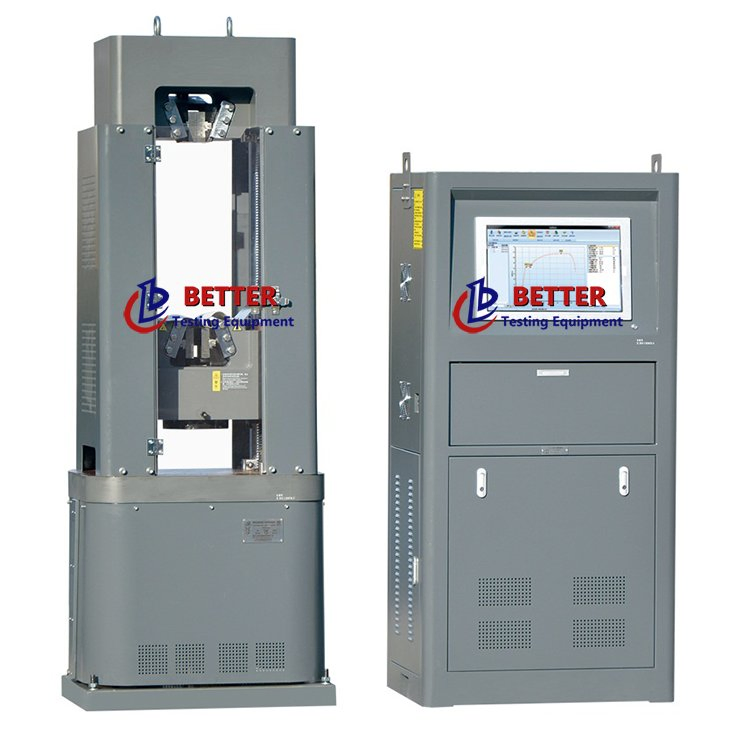

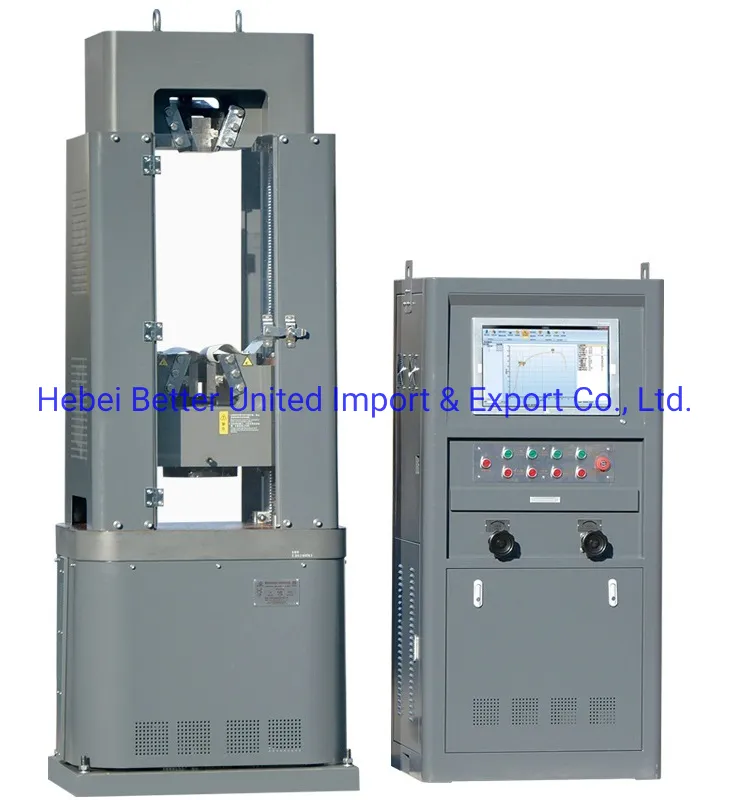

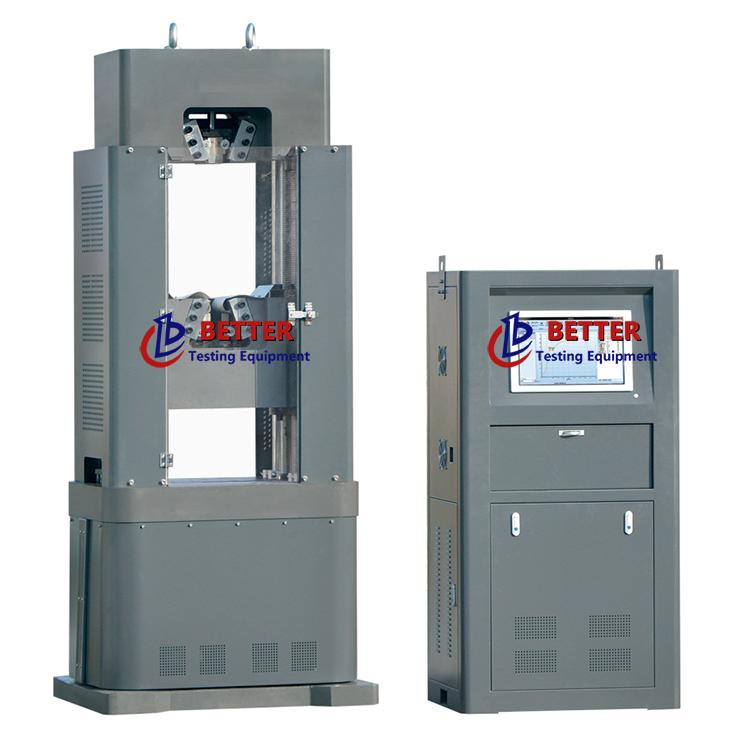

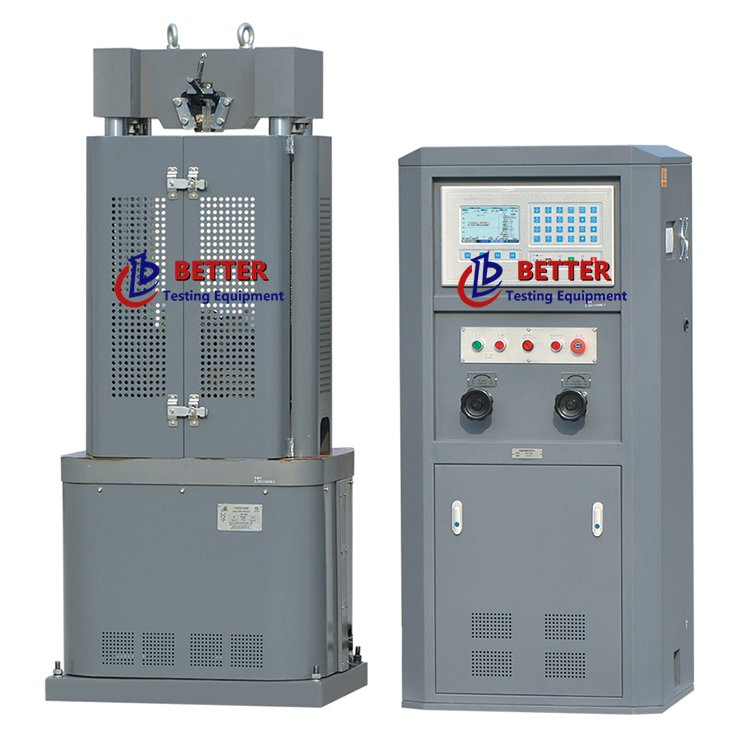

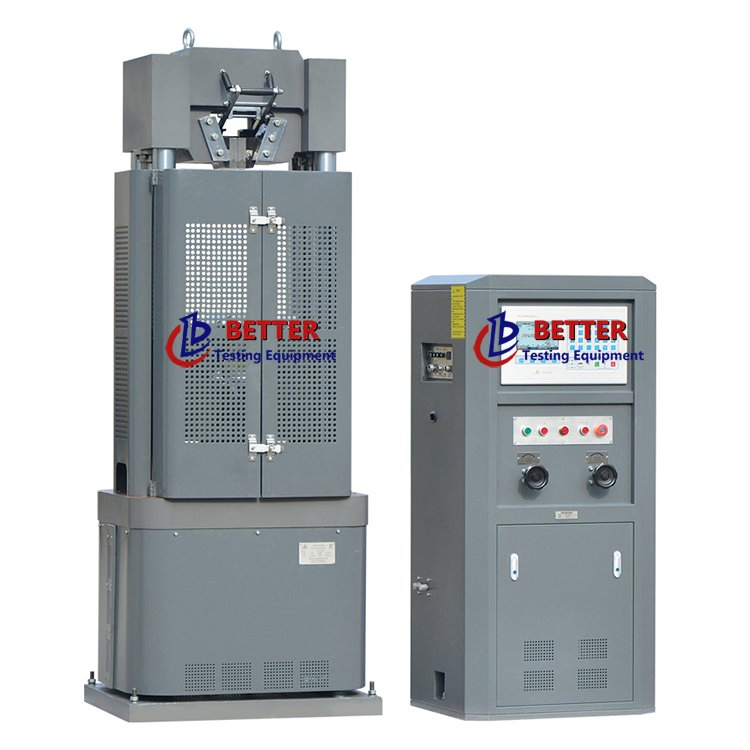

WEW type universal material testing machine with microcomputer screen display is driven by hydraulic power source and adopts measurement and control system to collect and process test data. It is composed of four parts: test host, oil source (hydraulic power source), measurement and control system and test instruments. The maximum test force is 1000KN and the accuracy of the testing machine is better than grade 1.
WEW type universal material testing machine with microcomputer screen display can meet the standard test requirements of the national regulations on metal tensile test, and can also realize the tensile, compression, bending, shear and other types of tests on different materials or products according to other standards, and can obtain the tensile strength, yield strength and other performance indexes of the tested materials.
The testing machine is a six column, double space structure. The tensile space is between the upper beam and the lower beam, and the compression space is between the lower beam and the test bench. The test space is adjusted automatically by driving the lower beam to move up and down through the rotation of sprocket and lead screw. The upper and lower crossbeams are equipped with hydraulically controlled clamping jaws. The standard machine is equipped with V-shaped and plane type jaws for clamping cylindrical samples and plate samples for tensile test. The bottom end of the lower crossbeam of the standard machine is equipped with an upper pressing plate, and the test bench is equipped with a lower pressing plate with a spherical structure, which can be used for direct compression test.

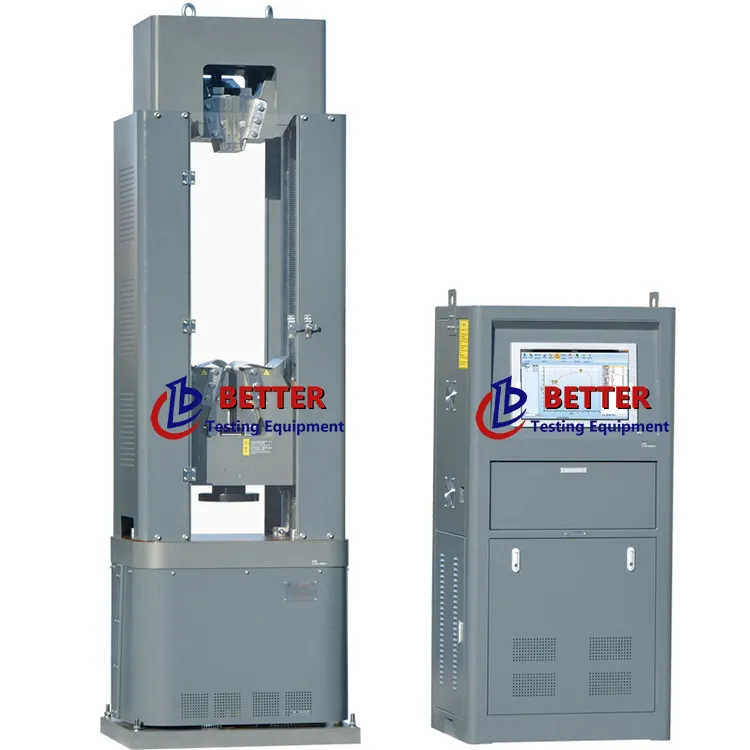

1000kn Utm Universal Testing Machine 300kn 1000kn

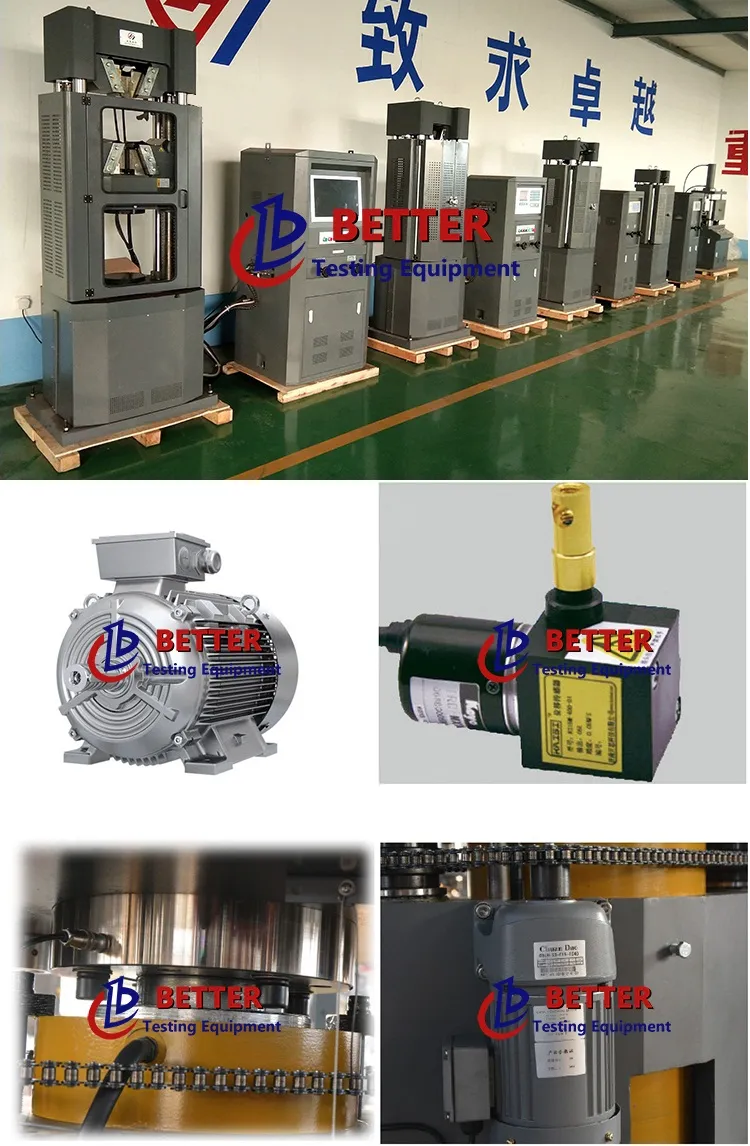

1000kn Utm Universal Testing Machine 300kn 1000kn

Modle	WAWD-300B	WAWD-600B	WAWD-1000B	WAWD-2000B
Maximum testing force(kN)	300	600	1000	2000
Middle beam lifting speed mm/min	320	320	320	320
Maximum compression space mm	600	600	600	650
Maximum tensile space mm	700	700	700	800
Piston stroke(mm)	200	200	200	250
Diameter of round specimen (mm)	10-32	13-40	14-45	20-70
Thickness of flat specimen (mm)	0-20	0-20	0-40	0-40
Maximum distance of bending test (mm)	300	300	300	/
Size of compression plates(mm)	150	200	225	240x240
Dimension of host(mm	800x620x2000	900x700x2300	1050x800x2500	1200x900x2850
Dimension control console(mm	800x600x1600
Power(kw)	2.2	2.2	2.2	3.5
Weight of control console(kg)	300
Weight of (kg)	1850	2550	3200	5000
