100kv Insulating Oil Dielectric Strength Tester Transformer Oil Breakdown Voltage Bdv Test Equipment

I.Introduction

Insulating oil dielectric strength tester is also known as oil breakdown voltage tester or oil BDV tester.
Break down voltage is measured by observing at what voltage, sparking string between two electrode
immersed in the oil, separated by specific gap. low value of BDV indicates presence of moisture content
and conducting substances in the oil.
In this kit, oil is kept in a pot in which one pair of electrodes are fixed with a gap of 2.5 mm (in some kitit 4mm) between  them.

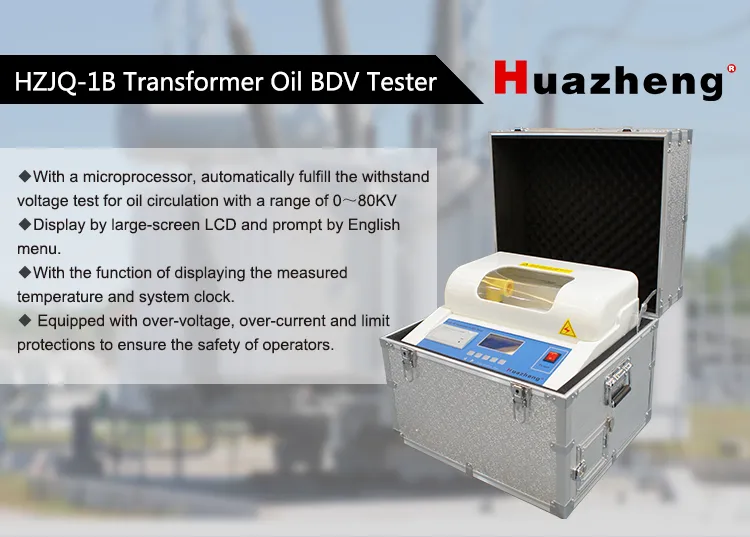

II.Features

1.withstand voltage test in the range of 0 ~ 80KV.
2.Large-screen LCD.
3.Simple operation
4.Store 100 experimental results, and display the currentenvironment temperature and humidity.
5.The whole process easy to control.
6.With overvoltage, overcurrent, limiting protection, in order to ensure the safety ofoperators.
7.With a temperature measurement display function and system clock display.
8.Standard RS232 interface.

III.Parameter

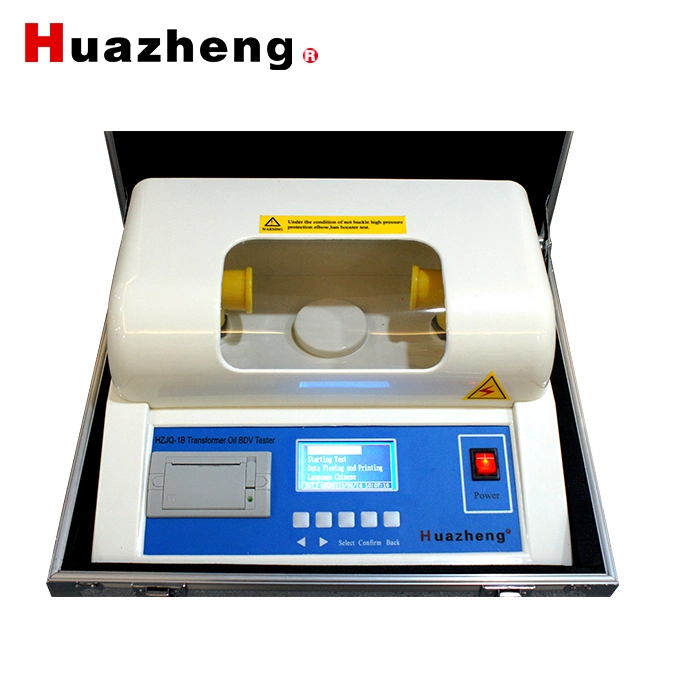

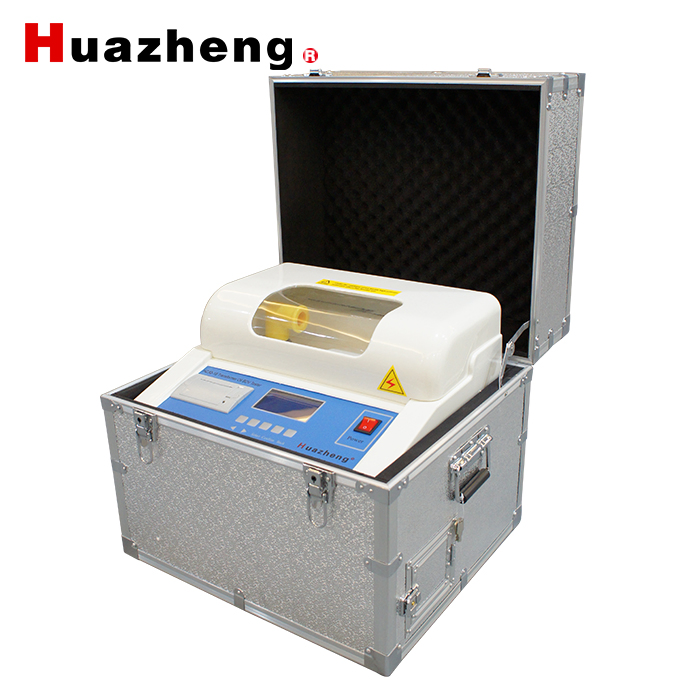

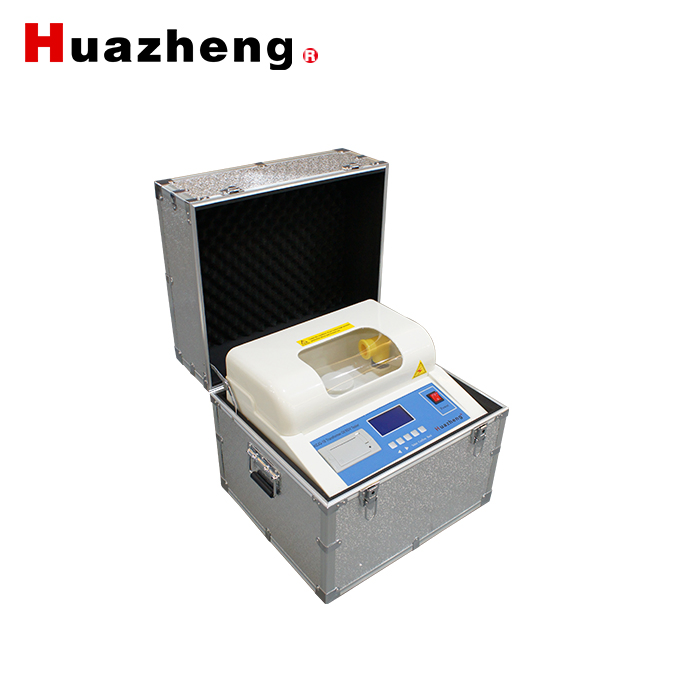

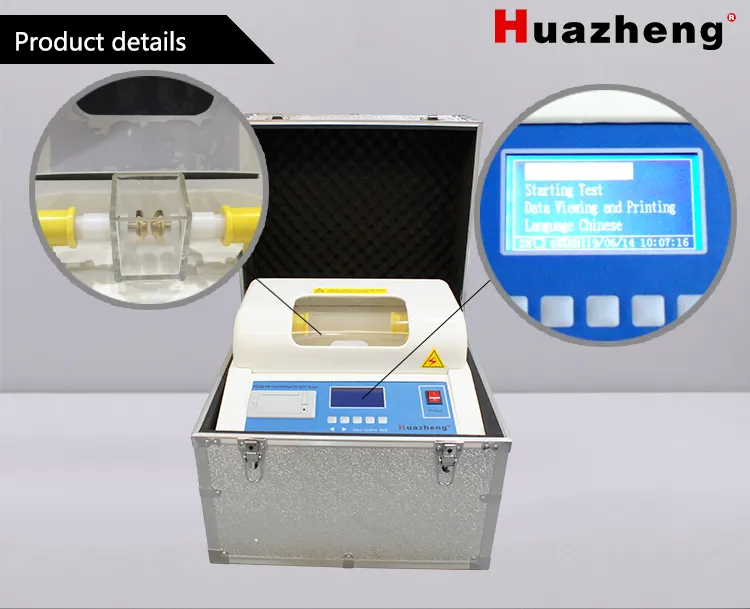

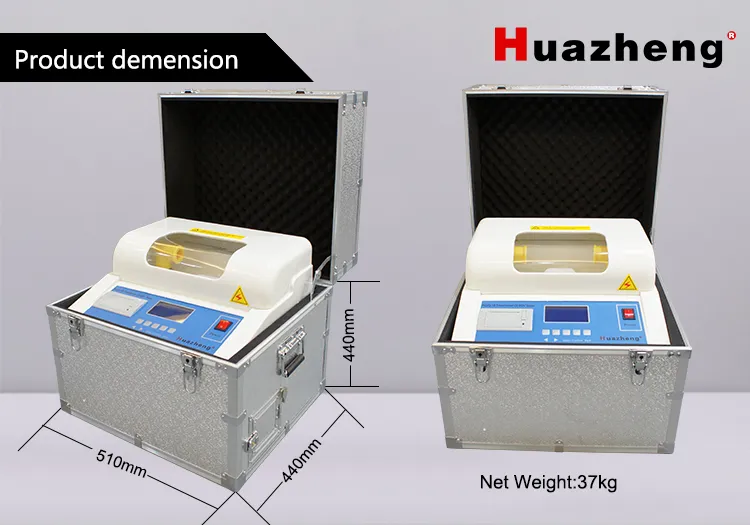

IV.Detailed Photos



V.Company Information

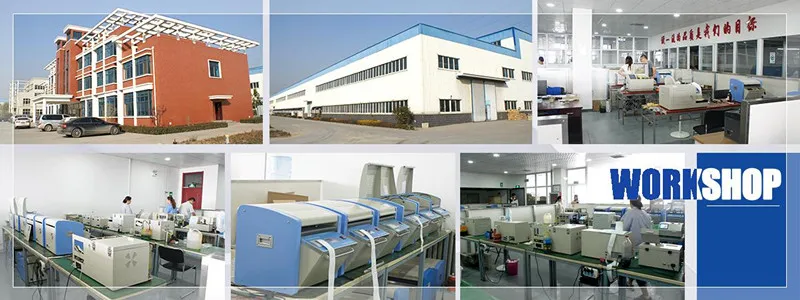

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.



VI.FAQ

1. Q: What is the language? After sale service? Warranty?
A.Yes,English version. After sale service. Warranty: 1 year.
2. Q: What is the highest voltage the instrument can test?
A: The instrument can test up to 100KV, OEM is also ok.
3. Q: Whether can communicate with computer , RS232? A: Yes, it can communicate with computer. It has RS232.
4. Q: Whether does it have battery or liquid ? Convinent to delivery?
A: It has a little Li-battey , no liquid, which does not influence the delivery.
5. Q: Does this instrument have the priter ? Automatically or by hand?
A: Yes, it has, you can set up whether to print the result automatically or by hand.
6. Q: How many times can it test once? How to get the result?
A: It can test 1-6 times (according to your requirement). Result is the average of testing


VII.Customer Visit



VIII.Exhibition

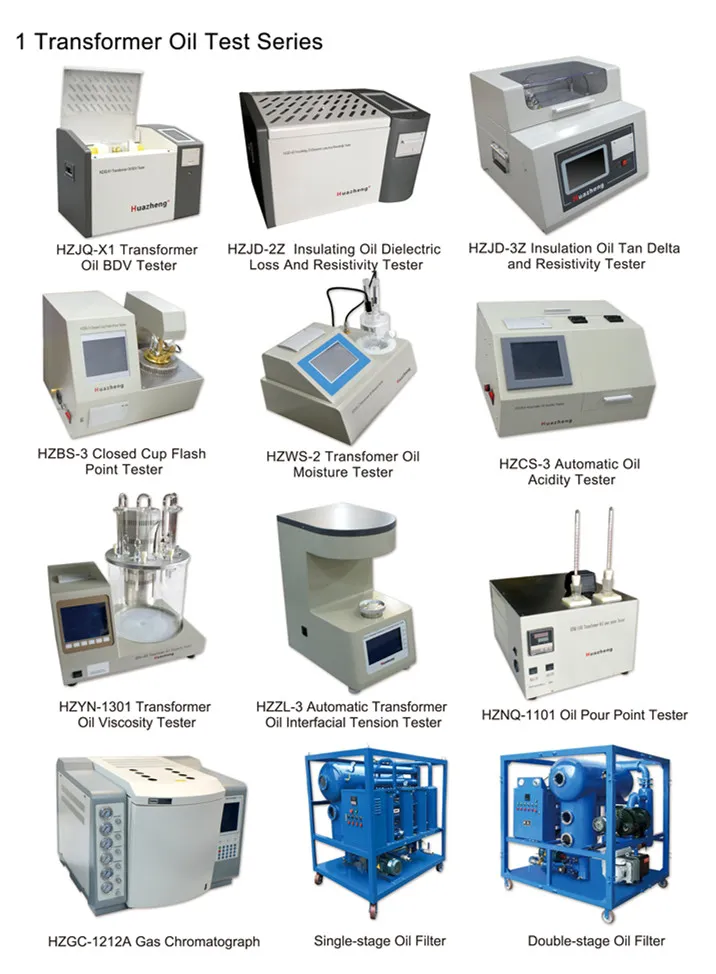

IX.Similar Recommendation
