10kn Electric Automatic Universal Testing Equipment for Lab Tensile Tests (WDW-10)
10kn Universal Testing Equipment for Lab Tensile Tests (WDW-10)Application:It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding ......
Send Inquiry
Product Description

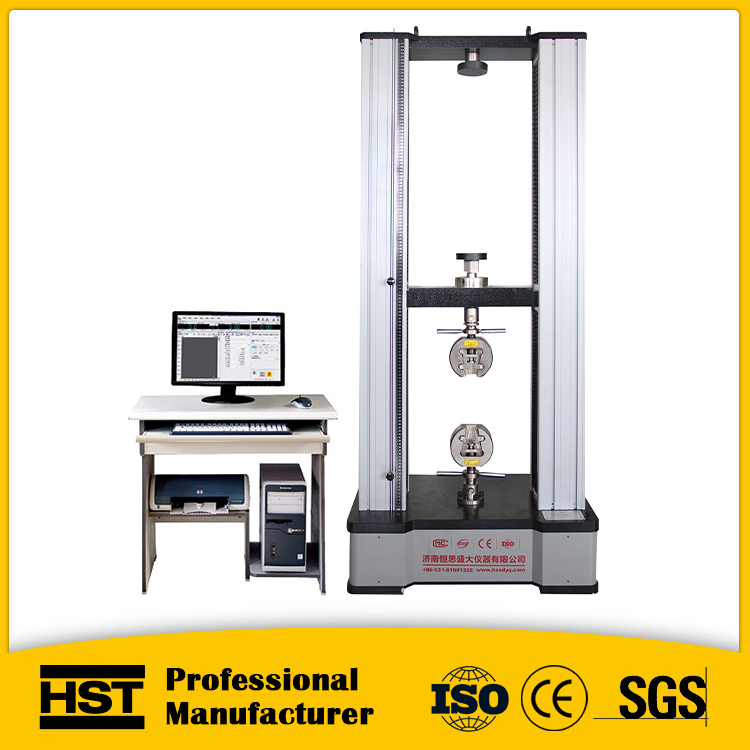

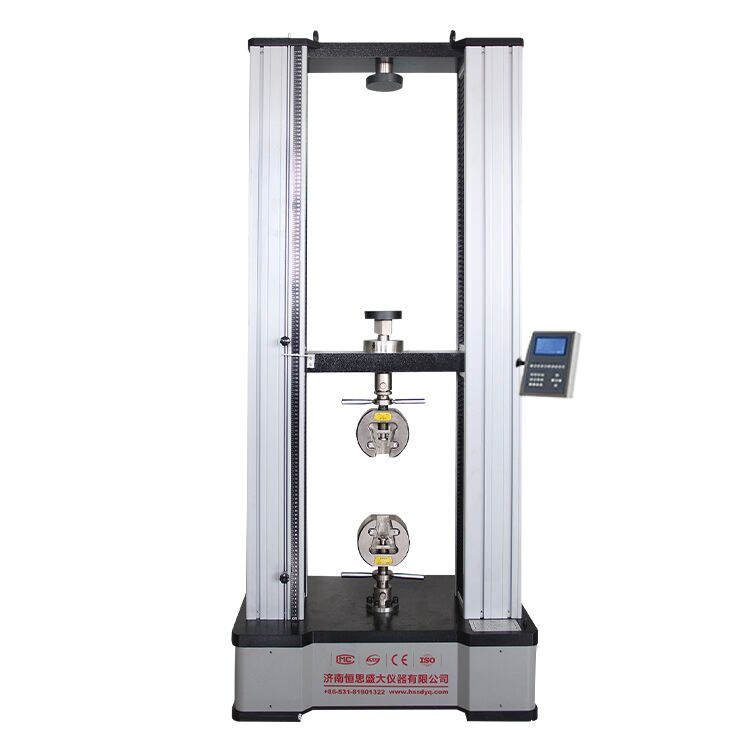

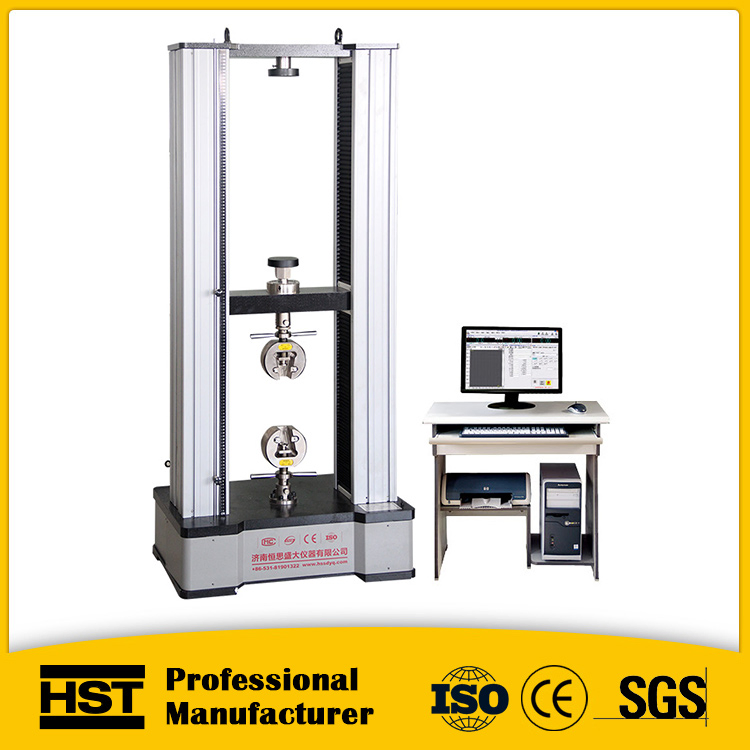

10kn Universal Testing Equipment for Lab Tensile Tests (WDW-10)
Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Specifications:

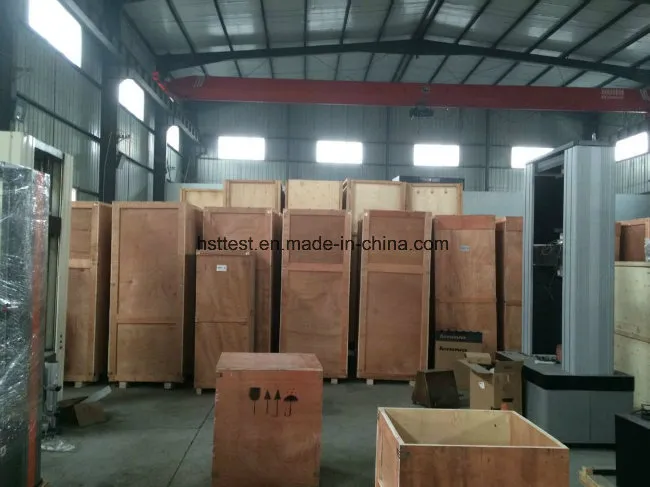

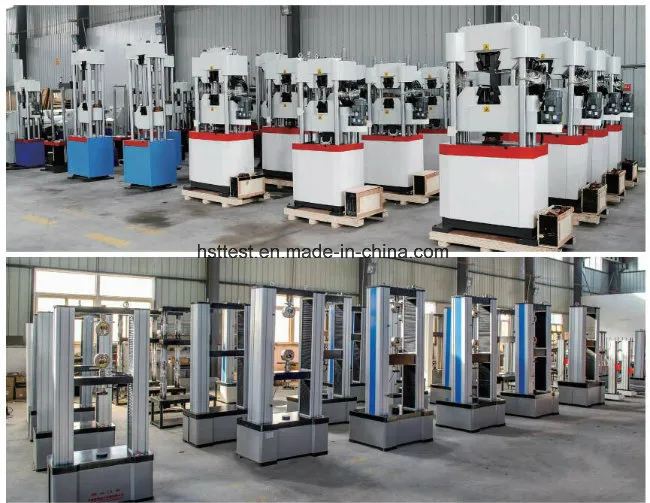

Factory show:
Certifications show:
Dear Customer, we have Electronic universal testing machines from 200N to 600KN for choice.
For more informations please send enquiry directly to Sunny:
Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standards:
ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,etc.Specifications:
| Model | WDW-10 | WDW-10E | WDW-20 | WDW-20E | |
| Max. Load(kN) | 10 | 10 | 20 | 20 | |
| Structure | Four-column floor or desk model, (upper is compression and lower is tensile) | ||||
| Cover | All aluminum alloy | ||||
| Control method | Computer control | ||||
| Load accuracy | Class 1 | Class 0.5 | Class 1 | Class 0.5 | |
| Load range | 2%~100%F·S | 0.2%~100%F·S | 2%~100%F·S | 0.2%~100%F·S | |
| Load resolution | 1/300000 | ||||
| Rang of deformation | 4%-100%FS | ||||
| Resolution of deformation | 0.04um | ||||
| Accuracy of displacement | Within±0.5%of indicating load | ||||
| Resolution of displacement | 0.01mm | ||||
| Test speed(mm/min) | 0.05-1000 stepless arbitrary setting | ||||
| Tensile space(mm) | 800(can be customized) | ||||
| Compression space(mm) | 800(can be customized) | ||||
Factory show:
Certifications show:
Dear Customer, we have Electronic universal testing machines from 200N to 600KN for choice.
For more informations please send enquiry directly to Sunny:
