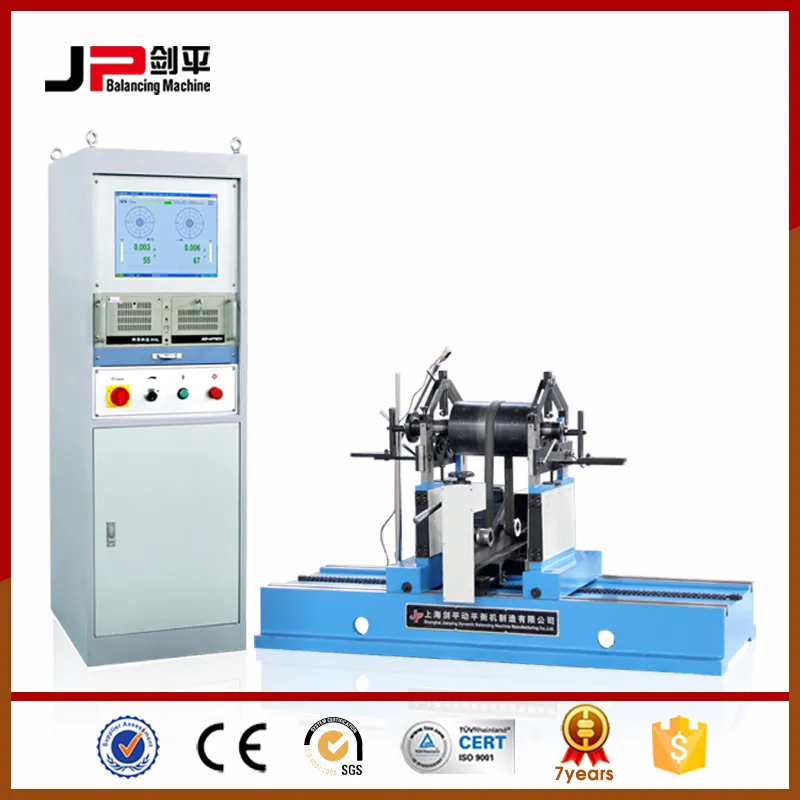

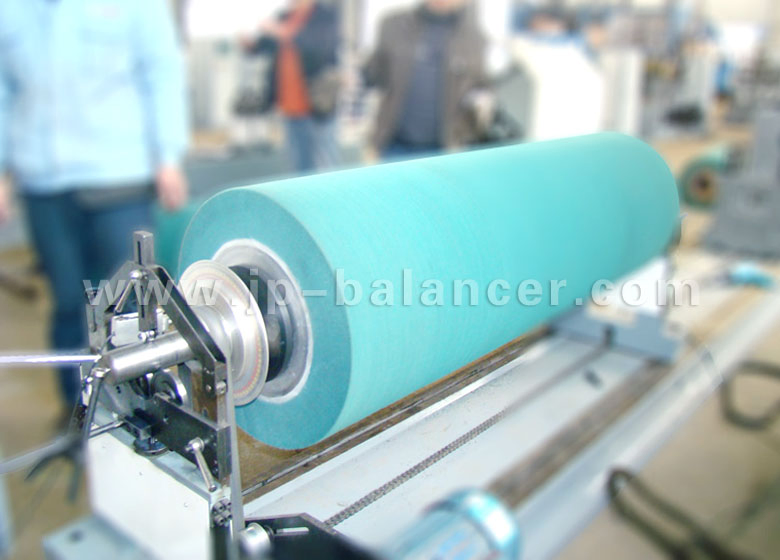

2021 Hot Sell Cylinder Balancing Machine
Technical specifications of Belt Drive balancing machine PHQ-160H(JP 580)Technical data at a glancePHQ-50PHQ-160HPHQ-300HPHQ-500HMax Mass of Workpiece(kg)50160300500Max Diameter of Workpiece (mm)Φ700Φ1000Φ1220Φ1500Distance Between Two Support Bearings (mm)80~700130~12......
Send Inquiry
Product Description
| Technical data at a glance | PHQ-50 | PHQ-160H | PHQ-300H | PHQ-500H |
| Max Mass of Workpiece(kg) | 50 | 160 | 300 | 500 |
| Max Diameter of Workpiece (mm) | Φ700 | Φ1000 | Φ1220 | Φ1500 |
| Distance Between Two Support Bearings (mm) | 80~700 | 130~1270 | 130~1270 | 130~1270 |
| Journal Diameter Scope of Workpiece (mm) | Φ 8~80 | Φ 15~753) | Φ 15~753) | Φ 15~753) |
| Diameter Scope of Driving Belt (mm) | Φ18~200 | Φmax400 | Φmax500 | Φmax600 |
| Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) | 700,10501) | 756,11761) | 756,11761) | 756,11761) |
| Motor Power (kw) | 0.752) | 1.52) | 1.52) | 2.22) |
| Length of Bed (mm) | 1500 | 1500 | 1500 | |
| Min Achievable Residual Unbalance Amount (emar) | ≤0.5g· mm/kg | ≤0.5g· mm/kg | ≤0.5g· mm/kg | ≤0.5g· mm/kg |
Range of Application

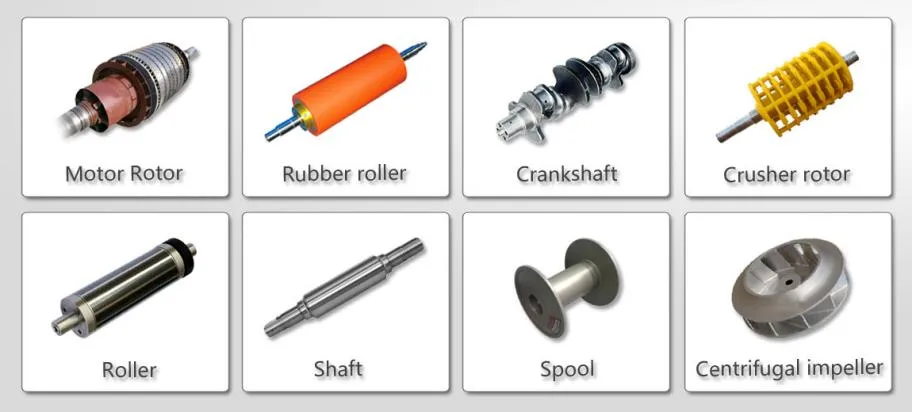

This balancing machine is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency

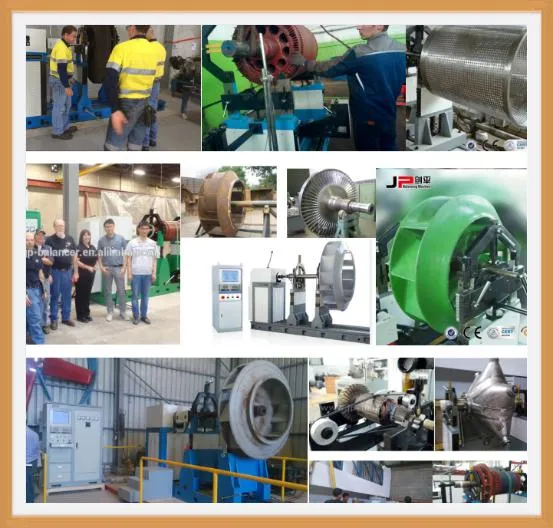

Customer use display

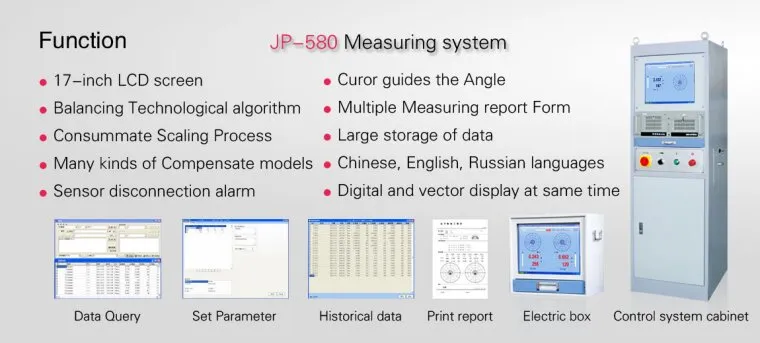

Eletrical Measuring System
Special Features
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments
About us & Certificate
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. We are professional balancing machines manufacturer, which located in international City Shanghai. The Company was founded in 2004,covering an area of 10000 square meters , and has 4 sales center in domestic.
We have ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine
