600kn 0.5 Class Steel Tensile Testing Equipment

Product Description

600KN Steel Strand Electronic universal tensile strength testing equipment

1.Application:

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2.Standards:

ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,etc.

3.Specifications:

Model	WDW-600E TEL: 8615098778967
Max. Load(kN)	600
Load accuracy	Class 0.5 Class 0.5
Load range	0.2%~100%F·S
Load resolution	1/300000
Resolution of deformation	0.04um
Accuracy of displacement	Within±0.5%of indicating load
Resolution of displacement	0.01mm
Test speed(mm/min)	0.05-200 stepless arbitrary setting
Speed accuracy	Within ±0.5% of set speed
E-Tensile space(mm)	1000 (can be customized)
E-Compression space(mm)	850 (can be customized)
D-Test width(mm)	800 (can be customized)

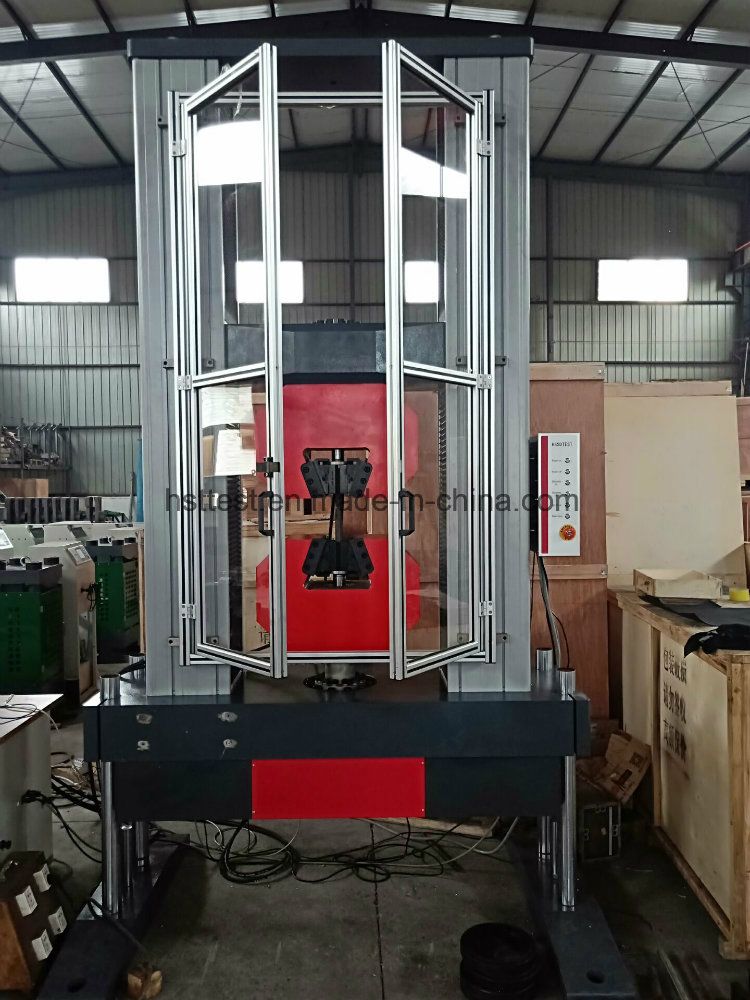

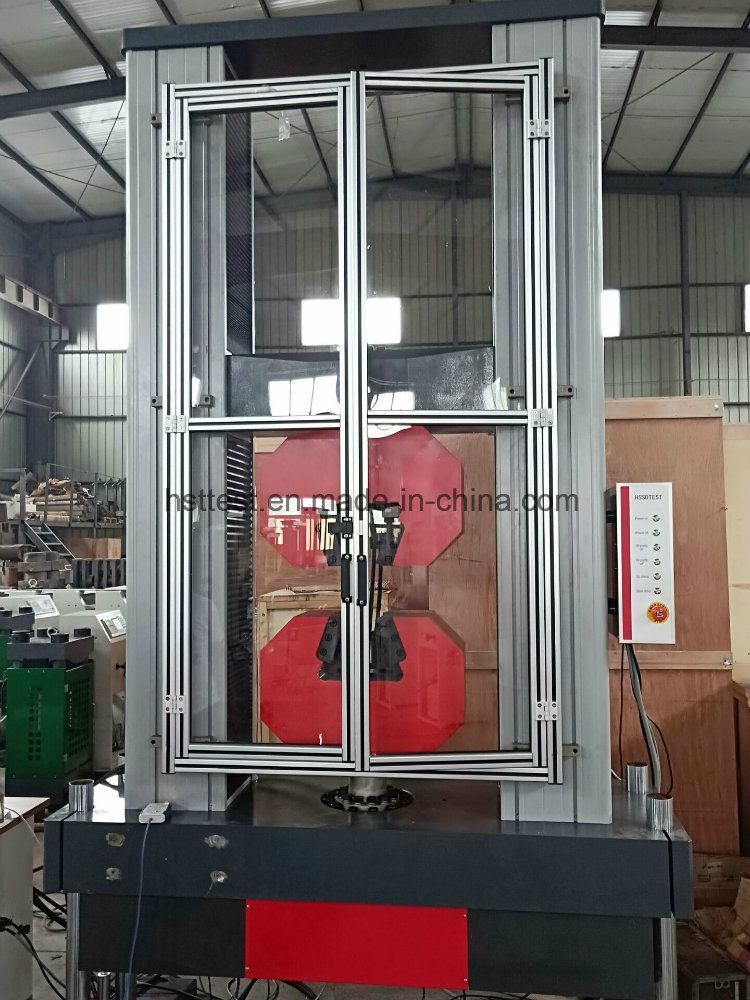

Machines details show:
600kn 0.5 Class Steel Tensile Testing Equipment

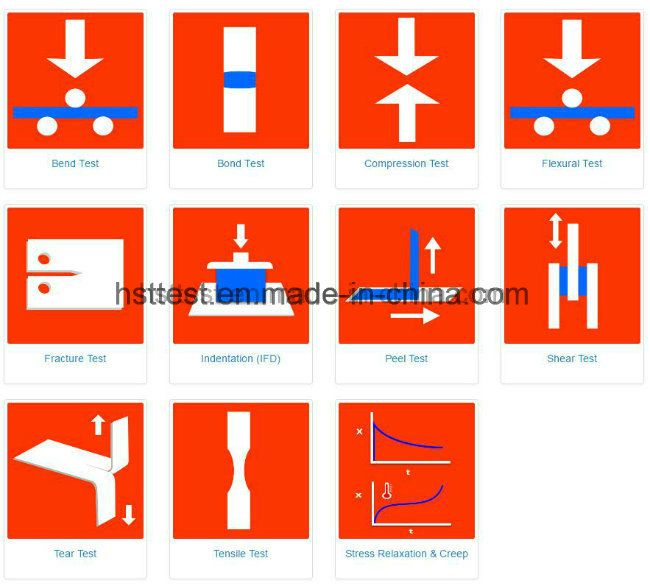

With different fixtures, this machine could attache different tests:
600kn 0.5 Class Steel Tensile Testing Equipment

Customers and partners all over the world:
600kn 0.5 Class Steel Tensile Testing Equipment

HST GROUP machines scope:
A: Universal Testing Machine :Electronic/hydraulicSingle column/door tye WDS/WDW/WE/WEW/WAW series
B: Impact Testing Machine: JB-300B/500B JBS-300B/500B  150J to 750J
C: Compression Testing Machine: YES-2000/3000/3000D  YAW-300
D: Hardness Testing Machine: Rockwell, Brinell, Vicker, Universal, Portable-leeb/webster/shore
E: Force Gauge/Tension Meter: NK DTF HF ATG etc.
F: Friction/Wear  Resistance Tester: MMW  MRH   MMU
G: Metallographic Equipments:cutting machine, polishing and grinding machine, mounting machine, microscopes.
