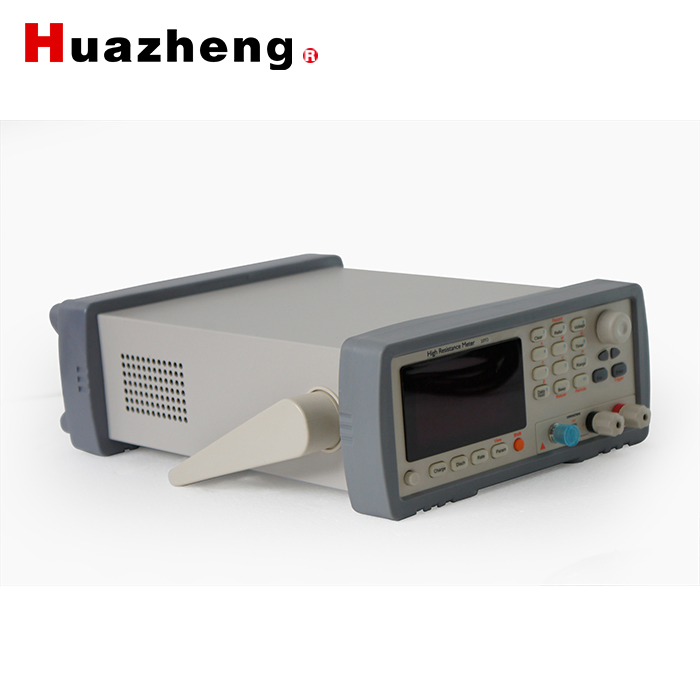

9999 Portalbe Digital Insulation Resistance Test Machine 10t Ohm
I.Introdution:
The HZJY-683 High Resistance Meter is an MCU controlled measuring instrument for direct readout of resistance and current. The voltage applied to the device under test (DUT) is programmable from 1 to 1000 volts. A pass/fail indicator provides a visual display of test results based on a preset limit.
The HZJY-683 High Resistance Meter is designed for measuring very high resistance and related parameters of insulation materials, electronic components, and electro-mechanical components.
II.Parameter:
III.Detailed Photos
IV.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
I.Introdution:
The HZJY-683 High Resistance Meter is an MCU controlled measuring instrument for direct readout of resistance and current. The voltage applied to the device under test (DUT) is programmable from 1 to 1000 volts. A pass/fail indicator provides a visual display of test results based on a preset limit.
The HZJY-683 High Resistance Meter is designed for measuring very high resistance and related parameters of insulation materials, electronic components, and electro-mechanical components.
II.Parameter:
Parameter | Leakage current and insulation resistance |
| Output Voltage | HZ683: (NC)1V~1000VDC |
| Accuracy | <10G:3%, ≥10G: 5%, ≥100G:10% |
| Measurement Range | 100kΩ~10TΩ 10V: 100kΩ~100GΩ;100V: 1MΩ~1TΩ;1000V: 10MΩ~10TΩ |
| Max Reading | 9999 |
| Range | Automatic and Manual |
| Speed | 55 times/second,15 times/second,3 times/second |
| Adjustment | Open-circuit Zero-Adjust for each range |
| Result Display | Show, current, resistance, peak value, and sorting result |
| Charging Timer | 999.9s |
| Comparator | 30 sets record,GD/NG Beep: GD,NG,OFF setting. |
| Interface | RS-232C interface Handler interface (AT682SE optional interface) |
| Others | VFD four color high-definition screen,keypad lock and data hold function |
| GENERAL FEATURES | |
| Power Supply | Voltage: 198VAC~240VAC Frequency: 50Hz Power: Max 30VA |
| Dimension | 264(W)mm x 107(H)mm x 350mm(D) |
| Weight | 5kg |
| ORDERING INFORMATION | |
| Accessories | ATL507: Test Clip |
| ATL108: RS232 Interface Cable | |
| Test Voltage | 0.5KV ,1KV,2.5KV,5KV, 10KV | Resistance Range | 0.1M ~ 400GΩ |
| Measuring Time | 1 minute to 10 minutes | Short Circuit Current | 5mA |
| Temperature | -10 ~ 40 ºC | Relative Humidity | 20 to 80% |
| Power Supply | 180 ~ 270VAC, 50Hz/60Hz ± 1% | Accuracy | ± 10% |

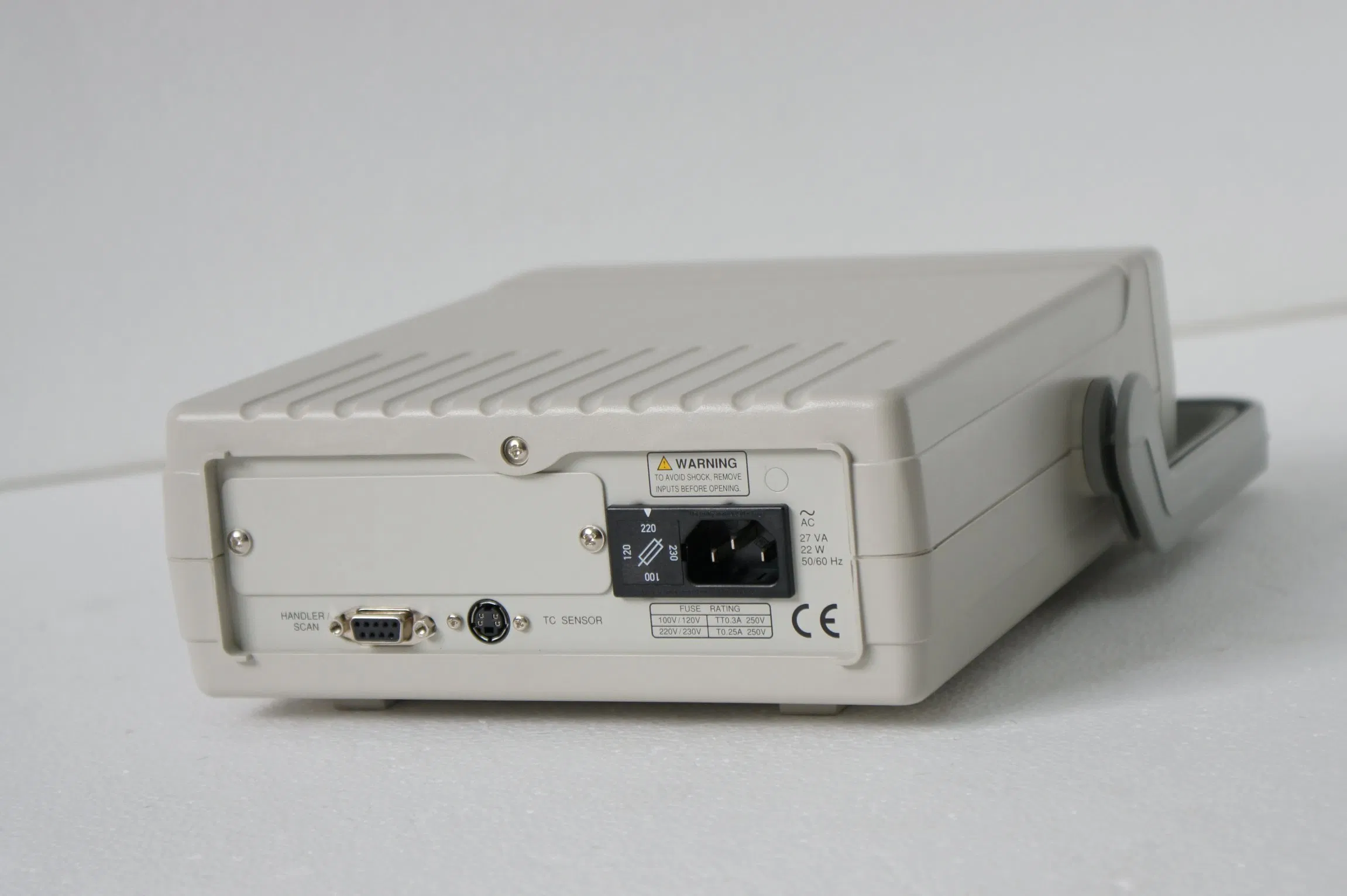

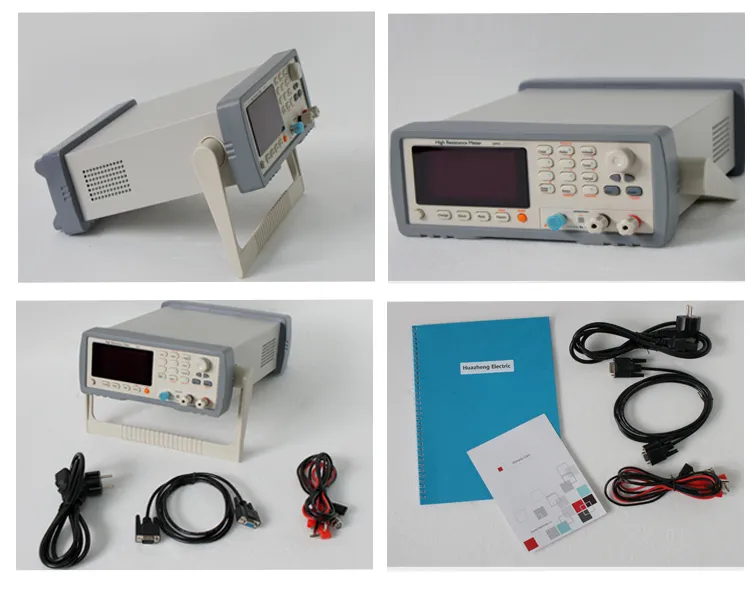

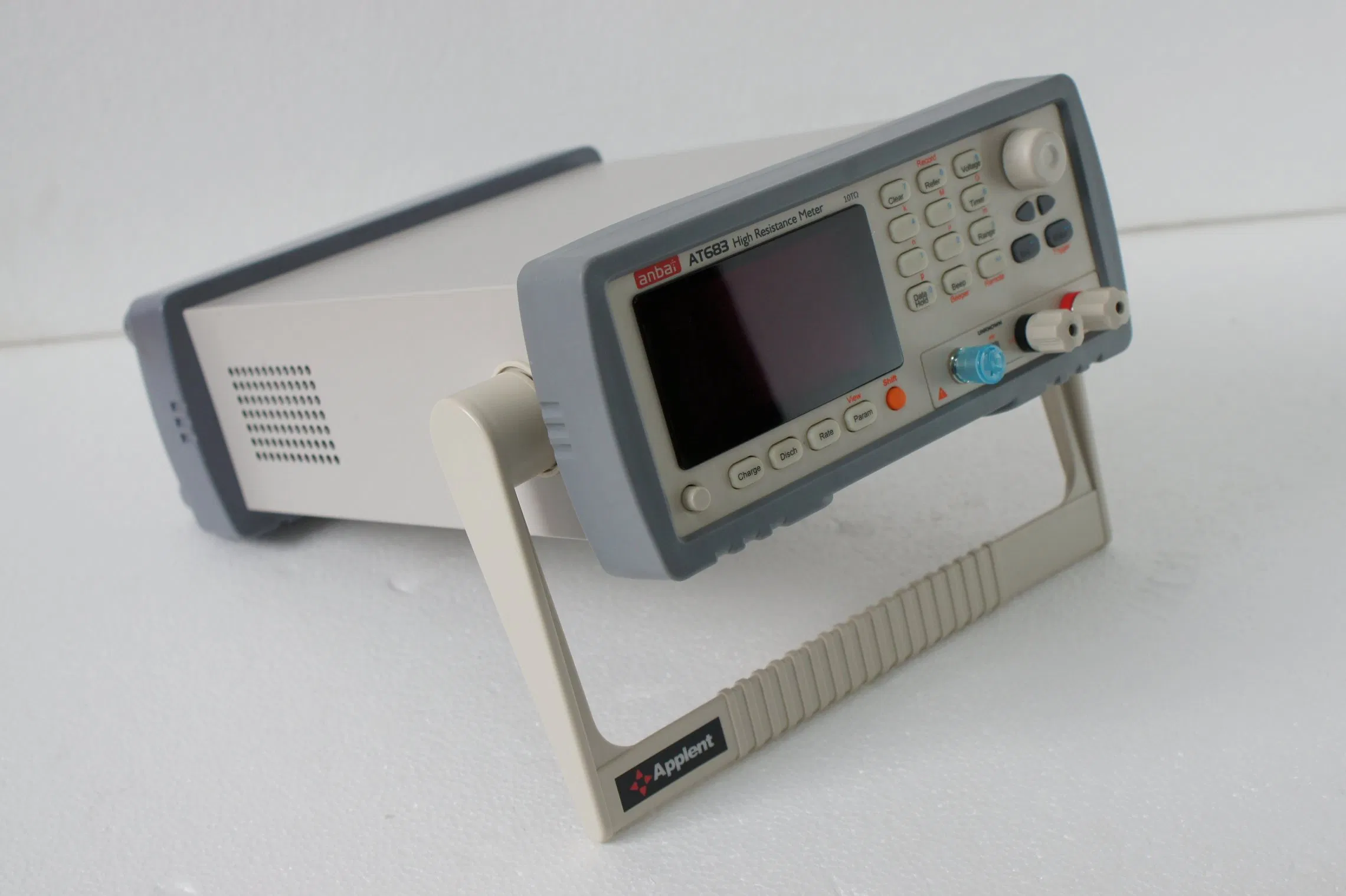

III.Detailed Photos

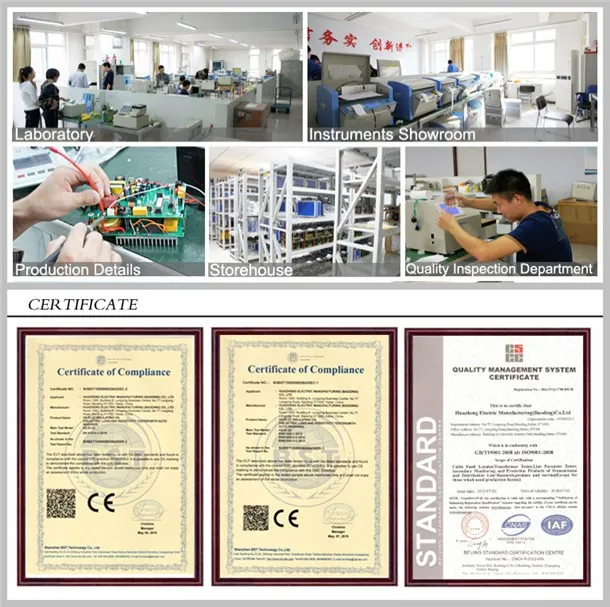

IV.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
V.Customer Visit
VI.Exhibition

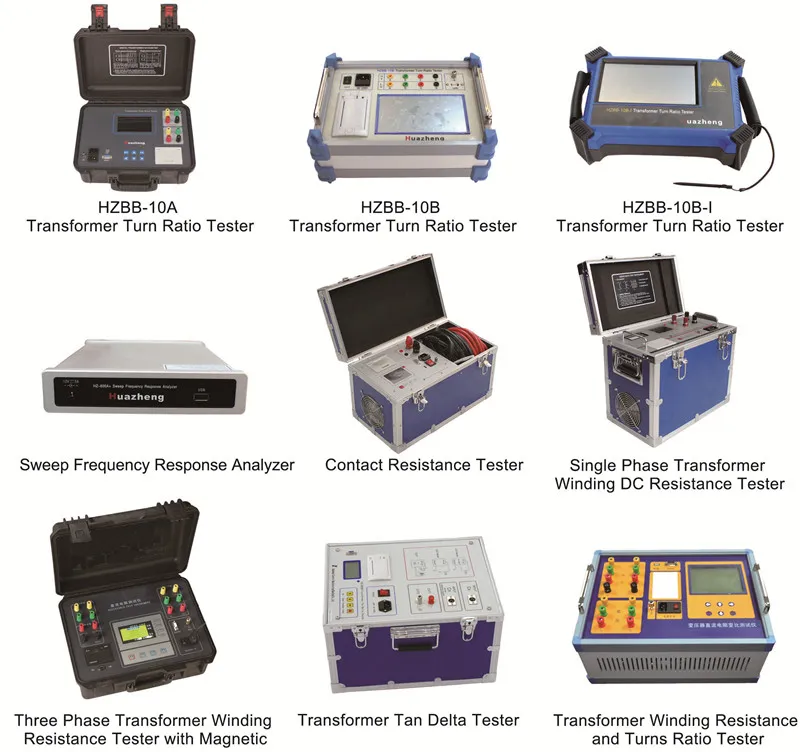

VII.Similar Recommendation
