Product Description

General Information:

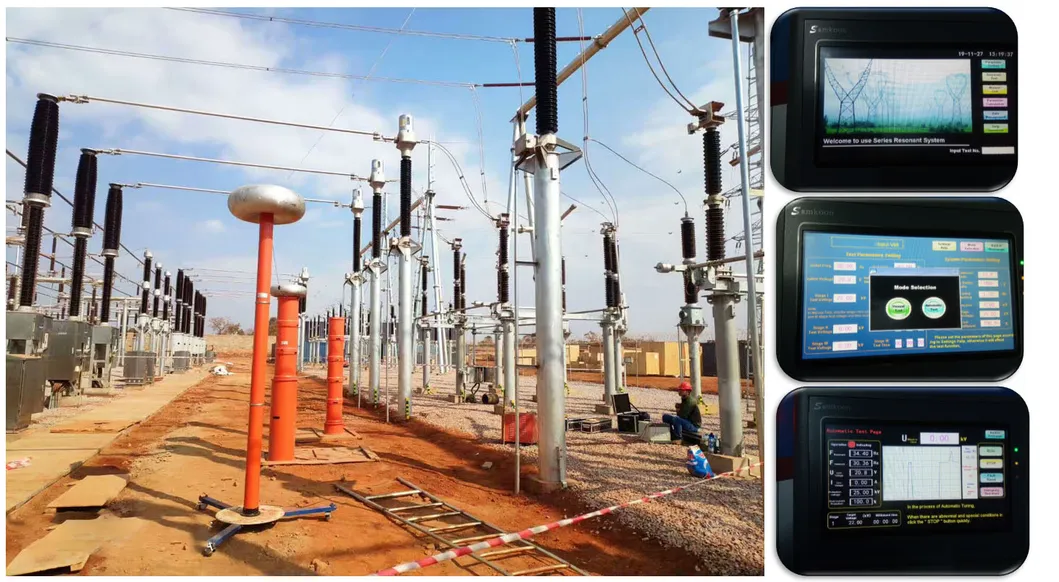

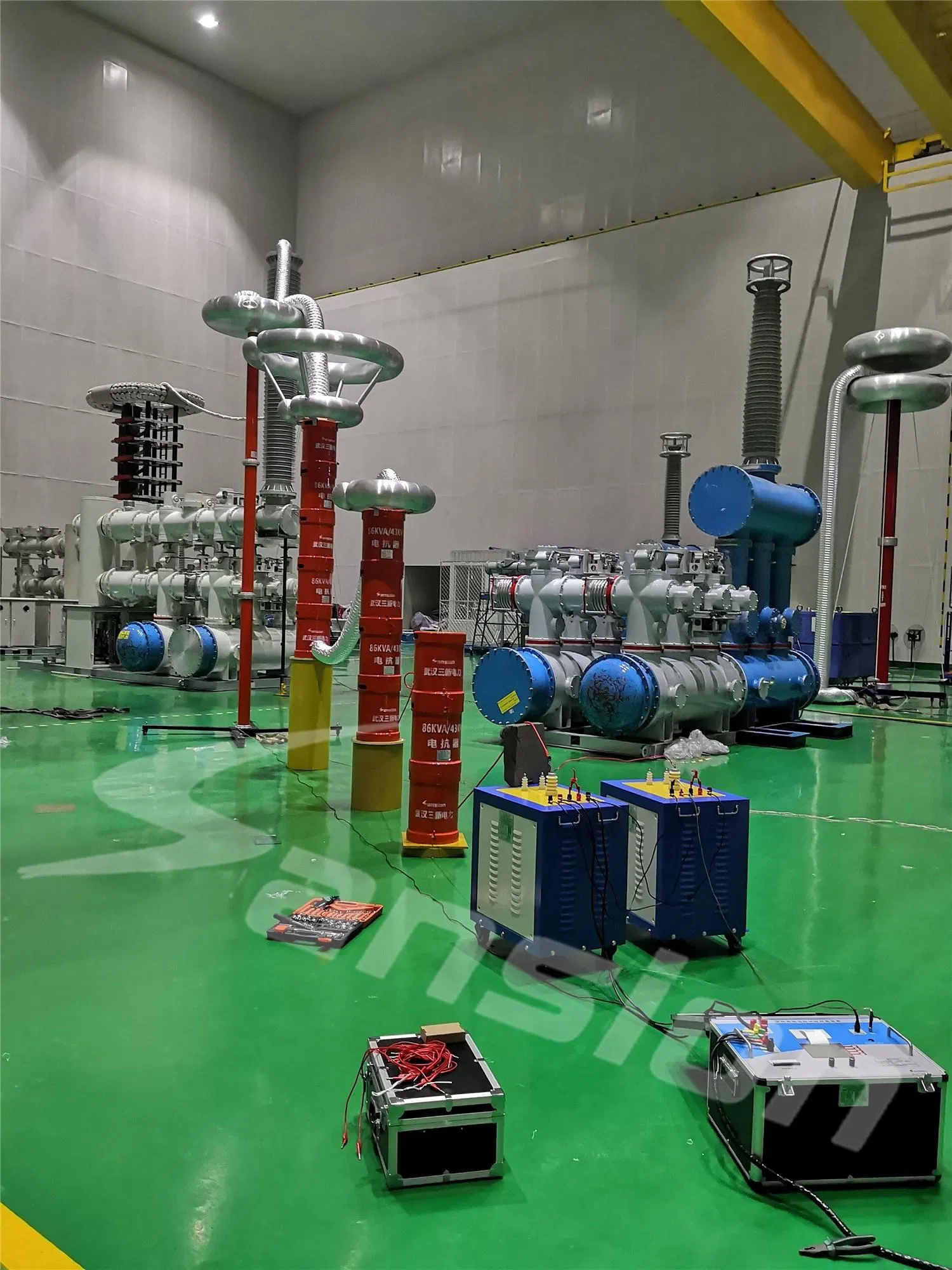

SXBP Series AC Resonance Test System is specially designed for AC withstand test for electric equipments of substation at 10kV~500kV or below.

Applications:

√ Transformer √ Cables √ GIS System √ Insulator √ CT/PT

Features:

√ Small size, portable for operating.

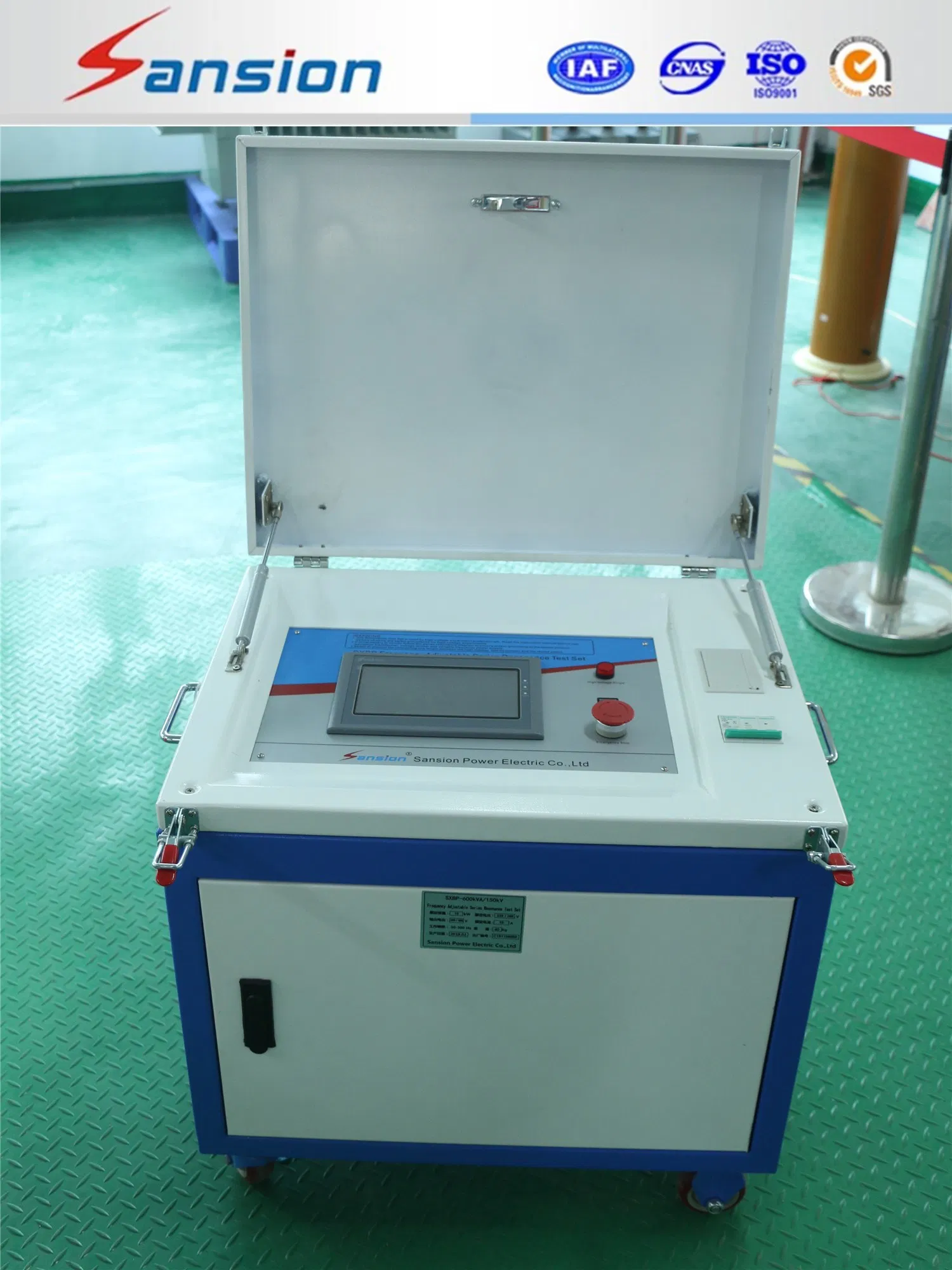

√ Screen to show the test data, status and display operation step by real-time.

√ Small temperature rising at rated load. Dry-type epoxy cast, high mechanical strength and good insulation ability.

√ 220V or 380V single phase power source is suitable for on-site sourcing.

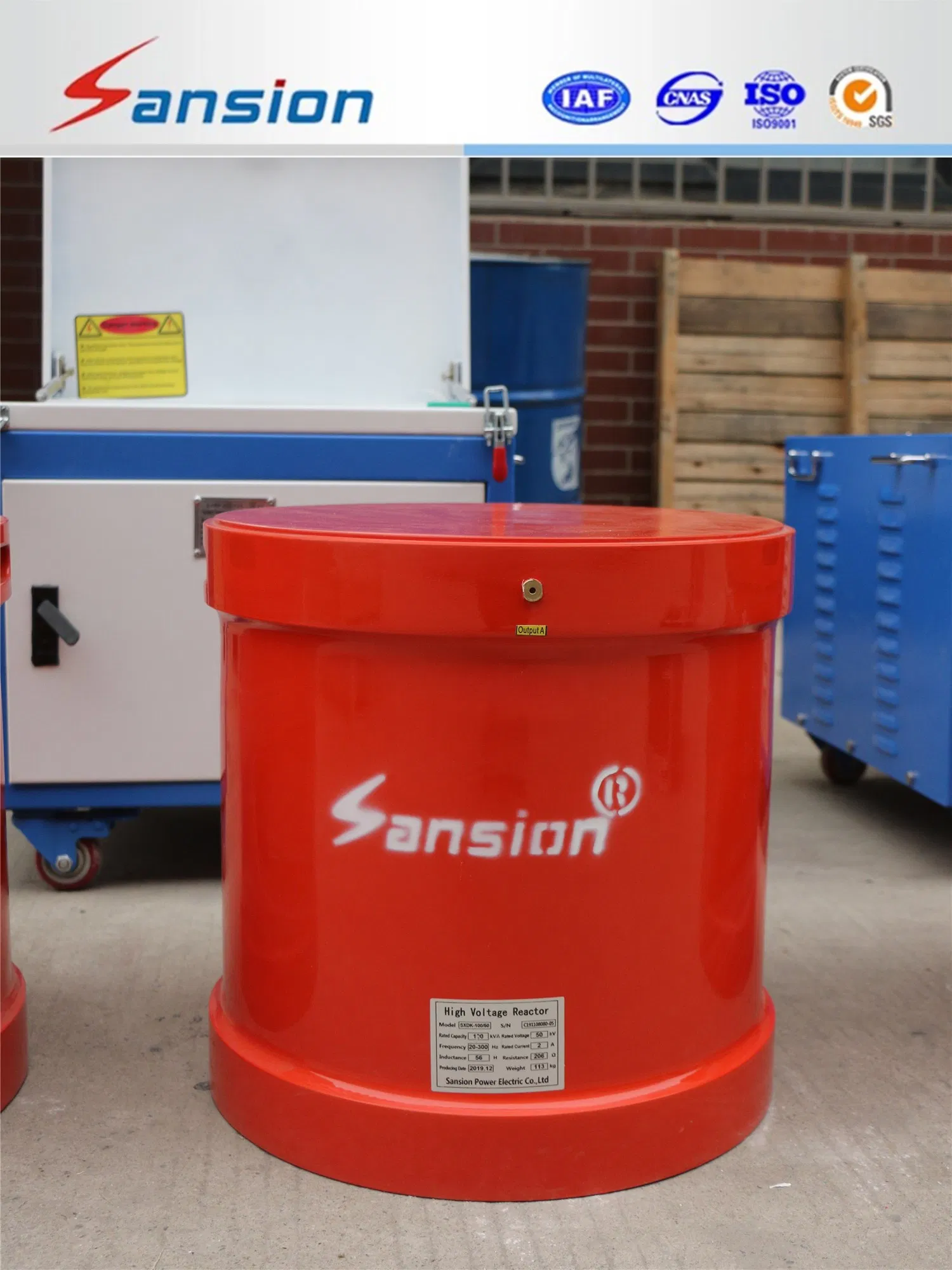

√ Different type reactors for optional realize the multipurpose.

√ With over current, over voltage, IPM and discharge protection function.

√ Test result can be printed.

Specifications:

√ Rated output voltage: 0~500kV or below

√ Output frequency: 20 -300Hz.

√ Resonant voltage waveform: sine wave, waveform Distortion rate ≤ 1%.

√ Full load working time: continuous working time 60mins.

√ Quality factor: max. load ≥ 20.

√ Frequency adjustment: fineness 0.1Hz, instability ≤ 0.01%.

√ Power supply: 220V or 380V single-phase.

AC Cable Test Equipment Resonant Test System-Sxbp

Common Configuration:

Model	Test Object	Main Configurations:

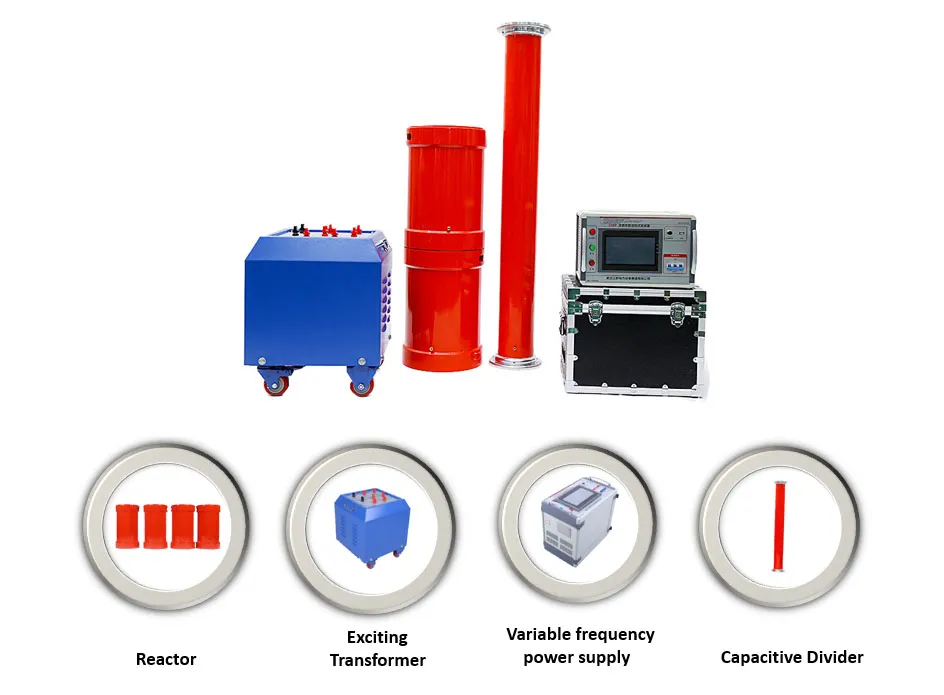

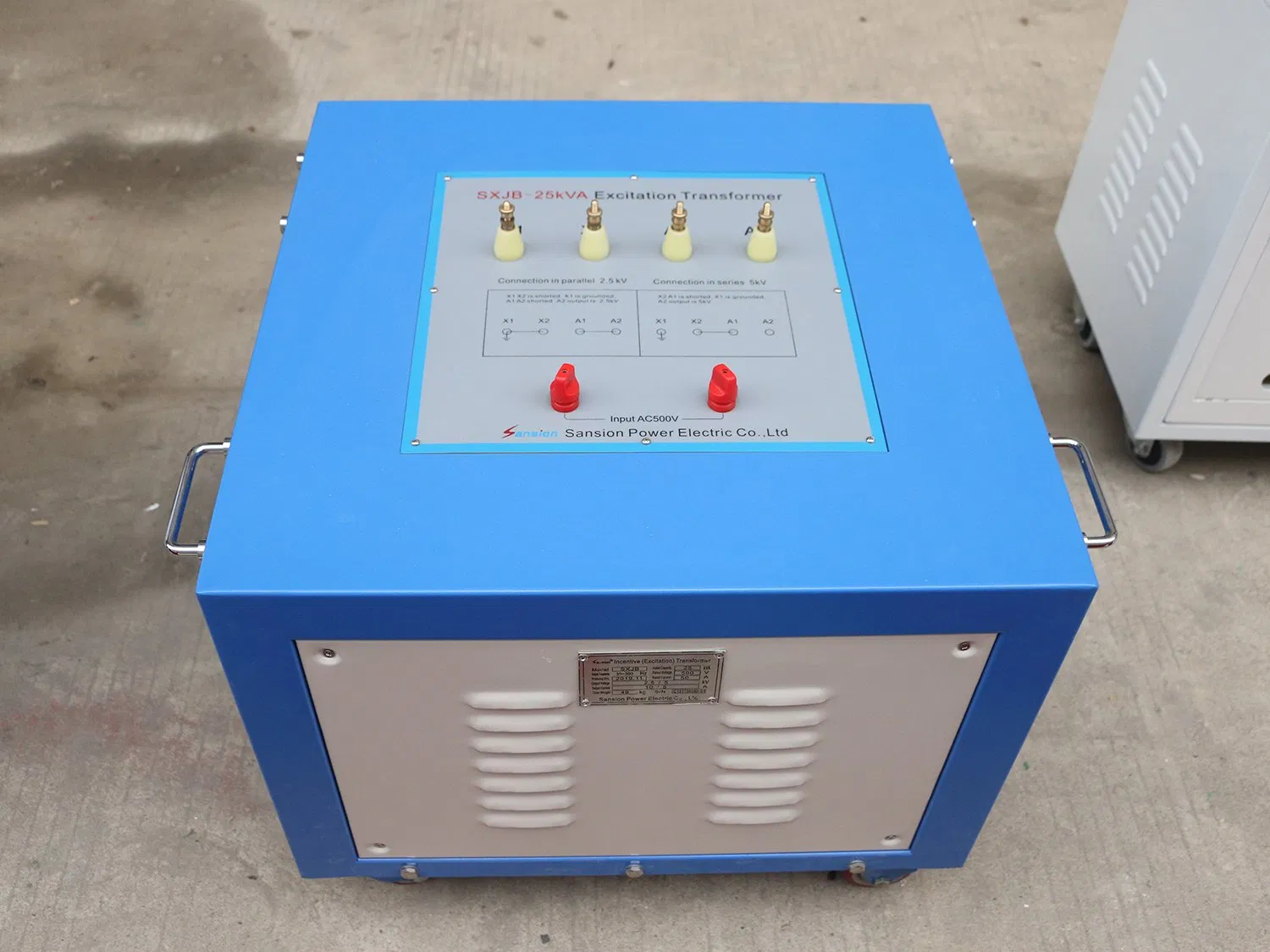

		AC power source	Exciting Transformer	Reactor	Capacitive Voltage Divider:
SXBP-27/54/108-108 Test Frequency: 20~300Hz	31500kVA/35KV Power Transformer	10KW 1 unit	10KW 1 unit	27KV/1A 4 Units Frequency: 20-300Hz	120KV
	35KV circuit breaker, busbar, insulator
	10KV(300mm2) cable 2000m
	35KV(300mm2) cable 500m
SXBP-54/108/216-216 Test Frequency: 20~300Hz	110KV Circuit breaker and busbar	15KW 1 unit	15KW 1 unit	54KV/1A 4 Units Frequency: 20-300Hz
	110KV GIS ≤ 10 intervals
	35KV (300mm2) cable 1500m
	10KV (300mm2) cable 3000m
	110KV Full Insulated Transformer
SXBP-65/130/260-520 Test Frequency: 20~300Hz	110KV Circuit Breaker and busbar	30KW 1 Unit	30KW 1 Unit	65KV/2A 4 Units Frequency: 20-300Hz	300KV
	110KV GIS ≤ 10 intervals
	110KV (300mm2) cable 800m
	35KV (300mm2) cable 3000m
	10KV(300mm2) cable 200m
	110KV Full Insulated Transformer
SXBP-45/90/135/180/270-270 Test Frequency: 20~300Hz	110KV Insulator, switchgear, GIS and etc.	20KW 1 unit	20KW 1 unit	45KV/1A Six Units Frequency: 20-300Hz	200KV
	50MW/110KV Full Insulated Transformer
	110KV (300mm2) cable 200m
	35KV Power Transformer, switchgear, CT/PT, cable, and etc.
	20MW hydrogenerator
	10KV power transformer, switchgear, CT/PT, cables and etc.
SXBP18/36/54 Test Frequency: 20~300Hz	10KV (300mm2) cable 2000m	5KW 1 Unit	5KW 1 unit	27KV/1A 2 units or 18KV/1A 3 units Frequency: 20-300Hz	60KV
	35KV (300mm2) cable 500m
	10KV power transformer, switchgear, CT/PT and etc.

√ Model SXBP-27/54/108-108, SXBP is the model of series, 27/54/108 is: voltage of one reactor (KV)/voltage of two reactors in series connection/voltage of four reactors in series connection. 108 is the total capacity (KVA).

√ The test object is the common configuration for reference only. For details, please contact with us. If the capacity of your equipment is small and voltage is too low, can add more reactors to increase the capacity, and add more divider to increase the test voltage.

Please contact with us for further information, our technically expereinced expertise team will select correctly designed test set for you.

Warranty: One year quality guarantee after shipment.
