AC400V 525kVA Cheap Generator Sets Testing Dummy Load
AC400V 525KVA Cheap Generator Sets Testing Dummy Load1.Product IntroductionCheap Generator Sets Testing Dummy Load It is composed of outdoor resistor-inductance AC load bank,data collection system,electric control module,thermal module,control part etc.It can accurately detect Marine generator outpu......
Send Inquiry
Product Description
1.Product Introduction

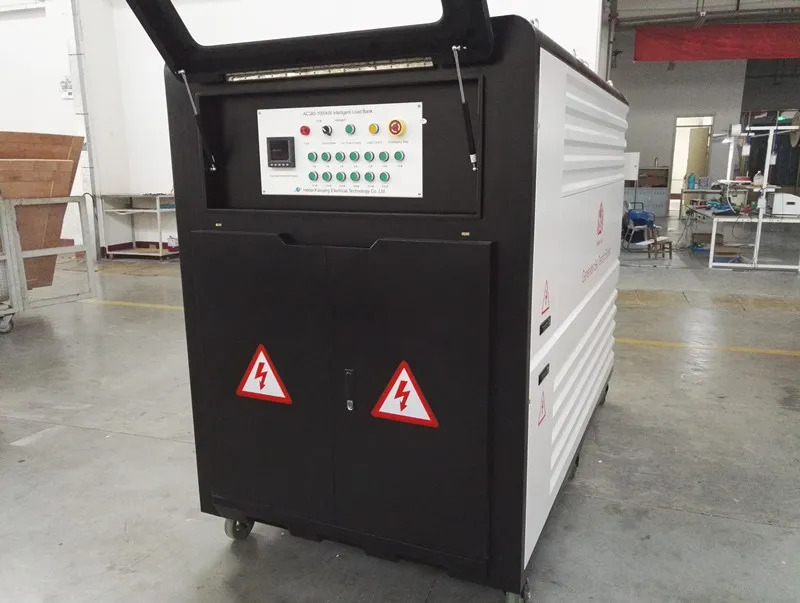

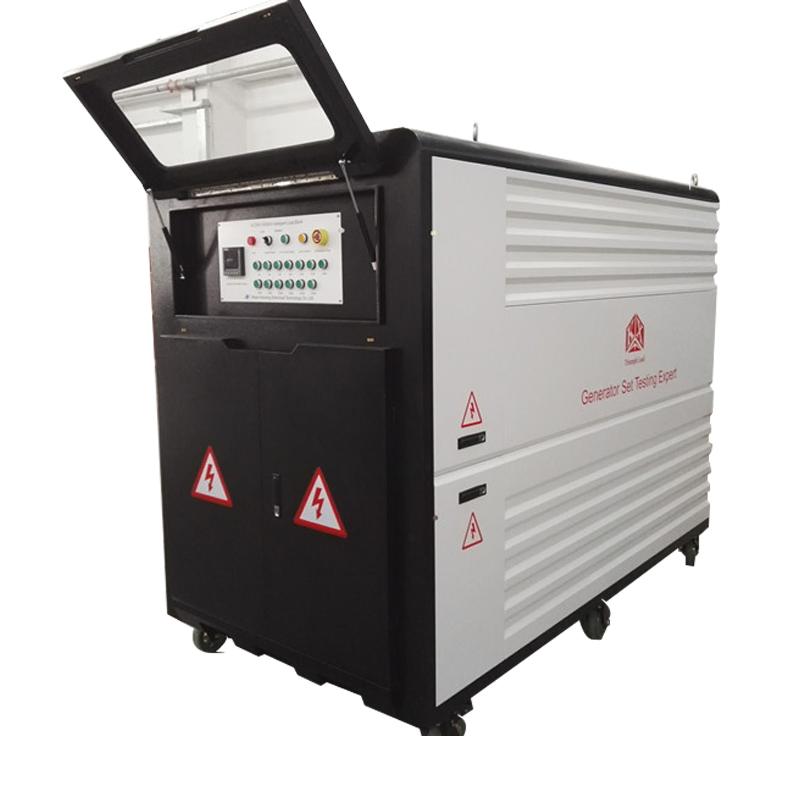

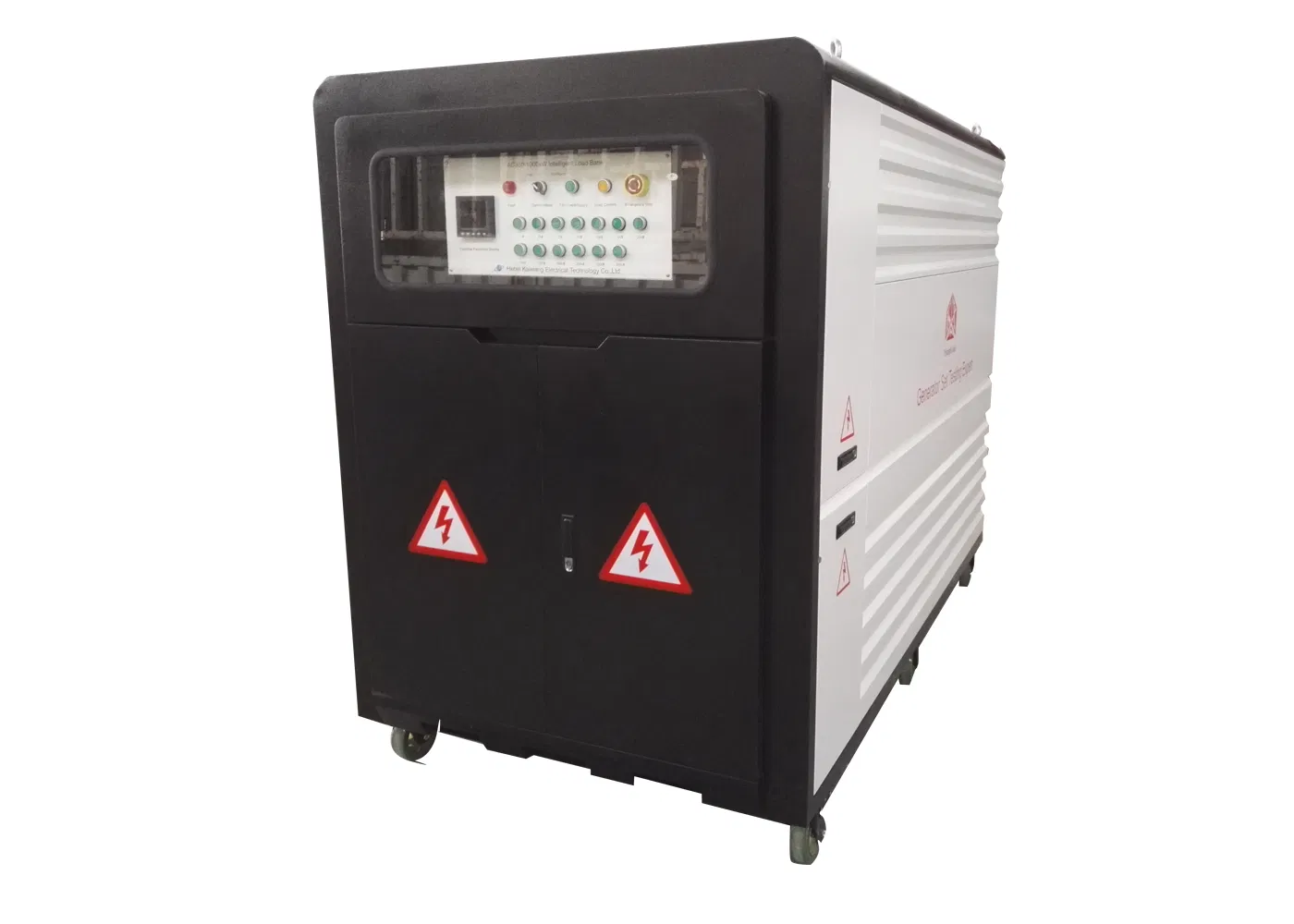

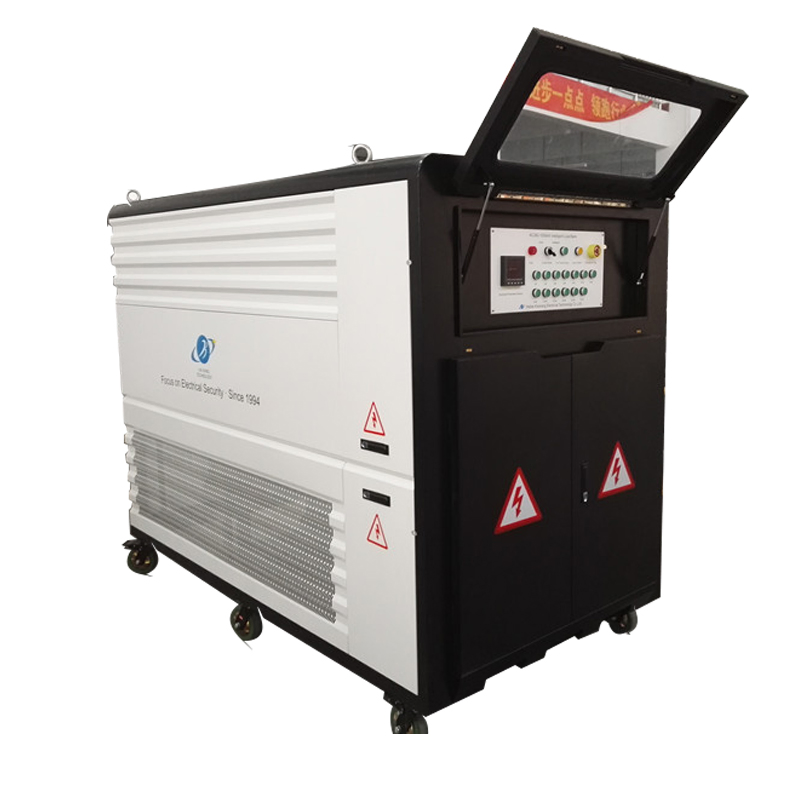

Cheap Generator Sets Testing Dummy Load
It is composed of outdoor resistor-inductance AC load bank,data collection system,electric control module,
thermal module,control part etc.It can accurately detect Marine generator output power and load capacity,
and assist shipyard in acceptance of vessel,mooring test,sea trial,load test,static voltage characteristic
test, speed characteristic test,overload protection test,reverse power and reverse current protection test,
and parallel operation test etc.
2.AC400-525KVA Cheap Generator Sets Testing Dummy Load Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
3.AC400-525KVA Cheap Generator Sets Testing Dummy Load Technical Specifications
Technical parameter | |
AC400-525KVA-L | |
Rated voltage /Frequency | AC Three-phase three-wire 400V,50/60Hz;AC three-phase four-wire 690V,50/60Hz |
Rated Capacity | 525KVA |
Stepping Value | 0.1Kvar |
Reactance file | 0.1,0.2,0.2,0.5,1,2,2,5,5,10,10,20,20,50,100,100,200Kvar 17steps |
Power factor | 0.8~1 |
Load Tolerance(each step) | ±5% |
Load Tolerance(overall) | ±3% |
Display Precision | 0.5 class |
Control Power Supply | External AC three-phase four-wire 380V/50Hz |
Wire Connection | Load power supply input--Copper bar Control power supply input--Aviation connector/copper bar When 400V,angle connection;when 690V,star connection,manual conversion |
Insulation grade | F class |
Duty cycle | Continuous |
Cooling | Forced air cooling, Horizontal inlet air, Vertical cooling |
Transportation | Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Casing Color | Grey(RAL7035) |
Dimension | 1800mm*1400mm*2000mm |
Weight | 3000Kg |
Operating Environment Parameter | |
Ambient Temperature | -10ºC~+50ºC |
Relative Humidity | ≤95% |
Altitude | ≤2500 meters |
Atmospheric Pressure | 86~106kPa |
Main components brand | |
Contactor | Schneider |
Circuit Breaker | Siemens |
Fuse | Delixi |
SCM | Infineon |
Alloy Resistor | Kaixiang |
Data Management Software | Kaixiang |
4.Quality Inspection
The company has 140 employees, including 50 technicians and 25 senior technicians.It is a research and development team and production team composed of elite professionals. Provide the best technical service for customers

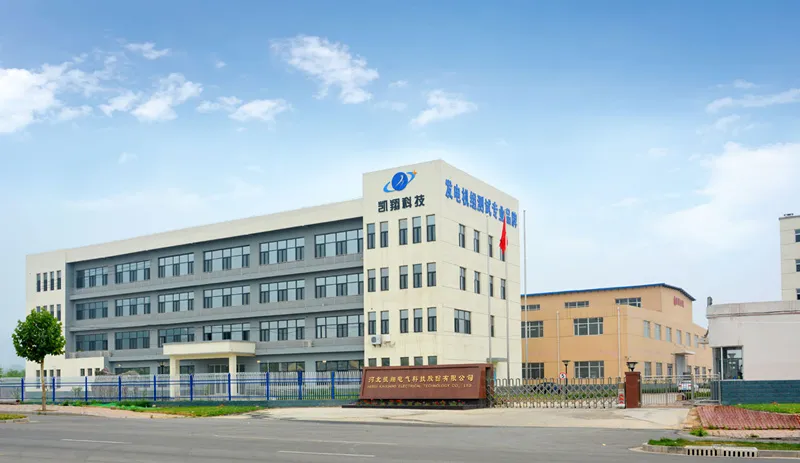

5.company information
Kaixiang Technology was established in 1994, long-term focus on smart power detection technology development and application in shipbuilding, petroleum, offshore platforms, data centers, communications, power, military, aviation, research institutes and other areas, and in strict accordance with the ISO9001 international quality standard management system for the design, manufacture and service.
The company's core technologies are independent research, has seven patents, 10 software copyrights, two corporate standards.Among them, Kaixiang "smart power marine generators AC load," Science and Technology Department of Hebei Province has been named the international advanced level scientific and technological achievements, the enterprise standard "dry AC load" to upgrade the industry standard by the Ministry of publicity.

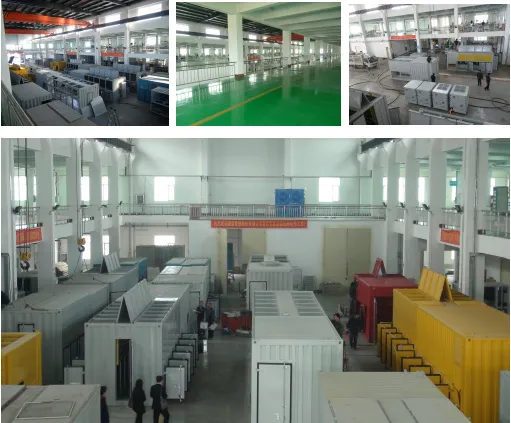

6.Factory
7.exhibition
8. Why choosing us
- The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
- The most patent technology and scientific research awards gainer in China.
- Advanced detection method and strict inspection procedure build the qualified quality.
- Customized production meet the individual requirement.
- Prompt delivery & excellent after sales service.
- Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
- Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
- Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
