ASTM D1321 Needle Penetrometer for Paraffin Wax
ASTM D1321 Needle Penetrometer for Paraffin WaxApplication:Our needle penetration test equipment is designed and made as per ASTM D1321 standard. It is used to do the penetration test for wax with wax standard needle and constant temperature bath. Features:1. The needle penetration test equipment i......
Send Inquiry
Product Description

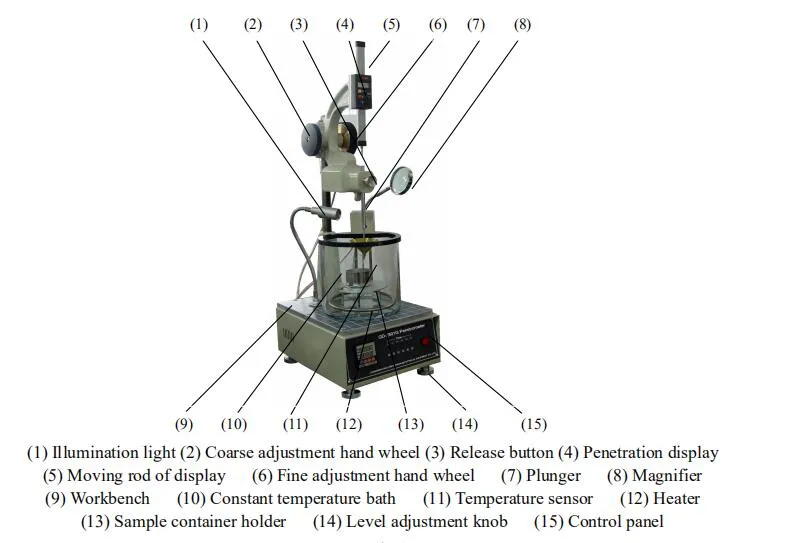

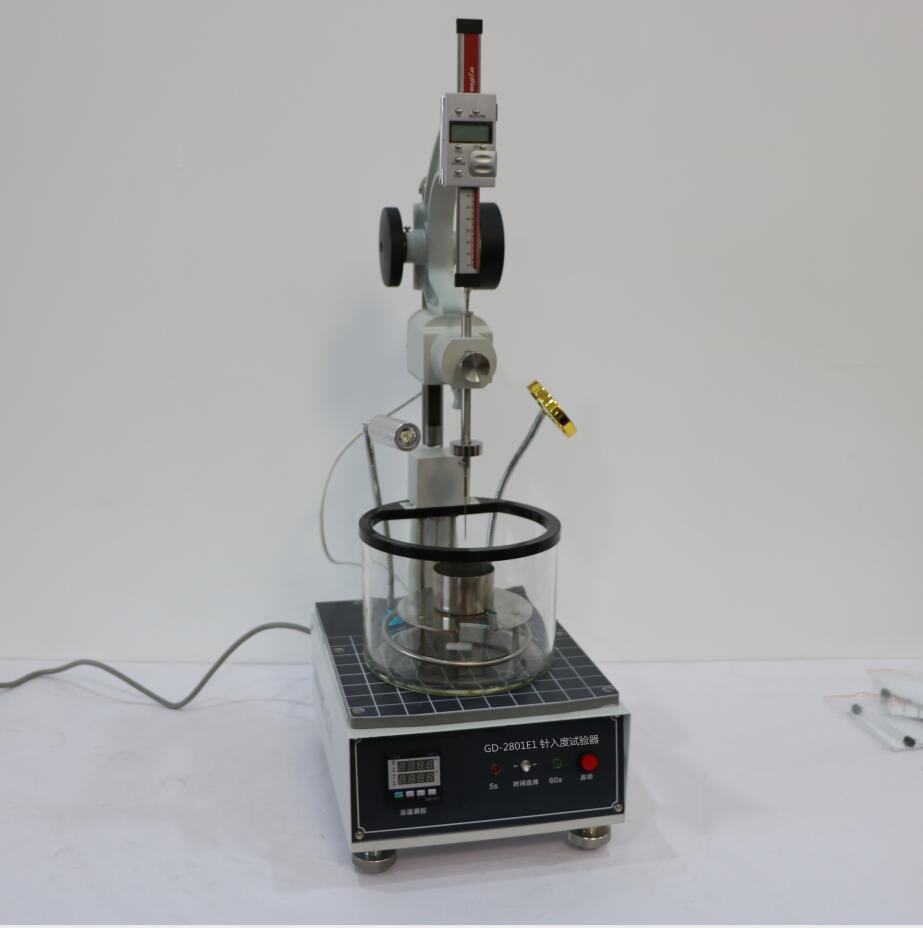

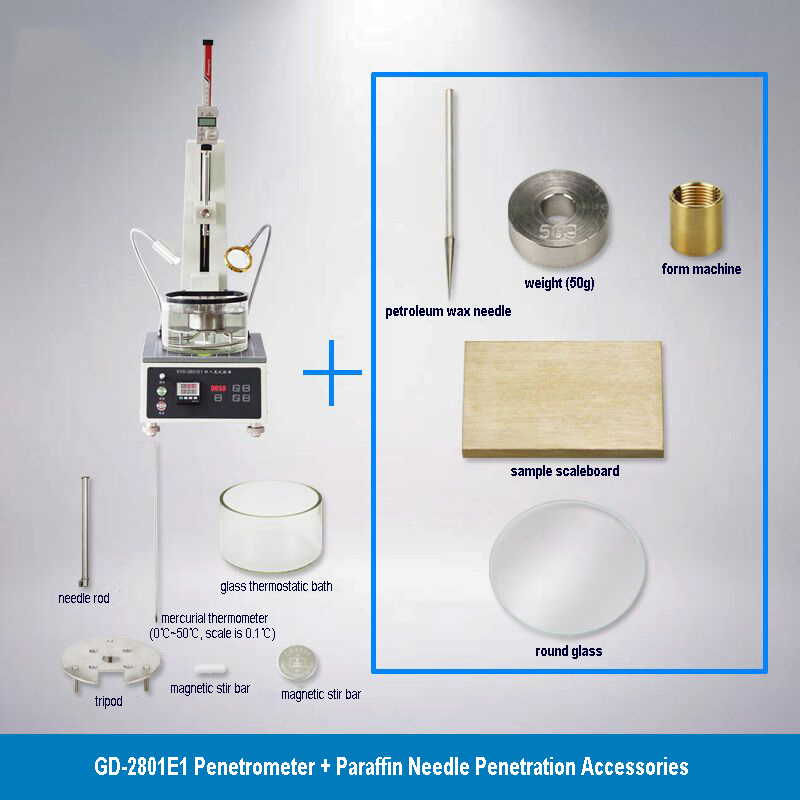

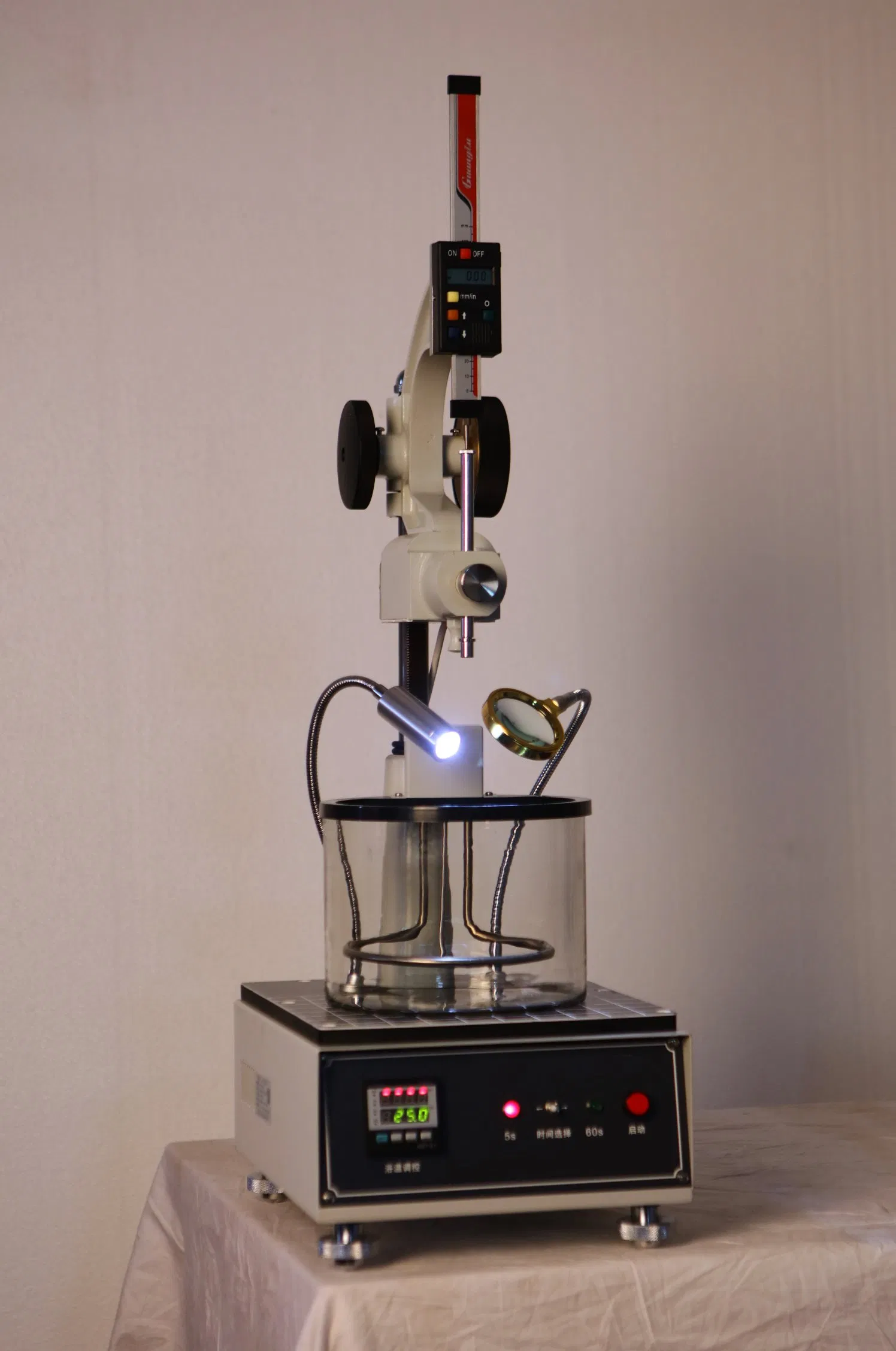

ASTM D1321 Needle Penetrometer for Paraffin Wax
Application:
Our needle penetration test equipment is designed and made as per ASTM D1321 standard. It is used to do the penetration test for wax with wax standard needle and constant temperature bath.
Features:
1. The needle penetration test equipment is expressed as the depth that a standard needle of 100 g vertically penetrates into a wax sample without any measurable friction in 5 s at 25 ºC.
2. The test temperature for wax penetration is 25 ºC in general.
3. Each wax penetration is 0.1 mm. It is directly shown on display.
Technical parameters:
| measurement range | 0~600 penetrations |
| Timing selection | 5, 8, 10, 12, 30 or 60 s |
| Timing error | less than ±0.1 s |
| Penetration accuracy | ±0.1 penetration |
| Maximum penetration | 600 penetrations |

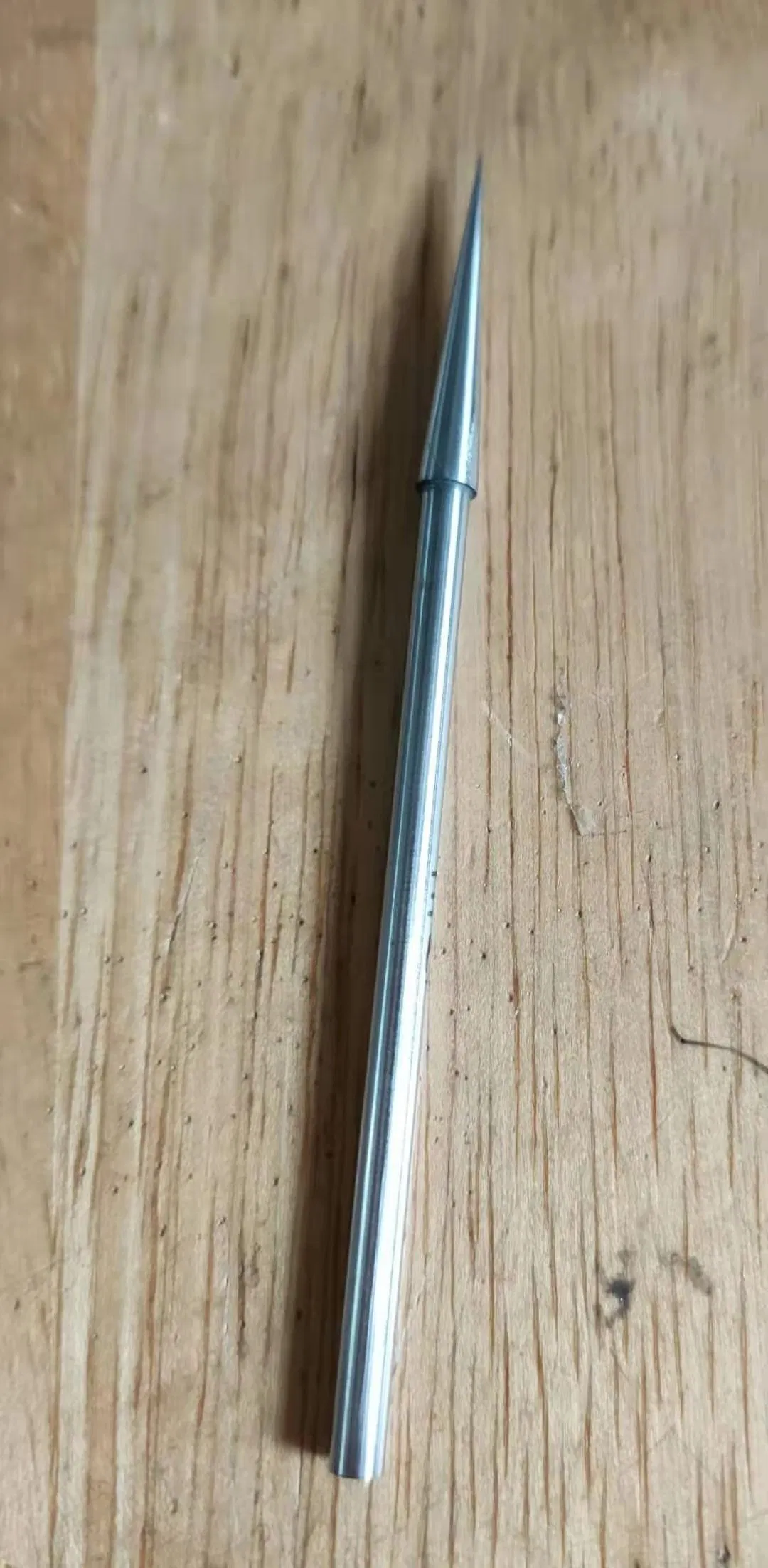

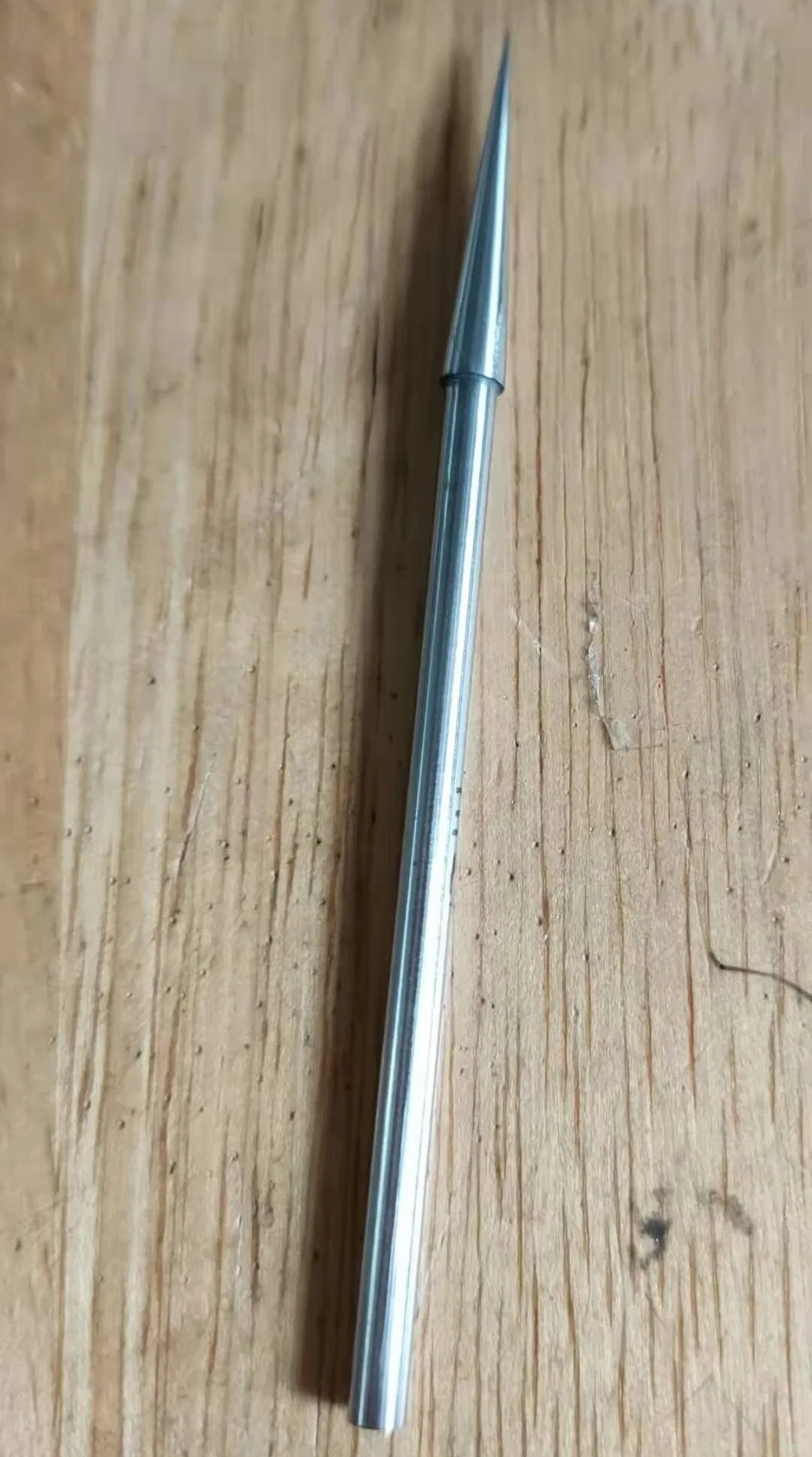

| Standard needle | 2.5±0.05 g |
| Constant temperature bath | made of harden glass |
| Mold | 25×32×3mm, a brass cylinder |
| Brass board | 65×40×6.5mm |
| Heating power | 220 W |
Related products:
| Model | GD-2801C | GD-2801G | GD-2801E1 | GD-2801F | GD-2801I |
| Max.Penetration | 600 | 600 | 600 | 600 | 600 |
| Resolution | 0.1mm | 0.1mm | 0.1mm | 0.1mm | 0.1mm |
| Timing Control | 5,8,10,12,30,60s | 5,8,10,12,30,60s | 50,60s | 50,60s | 0~60s |
| Temp. Control | Automatic | Automatic | Automatic | Automatic | Automatic |
| Test Samples | Oil | Wax | Asphalt | Asphalt | Asphalt |
| Type | Common | Multifuction | Common | Special | Full Function |
| With Water Bath | Yes | Yes | Yes | Yes, low temp. | Yes, low temp. |
