Product Description

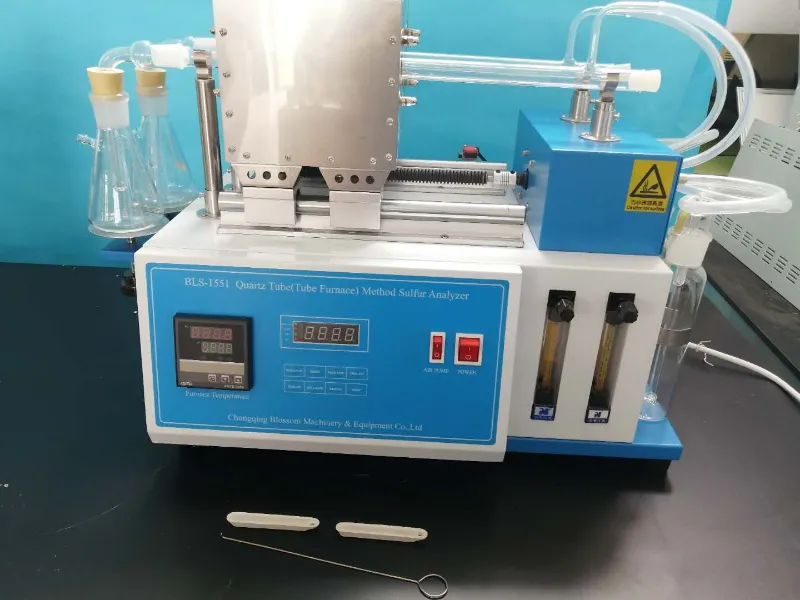

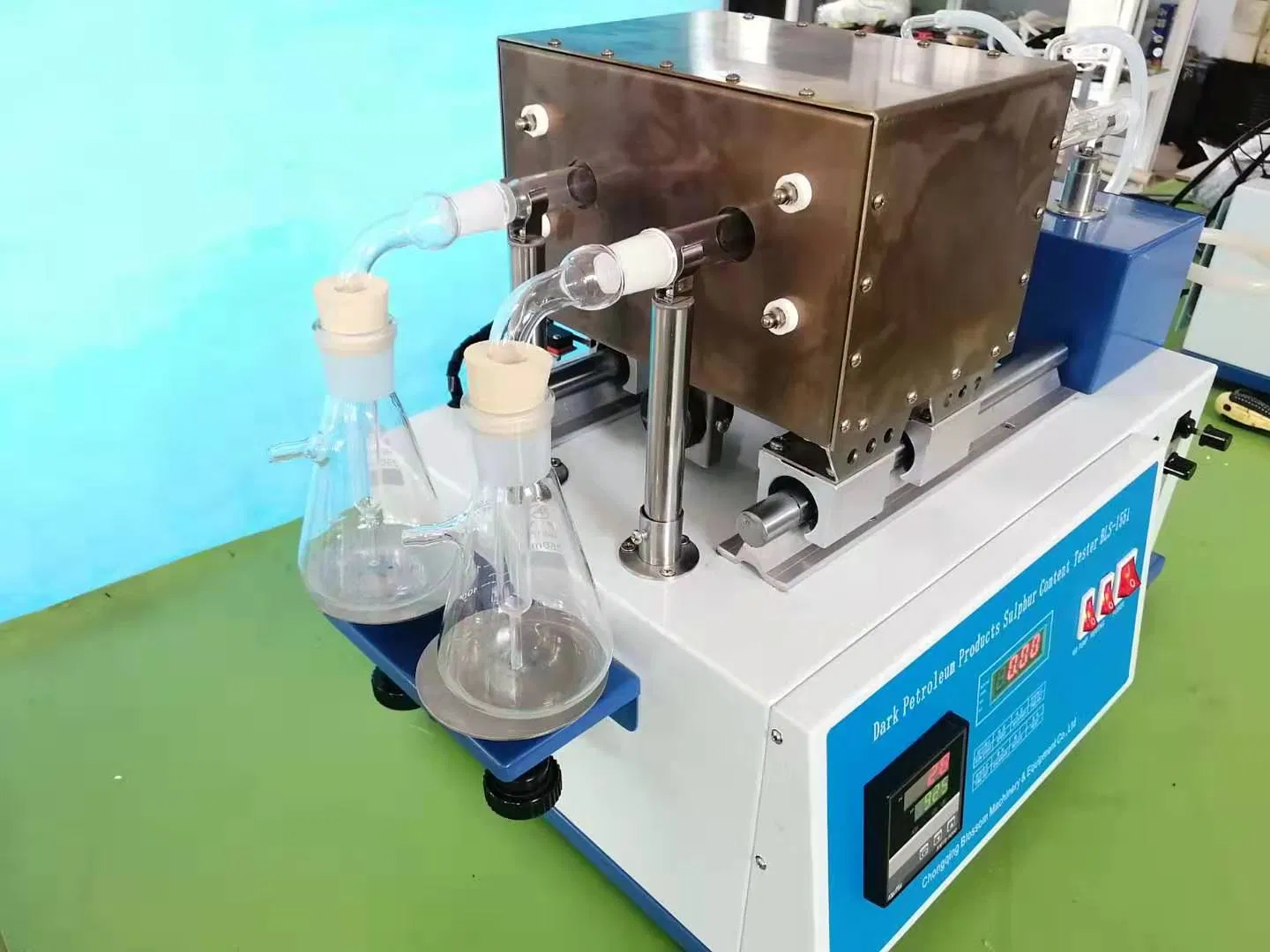

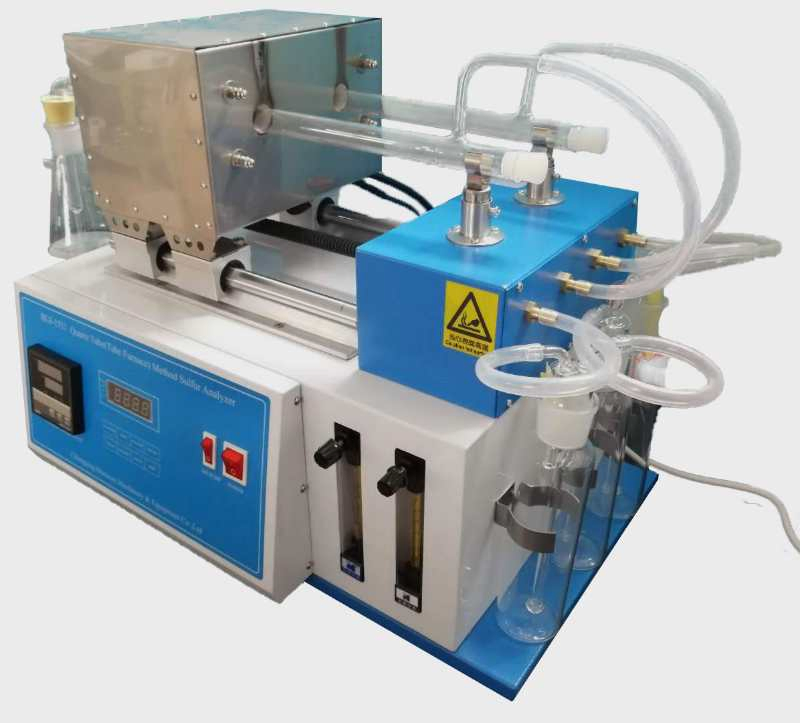

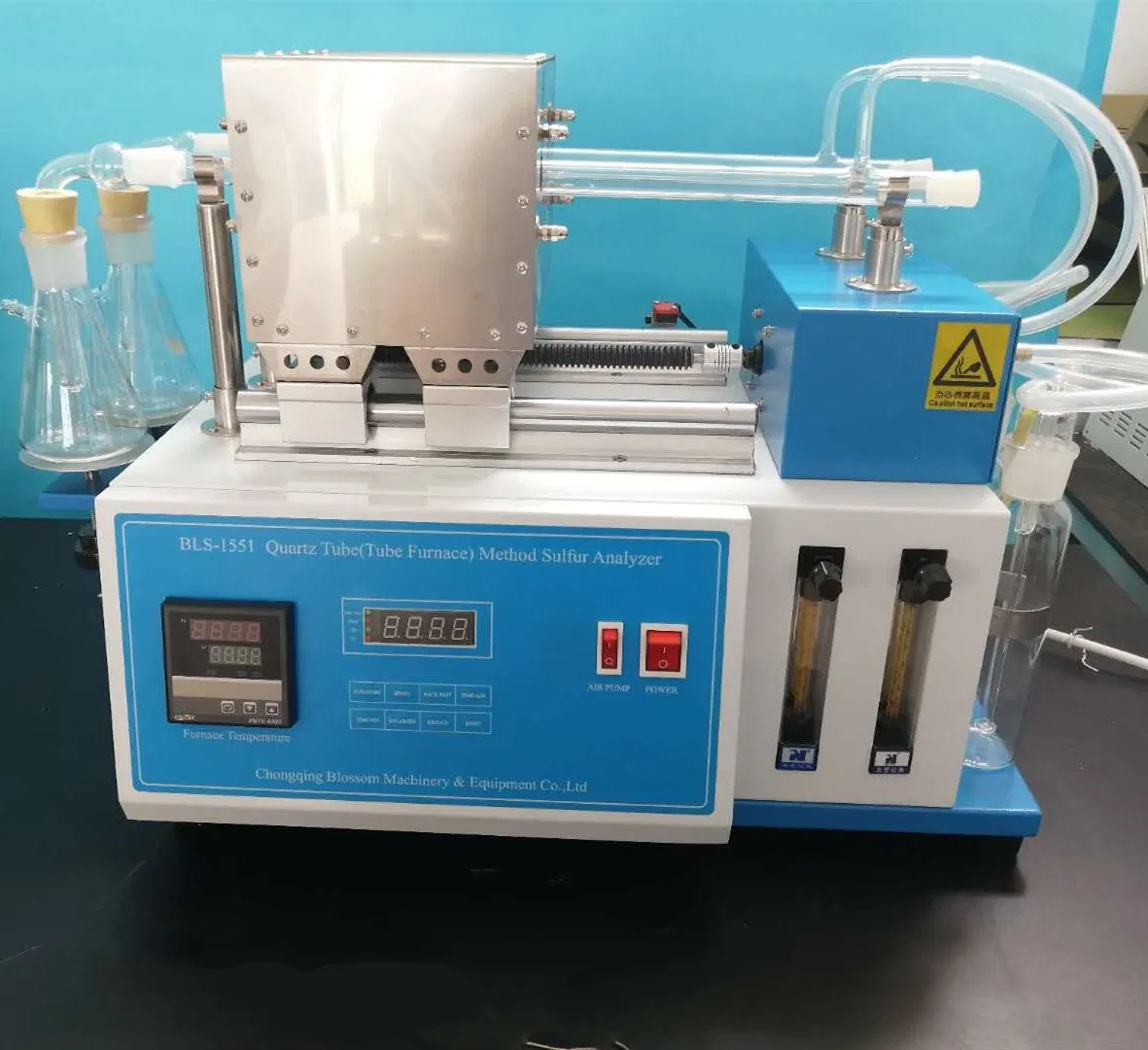

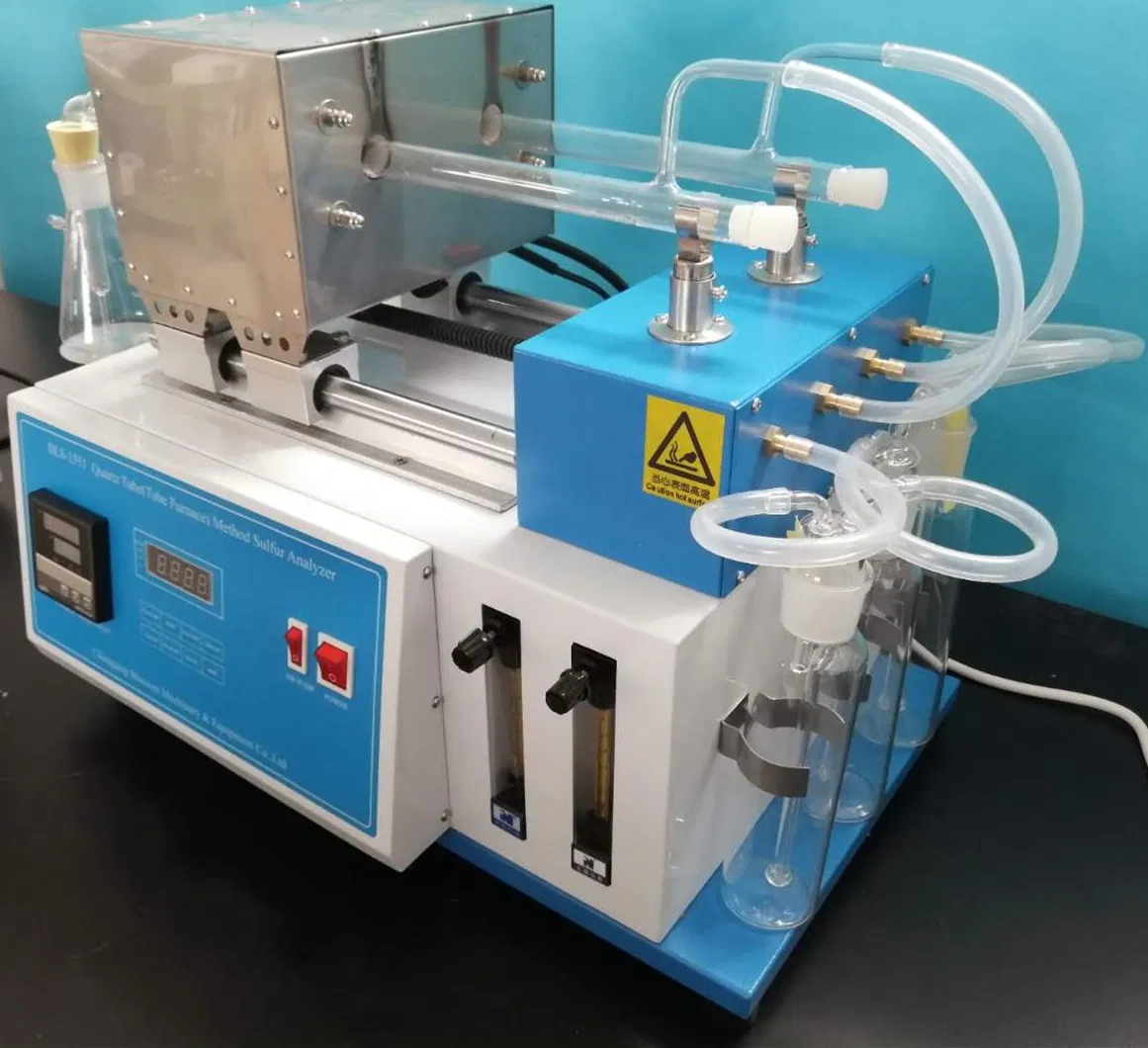

ASTM D1551 Quartz Tube Method Dark Petroleum Products Sulfur Analyzer
Application
The instrument is designed according to ASTM D1551 and GB / T387, applicable to analyze the sulfur contentin lubricating oil, crude oil,residual oil and dark petroleum products(heavy fuel oil, petroleum coke and paraffin, etc.) through tube furnace method.
Features
1. Adopts advanced PID fuzzy logic temperature control system from abroad with accurate temperature control;
2.Adopts modular programming, the travel/residence time of the resistance furnace trolley can be set arbitrarily.
3. The gas circuit adopts negative pressure system; each interface is connected through grinding port, which is air-tight and convenient for installation and disassemble;
4. Simultaneous operation of the double quartz tubes, sharing air purification system, separate flow control.
5. The furnace body adopts imported stainless steel sand plate shell, which is beautiful and resistant to heat and corrosion.
Technical Parameters
Power supply | AC220V±10% 50Hz(can be customized) |
Heating power | 1.8KW
|
Temperature control range | 900ºC~950ºC (continuously arbitrary setting) |
Furnace travel time | Arbitrarily setting from 25-65 minutes
|
Furnace stroke | 145mm |
Thermocouple indexing number | Type K |
Temperature control accuracy | ±1ºC |
Flow meter flow rate | 0-1000ml/min |
Dimensions | 700 × 400 × 500 (mm) |
Fuel Oil Testers
1.Quartz Tube Method Dark Petroleum Products Sulfur Analyzer BLS-1551
2.Petroleum Products Automatic Distillation Tester BLS-86
3.Self-ignition Point Tester BLS-659
4.Anti-fuel Oil Chlorine and Sulfur Tester BLS-433
5.Existent Gum in fuel Oils Tester by Jet Evaporation BLS-381
6.Engine Fuel Oil Existent Gum Tester BLS-509
7.Residual Fuels Total Sediment Tester BLS-4870
8.Aqueous Engine Coolants Freezing Point Tester BLS-1177
9.Engine Coolant Boiling Point Tester BLS-1120

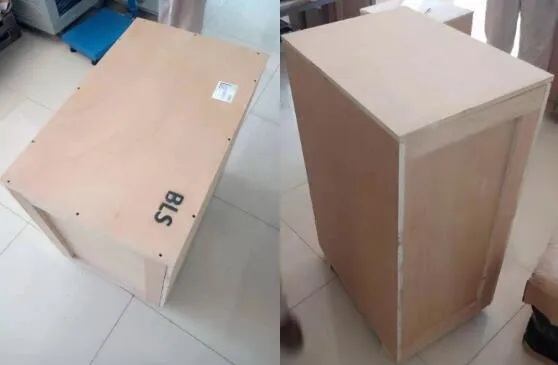

1. Outside package: Standard export packing or neutral packing if needed, carton box, wooden case or upon request, packing carefully.
2. Inside package: strength film and foams.
Shipping Method: Air / Sea / Express(UPS, FEDEX, DHL, TNT, EMS, etc)
Chongqing Blossom Machinery Equipment Co., Ltd is located in Chongqing, one of the municipalities directly under the central government. The main products include instrument and apparatus, mechanical machinery such as liquid purification equipment, etc. The equipment is widely applied in construction, petroleum, mechanical, ships, pharmaceutical, lab test and edible oil processing, etc.

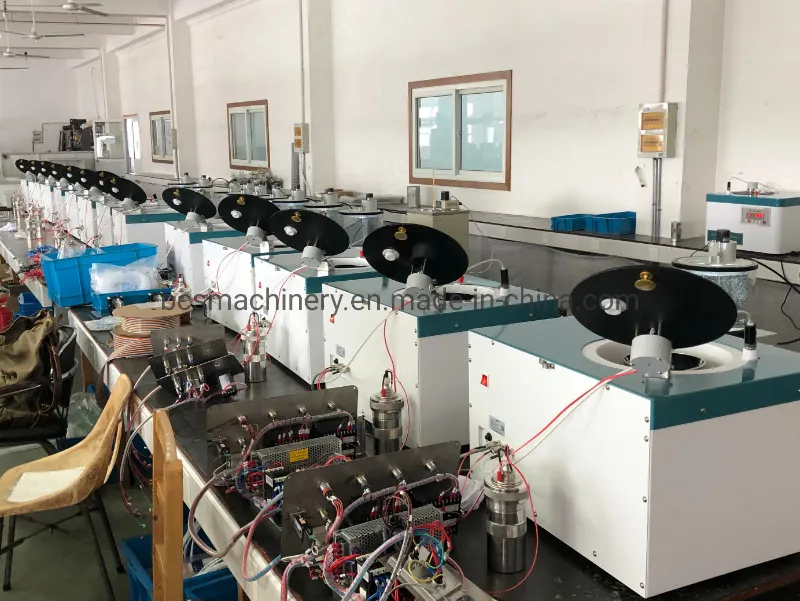

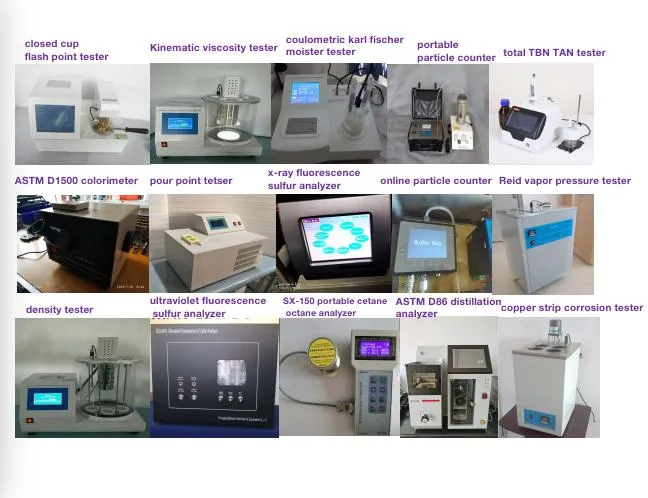

Testing Machines in stock
