Product Description

ASTM D2266 D2596 Microcomputer Controlled Four-ball Friction Tester

The Main purpose

This machine in the form of sliding friction under the condition of high contact pressure to evaluate the bearing capacity of lubricant. Including maximum no card bit load P_B,sintering load P_D,composite wear value ZMZ three indicators, etc. This machine can do lubricant long wear resistance test, the determination of the coefficient of friction.

ASTM D2266 D2596 Microcomputer Controlled Four-Ball Friction Tester

ASTM D2266 D2596 Microcomputer Controlled Four-Ball Friction Tester

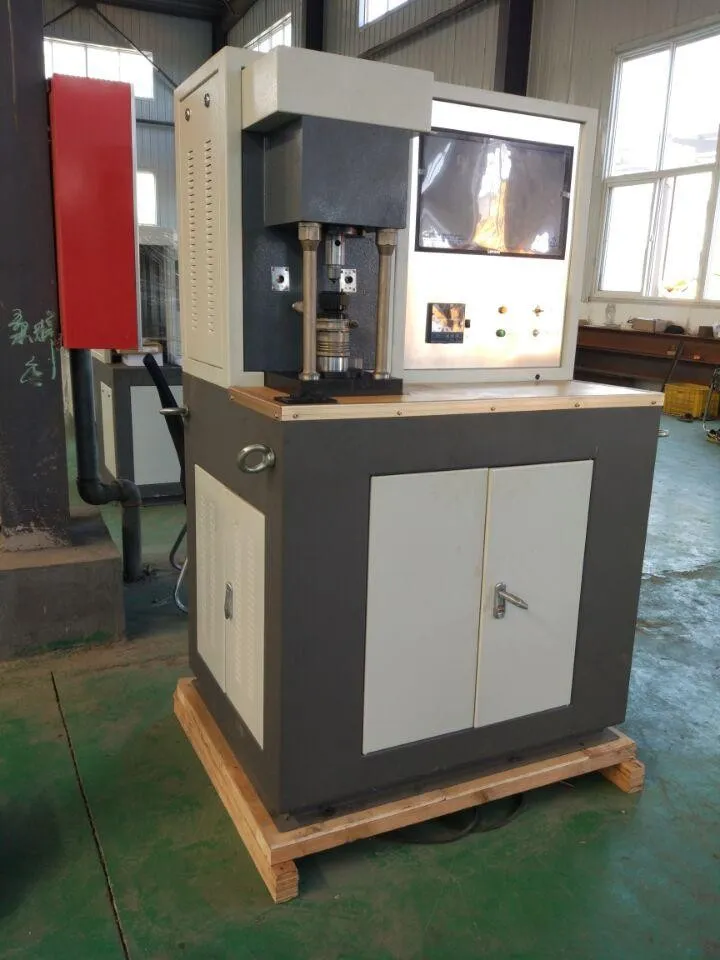

The structure

Four-ball tester consists of spindle drive system, the oil box with heater, determination of test, friction force sensor system, the hydraulic loading system, microcomputer control system, including the main parameter setting and control, alarm and other units) and other parts. They are all installed in the welding frame as the main body of the rack.
Stand in the top right panel is testing machine control system, the upper left is the spindle drive system and oil box, friction pair, and a variety of sensing instruments, etc. Frame is the bottom left of the testing machine hydraulic oil cylinder, on the lower right is the toolkit. Testing machine hoisting tools on them. Base and cover on the door, open the door can be clearly see its internal structure, in order to debug and maintenance.

Technical Parameters

Item	Item name	Technical indicators
1	Test force range (stepless adjustable)	10N-10kN
2	The relative error value for test force	±1%
3	Long when the error value for test	±1%F.S
4	Friction test range	0-300N
5	The friction test error	±2%
6	The spindle speed range (stepless	200-2000r/min
7	Spindle speed error	±10 r/min
8	Friction pair temperature control	Room temperature-200ºC
9	Error of temperature of friction pair	±1ºC
10	Test time control	1 seconds - 99 hours
11	The spindle speed control range	1-9999999 revolutions
12	Dimensions	1160mm×750mm×1640mm
13	Net weight	About 400kg
14	Experiment with steel ball	φ12.7mm

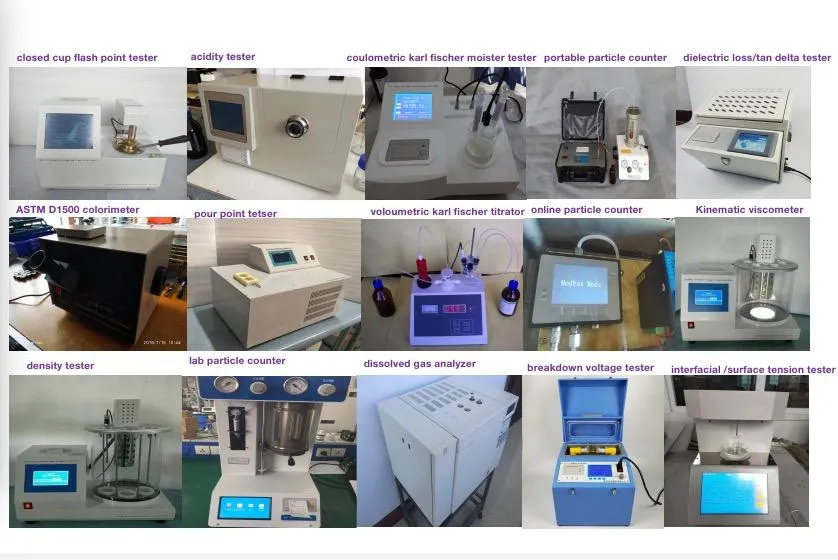

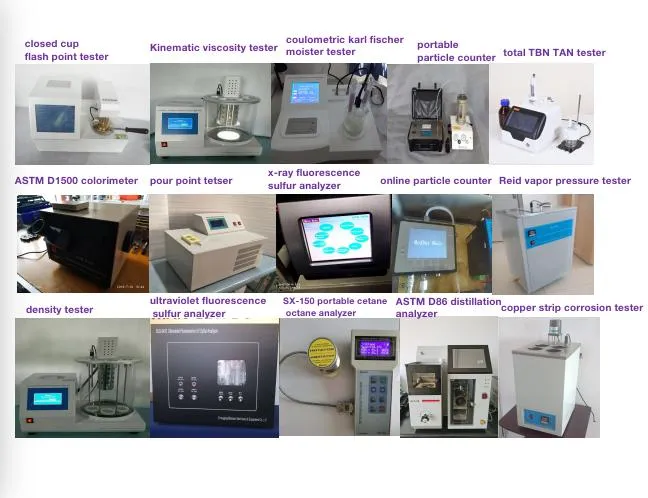

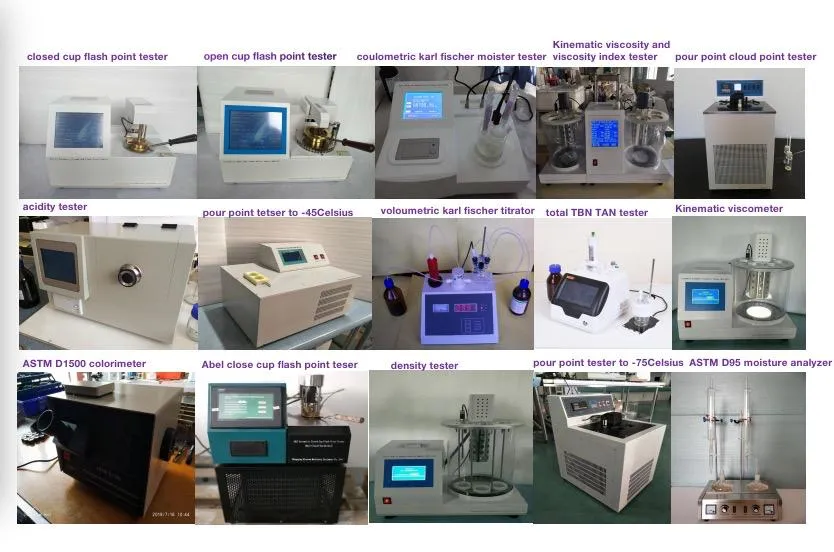

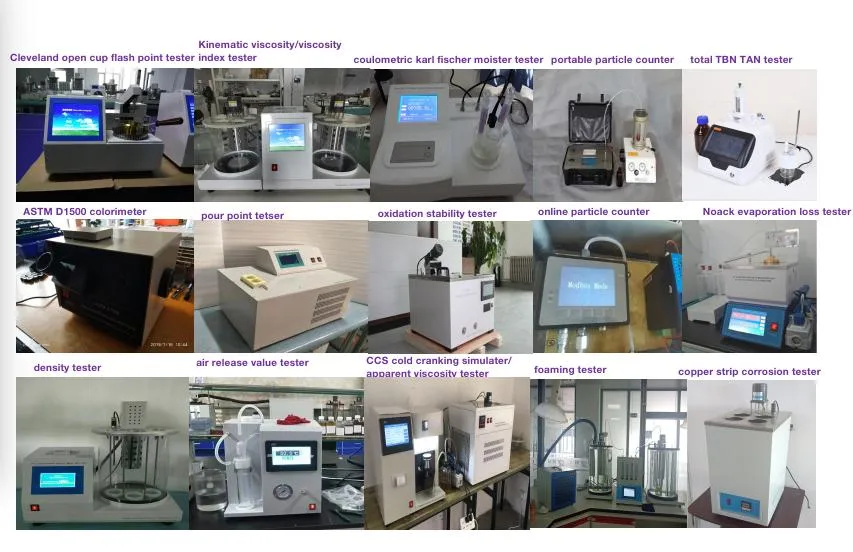

We have Various Oil Testers
