ASTM D323 Reid Method Automatic Saturated Vapor Pressure Tester Analyzer

Product Description

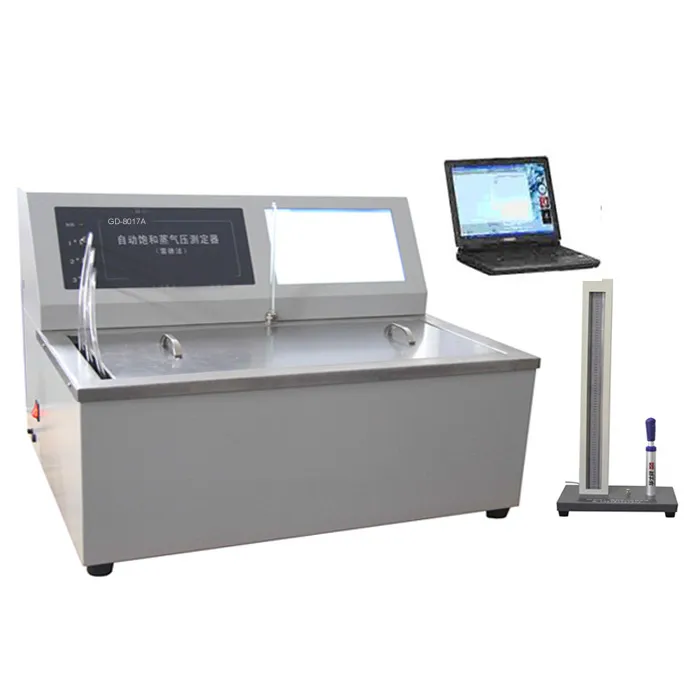

ASTM D323 Reid Method Automatic Saturated Vapor Pressure Tester Analyzer

Introduction:

This instrument is made and designed as per national standard of People's Republic of China GB/T 8017 Petroleum

Products- Determination of vapor pressure- Reid method. It can also be used to do determination according to

ASTM D 323

Standard Test Method for Vapor Pressure of Petroleum Products (Reid Method).

It is used to make determination for vapor pressure of gasoline, volatile crude oil and other volatile petroleum products.

It cannot be used to determine the vapor pressureof LGP. It is fully-automatic vapor pressure tester by PC control and operation

I. Main technical specifications

1.The instrument is made of the upper machine ( PC ) and the lower machine ( the host instrument ),t hey

are connected with USB communication port ,it can do the operation on the computer.

2.The computer can determine ,calculate and control to system parts . It has advantages of high automation,

accurate test results, good repeatability and easy operation.

3. Advanced heating technology do separation of water and electricity meanwhile lower the height of water in bath. No

blind angle in bath. It can save water and energy and also convenient to be cleaned.

4. The motion mode of the bomb can change from the horizontal axial to traditional 350 degree rotation into a "

seesaw" movement,which can make the sample stirring fully and it can meet the requirements of standard ,

the results of the vapor pressure is more accurate .

Specifications:

1. Power supply:	AC(220±10%)V, 50Hz
2. Maximum power consumption:	≤1700W
3. Test bomb:	Can do 3 bomb tests at the same time.
4. Water bath temperature:	37.8ºC
5. Temperature control accuracy:	±0.1ºC
6. Heating power:	1600W
7. Pressure range:	(0~200)kPa or (0~29)psi
8. Ambient temperature:	(5~35)ºC
9.Relative humidity:	≤85%
10.Dimension:	600mm×500mm×512mm

Note:Equipped with PC, a pressure calibration device is enclosed

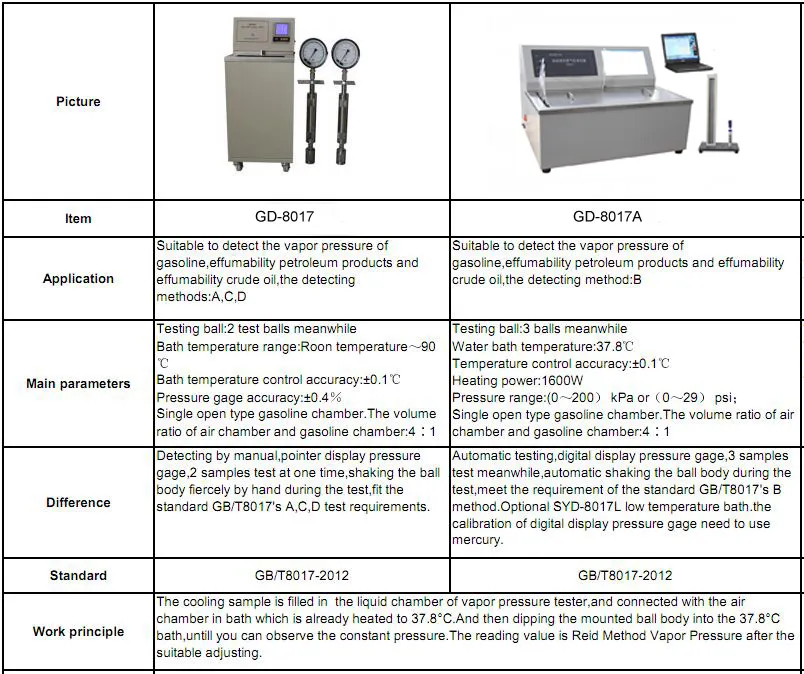

Saturated Vapor Pressure Selection List

ASTM D323 Reid Method Automatic Saturated Vapor Pressure Tester Analyzer

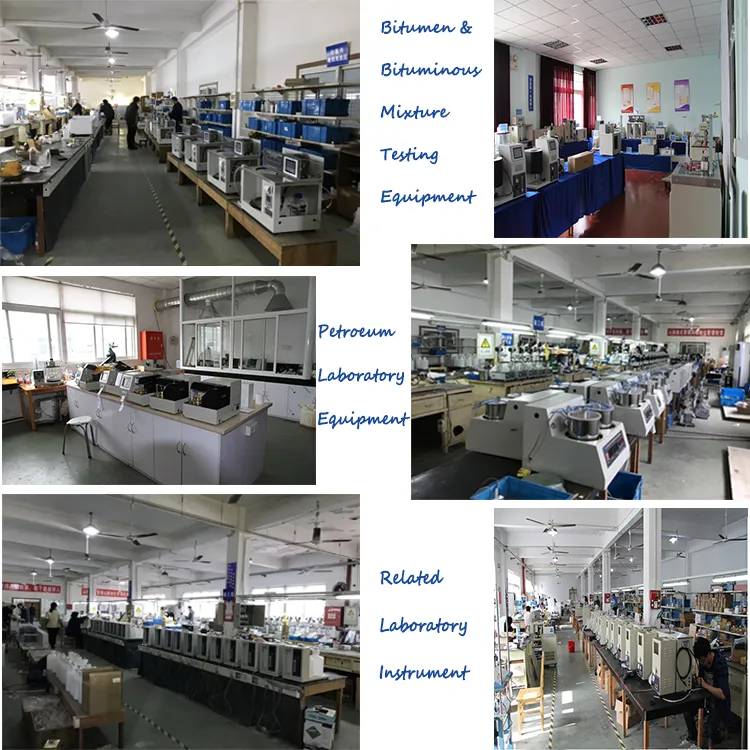

Workshop

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer of Petroleum Products test kits and

electrical testing equipment in China.Our products are sold to most countries in the world and they are highly popular because our good
quality and after-sale service.

ASTM D323 Reid Method Automatic Saturated Vapor Pressure Tester Analyzer

At present, there are more than 150 employees, of whom more than 70% are technical personnel with college

degree or above.With strong technical force and strong development, new products have been launched continuously.

Exhibition

ASTM D323 Reid Method Automatic Saturated Vapor Pressure Tester Analyzer

We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan,

India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide. And we have

gained strong advantage and high reputation in international market.

After several years' development, our products have become high intelligent and wide coverage.
And our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing

instrument.

Packing

Goods are packed in veneer case, which is firm and safe for oversea shipment. ASTM D323 Reid Method Automatic Saturated Vapor Pressure Tester Analyzer
