ASTM D524 Ramsbottom Method Carbon Residue Tester
Product DescriptionASTM D524 Ramsbottom Method Carbon Residue Tester Application The instrument is designed and manufactured according to the requirements of ASTM D524 and the People's Republic of China industry standard SH/T O170 Electric Furnace Method( also called Ramsbottom Method) Petroleum......
Send Inquiry
Product Description

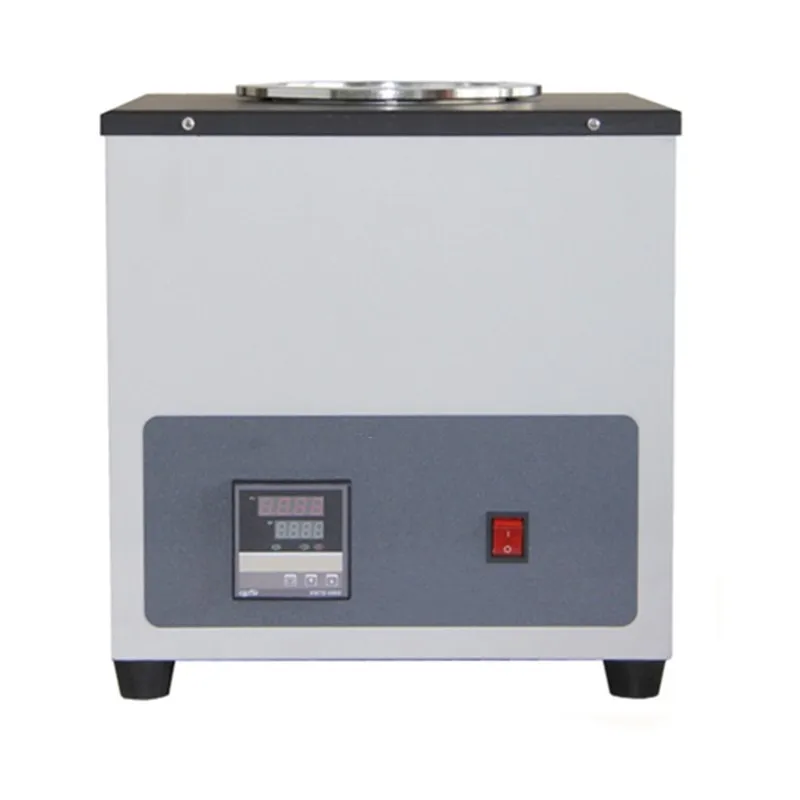

ASTM D524 Ramsbottom Method Carbon Residue Tester
Application
The instrument is designed and manufactured according to the requirements of ASTM D524 and the People's Republic of China industry standard SH/T O170 Electric Furnace Method( also called Ramsbottom Method) Petroleum Products Carbon Residue Determination Method. It is suitable for measuring the carbon residue in lubricating oil, heavy liquid fuels or other petroleum products.
Main Features
1. The instrument adopts integrated desktop structure design. The heating furnace and the controller form a complete whole, which is novel and beautiful.
2. The maximum temperature of the heating furnace can reach 520 °C. It adopts digital temperature controller. The temperature control accuracy can reach ±5 °C in the full temperature control range, which meets the test requirements.
3. Four sample tests can be carried out at the same time with high test efficiency.
Advantages
Integrate heating and control, high temperature control accuracy, small in size and easy to use.
Main Technical Parameters
Power supply | AC(220±10%)V, 50Hz, Single Phase(Customizable) |
Heating method | Electric furnace |
Heating power | Total heating power 1150W(230W×5) |
Temperature control range | (0~520)ºC |
Temperature control accuracy | ±5ºC |
Test bath type | Furnace with 4 holes |
Ambient temperature | Room temperature to 35ºC |
Relative humidity | ≤85% |
Total power consumption | ≤1300W |
Dimension | 350mm×360mm×365mm(L×W×H) |

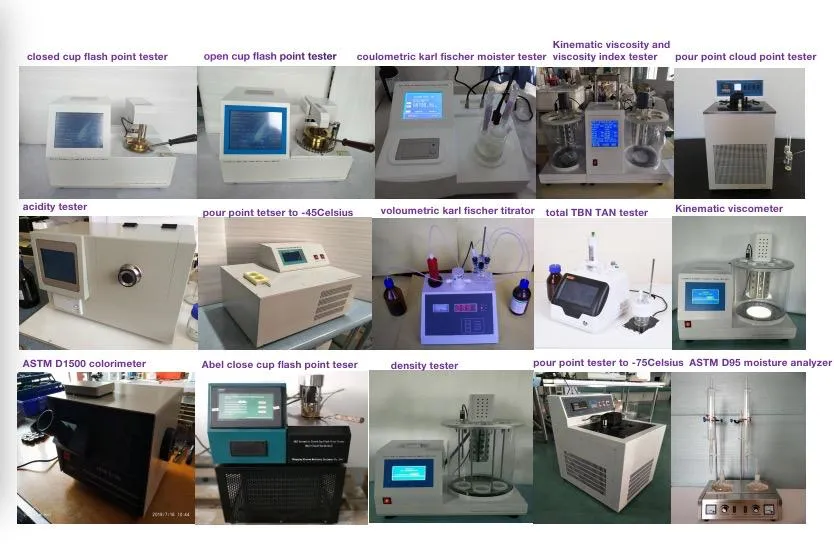

1.Karl Fisher Oil Water Content Tester BLS-6304
2.Digital Oil Moisture Meter BLS-D6304
3.Petroleum Products Kinematic Viscosity and Viscosity Index Tester BLS-445
4.Digital Kinematic Viscosity Meter BLS-D445
5.Fully Automatic Petroleum Products Acidity Meter BLS-974
6.Cleveland Open Cup Flash and Fire Point Tester BLO-92
7.Pensky-Martens Closed Cup Flash Point Tester BLC-93
8.Pour Point and Cloud Point Tester BLS-97
9.Petroleum Products Density Meter BLS-1298
10.Copper Corrosion Tester BLS-130
11.Petroleum Products Aniline Point Tester BLS-611
12.Petroleum Products Colorimeter BLS-1500
13.Petroleum Products Carbon Residue Tester (Micro Method) BLS-4530
14.Petroleum Product Vapor Pressure Tester (Reid Method) BLS-3231
15.Total Acid Number and Total Base Number TAN/TBN Tester BLS-2896
16.Petroleum Products X-ray Fluorescence XRF Sulfur Analyzer Sulfur BLS-4294
17.Petroleum Products Online Moisture Meter BLS-PPM
18.Online Moisture ppm Meter/ Particle Counter/ Pollution Degree Analyzer NAS-01
19.Petroleum Products Saponification Number Tester BLS-94
20.Micro Coulometry Sulfur and Chlorine Content Tester BLS-3120
21.Ultraviolet Fluorescence Sulfur Analyzer BLS-5453
22.Conradson Method Petroleum Products Carbon Residue Tester BLS-189
23.Ramsbottom(Electric Furnace) Method Petroleum Products Carbon Residue Tester BLS-524
24.Hydrogen Sulfide in Liquefied Petroleum (LP) Gases Tester (Lead Acetate Method) BLS-2420
25.Hydrocarbon Types in Petroleum Products Tester by Fluorescent Indicator Adsorption BLS-1319

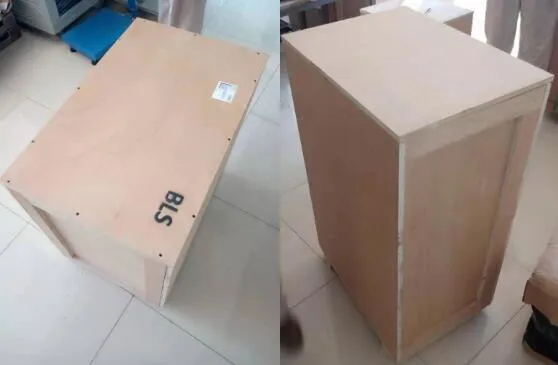

1. Outside package: Standard export packing or neutral packing if needed, carton box, wooden case or upon request, packing carefully.
2. Inside package: strength film and foams.
Shipping Method: Air / Sea / Express(UPS, FEDEX, DHL, TNT, EMS, etc)
Chongqing Blossom Machinery Equipment Co., Ltd is located in Chongqing, one of the municipalities directly under the central government. The main products include instrument and apparatus, mechanical machinery such as liquid purification equipment, etc. The equipment is widely applied in construction, petroleum, mechanical, ships, pharmaceutical, lab test and edible oil processing, etc.

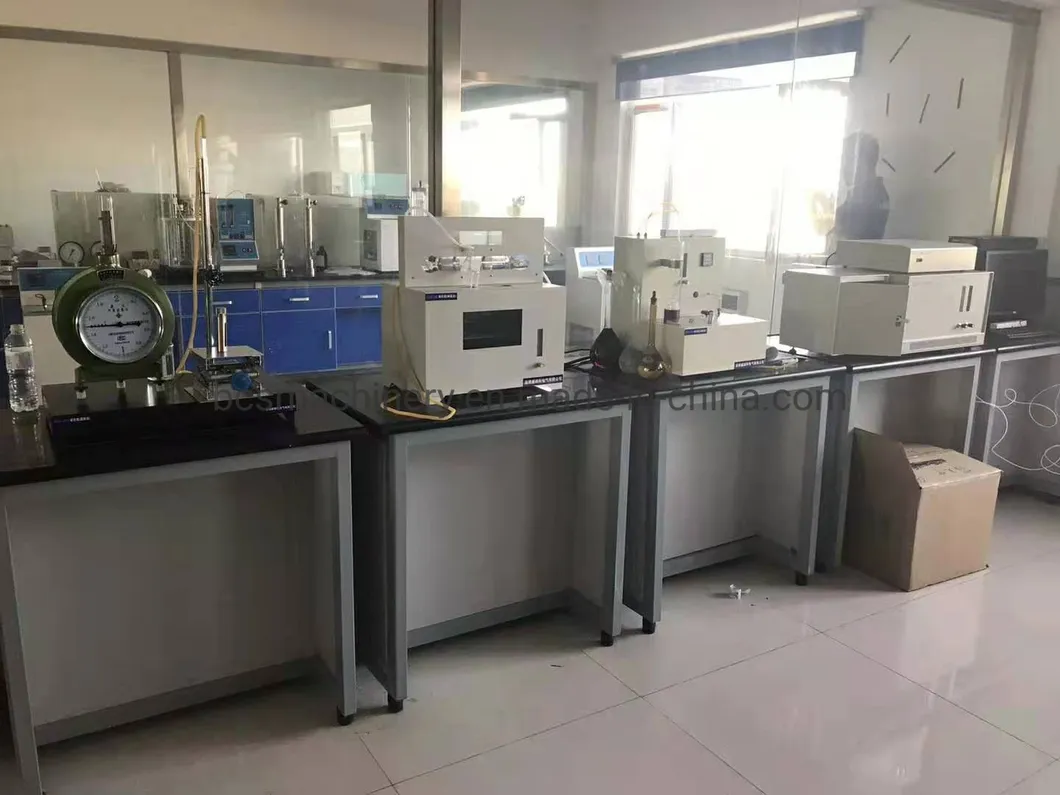

Testing Machines in stock
