Product Description
Item: ASTM D874 Ash Content Analyzer and Ash Content Test Equipment
Model: PT-SYD-508
Introduction:
The instrument is designed and made as per national standard of People's Republic of China GB/T508 and ASTM D482 Standard Test Method for Ash Content of Petroleum Products. It is suitable to determine ash content in the petroleum products as per GB/T508. It could not be used to determine ash content in the petroleum products containing ash-forming additives (including additives containing certain phosphorus compounds), lubricating oils containing lead, and used engine crankcase oils.
The method summary of ash content test: Take ashless filter paper as ignition core. Ignite the sample in the crucible to make it burning to ash and carbon residue. Heat the carbon residue at 775ºC in the high temperature furnace to make it convert to ash. Then cool down and weigh the mass.
I. Main technical features

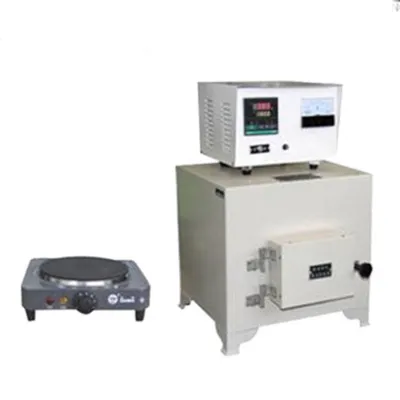

1. The instrument is composed of a box-type heating furnace, a temperature control stand and an electric heating plate. It is small size and needs less land.
2. The box-type furnace adopts all-in-one structure. Special fire-resistant material and heating components. The heating time is short and it has a long lifetime.
3. An adjustable LED temperature controller is equipped in the control stand. The overshoot is small and temperature control is stable.
4. The size of heating plate is Φ85mm. Small size and good durability.
II. Main technical specifications
1. Box-type heating furnace
(1) Power supply: AC220V±10%, 50 Hz
(2) Rated power: 2.5 kW
(3) Rated temperature: 1000ºC
(4) Temperature rising time for empty furnace: ≤50 min
(5) Power consumption for empty furnace: ≤800W
(6) Heat savings: ≤5kW.h
(7) Furnace temperature uniformity: ≤15ºC
(8) Thermocouple: WRN-010
(9) Size of furnace chamber: 200mm×120mm×80mm
(10) Dimension: 575mm×3850mm×480mm
2. Temperature control stand
(1) Rated controllable power: 5000W
(2) Power supply: AC (220±10%) V, 50Hz
(3) Maximum control temperature: 1200ºC
(4) Temperature controller: DTW2001
(5) Thermocouple: WRN-010
(6) Dimension: 500mm×300mm×235mm
3. Electric heating plate
(1) Rated power: 1500W
(2) Power supply: AC (220±10%) V, 50Hz
(3) Rated temperature: 400ºC
(4) Heating power: ( 1~6) grades, continuously adjustable.
(5) Diameter of heating plate: Φ85mm
(6) Dimension: 280mm×250mm×90mm
PT-SYD-508 Ash Content Tester Accessories and Documents List
PT-SYD-508 Ash Content Tester's Reagent and Auxiliary Equipment
Notes:
1.The reagent and equipment for installing the instrument are supplied by end-users themselves.
2.The usage, management and saving of poisonous and harmful reagent, pls operate according to the relative principle.
3.PLS read the operation manual and industry standard before using the instrument.
Petroleum & Oil Analyzer Petroleum Testing Instruments
· Open Cup Flash Point Tester
· Flash & Fire Point Tester for Petroleum Products
· Closed Cup Flash Point Tester
· Engler Viscometer
· Water Content Tester
· Rotational Viscometer
· Kinematics Viscometer
· Distillation Tester
· Density Tester Rust and Corrosion Tester
· Sulphur Content Tester
· Acid and Alkali Tester
· Dropping Point Tester
· Demulsibility Characteristics Tester
· Ash Content Tester
· Aniline Point Tester
· Low Temperature Tester
· Residue Carbon Tester
· Existent Gum Tester
· Vapor Pressure Tester
· Petroleum Products Vapor Pressure Tester(Reid Methods)
· Bomb Calorimeter
· OCTANE & CETANE ANALYZER
· Lubricating Grease Steel Sieve Oil Separation Tester
Lubricating Oils Foaming Characteristics Tester
Naphthalene Crystallizing Point Tester
Petroleum Products Color Tester
Mechanical Impurity Tester (Weight method)
Crude Petroleum and Petroleum Products Salt Content Tester
Petroleum Wax Oil Content Tester
Automatic Interfacial Tension Tester
Automatic Multifunctional Degassing Oscillation Tester
Insulating Oil Breakdown Voltage Tester
Insulating Oil Volume Resistivity Tester
Liquid Petroleum Products Hydrocarbon Tester
Lubricating Oil Air Release Value Tester
Self-ignition Point Tester
Insulation oil proof pressure tester
Precision adsorption column cleanser
Fluorescent Indicator Absorption Apparatus
dean stark apparatus(water content)(single tube)
dean stark apparatus(water content)(double tube)
Petroleum Products and additives Mechanical impurities tester
Petroleum Products Saybolt color tester(Saybolt colorimetric method)
Engine coolant Foam characteristic tester (glassware Method )
Jet fuel Solid particulate pollutant tester
Apparatus for water separability of petroleum oils
apparatus for Rusting Characteristics of Oils
Lubricating Grease Pressure Oil Separating Tester
Cone and Needle Penetration for petroleum products
Oil Separation Apparatus for grease
Model: PT-SYD-508
Introduction:
The instrument is designed and made as per national standard of People's Republic of China GB/T508 and ASTM D482 Standard Test Method for Ash Content of Petroleum Products. It is suitable to determine ash content in the petroleum products as per GB/T508. It could not be used to determine ash content in the petroleum products containing ash-forming additives (including additives containing certain phosphorus compounds), lubricating oils containing lead, and used engine crankcase oils.
The method summary of ash content test: Take ashless filter paper as ignition core. Ignite the sample in the crucible to make it burning to ash and carbon residue. Heat the carbon residue at 775ºC in the high temperature furnace to make it convert to ash. Then cool down and weigh the mass.
I. Main technical features
1. The instrument is composed of a box-type heating furnace, a temperature control stand and an electric heating plate. It is small size and needs less land.
2. The box-type furnace adopts all-in-one structure. Special fire-resistant material and heating components. The heating time is short and it has a long lifetime.
3. An adjustable LED temperature controller is equipped in the control stand. The overshoot is small and temperature control is stable.
4. The size of heating plate is Φ85mm. Small size and good durability.
II. Main technical specifications
1. Box-type heating furnace
(1) Power supply: AC220V±10%, 50 Hz
(2) Rated power: 2.5 kW
(3) Rated temperature: 1000ºC
(4) Temperature rising time for empty furnace: ≤50 min
(5) Power consumption for empty furnace: ≤800W
(6) Heat savings: ≤5kW.h
(7) Furnace temperature uniformity: ≤15ºC
(8) Thermocouple: WRN-010
(9) Size of furnace chamber: 200mm×120mm×80mm
(10) Dimension: 575mm×3850mm×480mm
2. Temperature control stand
(1) Rated controllable power: 5000W
(2) Power supply: AC (220±10%) V, 50Hz
(3) Maximum control temperature: 1200ºC
(4) Temperature controller: DTW2001
(5) Thermocouple: WRN-010
(6) Dimension: 500mm×300mm×235mm
3. Electric heating plate
(1) Rated power: 1500W
(2) Power supply: AC (220±10%) V, 50Hz
(3) Rated temperature: 400ºC
(4) Heating power: ( 1~6) grades, continuously adjustable.
(5) Diameter of heating plate: Φ85mm
(6) Dimension: 280mm×250mm×90mm
PT-SYD-508 Ash Content Tester Accessories and Documents List
| No. | Name | Unit | Qty | Memo |
| 1 | High temperature heating furnace (Including accessory) | Set | 1 | |
| 2 | Temperature control stand (Including accessories) | Set | 1 | |
| 3 | Electric heating furnace (including accessories) | Set | 1 | |
| 4 | Thermocouple | Piece | 1 | |
| 5 | Compensating lead wire (has been connected with thermocouple) | Piece | 1 | |
| 6 | Ceramic crucible (50 ml) | Piece | 10 | |
| 7 | Ceramic crucible (100 ml) | Piece | 10 | |
| 8 | Crucible tongs (16 inch) | Pair | 1 | |
| 9 | Operating Manual | Piece | 1 | |
| 10 | Quality Certificate | Piece | 1 | |
| 11 | Repair guarantee | Piece | 1 |
PT-SYD-508 Ash Content Tester's Reagent and Auxiliary Equipment
| No. | Name | Specification | Quantity | Memo |
| 1 | Quantitative filter paper diameter 9cm | 1 box | ||
| 2 | Hydrochloric acid | Analytical pure 500ml | 3 bottles | Used to wash crucible, the ratio 1:4 solvent, put in crucble and boil it for many munites and then clean it by distilled water. |
| 3 | Ten thousandthBalance | Range 200g | 1 set | |
| 4 | Distilled water | 3 grade | Some | |
| 5 | Glass dry vessel | 1 piece |
Notes:
1.The reagent and equipment for installing the instrument are supplied by end-users themselves.
2.The usage, management and saving of poisonous and harmful reagent, pls operate according to the relative principle.
3.PLS read the operation manual and industry standard before using the instrument.
