ASTM D93 Automatic Flash Point Tester, Pensky Martens Closed Cup Flash Point Testing Equipment
Oil Closed Cup Flash Point Tester (Pensky Martens Flash Point)EPT404General Information:Closed Cup Flash Point Tester, used to determine the closed flash point value of petroleum products. Adopt foreign advanced technology, LCD TET pure color touch screen, full English display of man-machine dialogu......
Send Inquiry
Product Description

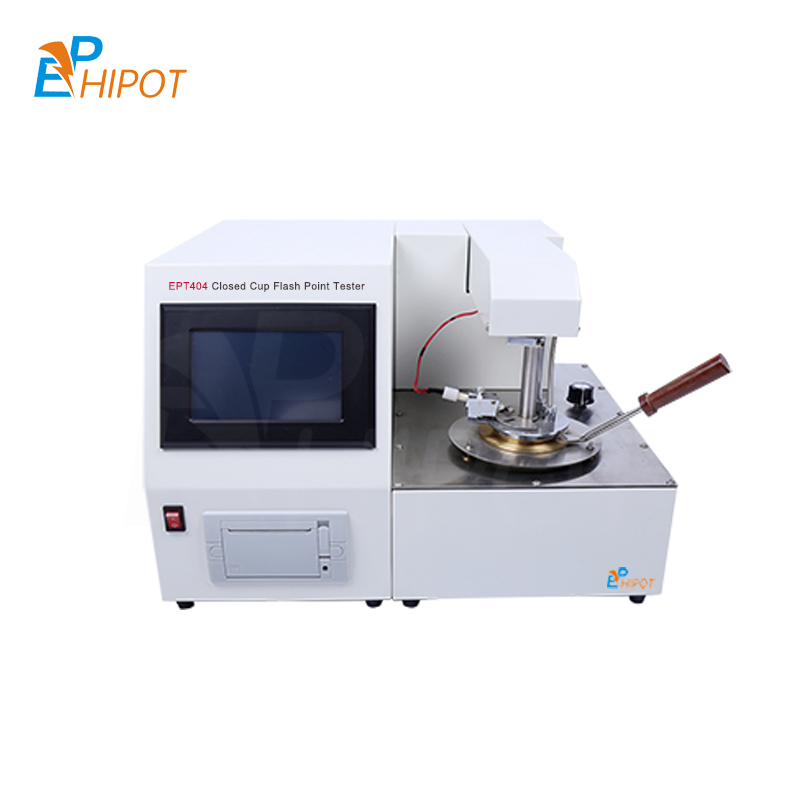

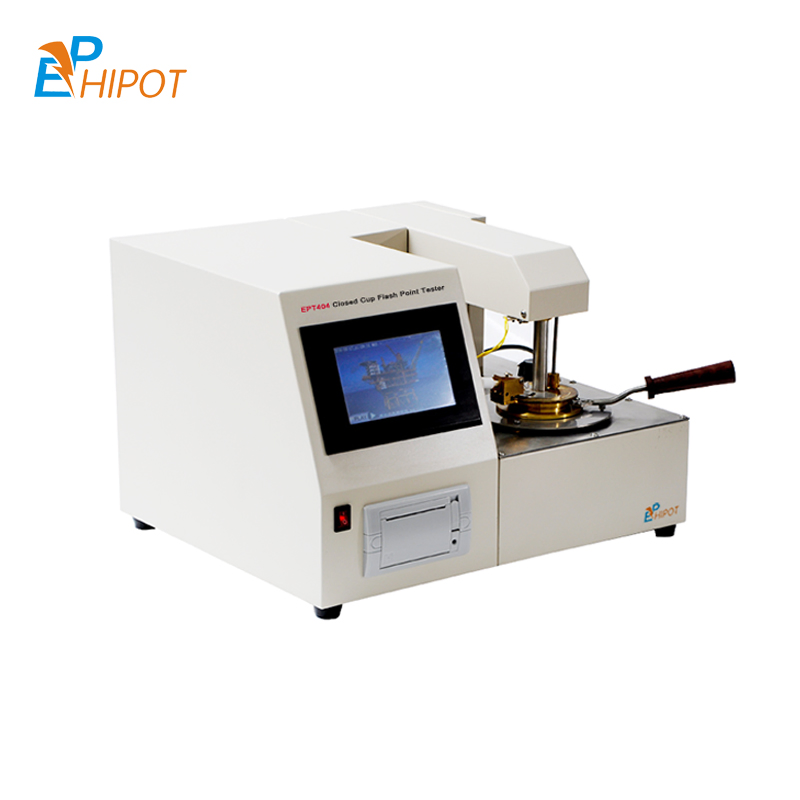

Oil Closed Cup Flash Point Tester (Pensky Martens Flash Point)
EPT404
General Information:Closed Cup Flash Point Tester, used to determine the closed flash point value of petroleum products. Adopt foreign advanced technology, LCD TET pure color touch screen, full English display of man-machine dialogue interface, with parameters such as predictable temperature, oil test label, atmospheric pressure, and test date, with prompt menu prompt input, convenient and fast Open, fuzzy control integrated software, modular structure. It is an ideal substitute for imported instruments. Widely used in railway, aviation, electric power, petroleum industry and scientific research departments.
Features:
- It has the function of prompting and modifying the wrong operation software
- Equipped with parameter prompt function such as test date and test time
- Automatically correct the influence of atmospheric pressure on the test and calculate the correction value
- Differential detection, automatic correction of system deviation
- Cover opening, ignition, detection and printing data are automatically completed
- Test arm automatically raises and lowers
- Ignition method: gas flame, forced air cooling.
Specifications:
| Temperature measuring range | -59.9ºC ~ 299.9ºC |
| Temperature Control Range | Room temperature~300 ºC |
| Repeatability | ≤2 ºC |
| Reproducibility | ≤ ± 4 ºC |
| Resolution | 0.1 ºC |
| Precision | 0.5% |
| Temperature Sensor | PT resistance (A grade PT100) |
| Flash Fire Sensor | Ion detection ring |
| Ambient temperature | 0~40 ºC |
| Relative humidity | ≤85% |
| Power supply | AC220V 50Hz ± 10% |
| Ignition method | Gas flame 3-4mm ignited, electronic ignition. |
| Power Consumption | <500W |
| Dimension | Tester: 190*260*285 (mm) |
| Furnace: 280*260*285(mm) | |
| Weight | 18kg |
More details on Oil Tester please contact EPHipot Electric, we have professional tech team to design correctly designed products and systems.
