ASTM D97 Transformer Oil Pour Point Apparatus
Product DescriptionASTM D97 Transformer Oil Pour Point Apparatus ApplicationThis tester complies with ASTM D97 and national standards GB510 Determination method of Petroleum Products Freezing Point and GB3535 Petroleum Pour Point Determination Method, and is applicable to measure the pour point and......
Send Inquiry
Product Description

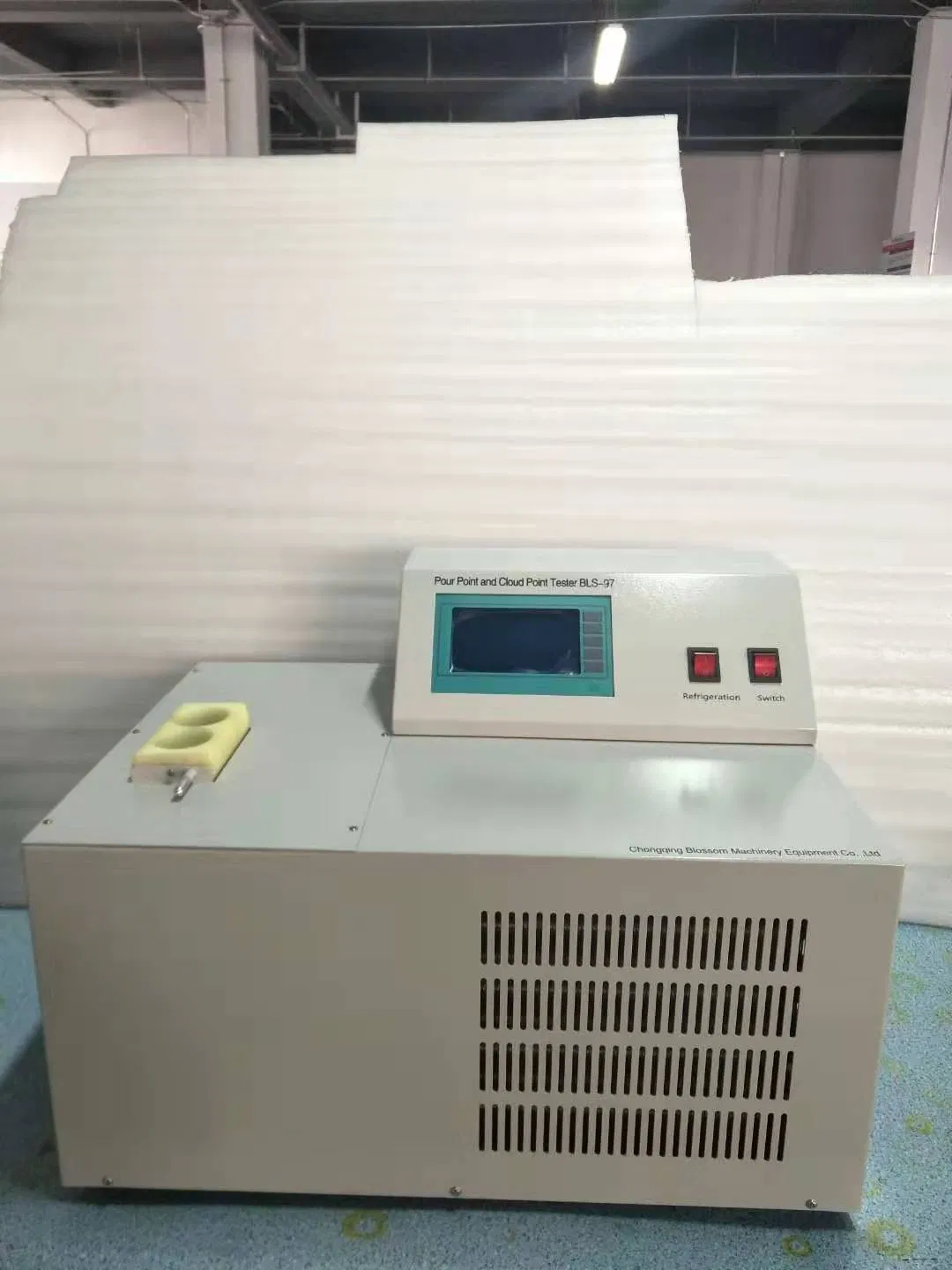

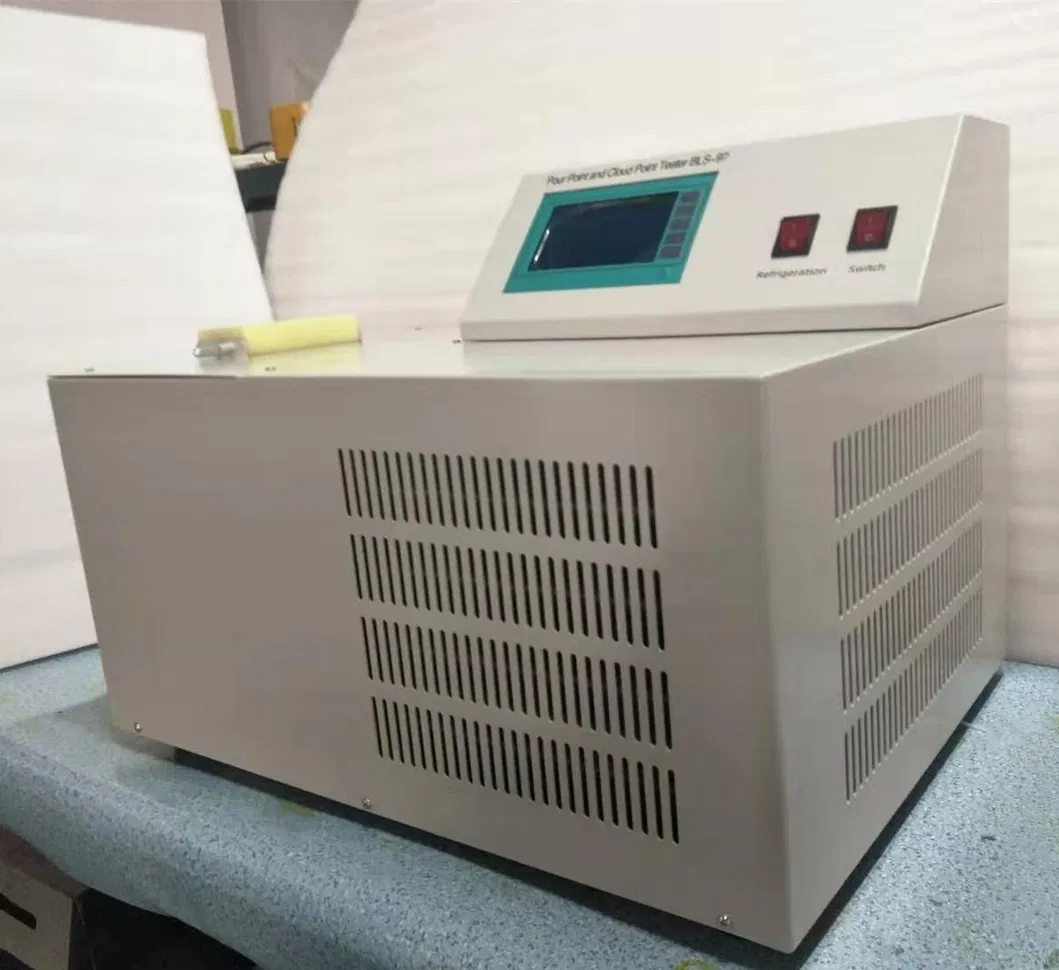

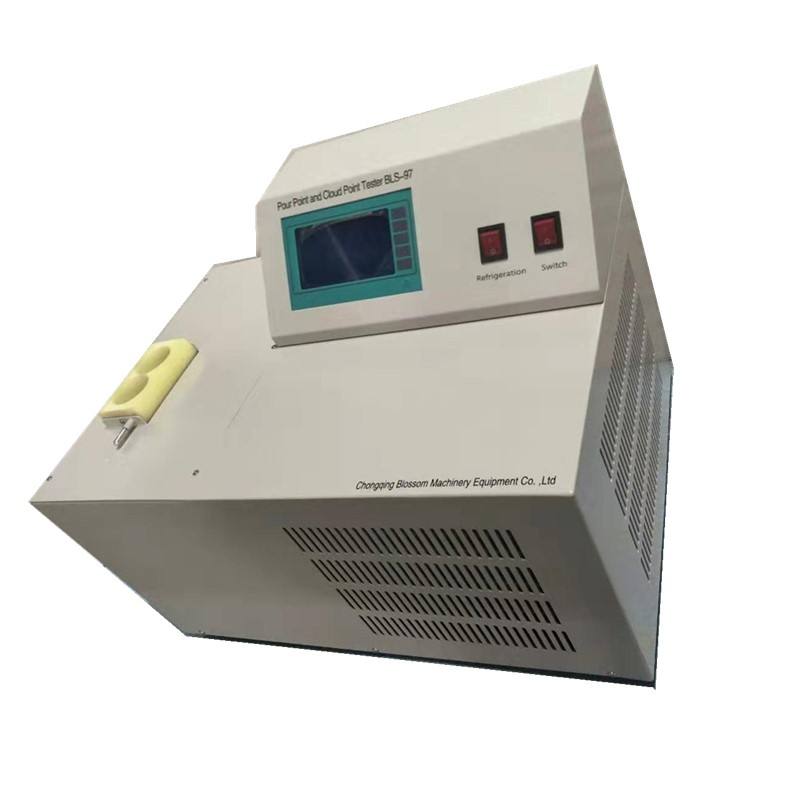

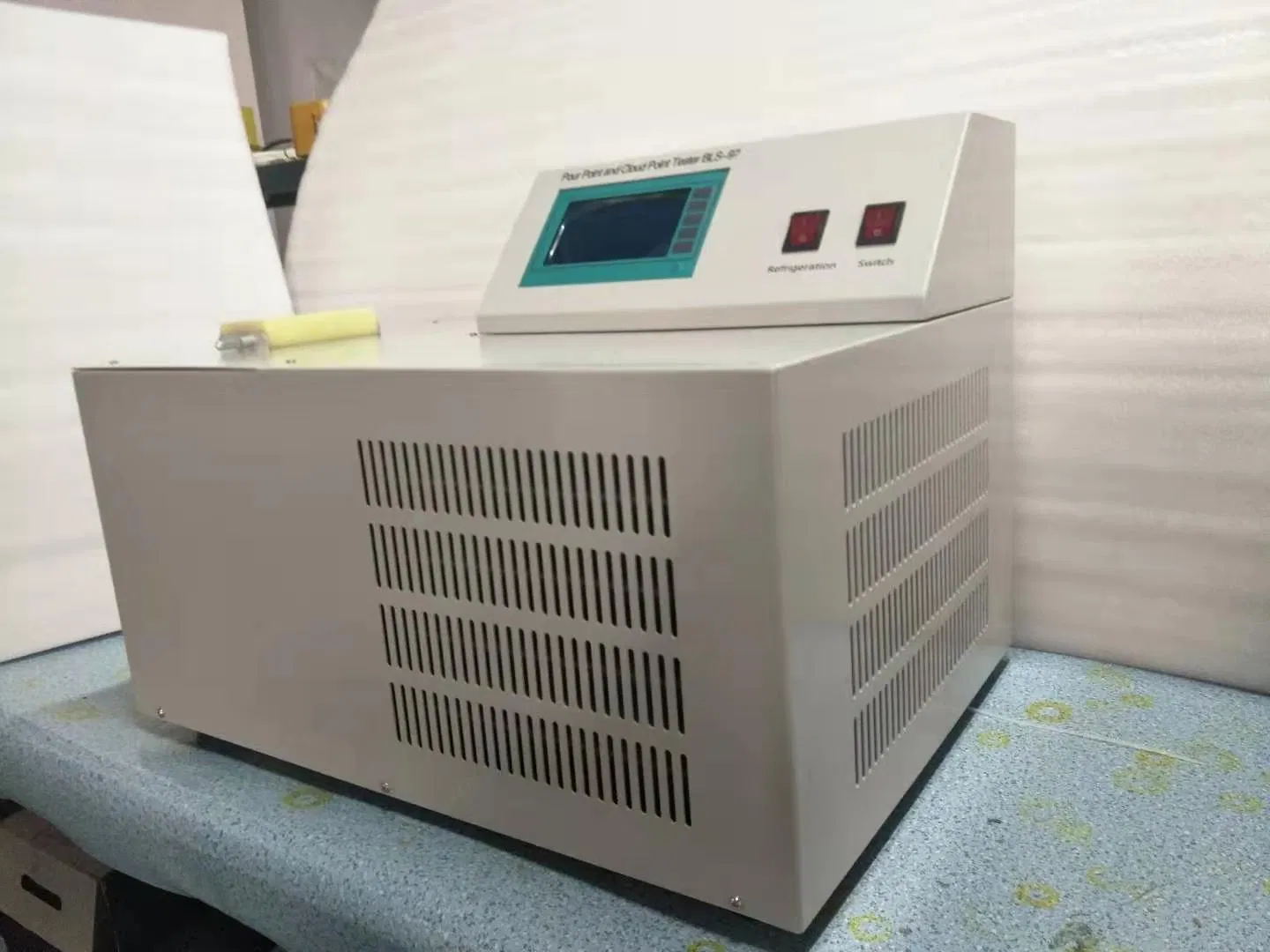

ASTM D97 Transformer Oil Pour Point Apparatus
This tester complies with ASTM D97 and national standards GB510 Determination method of Petroleum Products Freezing Point and GB3535 Petroleum Pour Point Determination Method, and is applicable to measure the pour point and cloud point of light petroleum products in refineries, electric power, railways, shipping, oil companies and oil business departments.
Main Features
1. English LCD display, microprocessor control, dynamic graphics simulation work status;
2. Imported compressor refrigeration technology, automatic refrigeration temperature control during the determination process;
3. Applicable to light petroleum products whose pour point and cloud point is within 10°C to -60°C;
Technical Parameters
Test repeatibility | Cloud point:±2ºC,pour point:±2ºC |
Display resolution | 0.1ºC |
Cooling limit depth | Temperature difference>70ºC(Temperature difference between water outlet and displayed temperature) |
Cooling speed | 10 minutes>40ºC |
Cooling water pressure | 0.5kg/cm2 |
Power supply | 220V±10% 50HZ±1HZ |
Rated power | 350W |
Working environment | Temperature:25ºC±10ºC;relative humidity<85%PH |
Dimensions | 370×355×377mm |
Weight | About 18kg |
1.Karl Fisher Oil Water Content Tester BLS-6304
2.Digital Oil Moisture Meter BLS-D6304
3.Petroleum Products Kinematic Viscosity and Viscosity Index Tester BLS-445
4.Digital Kinematic Viscosity Meter BLS-D445
5.Fully Automatic Petroleum Products Acidity Meter BLS-974
6.Cleveland Open Cup Flash and Fire Point Tester BLO-92
7.Pensky-Martens Closed Cup Flash Point Tester BLC-93
8.Pour Point and Cloud Point Tester BLS-97
9.Petroleum Products Density Meter BLS-1298
10.Copper Corrosion Tester BLS-130
11.Petroleum Products Aniline Point Tester BLS-611
12.Petroleum Products Colorimeter BLS-1500
13.Petroleum Products Carbon Residue Tester (Micro Method) BLS-4530
14.Petroleum Product Vapor Pressure Tester (Reid Method) BLS-3231
15.Total Acid Number and Total Base Number TAN/TBN Tester BLS-2896
16.Petroleum Products X-ray Fluorescence XRF Sulfur Analyzer Sulfur BLS-4294
17.Petroleum Products Online Moisture Meter BLS-PPM
18.Online Moisture ppm Meter/ Particle Counter/ Pollution Degree Analyzer NAS-01
19.Petroleum Products Saponification Number Tester BLS-94
20.Micro Coulometry Sulfur and Chlorine Content Tester BLS-3120
21.Ultraviolet Fluorescence Sulfur Analyzer BLS-5453
22.Conradson Method Petroleum Products Carbon Residue Tester BLS-189
23.Ramsbottom(Electric Furnace) Method Petroleum Products Carbon Residue Tester BLS-524
24.Hydrogen Sulfide in Liquefied Petroleum (LP) Gases Tester (Lead Acetate Method) BLS-2420
25.Hydrocarbon Types in Petroleum Products Tester by Fluorescent Indicator Adsorption BLS-1319
Chongqing Blossom Machinery Equipment Co., Ltd is located in Chongqing, one of the municipalities directly under the central government. The main products include instrument and apparatus, mechanical machinery such as liquid purification equipment and electric hoist, etc. The equipment is widely applied in construction, petroleum, mechanical, ships, pharmaceutical, lab test and edible oil processing, etc.

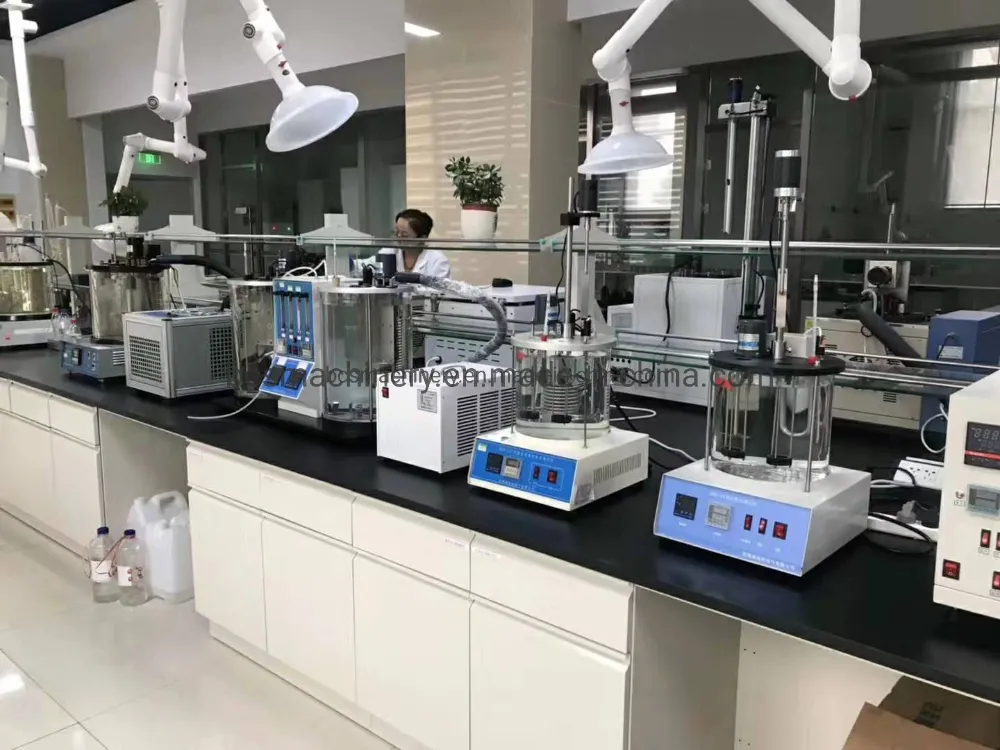

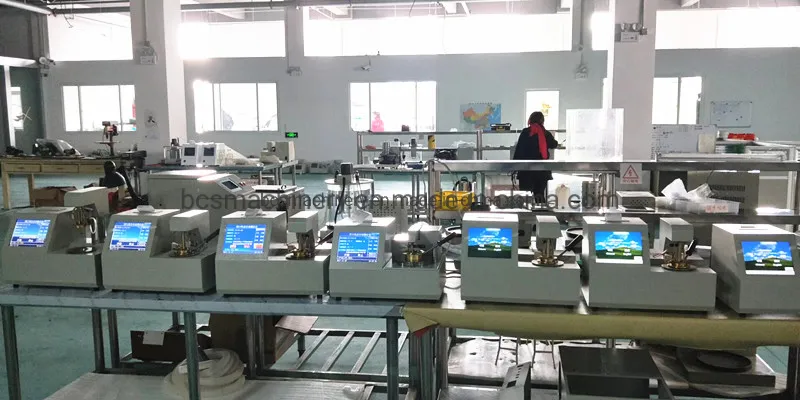

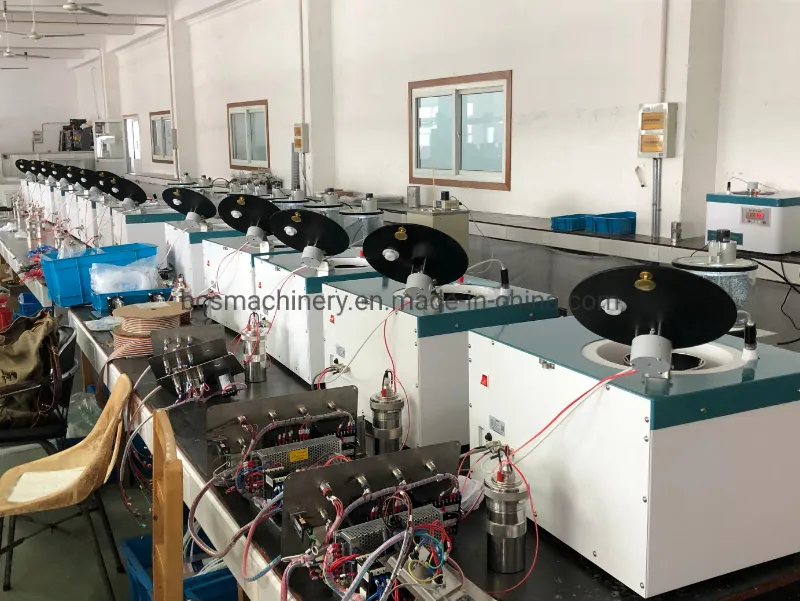

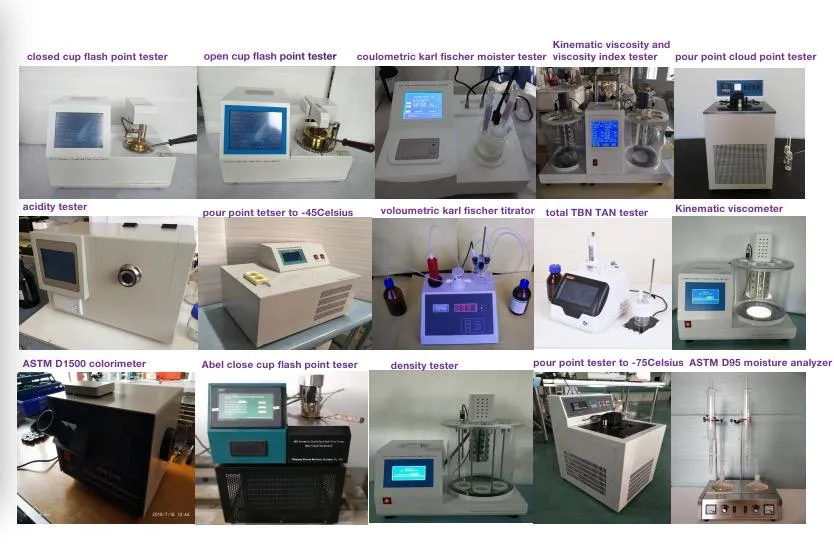

Test Equipment in stock

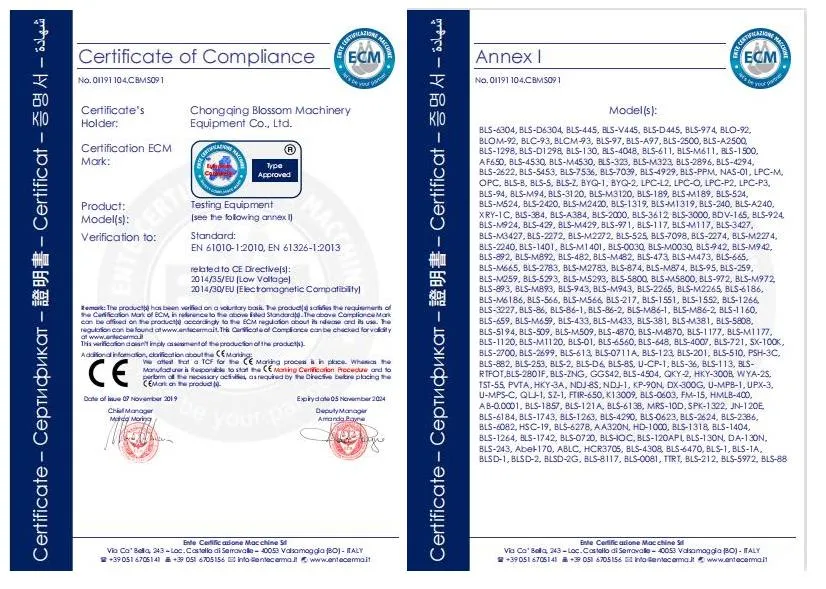

CE Certificate
