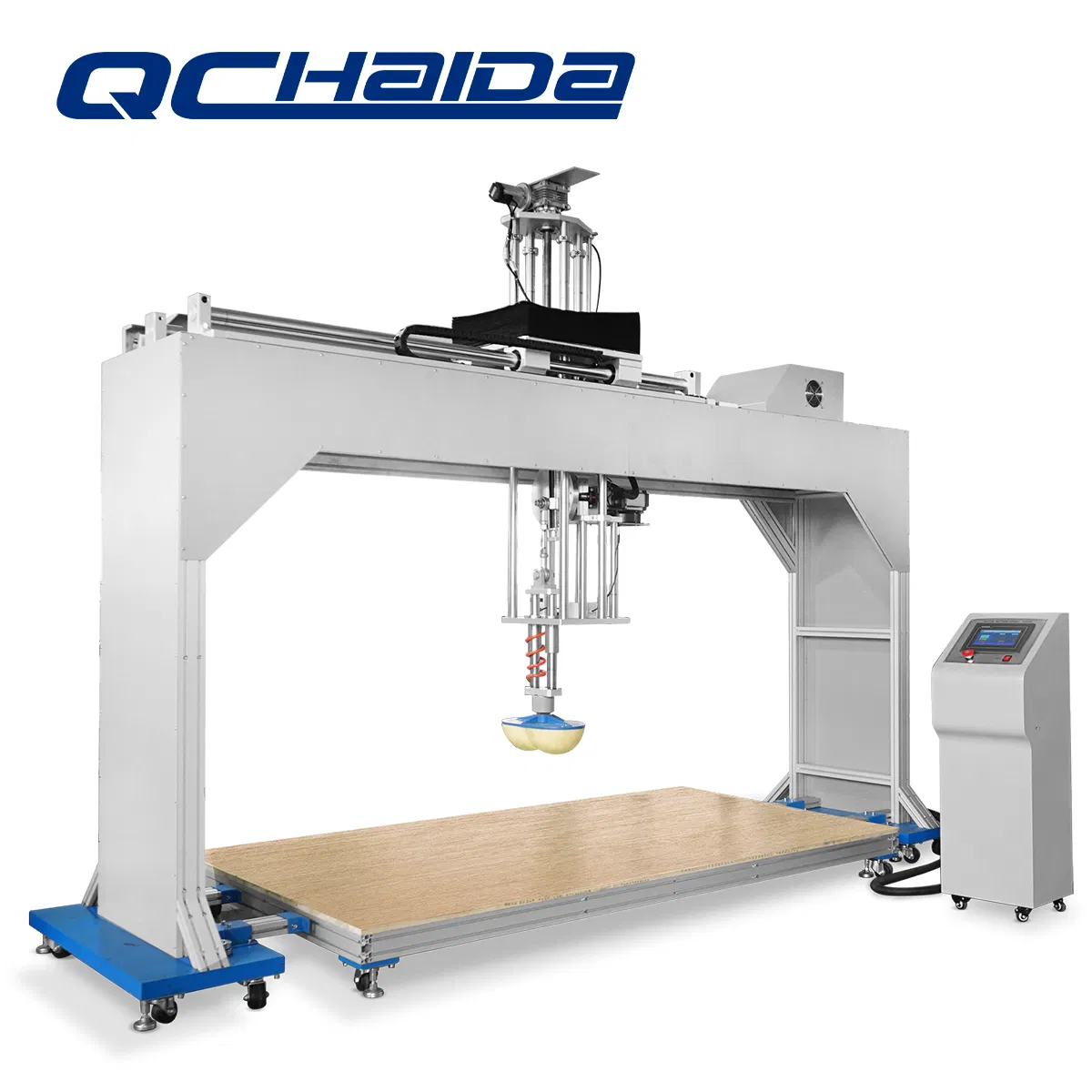

Automatic Cornell Mattress Durability Tester
Automatic Cornell Mattress Durability TesterMattress Roller Durability Tester, Using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress, simulate human motion to assess the durability of the ......
Send Inquiry
Product Description
Automatic Cornell Mattress Durability Tester

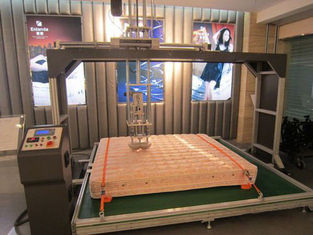

Mattress Roller Durability Tester, Using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress, simulate human motion to assess the durability of the mattress.
Test standard: ASTM F1566, EN1957, QB1952
The main components
1. Motor: Taiwan's Teco Motor with reducer of Italy
2. Speed adjustment: Taiwan's "Ed Force" drive
3. Guide bearing: Import from Japan.
4. Rack: Aluminum body and steel
5. Control elements: Imported.
Main technical parameters:
Test purpose: Using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress, simulate human motion to assess the durability of the mattress. )
The main components:
1. Motor: Taiwan's Teco Motor with reducer of Italy.
2. Speed adjustment: Taiwan's "ED Force" drive
3. Guide bearing: Import from Japan.
4. Rack: Aluminum body and steel
5. Control elements: Imported.
(The table parameters for the company Standard Model parameters, we support customer customization parameters)
The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Mattress Roller Durability Tester, Using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress, simulate human motion to assess the durability of the mattress.
Test standard: ASTM F1566, EN1957, QB1952
The main components
1. Motor: Taiwan's Teco Motor with reducer of Italy
2. Speed adjustment: Taiwan's "Ed Force" drive
3. Guide bearing: Import from Japan.
4. Rack: Aluminum body and steel
5. Control elements: Imported.
Main technical parameters:
Test purpose: Using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress, simulate human motion to assess the durability of the mattress. )
The main components:
1. Motor: Taiwan's Teco Motor with reducer of Italy.
2. Speed adjustment: Taiwan's "ED Force" drive
3. Guide bearing: Import from Japan.
4. Rack: Aluminum body and steel
5. Control elements: Imported.
| Model | HD -F766 Mattress Roller Durability Tester |
| Hexagonal wood barrel | 240±10Lb(109±4.5kg) Length 36±3in(915±75mm) |
| Cylinder wood barrel | 140kg, length 1000mm |
| Maximum size of mattress | 2.2m×2.2m |
| Test speed | 0-20r/min |
| Machine size (L×W×H) | about 3500×3200×2200mm |
| Power | three-phase four-wire AC 380V 6A |
| Accessories | One Hexagonal and Cylinder wood barrel each |
The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
