Automatic Crude Oil Laboratory Distillation Equipment ASTM D86

Product Description

Automatic crude oil Laboratory distillation equipment ASTM D86

Lab distillation equipment is designed and made as per ASTM D86. It can performs boiling range analysis of gasoline, aviation gasoline, jet fuels, solvent with special boiling point, naphtha, diesel oil, distillate fuels, and other petroleum products at Atmospheric Pressure.
Our company also can provide distillation apparatus at vacuum pressure.

1. Summary:

Lab distillation equipment is designed and made as per ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure. It is an ideal distillation tester for petroleum products.

2.Main technical features:

1.Lab distillation equipment adopts double units working mode, can do test for one sample as well as two samples which having the same specification or different specifications.It highly improves the work efficiency.

2.Lab distillation equipment adopts two groups of independent digital temperature controller, heater, electric stirrer to constitute two constant temperature baths. Each bath temperature can be adjusted and controlled independently.The temperature in the bath is uniform,can fully meet the requirements of test.

3.Lab distillation equipment adopts special heating furnace to ensure the safety of test. Heating power can be continuously adjusted to meet the requirements of test.

3.Main technical specifications:

1	Standard	ASTM D86
2	Measurement range	Ambient~400ºC
3	Temperature precision	±0.5ºC
4	Single/Double unit	Double
5	Atmospheric/Vacuum	Atmospheric
6	Power supply	AC(220±10%)V, 50Hz
7	Heating power	1300W×2, continuously adjustable
8	Receiving cylinder	100ml, division value 1ml
9	Distillation flask	125ml,meet the requirements of ASTM D86
10	Dimension	760mm×520mm×500mm

4.Detail Images:

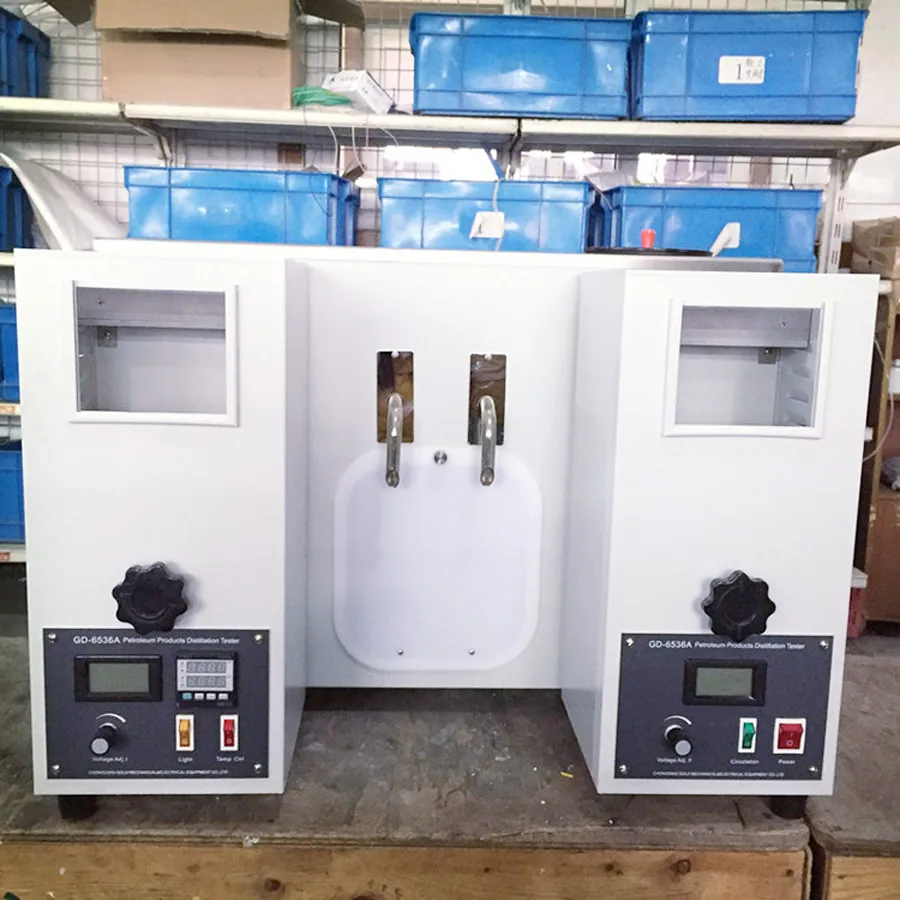

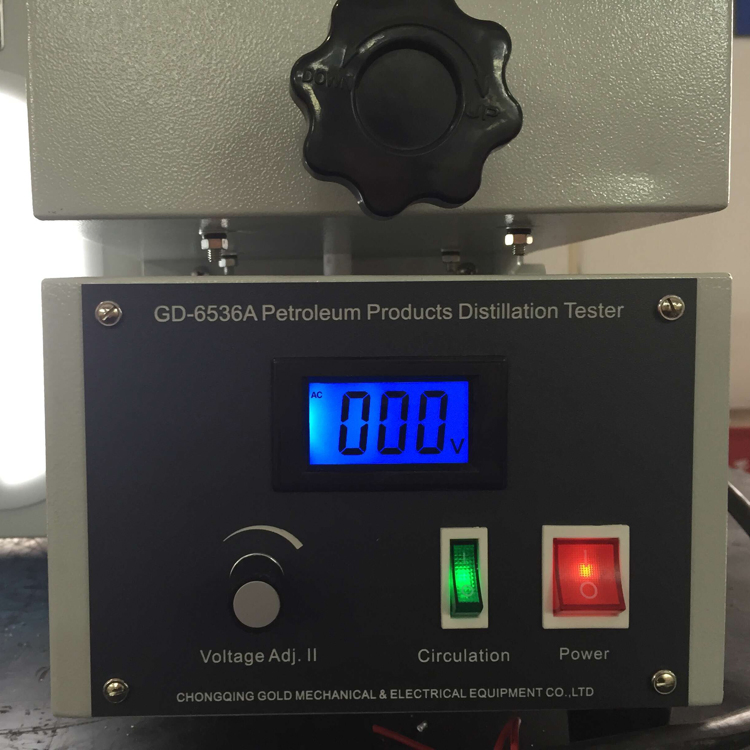

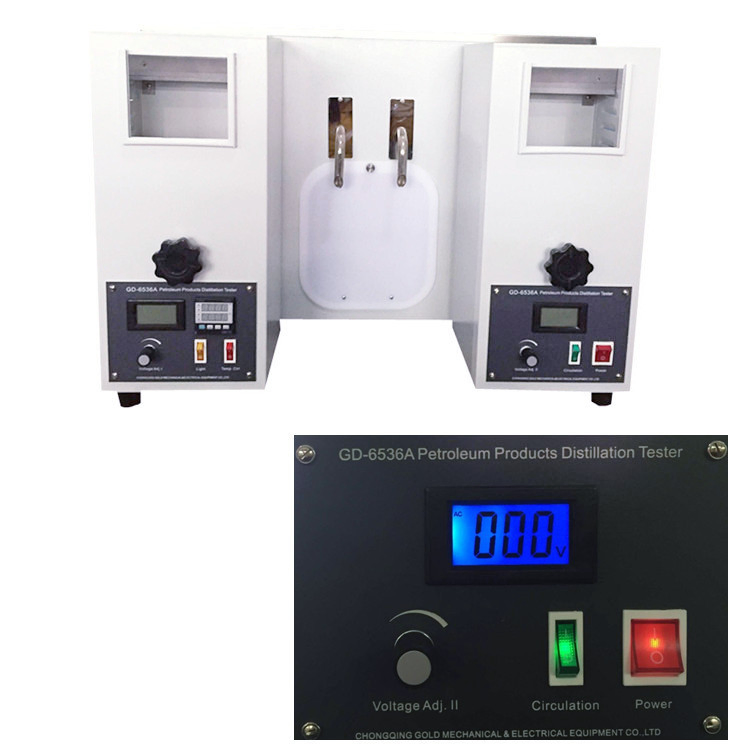

Automatic Crude Oil Laboratory Distillation Equipment ASTM D86
