Automatic Spring Mattresses Hardness Test Equipment
Automatic Spring Mattresses Hardness Test EquipmentMattress Durability Testing Machine has been manufactured to determine the durability of any type of mattress and boxspring unit, regardless of the materials of construction, by simulating long-term use conditions. There are several different method......
Send Inquiry
Product Description
Automatic Spring Mattresses Hardness Test Equipment
Mattress Durability Testing Machine has been manufactured to determine the durability of any type of mattress and boxspring unit, regardless of the materials of construction, by simulating long-term use conditions. There are several different methods used in the mattress industry for the evaluation of innerspring and box spring mattresses. The Cornell Type Tester is used to test for firmness and firmness retention, the Mattress Rollator is used to test for durability and the Bedding Impact Tester is used to assess the effect of impact.

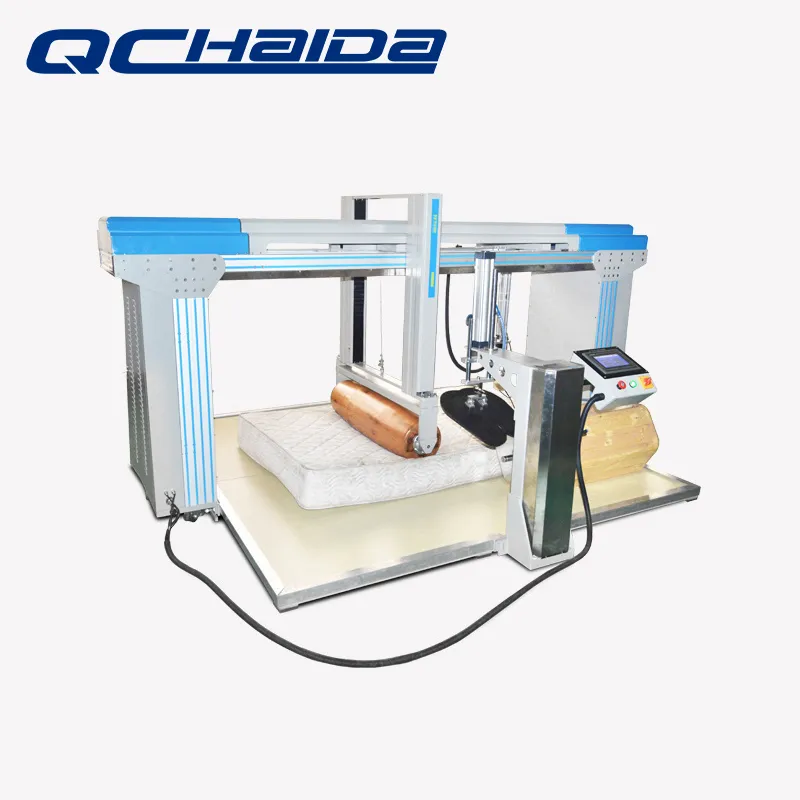

The Mattress Rollator consists of a weighted roller which moves width ways across a test mattress to simulate body movement. The length of stroke to which the Roller moves is very easily adjusted, by sliding the stroke adjustors left or right, to suit the relevant mattress under test. Unloading and loading of the Roller onto the test mattress is done easily via a motor driven lifting assembly.
Test standard: ASTM F1566, EN1957
Test purpose: Using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress, simulate human motion to assess the durability of the mattress.
Function and features:
(The table parameters for the company Standard Model parameters, we support customer customization parameters)
Mattress Durability Testing Machine has been manufactured to determine the durability of any type of mattress and boxspring unit, regardless of the materials of construction, by simulating long-term use conditions. There are several different methods used in the mattress industry for the evaluation of innerspring and box spring mattresses. The Cornell Type Tester is used to test for firmness and firmness retention, the Mattress Rollator is used to test for durability and the Bedding Impact Tester is used to assess the effect of impact.
The Mattress Rollator consists of a weighted roller which moves width ways across a test mattress to simulate body movement. The length of stroke to which the Roller moves is very easily adjusted, by sliding the stroke adjustors left or right, to suit the relevant mattress under test. Unloading and loading of the Roller onto the test mattress is done easily via a motor driven lifting assembly.
Test standard: ASTM F1566, EN1957
Test purpose: Using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress, simulate human motion to assess the durability of the mattress.
Function and features:
Weight of hexagonal wood barrel | 109kg, Cylinder weight: 140kg |
Maximum size of mattress | 2.3m× 2.5m |
Machine size(L× W× H) | 2500mm× 2800mm× 2200mm |
Power | 380V, 1.5kw |
Motor | Taiwan's Teco Motor with reducer of Italy. |
Speed adjustment | Taiwan's "ED Force" drive |
Guide bearing | Import from Japan. |
Rack | Aluminum body and steel |
Control elements | Imported |
