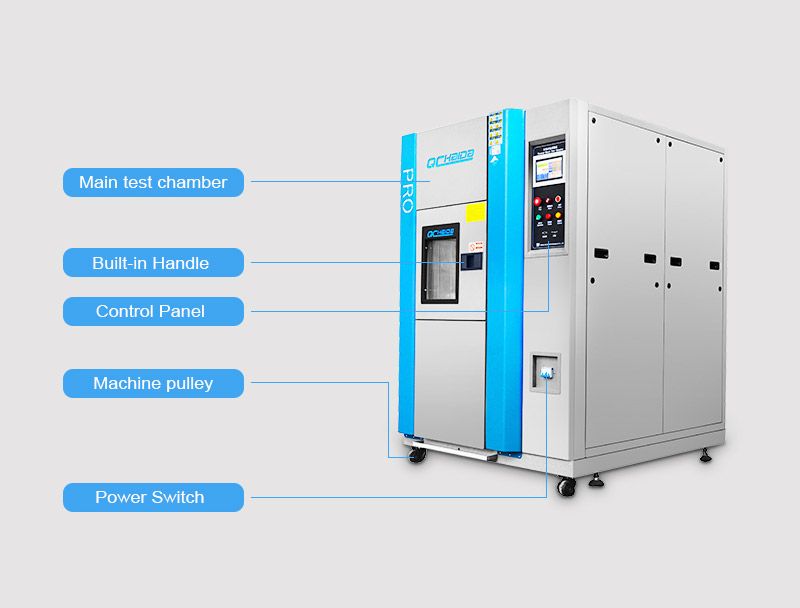

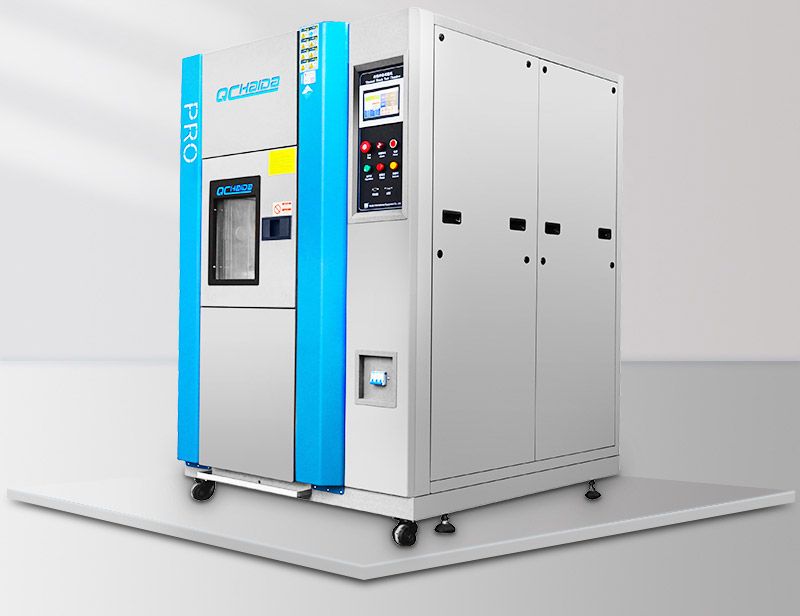

Automatic Thermal Shock Resistance Test Chamber
Automatic Thermal Shock Resistance Test ChamberProduct Introduction:Thermal Shock Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time t......
Send Inquiry
Product Description
Automatic Thermal Shock Resistance Test Chamber
Product Introduction:
Thermal Shock Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm.
The equipment is widely used in metal, plastic, rubber, electronics and other materials and it can be used as an important reference for improving product quality. It meets the standard of MTL, IEC, JIS, GJB…
Main parameters:
ADVANTAGE
1.TM 2101 intelligent automatic detection of the operating system, (can adapt to all current PC)
2.High-tech, low noise
3.Humanized industrial design, easy to place and transport
4.The world famous brand core precision components
5.Security protection system
6.Valid test trip length (modifiable)
7.3 seconds fast temperature change
8.2 chambers temperature conversion faster and save time
9.3 chambers in addition to a low temperature test , high temperature test, there can be done at room temperature test
Features:
High temperature chamber:
Heater: NI-CR alloy electric heater
Draught fan: Share centrifugal fan when high temperature and do environmental temperature, preheating with axial flow fan.
Low temperature chamber:
Cooler: Fin cooler, regenerator
Draught fan: centrifugal fan
Drive device:
Pneumatic cylinder: Drive the air door of high, environmental, low temperature
Air compressor: Provide the compressed air for driving pneumatic door (supplied by buyer)

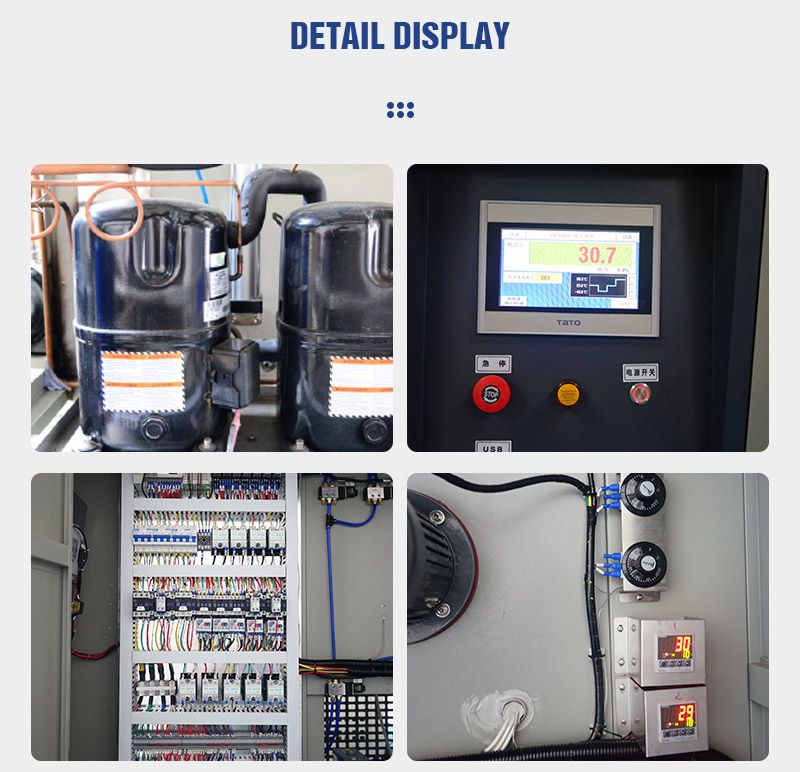

Refrigerating device:
Cooling method: mechanical compression refrigeration
Refrigeration compressor: Semi-closed piston
Refrigerant: R23/R404A
Condensation: Stainless steel welded plate heat exchanger
Controller:
Operate interface: 6" color LCD touch screen
Program memory capacity: 100 groups (modify by operator)
Setting range: Time: 1 minute ~ 99 hour 59 minute, cycles: 1~ 999 cycles
Resolution: temperature: 0.01 ºC; time: 1 minute
Input: T thermocouple
Control method: P.I.D control
Additional functions:
Timer, over temperature and power failure protection, alarm, record test curve, emergency stop, display test time
Circulated cooling water: pressure: 0.2~0.4MPa, temperature: ≤30ºC
Standard configuration: indication lamp of test chamber, time meter, test hole for wire routing, 6pcs castor, 4pcs adjust wheel.
Safety devices:
Leakage and breaker, over temperature, low temperature protect device, exhaust valves, sample power control terminal, over temperature protection of high and low chamber, compressor over pressure, over heat protection, out of water relay, heat relay of fan, compressed air pressure switch, fuse, external alarm terminal
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Product Introduction:
Thermal Shock Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm.
The equipment is widely used in metal, plastic, rubber, electronics and other materials and it can be used as an important reference for improving product quality. It meets the standard of MTL, IEC, JIS, GJB…

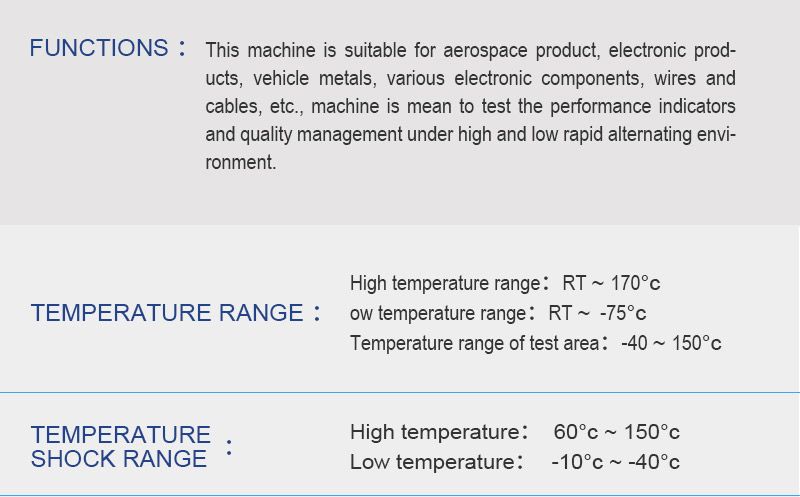

Main parameters:
| Test method | Pneumatic operated door switch 3 chambers |
| Inner dimension (W*D*H) | 500*450*450mm |
| External dimension (W*D*H) | 1380*1370*1980mm |
| Temperature range | -40 ~ +80ºC |
| High temperature chamber pre-heating range | 60 ~ 100ºC |
| Heating speed | +60→+100ºC about 10 minutes |
| Low temperature chamber pre-cooling range | -65 ~ 0 |
| Cooling speed | Ambient →-65ºC about 65 minutes |
| Temperature deviation | ±3ºC |

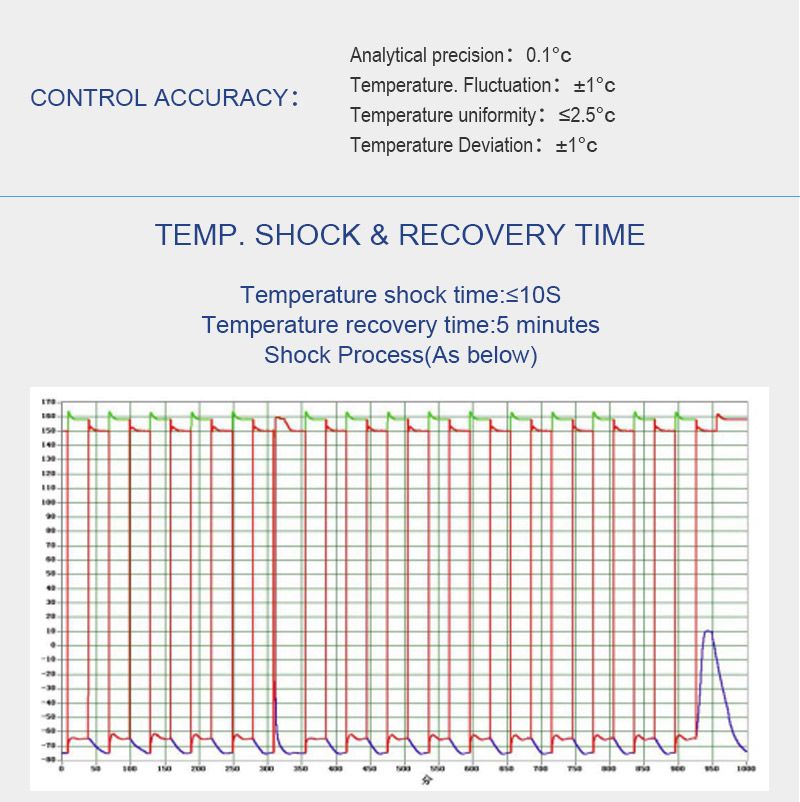

| Thermal recovery time | Within 5 minutes |
| External material | Antirust processing cold-rolled steel sheet |
| Internal material | SUS#304 stainless steel |
| Thermal insulation material | Polyurethane foam and fiberglass |
| Coolant | R404A / R23 |
| Cooling method | Air cooling |
| Pressure | 0.2 - 0.5Mpa |
| Power supply | Three phase, 380V, 50Hz |
ADVANTAGE
1.TM 2101 intelligent automatic detection of the operating system, (can adapt to all current PC)
2.High-tech, low noise
3.Humanized industrial design, easy to place and transport
4.The world famous brand core precision components
5.Security protection system
6.Valid test trip length (modifiable)
7.3 seconds fast temperature change
8.2 chambers temperature conversion faster and save time
9.3 chambers in addition to a low temperature test , high temperature test, there can be done at room temperature test
Features:
- Perfect appearance and easy to operate.
- Japan LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.

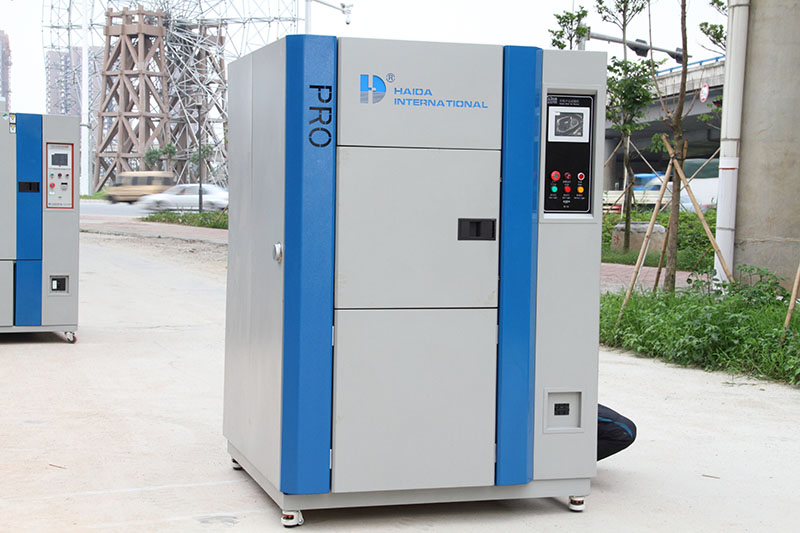

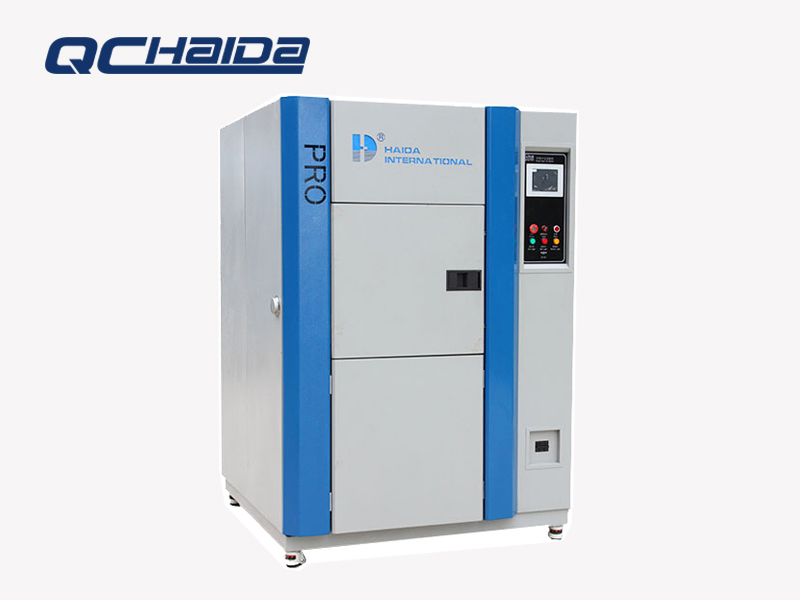

- Three chamber structures, high temperature chamber, low temperature chamber and test chamber, control automatically, stay and switch time adjustable.
- Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…
- Control interface will display alarm reason and provide check methods, machine has emergency stop button.
- Cold and hot shock temperature recover within 5 minutes, which complies with MTL, IEC, JIS, GJB and other international standards.
- With RS-232C communication port for connecting PC to control, record and save test report.
High temperature chamber:
Heater: NI-CR alloy electric heater
Draught fan: Share centrifugal fan when high temperature and do environmental temperature, preheating with axial flow fan.
Low temperature chamber:
Cooler: Fin cooler, regenerator
Draught fan: centrifugal fan
Drive device:
Pneumatic cylinder: Drive the air door of high, environmental, low temperature
Air compressor: Provide the compressed air for driving pneumatic door (supplied by buyer)
Refrigerating device:
Cooling method: mechanical compression refrigeration
Refrigeration compressor: Semi-closed piston
Refrigerant: R23/R404A
Condensation: Stainless steel welded plate heat exchanger
Controller:
Operate interface: 6" color LCD touch screen
Program memory capacity: 100 groups (modify by operator)
Setting range: Time: 1 minute ~ 99 hour 59 minute, cycles: 1~ 999 cycles
Resolution: temperature: 0.01 ºC; time: 1 minute
Input: T thermocouple
Control method: P.I.D control
Additional functions:
Timer, over temperature and power failure protection, alarm, record test curve, emergency stop, display test time
Circulated cooling water: pressure: 0.2~0.4MPa, temperature: ≤30ºC
Standard configuration: indication lamp of test chamber, time meter, test hole for wire routing, 6pcs castor, 4pcs adjust wheel.
Safety devices:
Leakage and breaker, over temperature, low temperature protect device, exhaust valves, sample power control terminal, over temperature protection of high and low chamber, compressor over pressure, over heat protection, out of water relay, heat relay of fan, compressed air pressure switch, fuse, external alarm terminal
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
