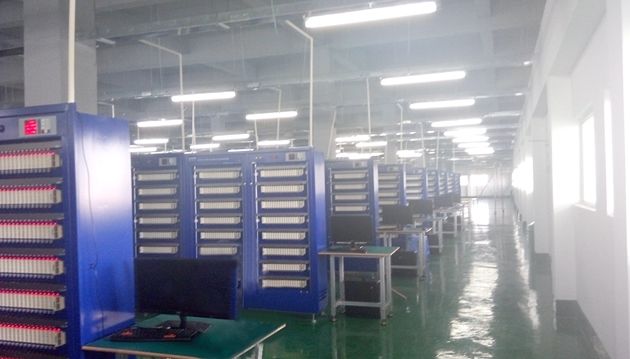

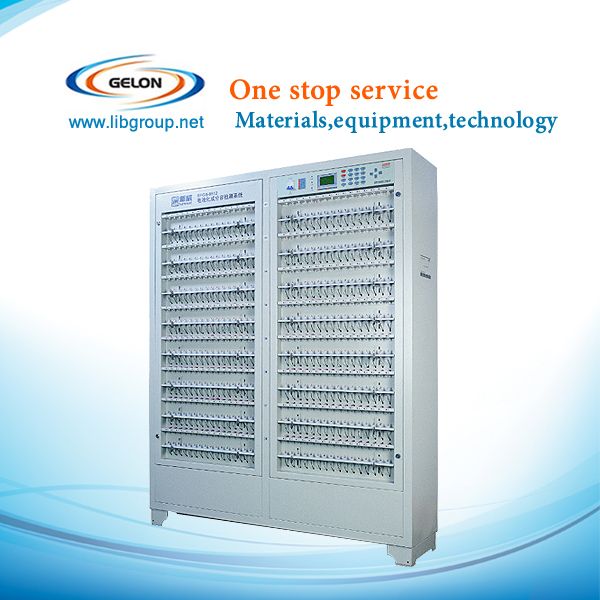

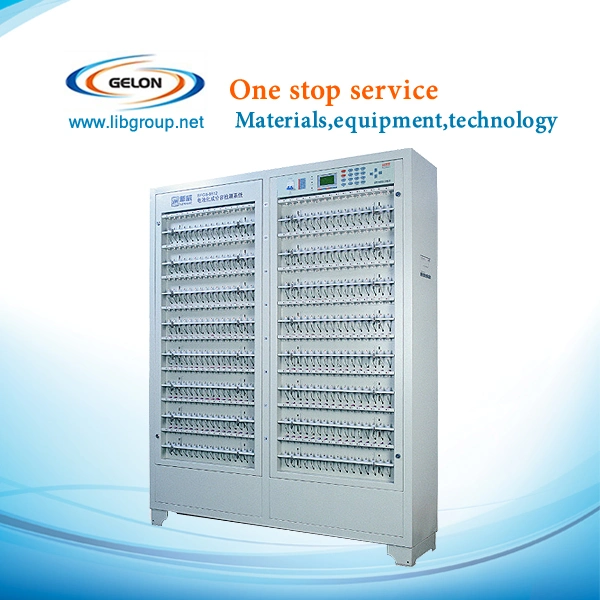

Battery Test System Battery Formation and Grading Machine with 512 Channels Gn-5V5a-512
Product Description I Main PartsCabinet, Clamp, Auto A/D Constant Current Source, Circuit Alarm, Operation Panel, etc II Main Function1. Special making for lithium battery.2. Can be working separately, timing separately.3. Auto A/D Current (Set the current, time, steps by keyboard.)4. 16 serials tan......
Send Inquiry
Product Description
I Main Parts
Cabinet, Clamp, Auto A/D Constant Current Source, Circuit Alarm, Operation Panel, etc
II Main Function
1. Special making for lithium battery.
2. Can be working separately, timing separately.
3. Auto A/D Current (Set the current, time, steps by keyboard.)
4. 16 serials tandem type constant current sources, each source can load 32pcs of batteries.
5. Constant current sources are separate, no influence on each other.
6. Each constant current source is corresponding with 3 1/2 current indications.
7. Power Fail Safeguard, can continuously work when the power gets well.
8. Special clamp for LiPo.
III. Main Technical Data
| Size(L*W*H) | 1500×500×1900 |
| Voltage | AC 220V±5% 50 HZ (three-phase four-wire) |
| Max. Power(W) | 7000 |
| Channels | 512 |
| Clamp Type | LiPo Clamp |
| Clamp Width (mm) | 58 |
| Clamp Spacing(mm) | 75 |
| Voltage Measuring Range (mV) | DC 100 ~ 4500 |
| Voltage Precision | ±0.1%FS±0.1%RD |
| Voltage Revolution(mV) | 1mV |
| Constant Voltage Range(mV) | DC 2000 ~ 4500 |
| Min Discharge Voltage(mV) | 2000 |
| Current Range(mA) | DC 5 ~ 2000 |
| Current Precision | ±0.1%FS±0.1%RD |
| Current Revolution(mA) | 1 |
| Time Arrange(min/step) | 999 |
| Time Measuring Error | ±0.1% |
| Working Environment | Temperature:0~40ºC,RH≤85% |
We also provide the different USES of various types of testers.
1. 5V5mA 5V10mA 5V3A 5V6A 5V10A 10V3A 10V6A 10V 20A etc for Ni-MH Lithium ion battery charging and discharging testing process.
battery open short testing machine, li ion batteries testing, li ion batteries testing machine
2. Battery Voltage/internal resistance testing for all Ni-MH,Lithium ion cell
3. Battery short circuit testing machine for battery production line ( half-finished battery )
battery open short testing machine, li ion batteries testing, li ion batteries testing machine
4. Finished battery testing machine
1 Standard exported package : Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way,
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
We are the first and earliest exporter for Li-ion battery materials. We focus on lithium electricity industry for 10 years, can provide full set of lithium battery materials ,equipment and technology. We can provide one-stop solution for you, provide a "turn key" project for you!
