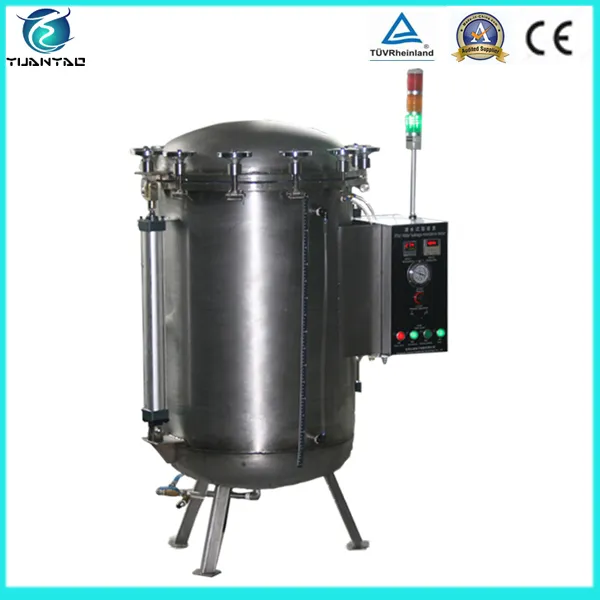

Climate Tester Lab Ipx7 Ipx8 Waterproof Test Equipment
Climate Tester Lab Ipx7 Ipx8 Waterproof Test Equipment1 Easy operation2 Internal material: SUS#3043 High quality, good performance4 Protection: IP ApplicationRain test chamber is mainly applies to communications products, auto parts (such as automotive rear-view mirror, car audio, automotive electro......
Send Inquiry
Product Description

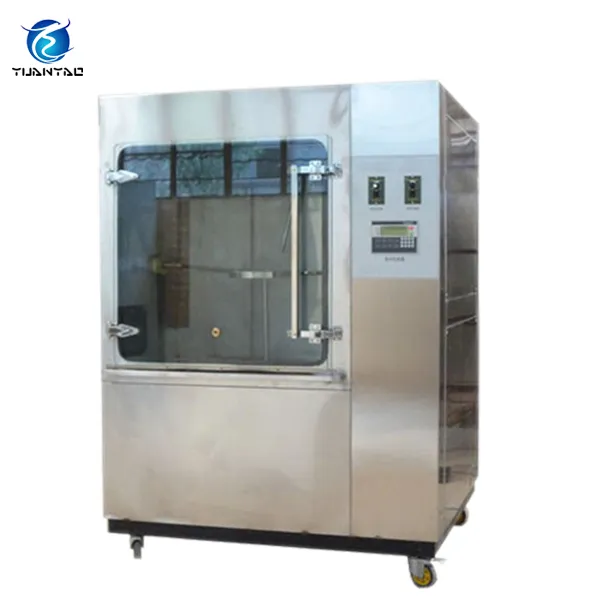

Climate Tester Lab Ipx7 Ipx8 Waterproof Test Equipment
1 Easy operation
2 Internal material: SUS#304
3 High quality, good performance
4 Protection: IP
2 Internal material: SUS#304
3 High quality, good performance
4 Protection: IP
Application
Rain test chamber is mainly applies to communications products, auto parts (such as automotive rear-view mirror, car audio, automotive electronics, automotive lighting, car lights, motorcycle lamps, motorcycle mirrors), outdoor lighting and signaling devices.
Package ang Delivery
Package: Strong wooden cases, meet the international standard.
Delivery details: In 15-20 working days.
Rain test chamber is mainly applies to communications products, auto parts (such as automotive rear-view mirror, car audio, automotive electronics, automotive lighting, car lights, motorcycle lamps, motorcycle mirrors), outdoor lighting and signaling devices.
Package ang Delivery
Package: Strong wooden cases, meet the international standard.
Delivery details: In 15-20 working days.
Specification
1. Digital electronic controller
2. With viewing glass
3. Protection: IP
4. Excellent performance
Feature
1. Digital setting, operating easy, maintenance quickly.
2. Design consider auto maker's sand electronic industry testing.
3. Adopt large viewing glass can let operator see the specimen clearly.
1. Digital electronic controller
2. With viewing glass
3. Protection: IP
4. Excellent performance
Feature
1. Digital setting, operating easy, maintenance quickly.
2. Design consider auto maker's sand electronic industry testing.
3. Adopt large viewing glass can let operator see the specimen clearly.
Technicial parameters
| Model No. | YSRT-500 | YSRT-1000 | YSRT-1728 | ||
| Inner chamber size W×H×D(cm) | 80×80×80 | 100x100x100 | 120x120x120 | ||
| Exterior chamber size W×H×D(cm) | 125×180×340 | 145x200x360 | 165x220x380 | ||
| Rain drop area (IPX1-IPX2) | 60x60cm | 60x60cm, 80x80cm | 80x80cm, 100x100cm | ||
| Swing pipe radius (IPX3-IPX4) | 30cm | 40cm | 50cm | ||
| Rotary table diameter&load | 50cm,50KG | 60cm,50KG | 80cm,50KG | ||
| Spray nozzle diameter & jet distance (IPX5-IPX6) | 6.3mm(IPX5),12.5mm(IPX6); 2.5~3m | ||||
| Water flow and jet distance (IPX1-IPX6) | 1~1.5mm/min(IPX1),3~3.5mm/min(IPX2); 1.1L/min(IPX3),1.8L/min(IPX4); 12.5L±0.625L/min(IPX5),100±5L/min(IPX6) | ||||
| Rotating speed of rotary table | 1~5r/min,ajustable | ||||
| Material | Inner chamber | SUS#304 stainless steel plate | |||
| External chamber | Cold rolled sheet + powder coating | ||||
| Other components | Indoor light, wiper, caster adjuster | ||||
| Power supply | AC 3Ψ 380V 60/50Hz | ||||
| Customization service | Non standrad special requirement can be customized. | ||||

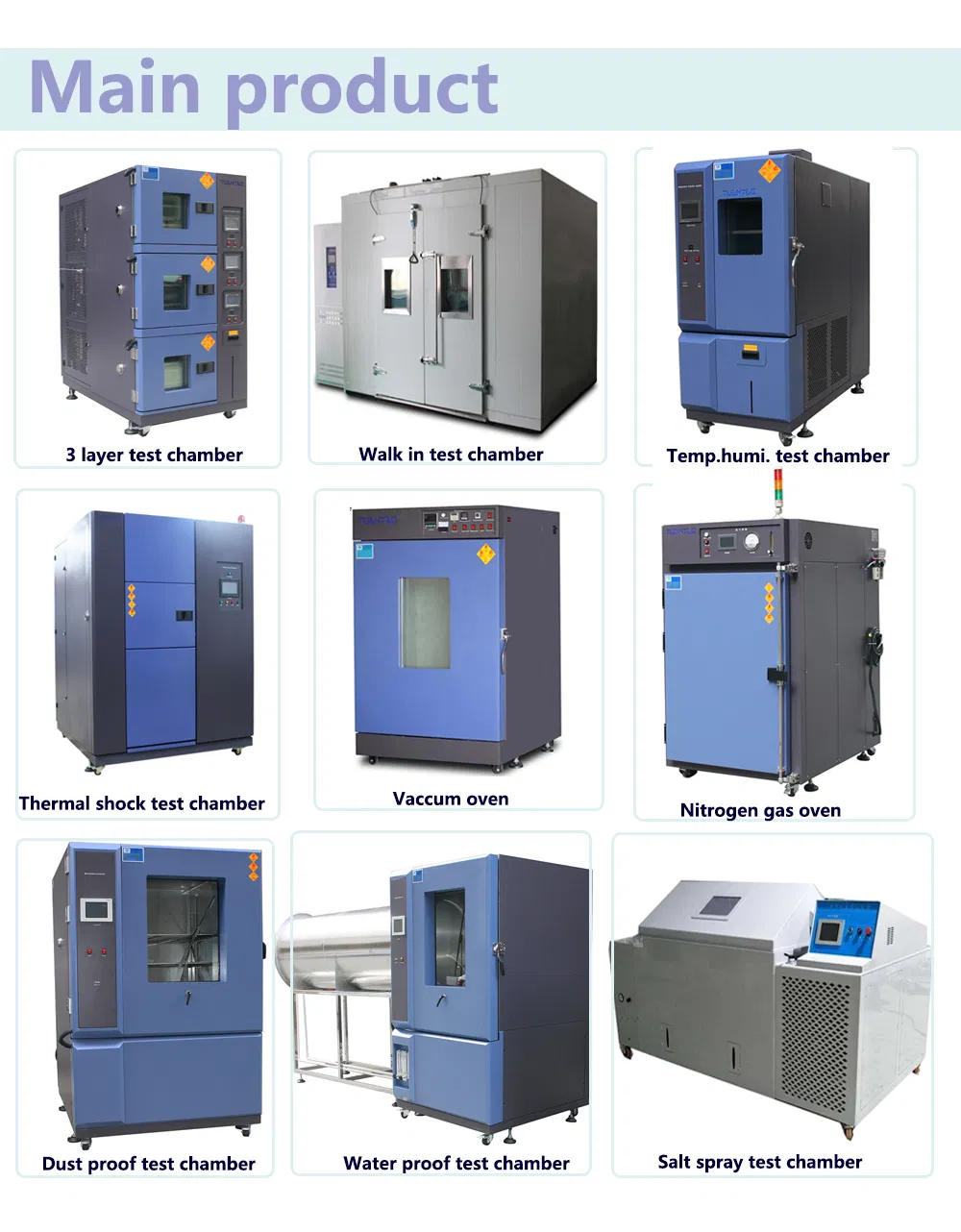

Except rain spray tester, we also can supply:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on
If you are interested in the items, please contact me soon.
