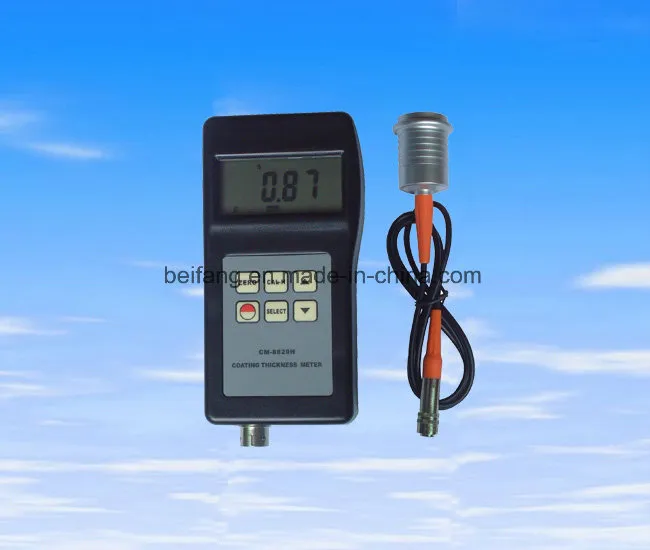

Coating Thickness Meter (CM8856)
Coating Thickness Meter (CM8856)FEATURES* It meets the standards of both ISO2178And ISO 2361 as well as DIN, ASTMAnd BS. It can be used both in theLaboratory and in harsh field conditions.* The F probes measure the thickness ofNon-magnetic materials (e. G. Paint,Plastic, porcelain enamel, copper, zi......
Send Inquiry
Product Description
Coating Thickness Meter (CM8856)
FEATURES
* It meets the standards of both ISO2178
And ISO 2361 as well as DIN, ASTM
And BS. It can be used both in the
Laboratory and in harsh field conditions.
* The F probes measure the thickness of
Non-magnetic materials (e. G. Paint,
Plastic, porcelain enamel, copper, zinc,
Aluminum, chrome etc. ) on magnetic
Materials (e. G. Iron, nickel etc. ). Often
Used to measure the thickness of
Galvanizing layer, lacquer layer,
Porcelain enamel layer, phosphide
Layer, copper tile, aluminum tile, some
Alloy tile, paper etc.
*The N probes measure the thickness of
Non-magnetic coating. Used on
Anodizing, varnish, paint, enamel,
Plastic coatings, powder, etc. Applied
To aluminum, brass, non-magnetic
Stainless steel, etc.
* Digital backlit display gives exact
Reading with no guessing or errors.
* Can store 99 groups of measurements.
FEATURES
* It meets the standards of both ISO2178
And ISO 2361 as well as DIN, ASTM
And BS. It can be used both in the
Laboratory and in harsh field conditions.
* The F probes measure the thickness of
Non-magnetic materials (e. G. Paint,
Plastic, porcelain enamel, copper, zinc,
Aluminum, chrome etc. ) on magnetic
Materials (e. G. Iron, nickel etc. ). Often
Used to measure the thickness of
Galvanizing layer, lacquer layer,
Porcelain enamel layer, phosphide
Layer, copper tile, aluminum tile, some
Alloy tile, paper etc.
*The N probes measure the thickness of
Non-magnetic coating. Used on
Anodizing, varnish, paint, enamel,
Plastic coatings, powder, etc. Applied
To aluminum, brass, non-magnetic
Stainless steel, etc.
* Digital backlit display gives exact
Reading with no guessing or errors.
* Can store 99 groups of measurements.
| Product Model | Coating Thickness Meter |
| Technical Specification | |
| Operation language | English |
| Standards | DIN, ISO, ASTM, BS |
| Calibration | Zero and foil calibration |
| Statistics | Number of measurements, mean, standard deviation, maximum and minimum of 3000 readings |
| Data memory | 495 readings |
| Limits | Adjustable with alarm |
| Interface | RS-232 |
| Working temperature | 0-40 |
| power supply | Nicd rechargeable batteries 1.25V |
| Size | 270mm× 86mm× 47mm |
| Weight | Approx. 530g |
| Standard delivery | Main unit Calibration foil set Substrate Charger Probe Instruction manual TIME certificate Warranty card |
| Optional accessories | 6 optional probes PC software Dataview Calibration foils in different thickness Connecting cable |
| Features | |
| * Two measuring methods: magnetic induction (F) and eddy current (N) | |
| * Six types of probes are available for various applications( F400F1F1/90° F10N1CN02) | |
| * Two measurement modes: continuous / single | |
| * Five statistical ways: average, maximum, minimum, testing frequency, standard deviation | |
| * Two modes: direct mode, group mode | |
| * Have a delete function, can delete the single date or all the data | |
| * Has a print function | |
| * Two switch off modes: manual and auto | |
