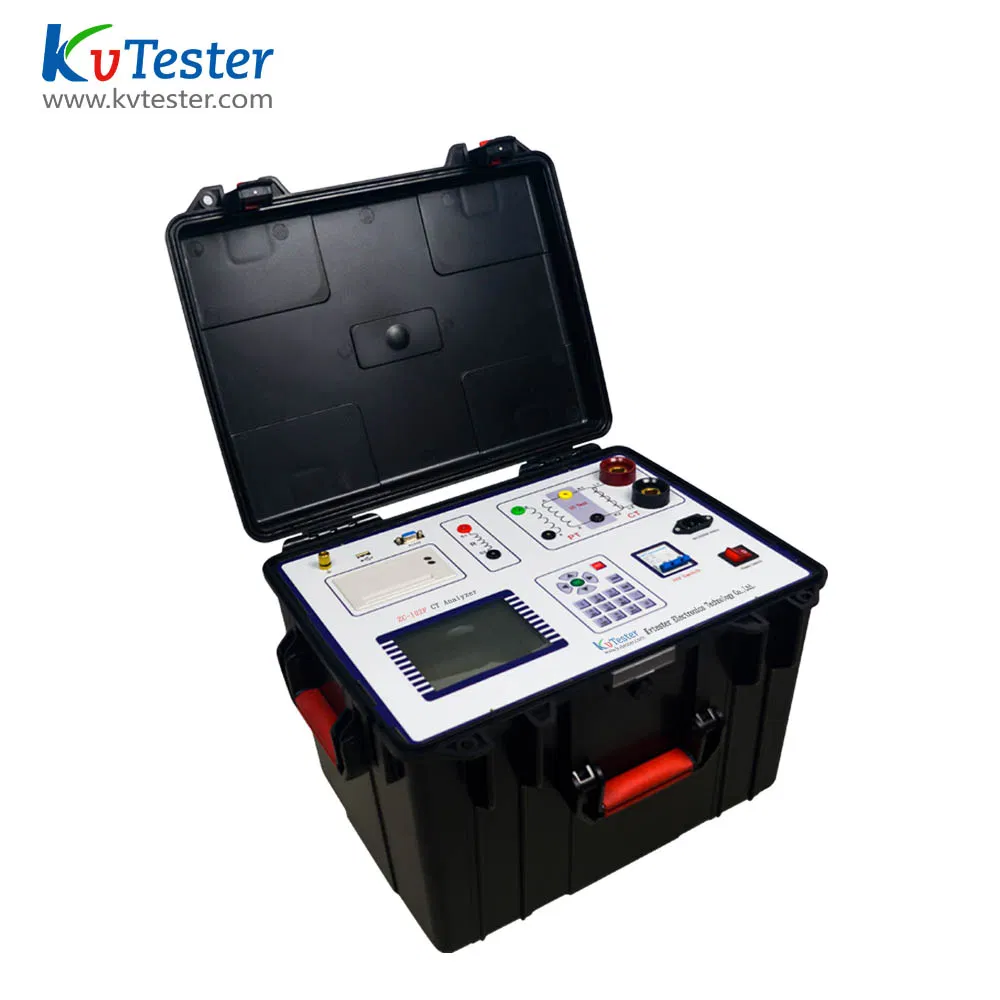

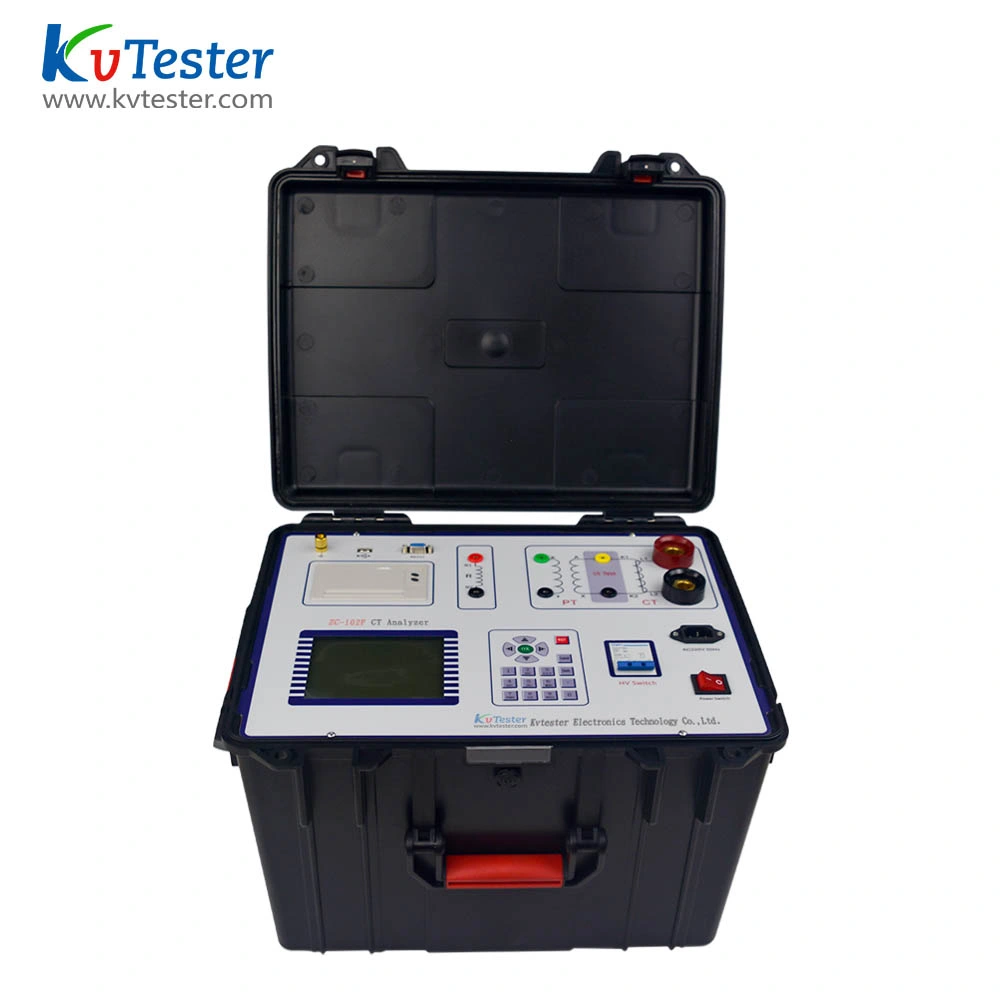

ZC-102F CT volt-ampere characteristic tester is a fully automated CT/PT characteristic tester. It is a specialized tester for relay protection and high voltage insulation. The instrument can complete tests include: CT volt-ampere characteristic test, CT variable ratio polarity test, CT polarity test, CT primary current test, PT volt-ampere characteristic test, PT variable ratio polarity test, PT polarity test, automatic calculation of inflection point voltage-current value, variable ratio difference value, 5% or 10% error curve value, etc.

ZC-102F CT volt-ampere characteristic tester adopts imported core devices and strict manufacturing process to ensure stable and reliable product performance; the instrument panel adopts ergonomic design, easy to operate, one person can complete all the testing work; the software has powerful functions, automatically calculates and gives the test results; the self-contained U disk storage function, combined with PC software, generates complete testing. Reporting, data management is simple and efficient, reducing the workload of testers; the instrument has its own micro printer, which can print test data and curves in real time. This instrument is a professional testing instrument with complete functions, suitable for laboratory and field testing, and widely praised by users.

Features

1. Only setting the test voltage, current and step size, the device can automatically boost voltage and automatically plot the volt-ampere characteristic test curve, eliminating the tedious work of manual voltage regulation, manual recording and curve tracing. Quick, simple and convenient.
2. It can test the volt-ampere characteristics, variable ratio and polarity of CT/PT, error curve of 10%, angle error and ratio error.
3.External booster can expand the output voltage range.
4. Volt-ampere characteristic test: single machine output voltage 0-2500V, current 0-20A; using the external booster output voltage 0-4000V, current 0-1.5A, 500KV grade 1A CTs' volt-ampere characteristic test can be done.
5.220V single power input ,avoids the danger of using 380V.

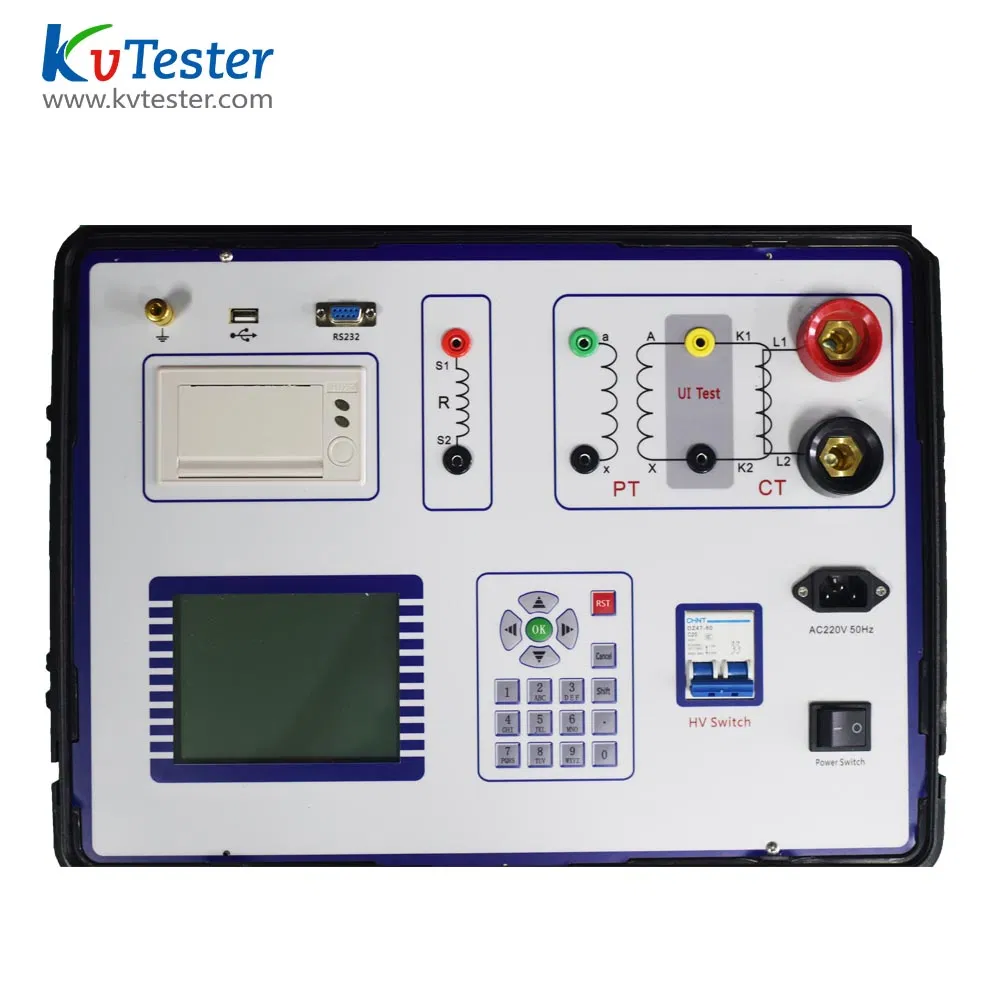

6. Large screen LCD display, direct display of volt-ampere curve when testing, intuitive and convenient. With its own micro printer, it can print test data conveniently.
7. Digital keyboard is used to facilitate digital input.
8.With large capacity memory, it can store 100 sets of test data .
9. S232 communication interface, can connect to the computer for testing; test data can also be uploaded to the computer edit and save.

Product Parameters

Type		ZC-102F
Application		Test CT: excitation characteristics, variable ratio, polarity, ratio error and angle error etc. Test PT: excitation characteristics, ratio, polarity, secondary winding resistance, ratio error, etc.
Working power supply	Input voltage	185Vac~250Vac
	Allowable Input Voltage	85Vac~264Vac
	Frequency	50/60Hz
	Allowable frequency	45Hz~65Hz
	Input power	5000VA
	Connector	Standard AC socket 60320
Built-in booster	Output range	0~2500V(220V power)
	Output range	0~20A
	Volt-ampere characteristic test reference load capability	1A/2500V
		2A/1500V
		5A/600V
		10A/220V
		20A/30V
	Measurement Accuracy	Secondary voltage ≥50V,secondary current ≥200mA: Accuracy of Volt-ampere Characteristics: 0.5 class Variable Ratio Measurement Accuracy: 0.5 class
External booster	Output range	0~4000V/1A
	Volt-ampere characteristic test reference load capability	1A/4000V
	Measurement Accuracy	Secondary voltage ≥50V,secondary current ≥200mA: Accuracy of Volt-ampere Characteristics: 0.5 class Variable Ratio Measurement Accuracy: 0.5 class
Up-flow Reactor	Output range	0~600A
	Volt-ampere characteristic test reference load capability	800VA
	Measurement Accuracy	Variable Ratio Measurement Accuracy:<1%
Environment condition	Operating temperature	-10ºC~+50ºC
	Storage temperature	-25ºC~+70ºC
	Relative humidity	5%~95%,No condensation
Physical characteristics	Size	425×300×290mm³
Physical characteristics	Weight	≈26kg(not include accessories )
