Deflection Test Machine for Is 1293 Figure 33 Testing Equipment
Screwless Terminal Deflection Test ApparatusProduct details:Model ZLT-DW1P To determine the deflection test for screwless terminal and voltage drop across clamping unit under test, in accordance with IEC60884-1 Figure 12,IEC 60669-1 Figure 10,IS 1293 figure 33. ......
Send Inquiry
Product Description
Screwless Terminal Deflection Test Apparatus
Product details:Model ZLT-DW1P

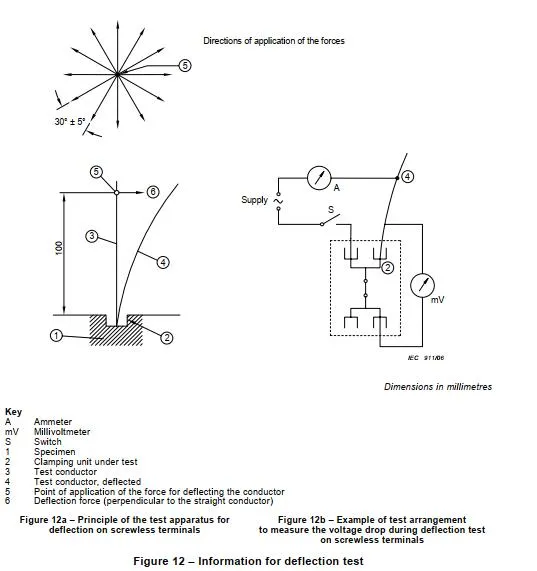

To determine the deflection test for screwless terminal and voltage drop across clamping unit under test, in accordance with IEC60884-1 Figure 12,IEC 60669-1 Figure 10,IS 1293 figure 33. Product details:Model ZLT-DW1P
The apparatus consists of on/off current, current value and voltage drop value measuring for deflection terminal in 12 positions automatically, also determine whether it is qualified or not.
Standard Outfit:
With marked angle of 12 direction on the platform, in the direction of each rotation angle : 30±2 degree deflection, rotation angle :0-360 customizable to any angle,
1 electric driver to make starting point of specimen varied by 10 and 20 degree from original point.
Mass: 0.2 N, 0.5N & 1N
PLC controller: Preset test time, varied degree, voltage drop time.
1 control circuit for power supply with continuous current, AC 0-25 adjustable,
output voltage:≤12V
Current display: range AC 0~30 A, automatically cut off output and alarm if more than 30A .
Voltage drop display: range AC 0~200 mV, automatically cut off output and alarm if more than 200mV, voltage drop test range :1~1000 mV; accuracy :1%
Voltage regulator: 500VA
Power Supply : Single phase, 220V, 50 Hz
