Product Description
DH-DI-01 Simulated Drop Test Machine Offered By Leading Manufacture
Description

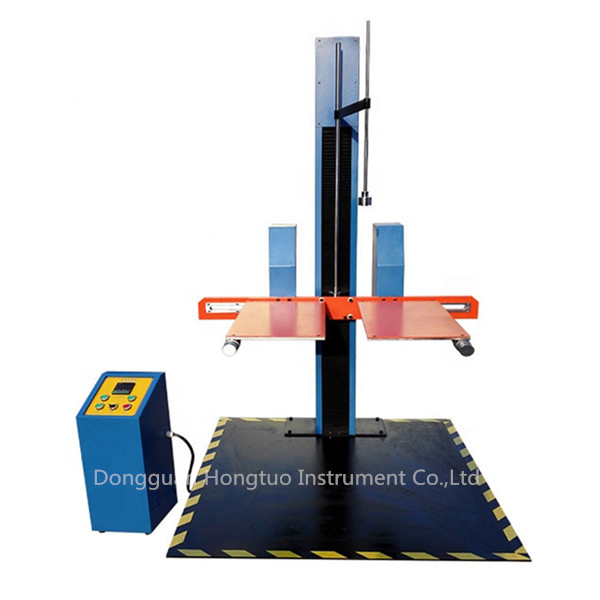

The full-automatic double-wing drop tester,the double-wing drop tester are used to test the damage of the product's packaging due to falling, and to evaluate the impact strength of the transport handling process.

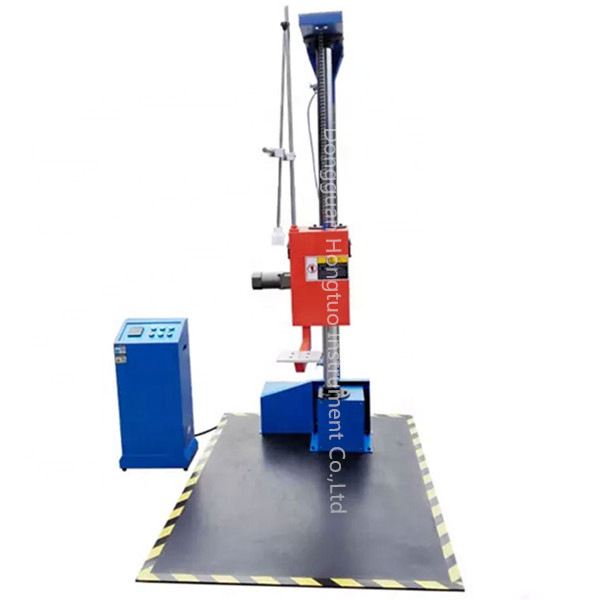

The double-wing drop tester can perform free drop test on the surface, corners, and edges of the package, equipped with a digital display height displayer and a decoder for high-level tracking, so that the product drop height can be accurately given,the error is not more than 2% or 10mm compared with preset drop height.This machine adopts single-arm double-column structure with electric reset, electric drop control and electric lifting device: Easy to use; the unique hydraulic cushioning device greatly improves the service life, stability and safety of the machine. The single arm setting can be easily placed the product, and the angle error between the falling angle impact surface and the bottom plane is less than or equal to 5°.
Technical parameters
Transmission mode: electric drive
Display mode: ruler, digital display height displayer (optional)
Fall mode: free fall.
Fall height: 300~1500mm
The maximum size of test piece: (L×W×H) 1000×800×1000
Drop panel area: (L×W) 1700×1400mm
Corbel size: 290×240×8mm
Dropping error: ±10mm
Drop plane error: <1°
Outline dimension: (L×W×H)1700×1400×2015mm
Control box size: (L × W × H) 350 × 350 × 1100mm
The highest load: 80Kg
The maximum size of the test object: W1000 × D1000 × H800 (mm)
Machine weight: 450kg
Power supply: 1∮ ,AC380V,50Hz
Performance Features
Bottom board: Use the 100 × 50mm channel steel around, the whole plate is sprayed plastics with 6mm cold-rolled steel plate
Test corbel: 10mm hard aluminum plate (import)
Main rod: 45# solid steel, surface heat treatment
Main force rod: 60 # solid screw rod with steel cup
Clamp: 45 # solid steel, surface heat treatment
Falling Test Bench Control Section
Main force: import 1/2HP motor with 1 set of 20:1 reducer
Controller: imported shilin magnetic rope and 2 sets of overload protection.
Total: 1 piece of 15A Fuji switch
Travel switch:2 sets of travel switch imported from Japan
Control switch: 5 sets of button with 25mm diameter
The Main Protection Method Of Drop Test Bench
Motor failure protection
High and low limit protection
Emergency stop protection
