Product Description

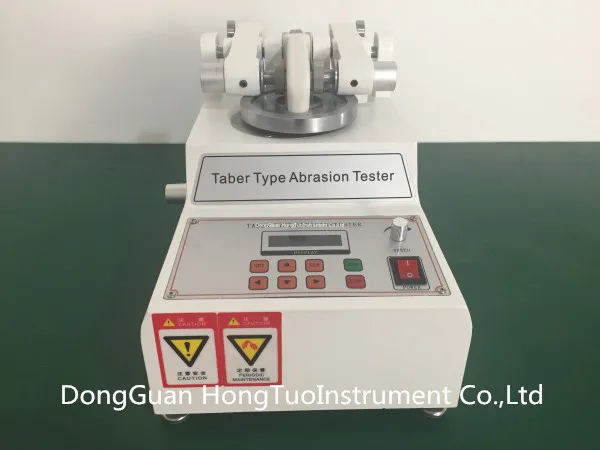

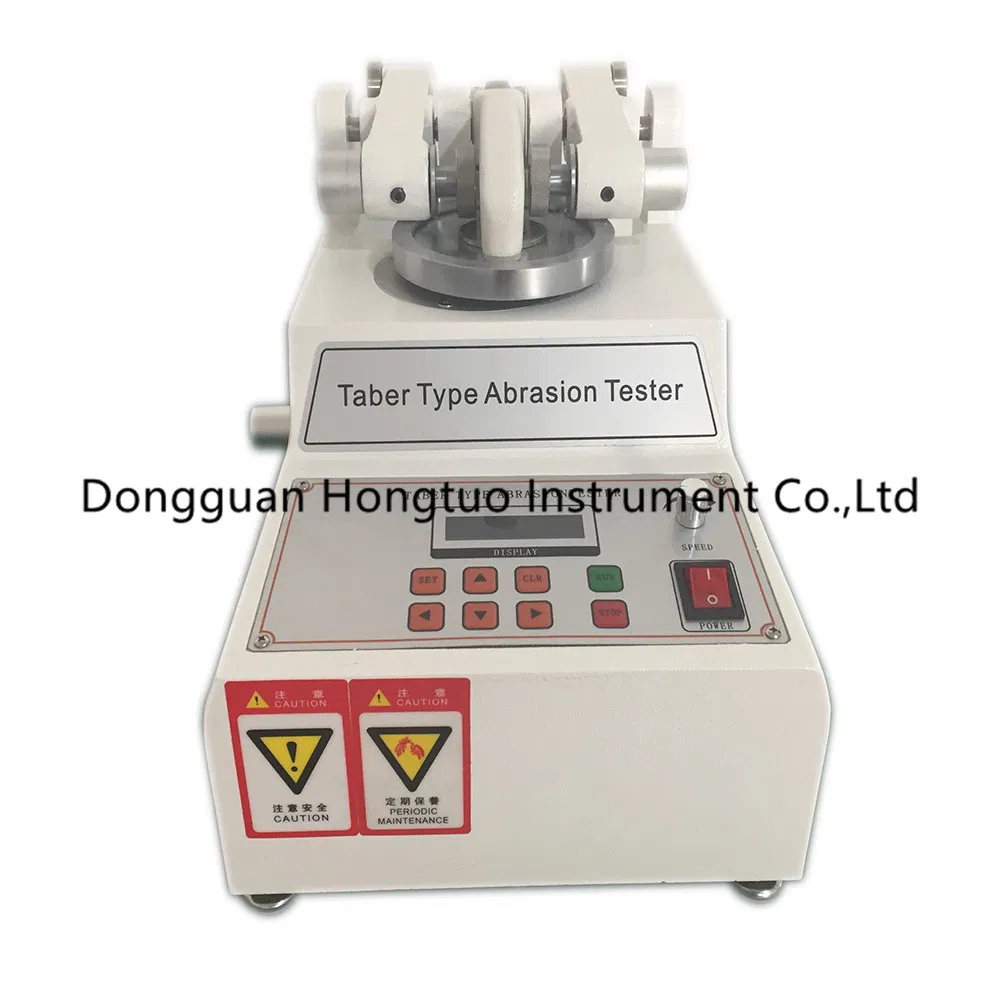

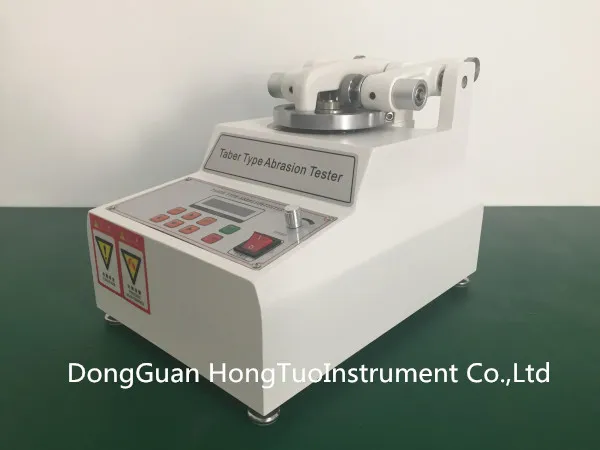

DH-TA-01 LED Display Used Taber Abrasion Resistance Tester With High Quality

Application

The tester is used for cloth, paper, paints, plywood, leather, tile, glass, rubber, etc .The testing method is executed to make specimen abraded by a pair of grinding wheels under the specified load .The weight of abrasion loss is the difference of weight for specimens before and after testing.

Standard

DIN53754, 53799, 53109, 52347, TAPPI T476, ASTM D3884, ISO 5470, ASTM D 1175, ASTM D1044.

Specification

1.Testing sheet:inner diameter(D)3mm

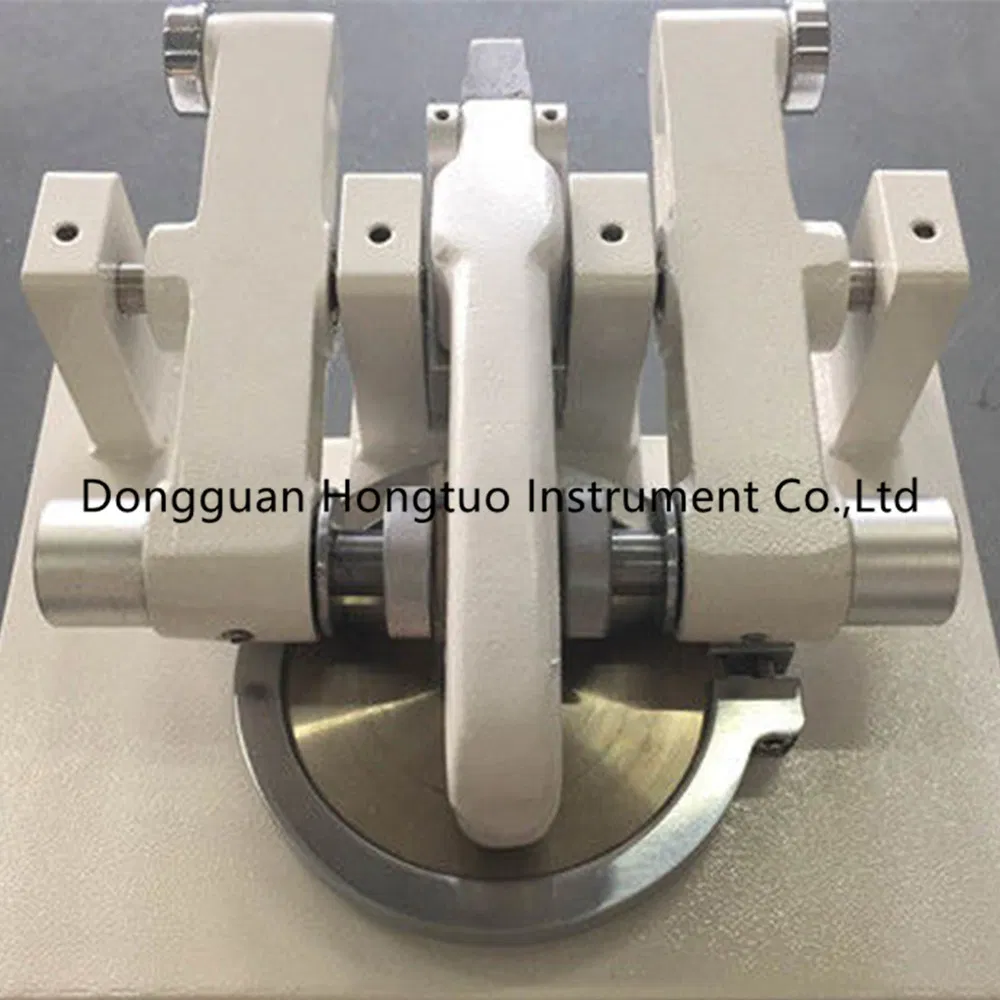

2. Abrasion wheel:?2"(Max.45mm)(W)1/2"

3. Centre interval for abrasion wheel :63.5mm

4. Interval for abrasion wheel and testing sheet:37~38mm

5. Rotating speed:60-72r/min(can be adjustable)

6. Load:250,500,1000g

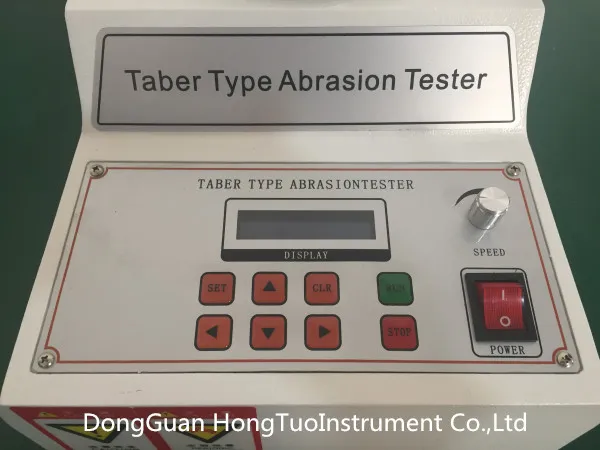

7. Counter:LED 0~999,9999

8. Distance from testing sheet to suction inlet:3mm

9. Dimension:45 x 35 x 42cm

10. Weight:30kg

11. Power supply:AC 220V,10A

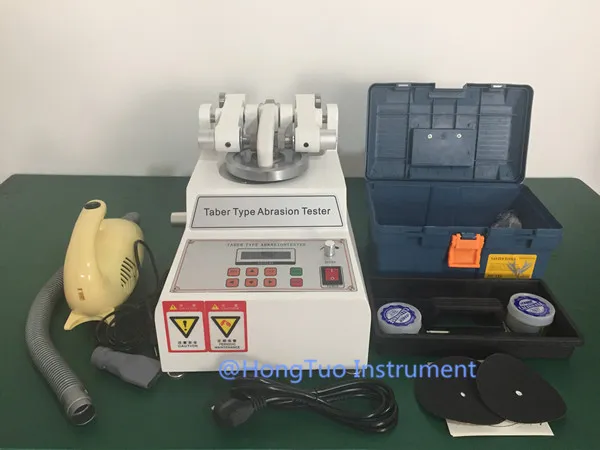

12. One pair of imported grinding wheel H-18;One set of cleaner

DH-TA-01 LED Display Used Taber Abrasion Resistance Tester With High Quality

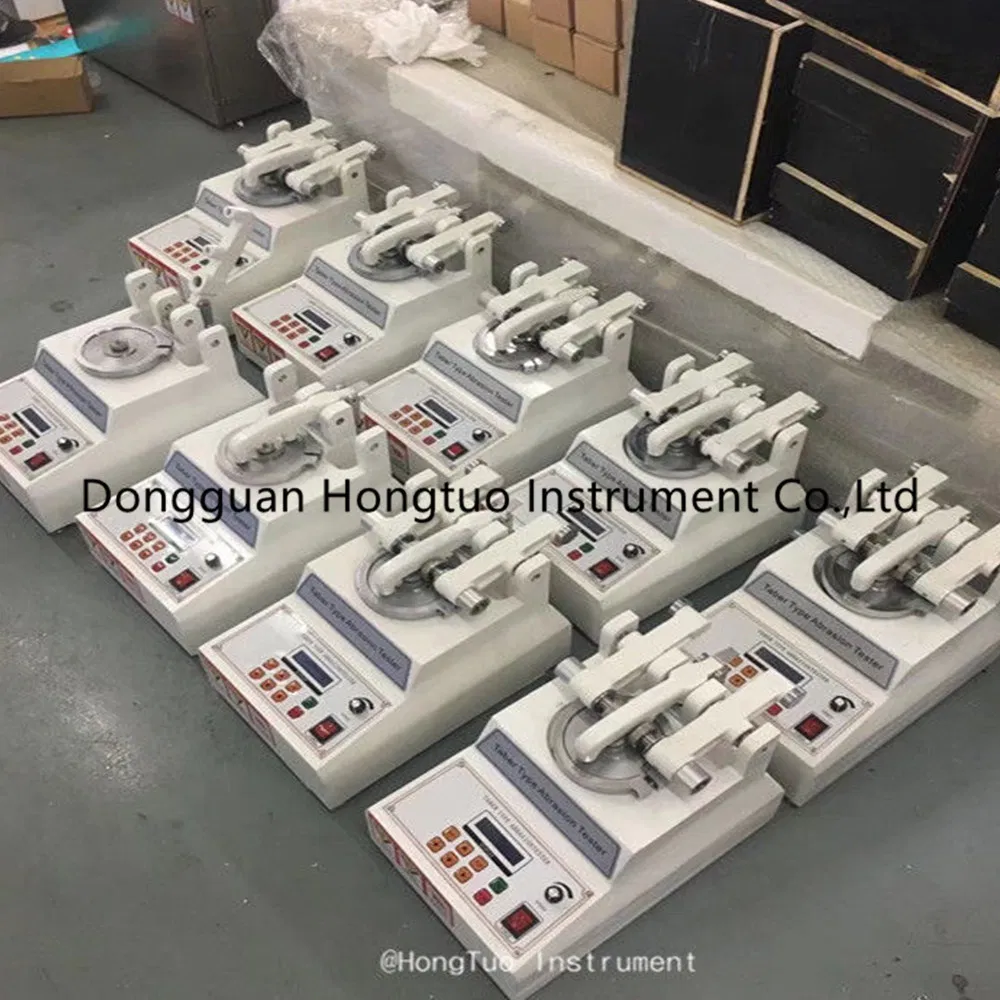

Packaging & Shipping

DH-TA-01 LED Display Used Taber Abrasion Resistance Tester With High Quality

Company Information

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
