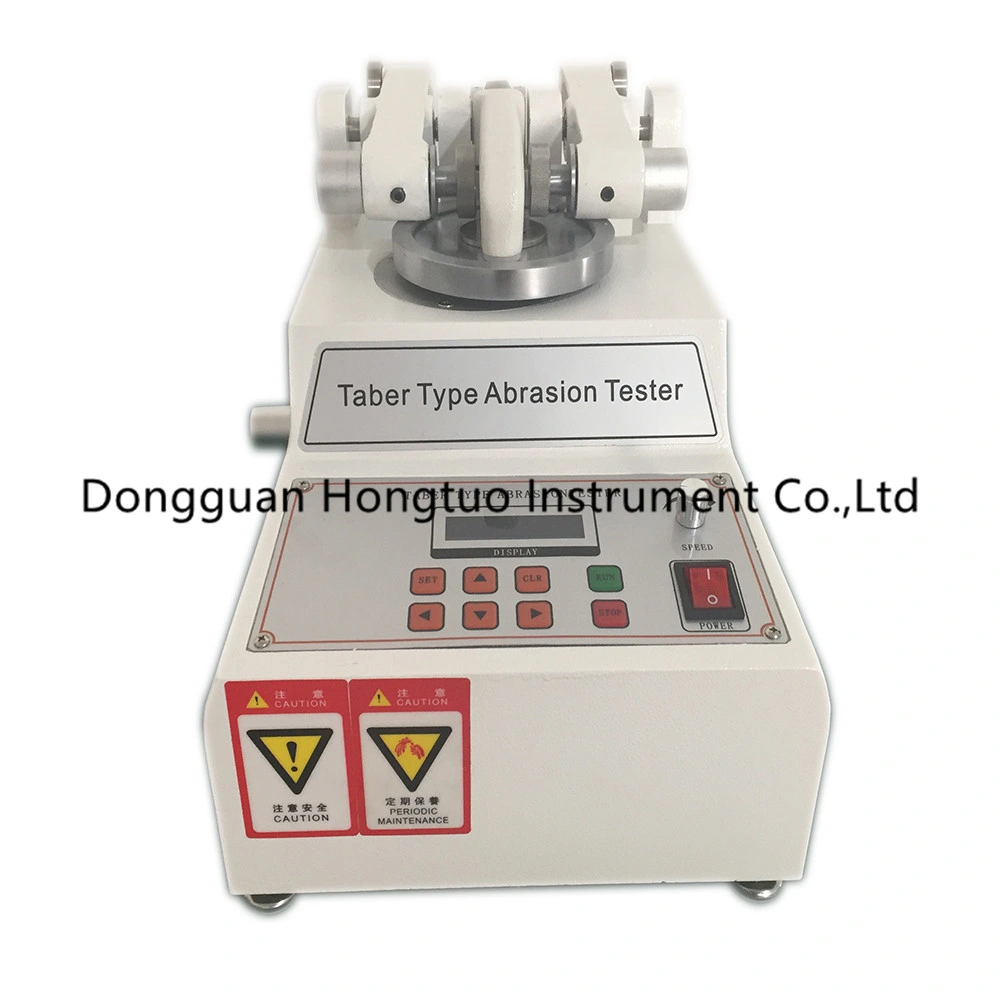

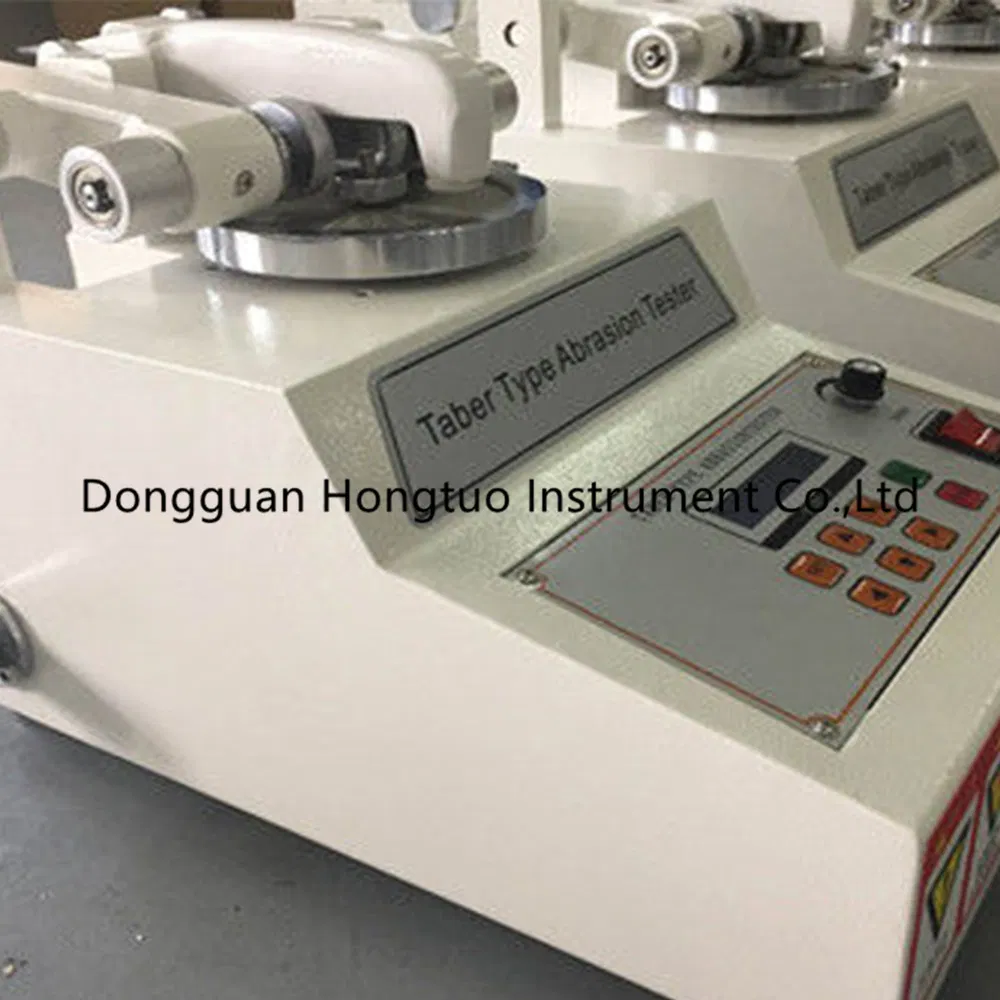

DH-TA-01 Taber Rotary Abraser 5135 / 5155, Taber Abrasion Resistance Tester, Taber Oscillating Abrasion Tester

DH-TA-01 Taber Rotary Abraser 5135 / 5155, Taber Abrasion Resistance Tester, Taber Oscillating Abrasion Tester

Application

This machine is applicable to measuring for leather,fabric,coating,paper,floor

tile,plywood,glass,natural rubber.,etc.By using the specified grinding wheel,and loading the weight on the specimen which cut by knife.setting up the rolling times.then taking out the specimen,observe the status of the specimen after doing abrasion.or calculate the different weight for the specimen before testing and after testing to get the abrasion indexer.which equals to the abrasion loss weight/rolling times X 1000 the specified model of grinding wheel.H18,H22, CS10,CS17,CS32,CS33.

Specification

1.Testing sheet:inner diameter(D)3mm

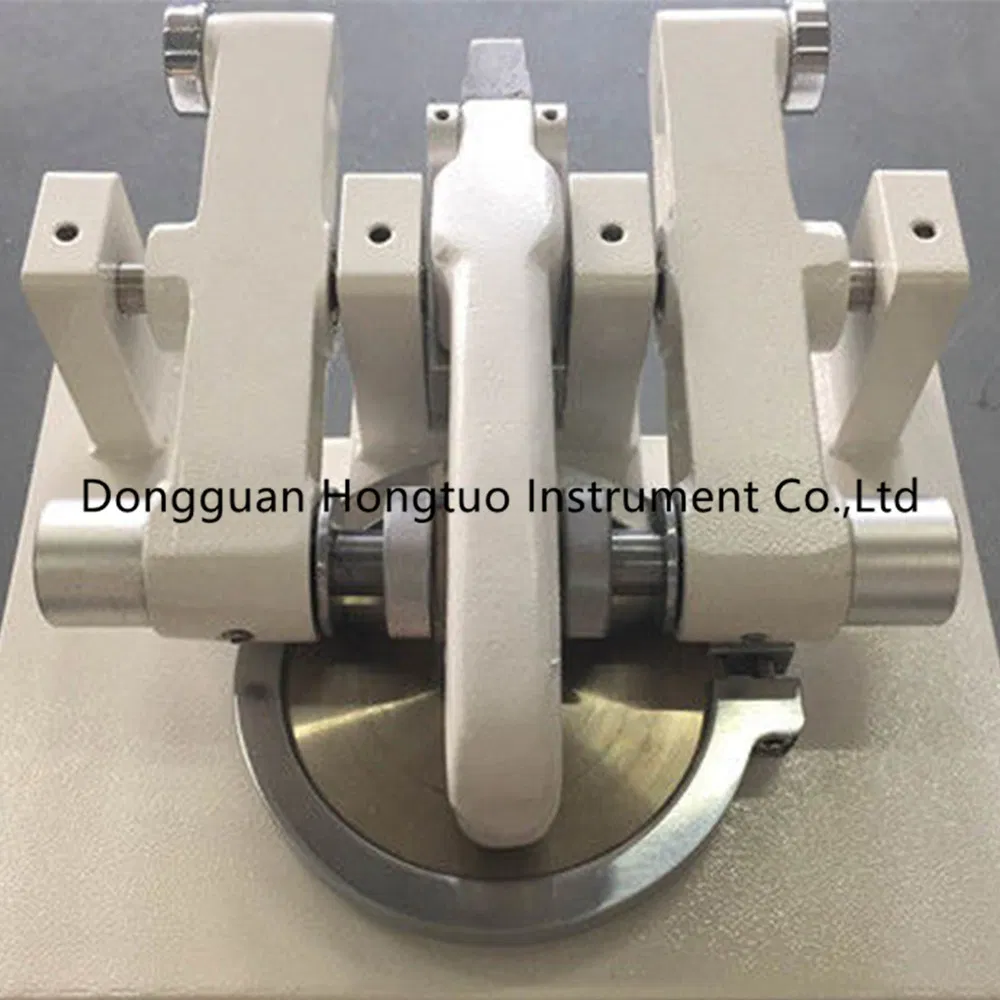

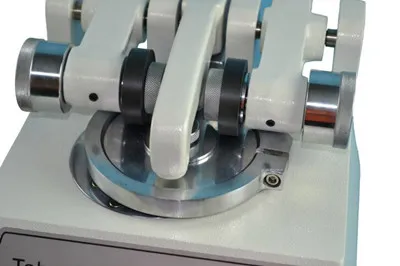

2. Abrasion wheel:φ2"(Max.45mm)(W)1/2"

3. Centre interval for abrasion wheel :63.5mm

4. Interval for abrasion wheel and testing sheet:37~38mm

5. Rotating speed:60-72r/min(can be adjustable)

6. Load:250,500,1000g

7. Counter:LED 0~999,9999

8. Distance from testing sheet to suction inlet:3mm

9. Dimension:45 x 35 x 42cm

10. Weight:30kg

11. Power supply:AC 220V,10A

12. One pair of imported grinding wheel H-18;One set of cleaner

Standards


DIN53754,53799,53109,52347,TAPPIT476,ASTM-D1044,D3884,ISO 54701,ASTM D 4060
