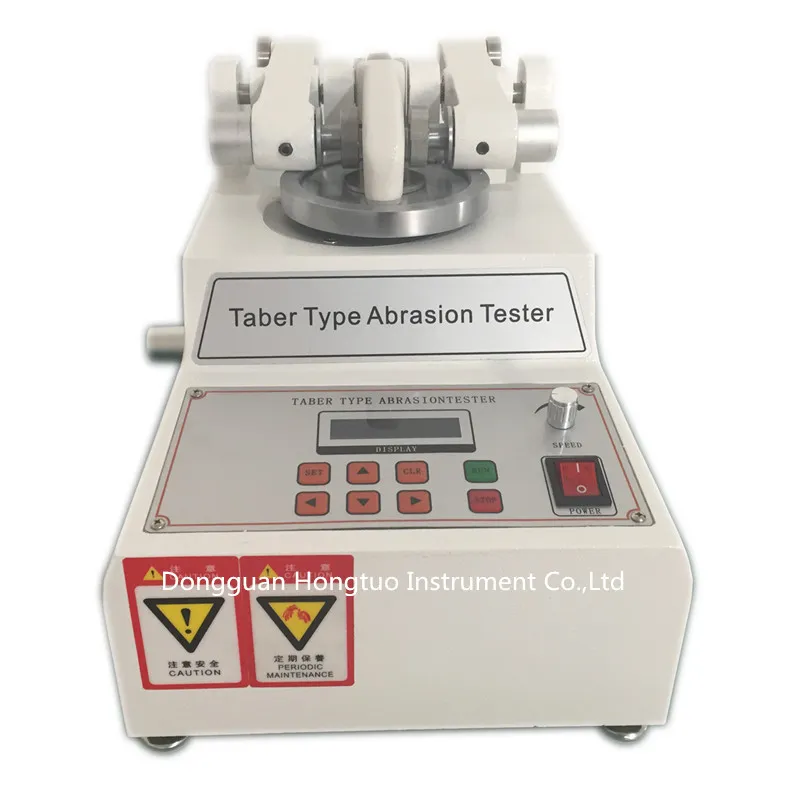

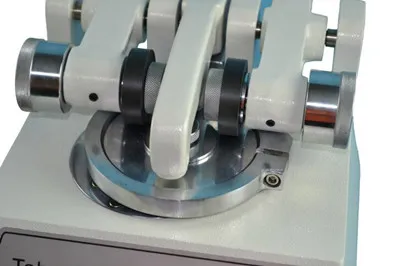

DH-TA-01 Taber Wear Abrasion Tester Rotary Platform Abrader With High Quality

DH-TA-01 Taber Wear Abrasion Tester Rotary Platform Abrader With High Quality






Application

This machine is applicable to measuring for leather,fabric,coating,paper,floor tile,plywood,glass,natural rubber.,etc.By using the specified grinding wheel,and loading the weight on the specimen which cutted by knife.setting up the rolling times.then taking out the speciman,observe the status of the specimen after doing abrasion.or calculate the different weight for the specimen before testing and after testing to get the abrasion indexer.which equals to the abrasion loss weight/rolling times X 1000 the specified model of grinding wheel.H18,H22, CS10,CS17,CS32,CS33.

It can be used for measuring Travel suitcases, carpets, cardboard, clothing, glass, plastic coatings, tiles, metal coatings, paints, varnishes, decorative sheets, high-pressure sheets, plastics, textiles, resilient floor mats, traffic paints, anodized layers, blankets, electronic components, Decorative panels, waxes, labels, holsters, dental materials, automotive interiors, resins, furniture, etc.


Specification

1.Testing sheet:inner diameter(D)3mm

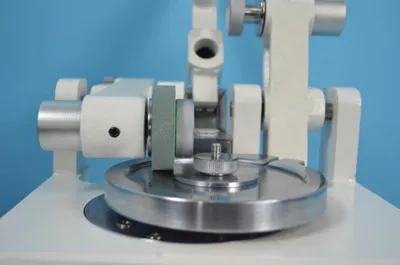

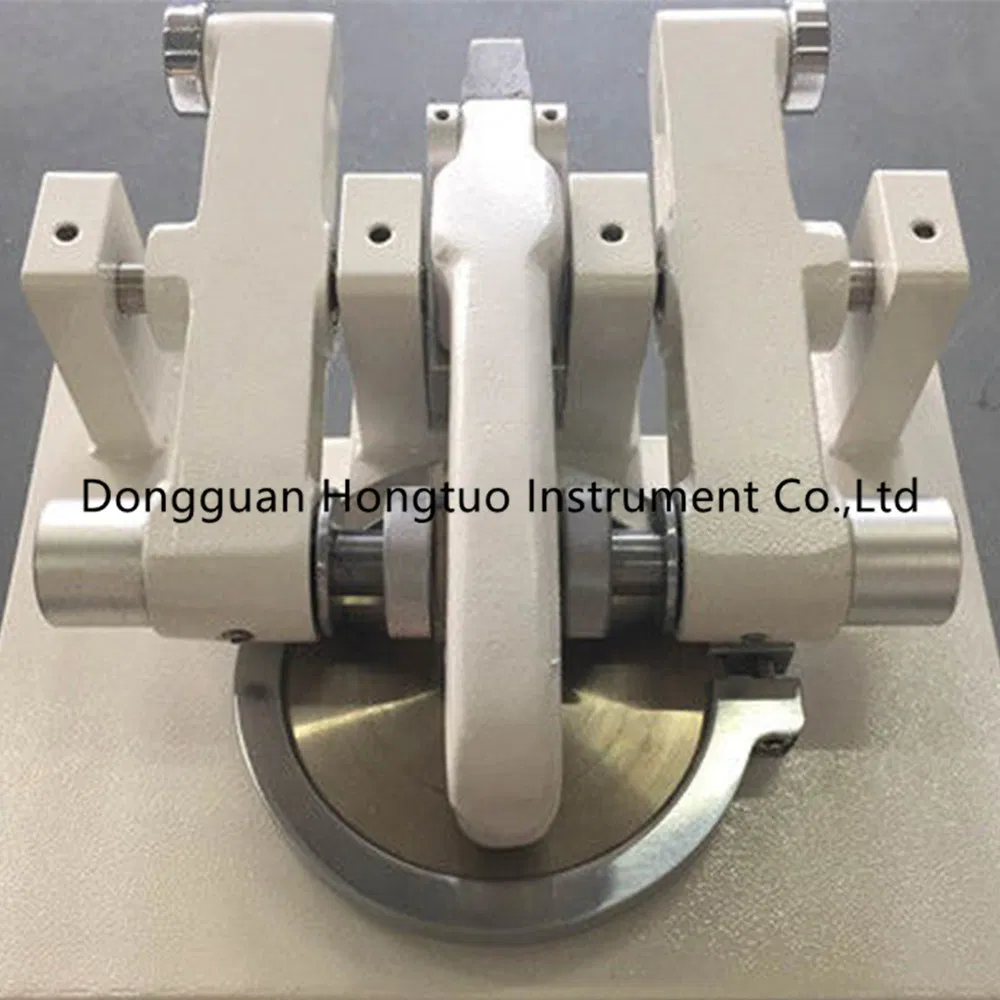

2.Abrasion wheel:ф2"(Max.45mm)(W)1/2"
3.Centre interval for abrasion wheel :63.5mm
4.Interval for abrasion wheel and testing sheet:37~38mm
5.Rotating speed:60-72r/min(can be adjustable)
6.Load:250,500,1000g

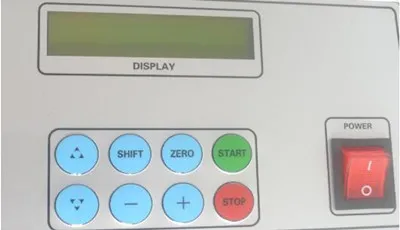

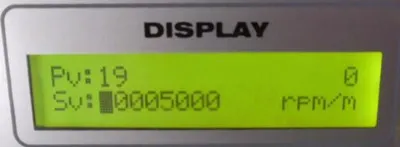

7.Counter:LED 0~999,9999
8.Distance from testing sheet to suction inlet:3mm
9.Dimension:45×35×42cm
10.Weight:30kg
11.Power supply:1∮AC 220V,10A
12.One pair of imported grinding wheel H-18;One set of cleaner

Standards

DIN53754,53799,53109,52347,TAPPI T476,ASTM-D1044,D3884,ISO 54701,ASTM D 4060

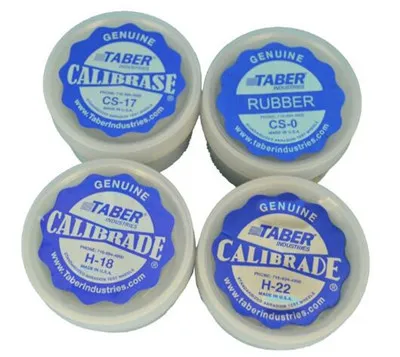

Grind Wheel Selection
