DH-VT-200-C3 Horizontal Vertical Electromagnetic Vibration Table Shaker
DH-VT-200-C3 Horizontal Vertical Electromagnetic Vibration Table ShakerApplicationElectromagnetic vibration table are widely used in industries such as defense, aviation, communications, electronics, automobiles, home appliances, and others. This type of equipment is used to find early faults, simul......
Send Inquiry
Product Description

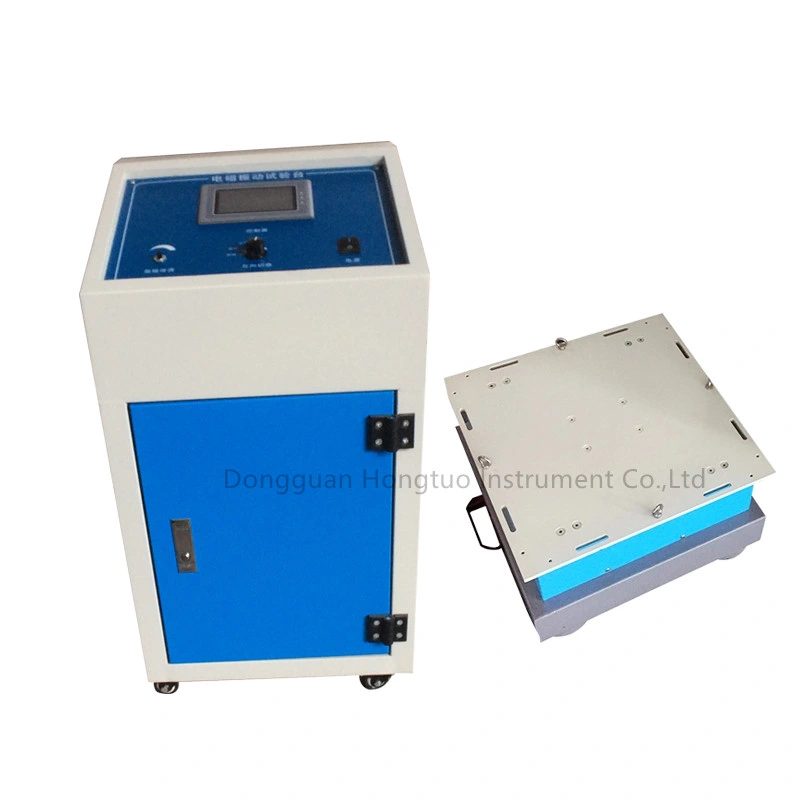

DH-VT-200-C3 Horizontal Vertical Electromagnetic Vibration Table Shaker
Application
Electromagnetic vibration table are widely used in industries such as defense, aviation, communications, electronics, automobiles, home appliances, and others. This type of equipment is used to find early faults, simulate actual working conditions and structural strength tests. The product has a wide range of applications, wide application areas, and significant and reliable test results. Sine wave, frequency modulation, frequency sweep, programmable, frequency doubling, logarithmic, time control.
Features
1. Using the most advanced and simple operation technology, fixed frequency, sweep frequency is convenient to switch at any time
2. With time timing, countdown display function

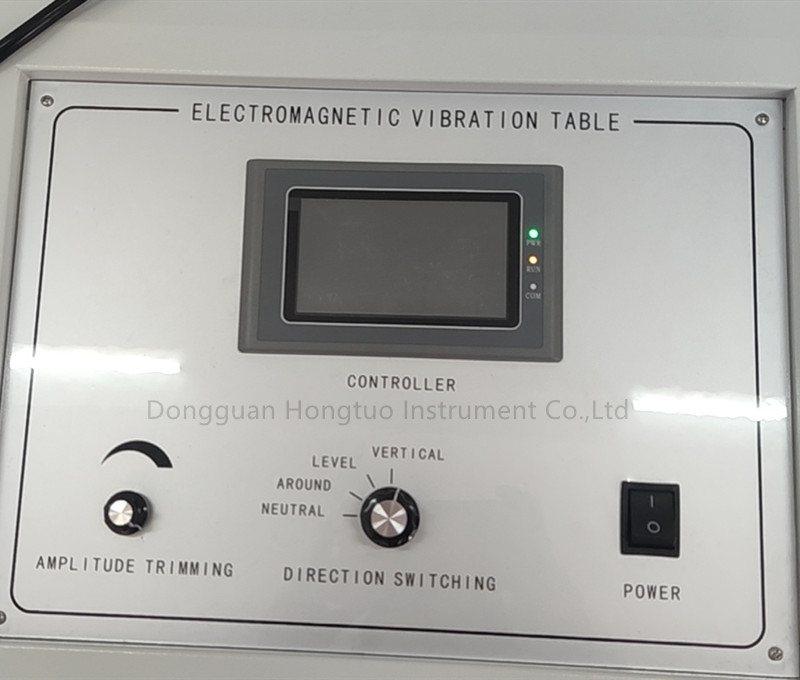

3. Touch controller, simple and convenient operation, solve the shortcomings of inconvenience of digital display operation
4. The control parameters are displayed synchronously in real time without manual intervention.
5. The base of the machine adopts vibration isolation device, which is easy to install and runs smoothly, without the need to install anchor fixing screws
6. Embedded amplitude prediction program and easy amplitude modulation
7. Four-point synchronous vibration, uniform table vibration
8. Stepless adjustment of amplitude, fixed frequency and frequency sweep operation functions adapt to various test requirements in different industries
9. Add anti-interference circuit to solve the interference of the control circuit due to strong electromagnetic field
10.Curve display function, can view the frequency waveform changes at any time
Specification
| Test load: | 60KG |
| Vibration direction: | Vertical + horizontal + front and back (manual switching) |
| Table size (mm): | 500×500 |
| Amplitude (P-P): | 0-5mm (random, change with frequency, adjustable) |
| Frequency sweep: | 1-600HZ can be set arbitrarily (true standard back and forth frequency sweep) |
| Maximum acceleration: | 10g |
| Indicator function: | FM, frequency sweep, time |
| Accuracy | Frequency can be displayed to 0.1Hz, precision 0.1Hz |
| Multiplier work (0.1Hz) | 8-segment multiplier increase 1.Low to high frequency 2.High to low frequency 3.Low to high and then low frequency/recyclable |
| Logarithmic work (0.1Hz): | 1.Down to up frequency 2.Up to down frequency 3.Down to up then down frequency-3 modes logarithmic/recyclable |
| Vibration waveform: | Sine wave |
| Time control: | Time can be set |
| Power: | 1.2KW |
