Digital Display Hydraulic Universal Material Testing Machine ( WES -1000B)
WES-1000B Digital Display Hydraulic Universal Material Testing MachineSummaryModel WES-1000B Digital Display Hydraulic Universal Material Testing Machine is designed of electro-hydraulic digital display and manual hydraulic loading system, main engine controller separately fixed. It has the characte......
Send Inquiry
Product Description

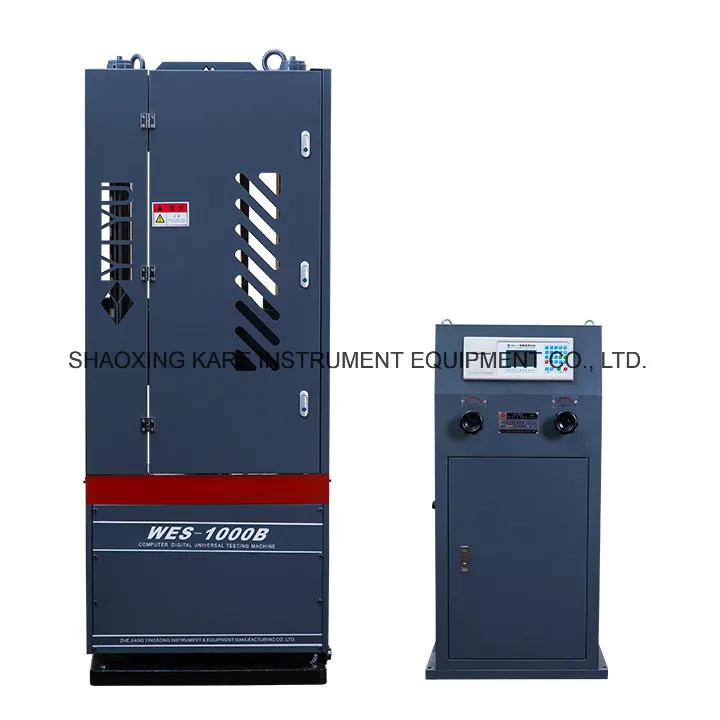

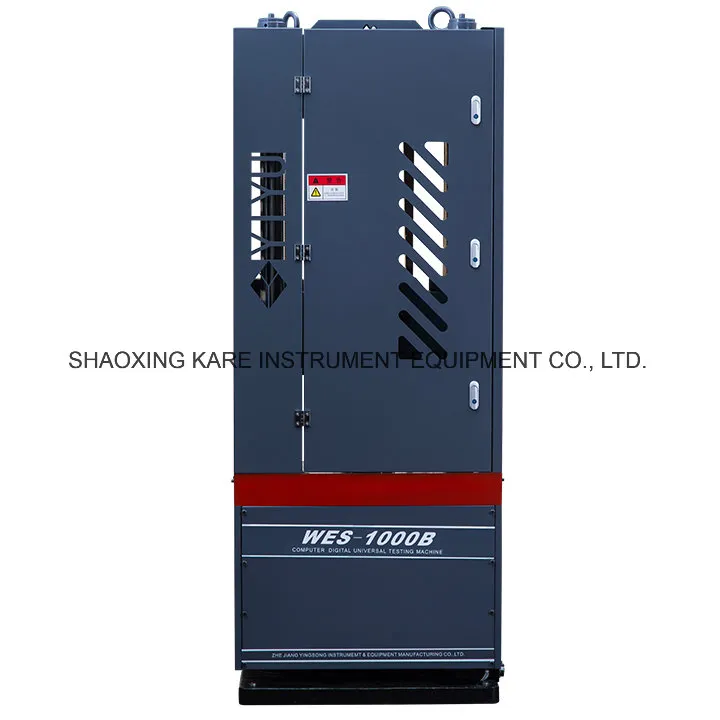

WES-1000B Digital Display Hydraulic Universal Material Testing Machine
Summary
Model WES-1000B Digital Display Hydraulic Universal Material Testing Machine is designed of electro-hydraulic digital display and manual hydraulic loading system, main engine controller separately fixed. It has the characteristics of operation amenity, working steady, high accuracy and loading steady. It can implement the experimentations such as the tensile, compression, bending, cutting etc. to the metal, nonmetallic composite materials.
Structure element

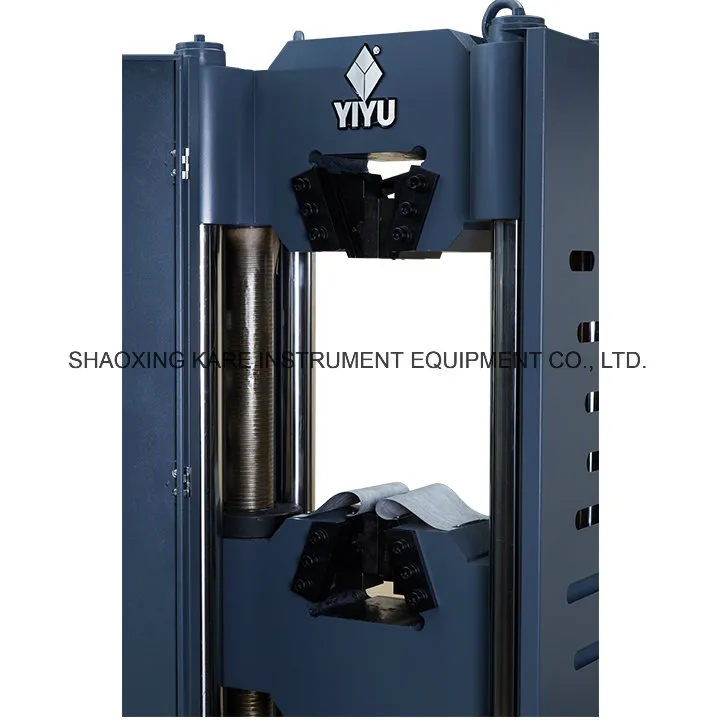

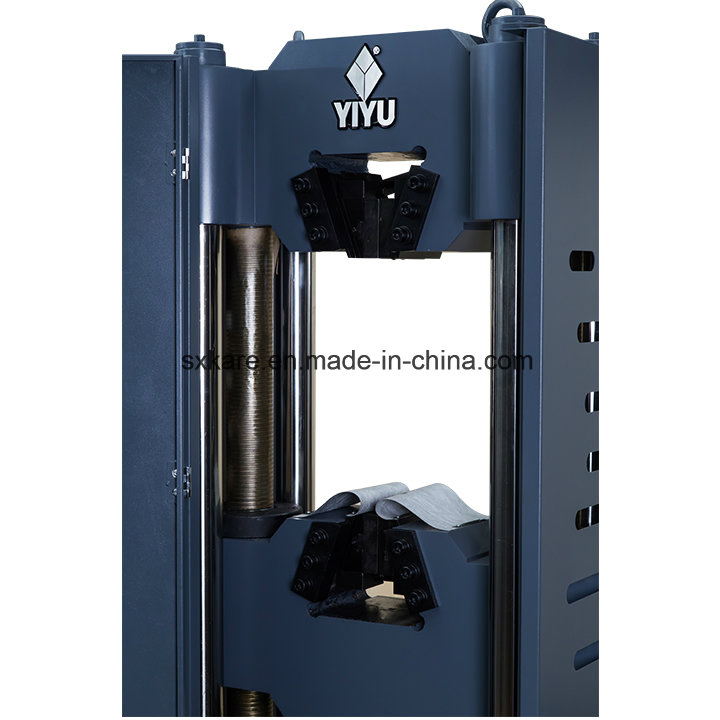

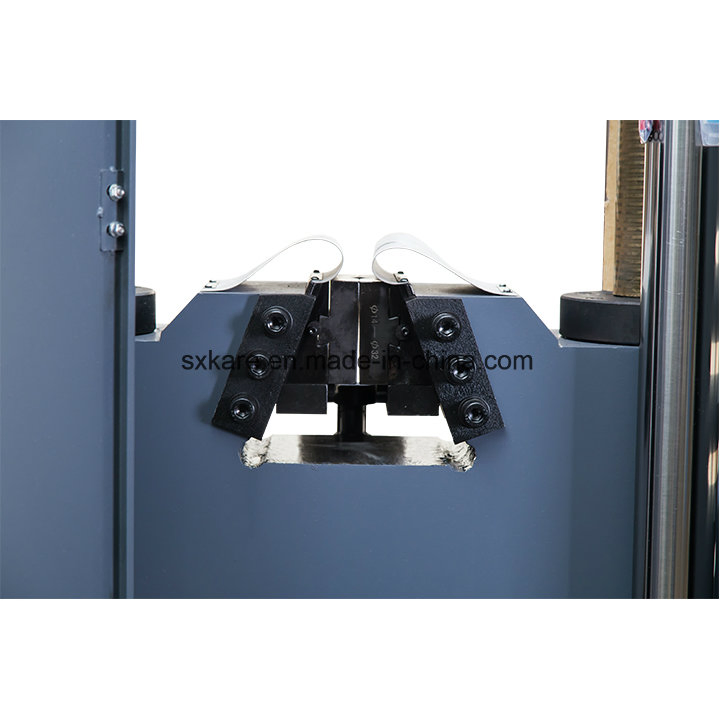

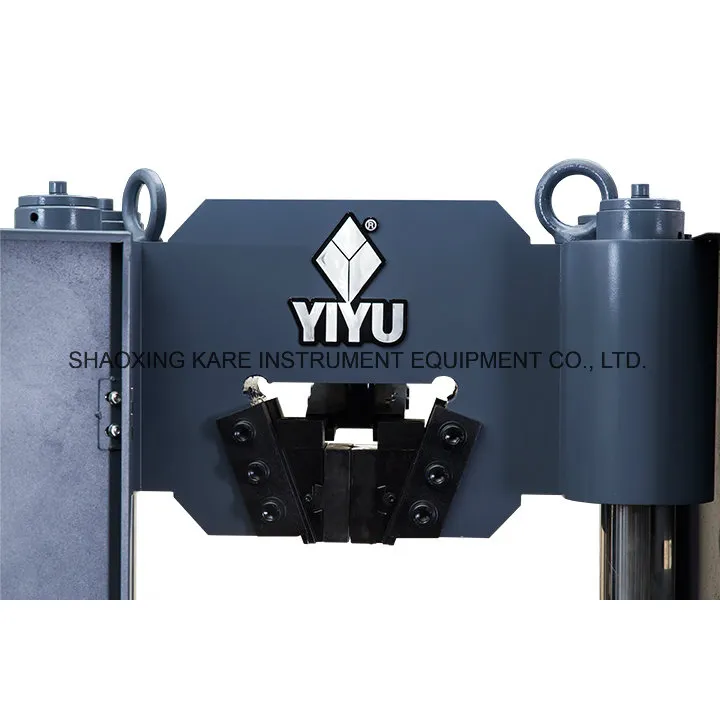

The main engine consists of an adjustable support (base, screw thread pole, moveable crossbeam (lower clamp set)) and a working frame (working oil tank, piston, platform, support crossbeam (upper clamp set)). Element of the machine: high-pressure oil pump supply oil to the working oil tank, the piston moves and press board and upper crossbeam to do stretch and press test. The stretch test is done in the space between upper crossbeam and movable crossbeam. The life motor, gear, chain drive rotate at a same speed to move the crossbeam.
Characteristics
It has advantages such as high precision, light weight, easy operation, clamping automatic hydraulic pressure, long use life and so on. It is applicable for detecting various indexes such as tension, compression resistance, bending etc. to metal and non-metallic material in various laboratories.
Standards
Comply with ISO, BS, ASTM and EN or other standards. ASTM E4, EN10002-2, ISO7500, ISO6892, and BS4449:1998 and so on
Security protection
Position limiter; emergency switch; the control system can protect automatically once over-load, over-currency, over-voltage, over-temperature
.
Main technical parameters
Model WES-1000B Digital Display Hydraulic Universal Material Testing Machine is designed of electro-hydraulic digital display and manual hydraulic loading system, main engine controller separately fixed. It has the characteristics of operation amenity, working steady, high accuracy and loading steady. It can implement the experimentations such as the tensile, compression, bending, cutting etc. to the metal, nonmetallic composite materials.
Structure element
The main engine consists of an adjustable support (base, screw thread pole, moveable crossbeam (lower clamp set)) and a working frame (working oil tank, piston, platform, support crossbeam (upper clamp set)). Element of the machine: high-pressure oil pump supply oil to the working oil tank, the piston moves and press board and upper crossbeam to do stretch and press test. The stretch test is done in the space between upper crossbeam and movable crossbeam. The life motor, gear, chain drive rotate at a same speed to move the crossbeam.
Characteristics
It has advantages such as high precision, light weight, easy operation, clamping automatic hydraulic pressure, long use life and so on. It is applicable for detecting various indexes such as tension, compression resistance, bending etc. to metal and non-metallic material in various laboratories.
Standards
Comply with ISO, BS, ASTM and EN or other standards. ASTM E4, EN10002-2, ISO7500, ISO6892, and BS4449:1998 and so on
Security protection
Position limiter; emergency switch; the control system can protect automatically once over-load, over-currency, over-voltage, over-temperature
.
Main technical parameters
| WES-1000B | |
| Max. testing force | 1000KN |
| Measuring range | 40~1000KN |
| Min. resolution | 0.01KN |
| Pillar number | 4 columns and 2 lead screw |
| Max. tensile test space | 700mm |
| Flat sample holding thickness | 0-25mm |
| Diameter of round specimen | 13-40mm |
| Piston stroke | 220mm |
| Upper and lower platen size (mm) | ф235 |
| Bending test pressed rolling distance | 60~700mm |
| Tensile and compression space between two columns | 465mm |
| Max. moving beam speed | 200mm/min |
| Motor power | ≈2.2KW, 380V |
| Main body dimension (L×W×H) (mm) | 780×580×2050 |
| Control & measurement cabinet dimension(L×W×H) (mm) | 550×400×1200 |
| Weight | ≈1800Kg |
| Noise | ≤75dB |
