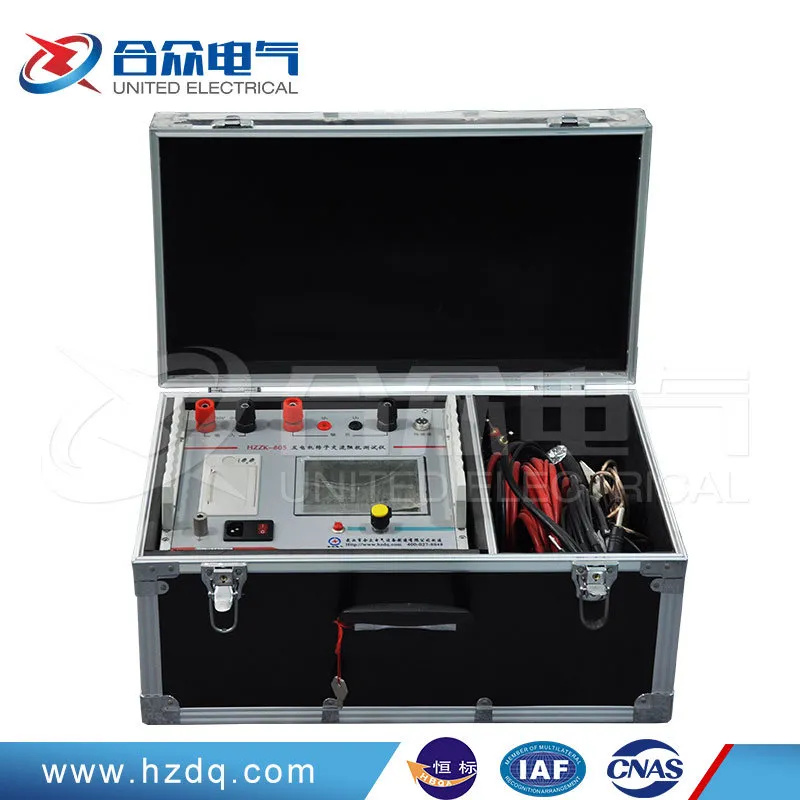

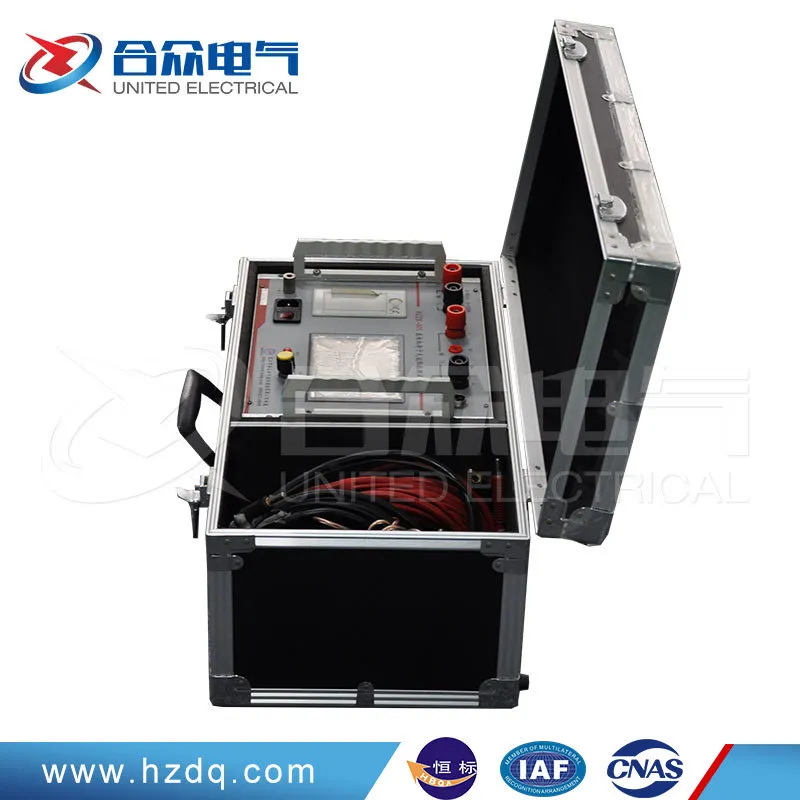

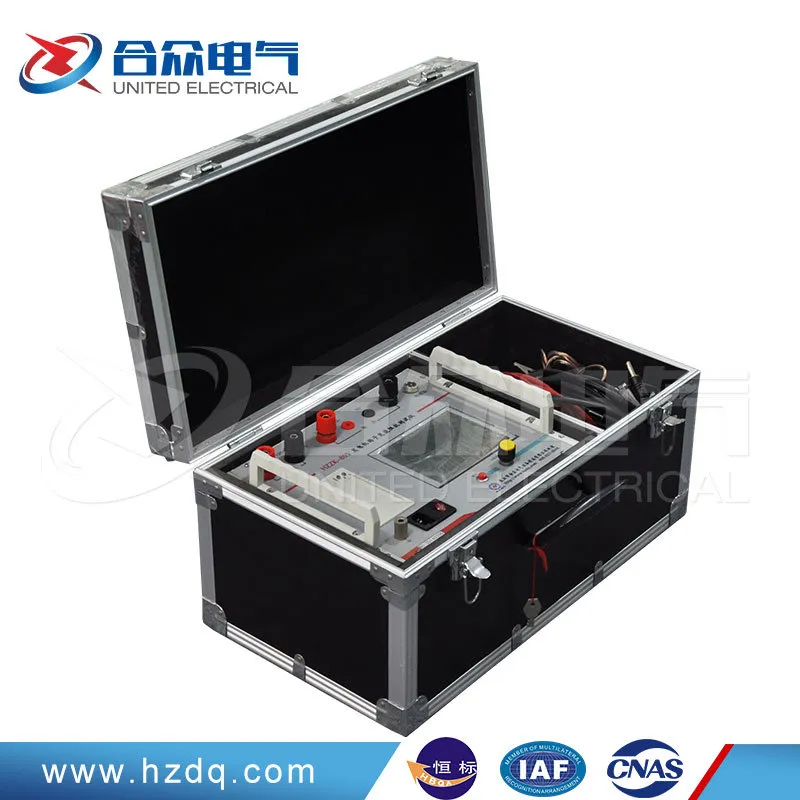

Electric Generator Rotor AC Impedance Test Set
Product Description:HZZK-805 Generator rotor AC impedance tester uses "a key Shuttle" technology,(rotary mouse), easy to operate. Add the function of display and print AC impedance characteristic curve and download data and edit test report when connect with the PC. This instrument uses th......
Send Inquiry
Product Description
Product Description:
HZZK-805 Generator rotor AC impedance tester uses "a key Shuttle" technology,(rotary mouse), easy to operate. Add the function of display and print AC impedance characteristic curve and download data and edit test report when connect with the PC. This instrument uses the most advanced ultra high speed microprocessor, with high reliability, simple operation, high test precision, compact and light, etc..
Product Features:
1.Use the latest high-speed synchronous measurement technology, fully automatic collection, measurement, display, storage, print all measuring parameters and impedance characteristic curve.
2.Large measurement range, automatic and manual measure rotor impedance and features curve of the inner and outer generator chamber in the dynamic and static.
3.Built-in large capacity memory, it can store 6400 groups test data, and can be uploaded via industry standard communication interface(RS232) to PC, use our company developed software to download data, automatically generate and edit the typical test report which facilitate technology management and archiving.
4.With over-voltage and over-current protection function, and the over-voltage and over-current protection value is automatically adjusted according to the test parameters, which is simple and convenient and can ensure the safety of the tested equipment.
5.Can be used to do single-phase transformer no-load, short-circuit test and voltage (current) transformer, arc suppression coil voltage ampere characteristic test.
Product Parameters:
Company Information:
Wuhan Hezhong Electric Equipment Manufacture Co., Ltd is a high-tech enterprise professionally engaged in R & D, manufacture and marketing of power testing products, instruments, power industry automation systems for 20 years.We export completed set to Korea, Singapore, Vietnam, India, Ecuador, Paraguay, Pakistan, Philippines, Russia, Italy, Austria, Portugal, Chile such as PD test system, impulse voltage generator, temperature rising test system, transformer comprehensive test system, cable fault detect system and varies of instruments for transformer, circuit breaker, switchgear, lightning arrestor, insulator, cable, battery,SF6 gas and so on.
Competitive Products:
Qualification Certificates:
Customer Visit:

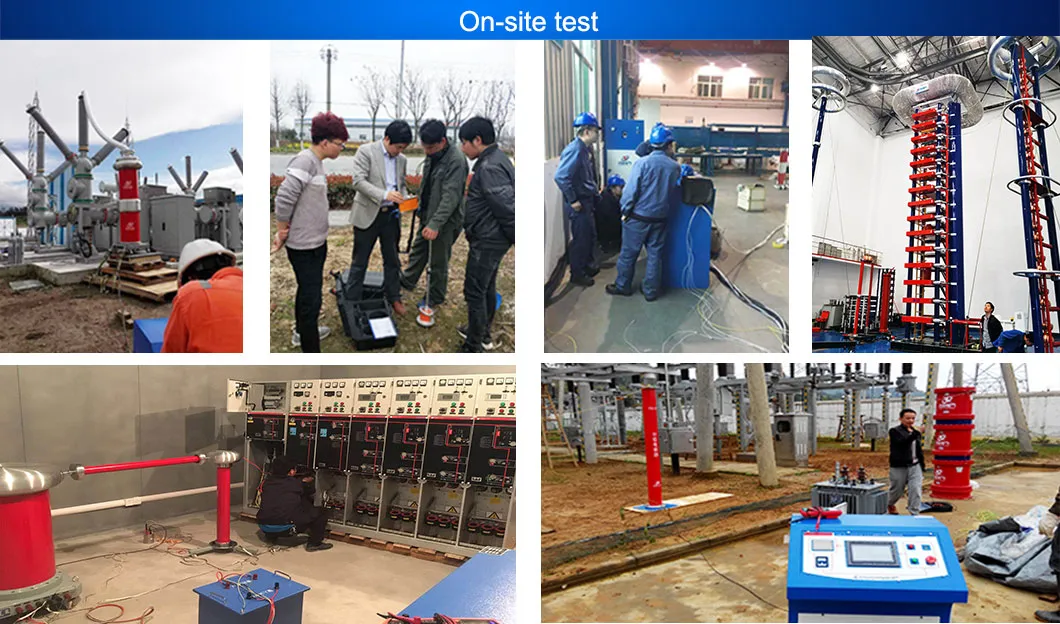

On-site Service:
Package and delivery:
HZZK-805 Generator rotor AC impedance tester uses "a key Shuttle" technology,(rotary mouse), easy to operate. Add the function of display and print AC impedance characteristic curve and download data and edit test report when connect with the PC. This instrument uses the most advanced ultra high speed microprocessor, with high reliability, simple operation, high test precision, compact and light, etc..
Product Features:
1.Use the latest high-speed synchronous measurement technology, fully automatic collection, measurement, display, storage, print all measuring parameters and impedance characteristic curve.
2.Large measurement range, automatic and manual measure rotor impedance and features curve of the inner and outer generator chamber in the dynamic and static.
3.Built-in large capacity memory, it can store 6400 groups test data, and can be uploaded via industry standard communication interface(RS232) to PC, use our company developed software to download data, automatically generate and edit the typical test report which facilitate technology management and archiving.
4.With over-voltage and over-current protection function, and the over-voltage and over-current protection value is automatically adjusted according to the test parameters, which is simple and convenient and can ensure the safety of the tested equipment.
5.Can be used to do single-phase transformer no-load, short-circuit test and voltage (current) transformer, arc suppression coil voltage ampere characteristic test.
Product Parameters:
| AC Impedance | 0~99.999Ω 0.2 level | AC Voltage | 0~600V 0.2 level |
| AC Current | 0~120A 0.2 level | Active Power | 0~72kW 0.2 level |
| Frequency | 45~75Hz 0.2 level | Power Supply | 220V±10% 50/60Hz |
| Dimension | 415x225x200mm³ | Weight | 5kg |
Company Information:
Wuhan Hezhong Electric Equipment Manufacture Co., Ltd is a high-tech enterprise professionally engaged in R & D, manufacture and marketing of power testing products, instruments, power industry automation systems for 20 years.We export completed set to Korea, Singapore, Vietnam, India, Ecuador, Paraguay, Pakistan, Philippines, Russia, Italy, Austria, Portugal, Chile such as PD test system, impulse voltage generator, temperature rising test system, transformer comprehensive test system, cable fault detect system and varies of instruments for transformer, circuit breaker, switchgear, lightning arrestor, insulator, cable, battery,SF6 gas and so on.
Competitive Products:
Qualification Certificates:Customer Visit:
On-site Service:
Package and delivery:
