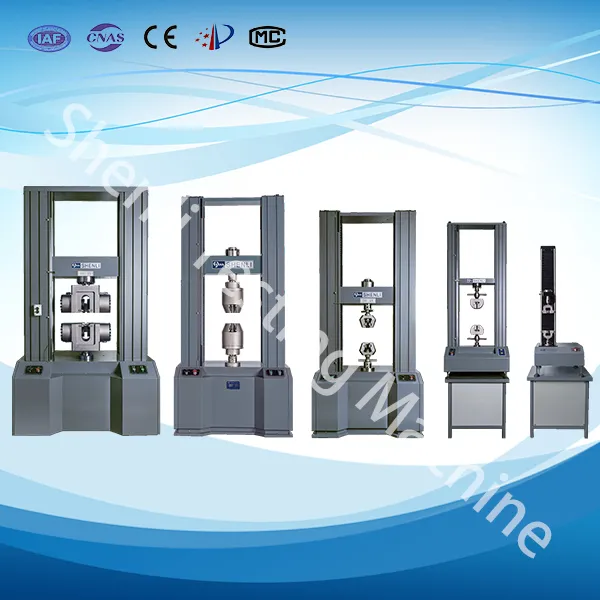

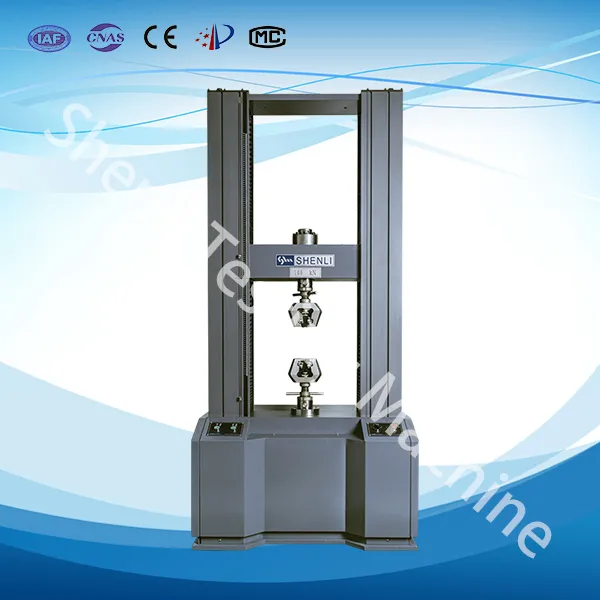

Electronic Universal Testing Equipment ( 50kN )
Performance characteristics: 1. High-precision, low resistance, to reverse zero clearance and linear low driving force to ensure extended service life; 2. High-precision control and repeatable measurement results ensure a more realistic reflection of the specimen characteristics; 3. Four-column doub......
Send Inquiry
Product Description
Performance characteristics:
1. High-precision, low resistance, to reverse zero clearance and linear low driving force to ensure extended service life;
2. High-precision control and repeatable measurement results ensure a more realistic reflection of the specimen characteristics;
3. Four-column double-screw double space rigid frame structure, linear travel to ensure the crosshead neutral, thereby reducing test data error, raise experimental accuracy;
4. The digital closed-loop position control servo motor and gear reducer drive mechanism, the servo motor having a large torque output can be realized in a wider load range of high-precision speed control, quick response and full performance;
5. The high degree of intelligence system has a self-diagnostic function. It can automatically detects over-voltage, over-current, over-temperature;
6. High-precision tension and compression bi-directional load cell, strong resistance to lateral and impact;
7. There are dozens of different types of fixtures, to meet the different requirements of various industries material testing;
8. Aluminum cover for easy cleaning and a long-lasting-life;
Applications:
Metal wire, strip, bar, tube, sheet;
Rebar, strand;
Applied Standards:
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standard: ASTM E83, ISO 9513, BS3846, EN10002-4
| Model and Specification | WDW-50 | |
| Capacity | 50kN | |
| Type of Structure | The structure of the door frame | |
| Accuracy Grade | ±0.5%/ ±1% | |
| Accuracy of Testing Load | ±0.5%/ ±1% | |
| Accuracy of Deformation | ±0.5%/ ±1% | |
| Accuracy of Displacement Speed Controlled | ±0.5%/ ±1% | |
| Accuracy of Displacement | ±0.5% | |
| Displacement Resolution | 0.015μm | |
| Displacement Speed Controlled Range | 0.001~500mm/min | |
| Space of Tension(mm) | 640 | |
| Valid Test Width(mm) | 550 | |
| Dimension of Compression Plate(mm) | φ98*30 | |
| Round Specimen(mm) | φ4-20 | |
| Flat Specimen(mm) | 0-14 | |
| Dimension(mm) | 1015*760*2190 | |
| Power(kW) | 2 | |
| Weigh(kg) | 1100 | |
