Fast Speed Dimensional Measurement Vision Inspectin Machine for Magnetic Inductors
Sipotek High-Speed Glass Plate Rotary Vision Inspection MachineWith CCD industrial machine vision system and customized vibration feeder Product Description Machine Specification ExampleSipotek designs and produces what is suitable for your products with effectiveness. 1Machine TypeHigh-speed Inspec......
Send Inquiry
Product Description

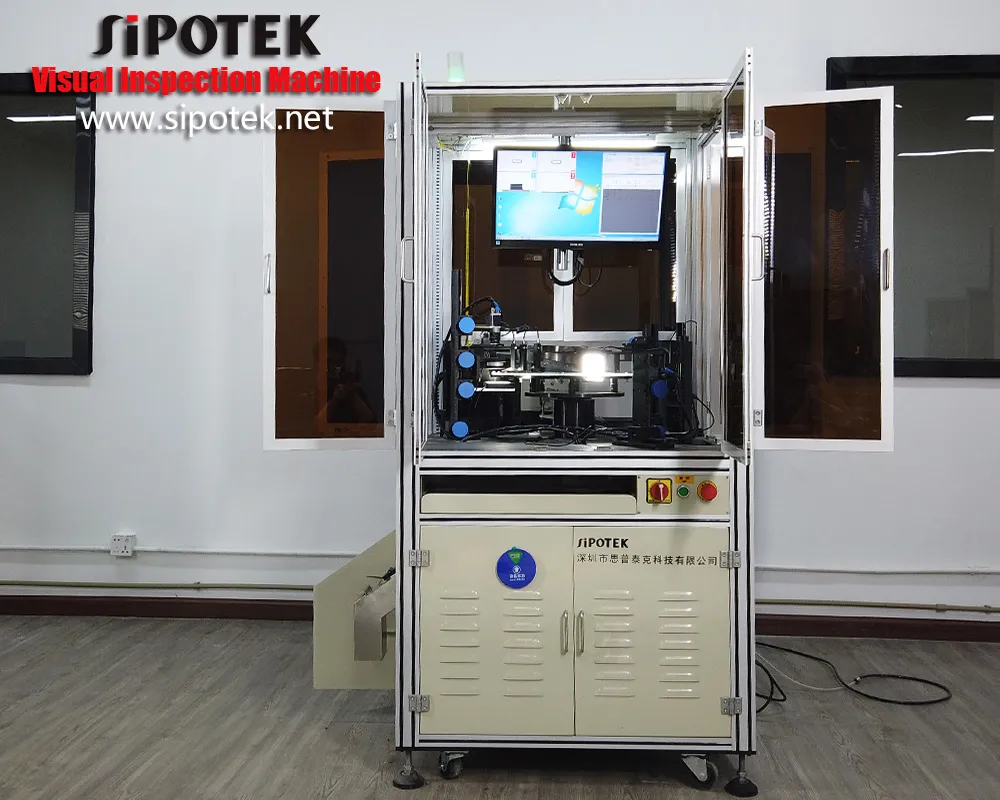

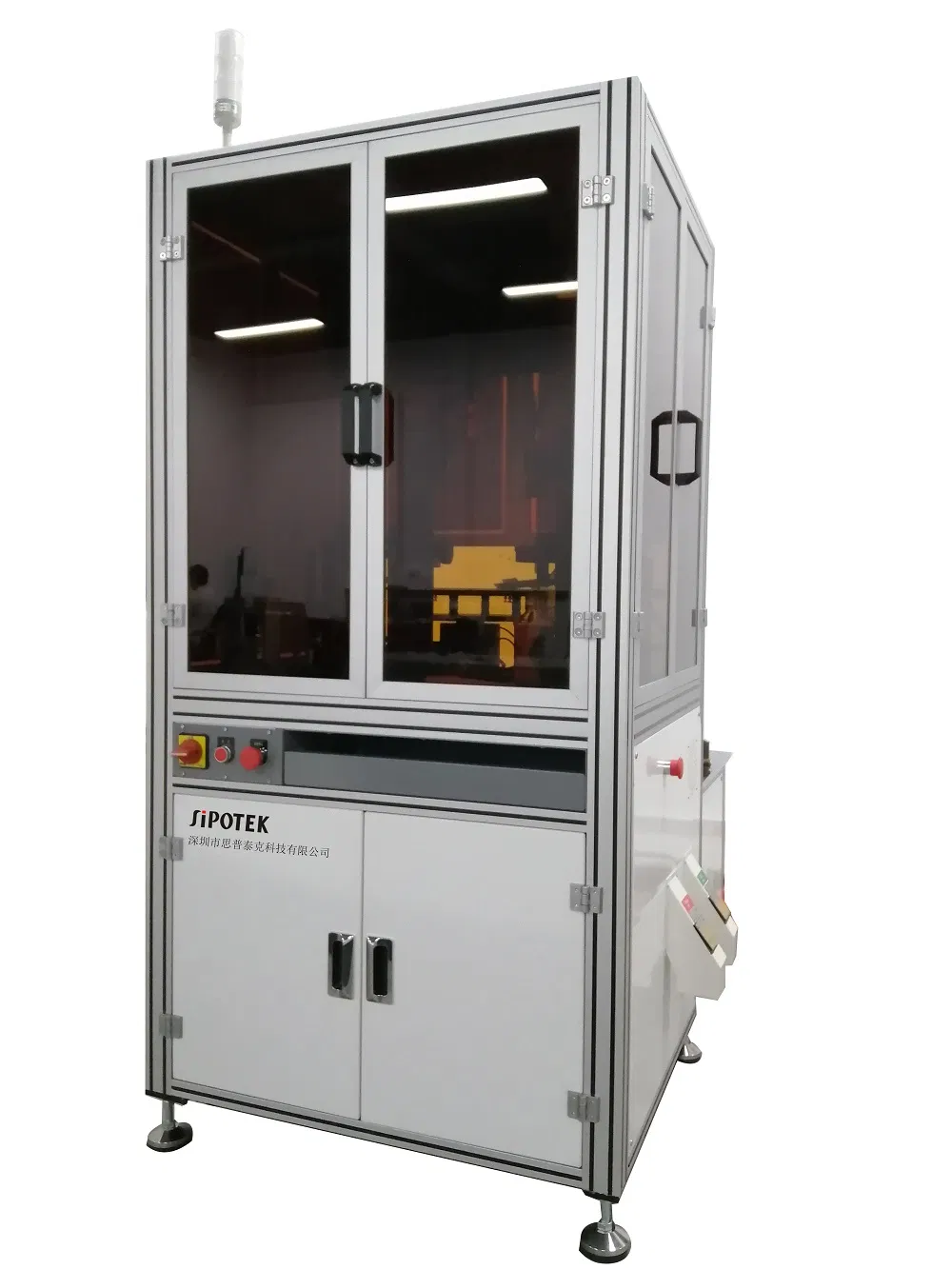

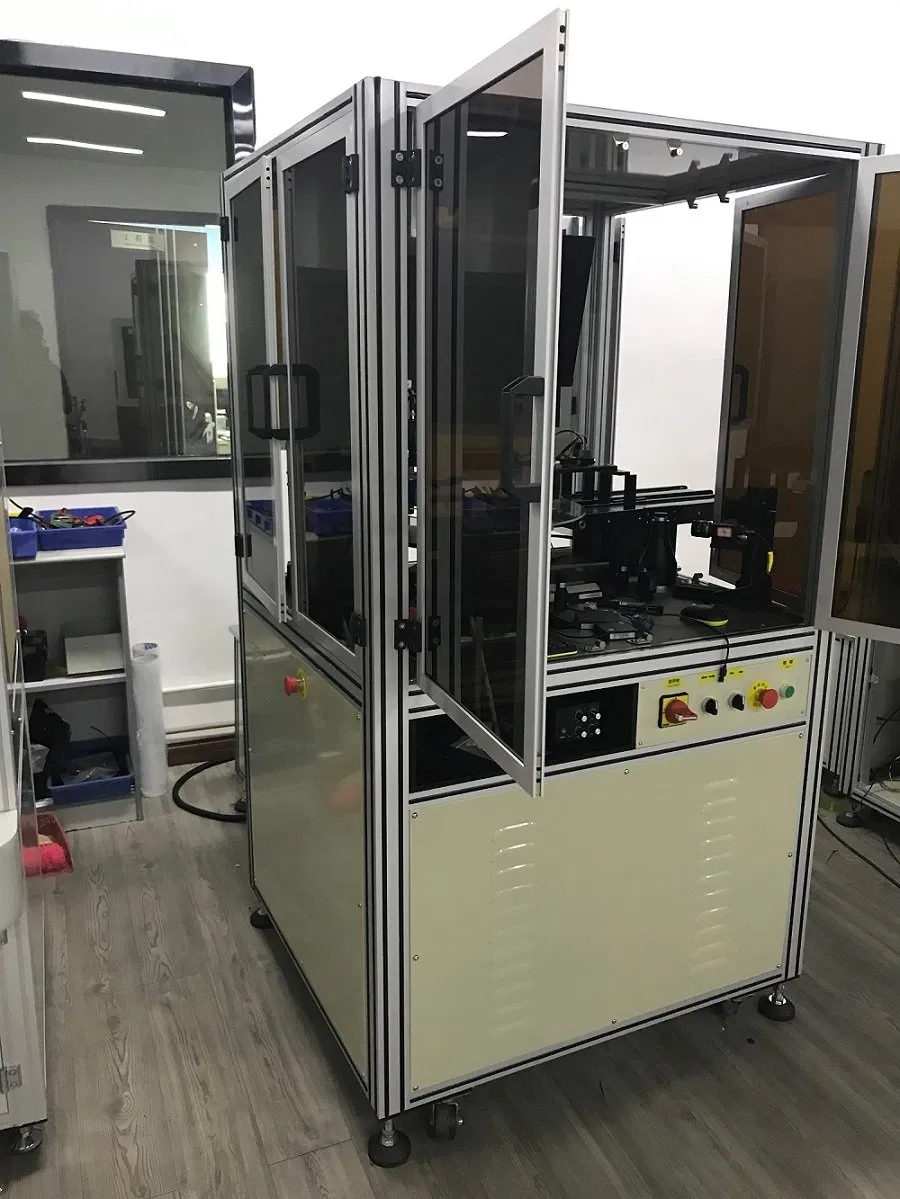

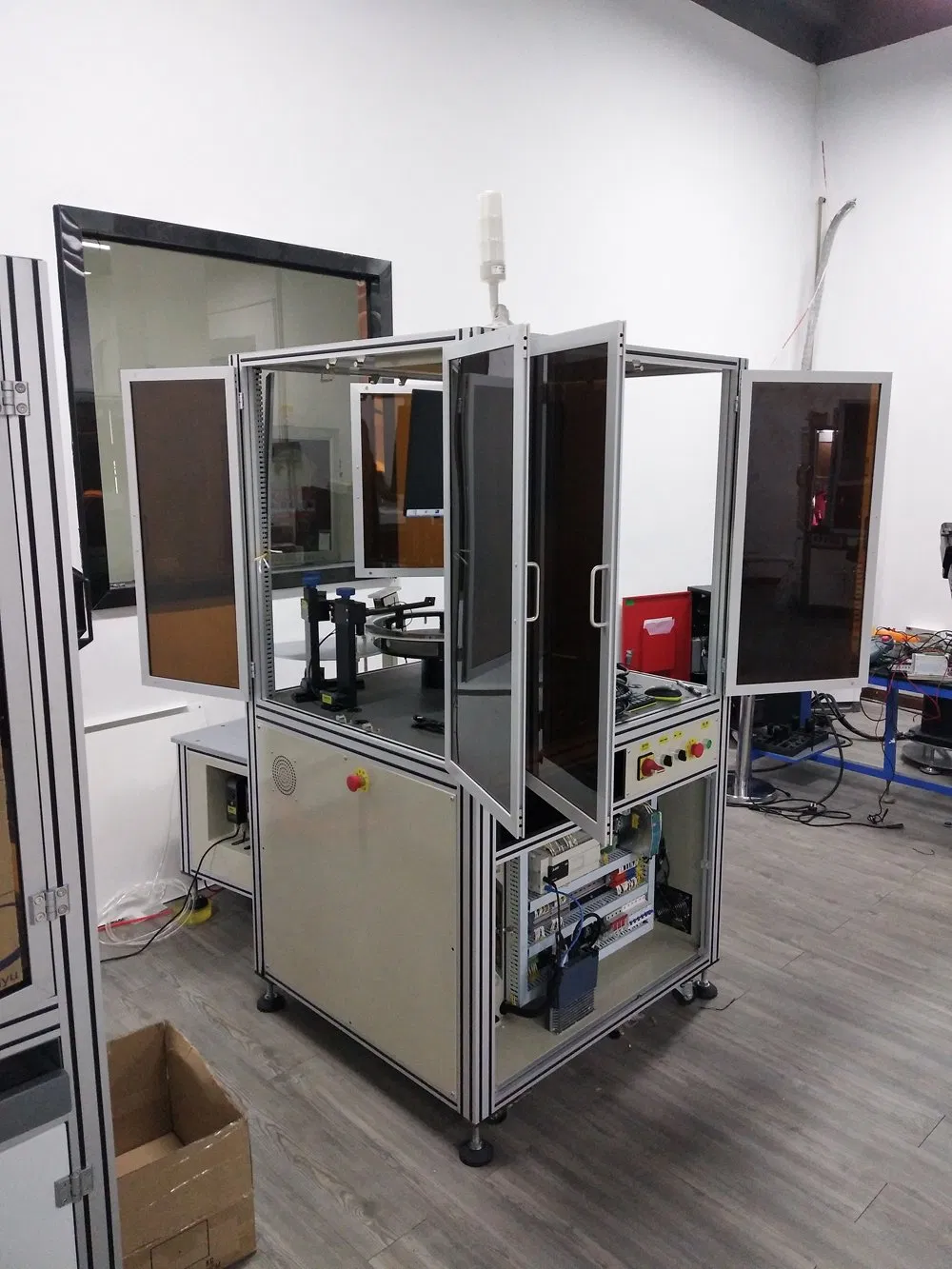

Sipotek High-Speed Glass Plate Rotary Vision Inspection Machine

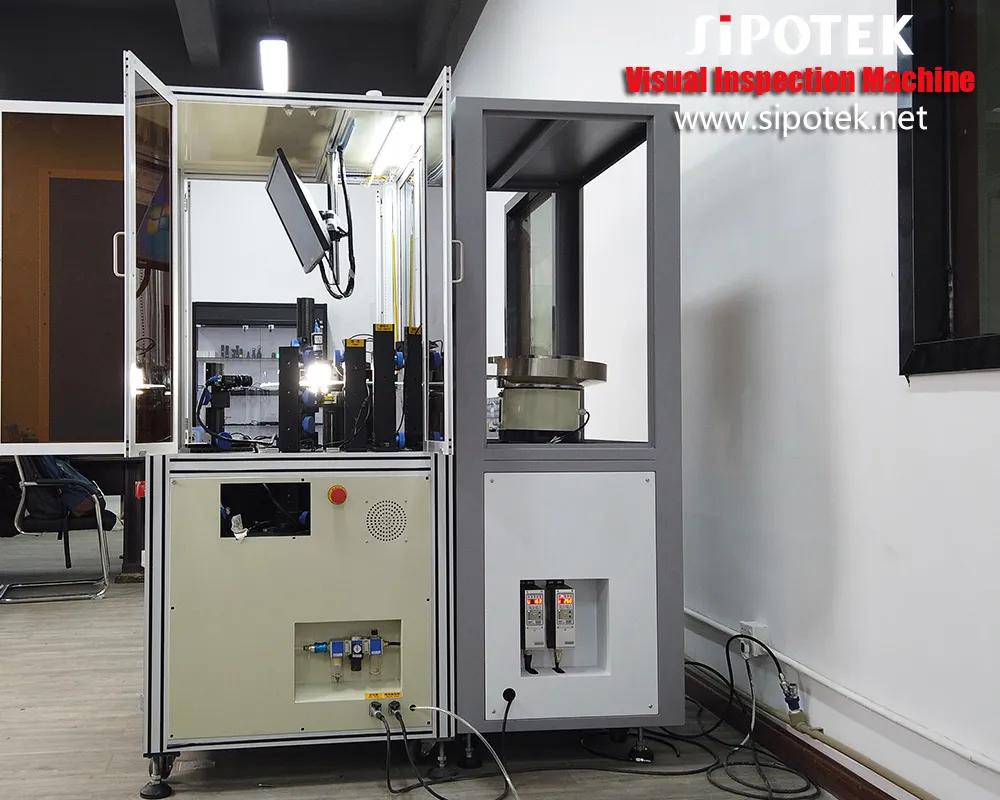

With CCD industrial machine vision system and customized vibration feeder
Step 1 Inquiry and communication
We will discuss as many details as possible to understand best of your inspection requirements. So we are available not only by phone or emails, but also on line chatting with Skype, Wechat, What's app and Alibaba. The contents of the communication will include inspection details, drawings, accuracy, speed, input and output, etc.
Step 2 Samples arrangement
Since our machine is customized designed according to customer's demand. Samples are necessary. Our engineers can make the solution depending largely on the lighting test of the samples. Thus we can check which is the defects, where can we find them under specific lighting sources.
Step 3 Inspection solution Finished
After our engineer finished the sample testing procedure. They will give a result of the test and then will be reported to you. You can find what will be composed in the machine and how the result shows the sample images.
Step 4 Customer make decision
Now our customers will have the solution report, They will make a determination of the inspection project. PI will be sent and Order will be confirmed after their acceptance.
Step 5 Put into production
After orders are confirmed, we will discuss the producing technology and then start to make the customized machine. At the same time, we will confirm the delivery date.
Step 6 Machine Delivery
Generally, our trade term is FOB Shenzhen. We strongly recommend our customers to verify the machine in our factory before shipment in case any problems or changes will be and we could solve them before shipped to destination. Meanwhile, customers can have free training for machine operation and installation.
Our Company
Since we established 16 years ago, we has been committed to the research, development and manufacturing of image technology and machine vision, with more than 70 senior R&D personnel of machine vision system and industrial automation engineers.
Machine Vision Inspection Application and Solution
The company's key technical personnel are mainly from HUAWEI, byd, foxconn and other first-class manufacturing enterprises, with many years of mature experience in software design, visual and image comparison technology, industrial automation and other aspects.
With CCD industrial machine vision system and customized vibration feeder
Product Description
| Machine Specification Example Sipotek designs and produces what is suitable for your products with effectiveness. | ||
| 1 | Machine Type | High-speed Inspection Machine (Glass plate) |
| 2 | Industries Serve | For parts can lie stable such as screws, nuts, lathe parts, stamping parts, injecting model, cooling elements and fasteners. |
| 3 | Turntable | Dedicated round glass turntable |
| 4 | Optical System | Germany high magnification CCD industrial camera, Japanese lens, professional light source system |
| 5 | Camera Quantity | Standard with 3 ( 1-8 optional) |
| 6 | Operate System | Germany Siemens Industrial Computer |
| 7 | Video Inspection Software | Sipotek Machine Vision Inspection System |
| 8 | Feeding System | Dedicated feeding guideline, vibration feeder x 1 SET, automatic feeding and container devices (optional) |
| 9 | Package System | Automatic counter and package machine (optional) |
| 10 | Inspection Speed | 300-1200 pcs/min |
| 11 | Accuracy | Highest level up to±0.01mm |
| 12 | Inspection Details | Appearance inspection: outer side, inner side, opposite, Diagonal, length, height, concentric, roundness, step size of each part, angle, sharpness and etc |
| Defective inspection: 360 degrees teeth, rotten tooth, bad tooth, oblique tooth, threading, inside burr, missing material, Internal hole blockage, cracking, glitch, solder joint area, Imprint, with or without internal teeth, inspect all functions of screw with a flat head | ||
| 13 | Power and Voltage | Two-phase 220v, 50Hz |
| 14 | Rated Power | 1KW |
| 15 | Air Pressure | Not lower than 0.35-0.7MPa |
| 16 | Weight | Around 500kg |
| 17 | Working Temperature | -3ºC~45ºC |
| 18 | Storage Temperature | -20ºC~60ºC |
| 19 | Machine Dimension | 1000mm (Length) X 1000mm (Width) X 1800mm (Height) |
Our Service
Sipotek provides professional sample testing service and solution designation for customer evaluation and before they decide to place an order.

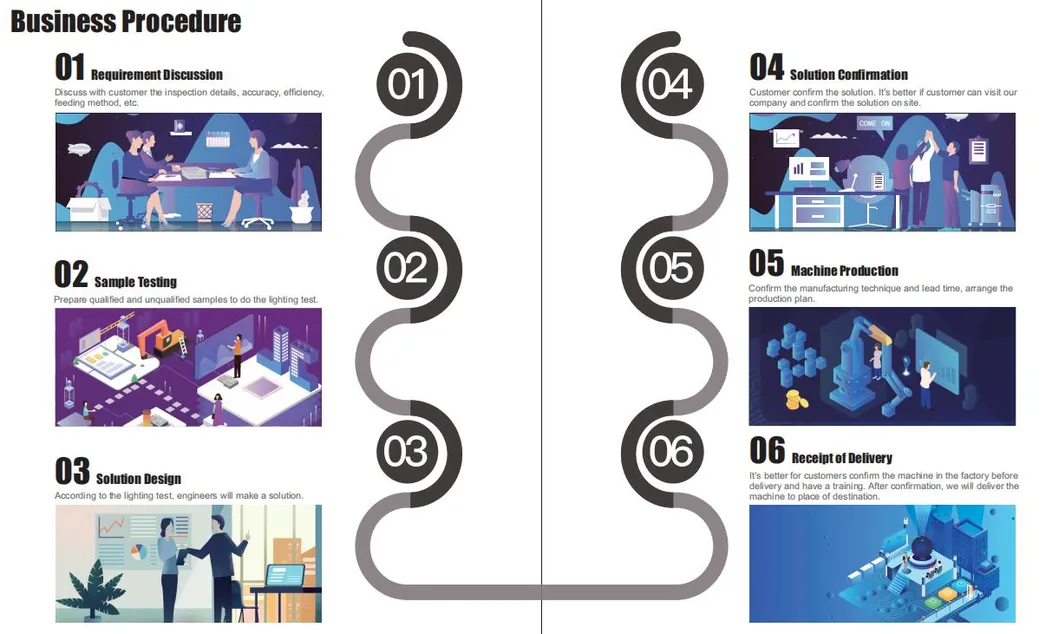

Our business procedures are sincerely communicating with customers, understanding fully what they need.Step 1 Inquiry and communication
We will discuss as many details as possible to understand best of your inspection requirements. So we are available not only by phone or emails, but also on line chatting with Skype, Wechat, What's app and Alibaba. The contents of the communication will include inspection details, drawings, accuracy, speed, input and output, etc.
Step 2 Samples arrangement
Since our machine is customized designed according to customer's demand. Samples are necessary. Our engineers can make the solution depending largely on the lighting test of the samples. Thus we can check which is the defects, where can we find them under specific lighting sources.
Step 3 Inspection solution Finished
After our engineer finished the sample testing procedure. They will give a result of the test and then will be reported to you. You can find what will be composed in the machine and how the result shows the sample images.
Step 4 Customer make decision
Now our customers will have the solution report, They will make a determination of the inspection project. PI will be sent and Order will be confirmed after their acceptance.
Step 5 Put into production
After orders are confirmed, we will discuss the producing technology and then start to make the customized machine. At the same time, we will confirm the delivery date.
Step 6 Machine Delivery
Generally, our trade term is FOB Shenzhen. We strongly recommend our customers to verify the machine in our factory before shipment in case any problems or changes will be and we could solve them before shipped to destination. Meanwhile, customers can have free training for machine operation and installation.

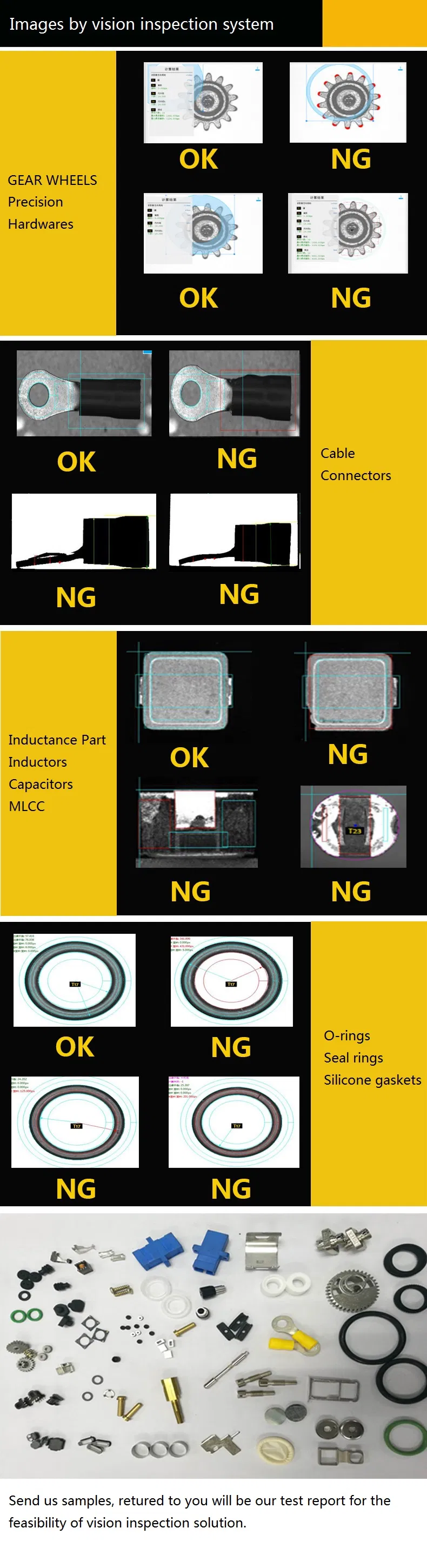

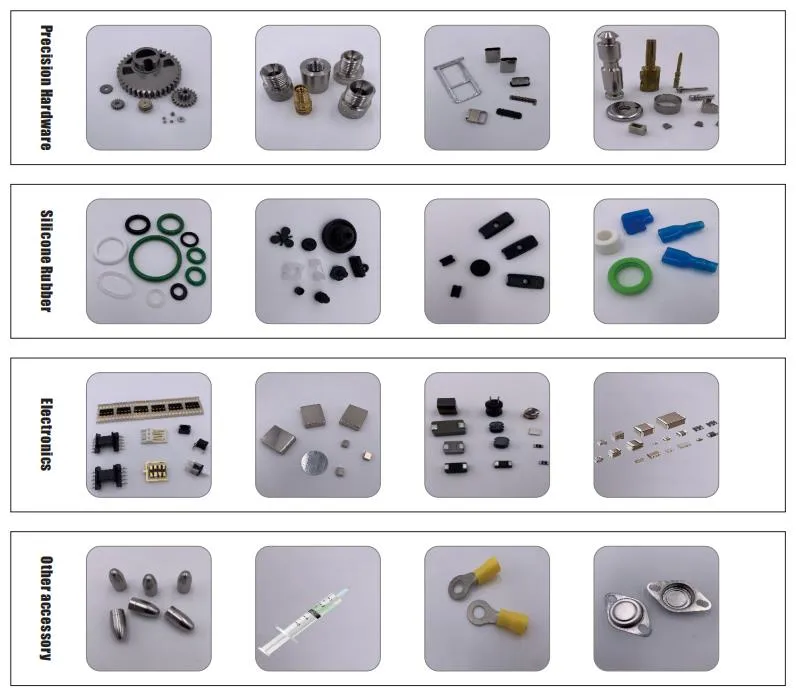

What our vision inspection can be used to do?

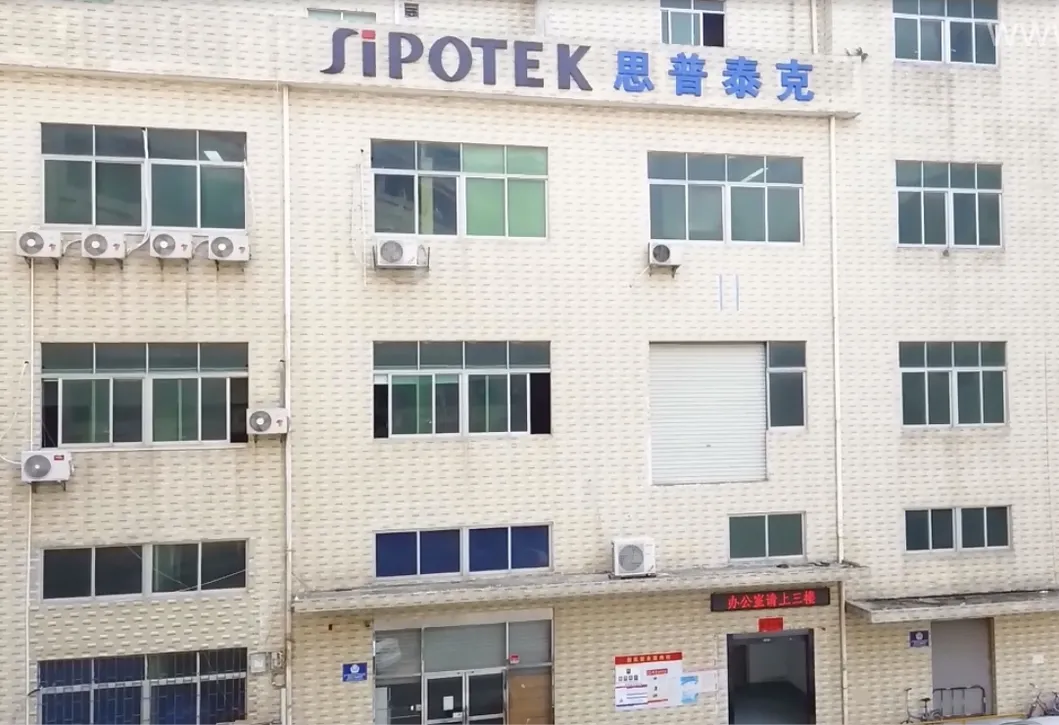

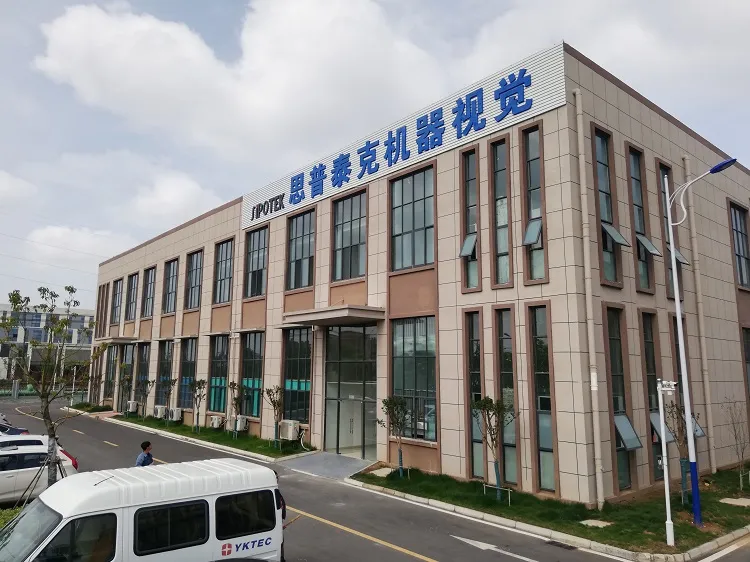

Our Company
Since we established 16 years ago, we has been committed to the research, development and manufacturing of image technology and machine vision, with more than 70 senior R&D personnel of machine vision system and industrial automation engineers.
Machine Vision Inspection Application and Solution
The company's key technical personnel are mainly from HUAWEI, byd, foxconn and other first-class manufacturing enterprises, with many years of mature experience in software design, visual and image comparison technology, industrial automation and other aspects.
We hope you can visit our company!
Before we can design a suitable inspection system for your products, we need to confirm as many details as possible. We will collect all the requirements which will be supportive for our R&D team to do the test and design a solution.
Sipotek is a professional machine vision inspection supplier and manufacturer. Welcome to visit our website and discuss it with us online. If you want to make a schedule to visit our company, please let us know in advance so that we can make good preparation for you. We welcome our customers to plan a visit to our company and watch the machine demo. If you are interested in an automated inspection system or machine vision solution, please contact us for more information.
