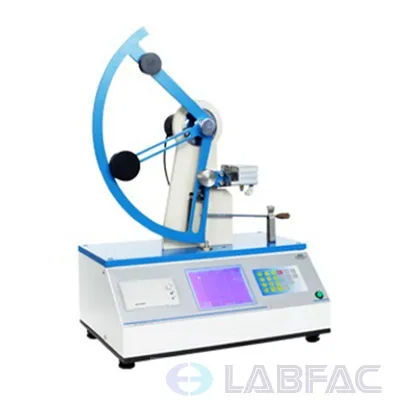

Film Tearing Tester/Paper and Film Elmendorf Tear Tester

PT108C Tearing Tester is applicable in the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.

Product features
Microcomputer control;
Automatic and electronic measurement;
Pneumatic specimen clamping and pendulum releasing;
Horizontal adjustment system;
Multiple capacities of pendulum;
Professional software support multi-testing units;
RS232 interface.

Product application
Plastic film, sheet, PET, aluminum polymer, paper, cardboard, woven material, heavy packaging bag, rubber gloves and latex gloves, stretch-wrap film, paper ticket, etc.

Technical standards
ISO 6383-1-1983,ISO 6383-2-1983, ISO 1974,GB/T16578.2-2009,GB/T 455,ASTM D1922,ASTM D1424,ASTM D689,TAPPI T414

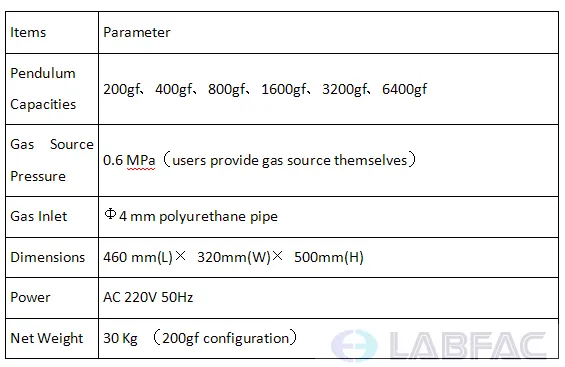

Product parameters


Main fixtures
Standard: Mainframe, one basic pendulum, one augmenting weight, one check weight,
Optional:
Basic pendulum: 200gf, 1600gf
Check weight: 200gf, 400gf, 800gf, 1600gf, 3200gf, 6400gf
