1) Full-Automatic Dielectric Strength Tester for Transformer Oil Bdv Testing Equipment ASTM D1816 IEC156 is used to measure breakdown voltage BDV of all transformer oil, dielectric oil, electrical oil, insulating oil, etc.
2) It is developed according to IEC156 Insulating Oil Dielectric Strength Testing Method;
3) The oil test vessel with temperature measurement unit, so it can detect oil temperature.
4) With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;
5) Full-Automatic Dielectric Strength Tester for Transformer Oil Bdv Testing Equipment ASTM D1816 IEC156 has large LCD display, all the selection can be done by touch panel with color LCD;
6) It also with micro-printer and can store 100 groups data, test data can also be upload to PC and output word report automatically;
7) 80kV Transformer Oil Breakdown Voltage Withstand Voltage Tester Insulating Oil Dielectric Strength Tester is multi-functional, stable, and easy for operation .
Technical Index:
1 | Output voltage | AC 0V~80KV (100KV for choice) |
2 | Rate of voltage rise | 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% |
3 | Max. test times | 9 |
4 | Stir time | 0~999s |
5 | Wait time | 0~999s |
6 | Measurement accuracy | ±(1% of full scale + 2 digits) |
7 | Resolution | 0.1KV |
8 | Temperature measurement range | 0°C to 70°C, or better |
9 | Temperature resolution | 1°C, or better |
10 | Data storage | 100 groups |
11 | Weight | 38kg |
12 | Size | 550 mm*500mm*580mm |
13 | Power supply | AC220V, 50Hz/60Hz |
14 | Working environment | Room temperature to 45°C, humidity<85% |

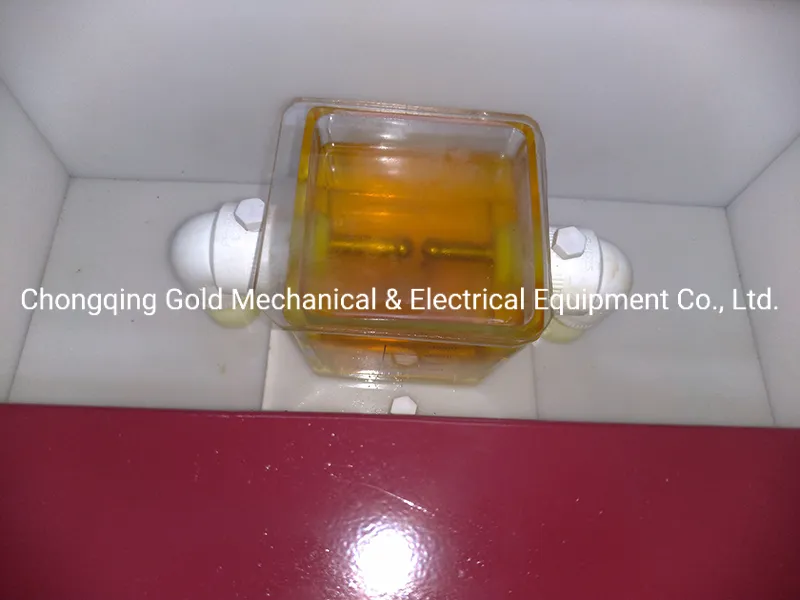

Oil Cup:

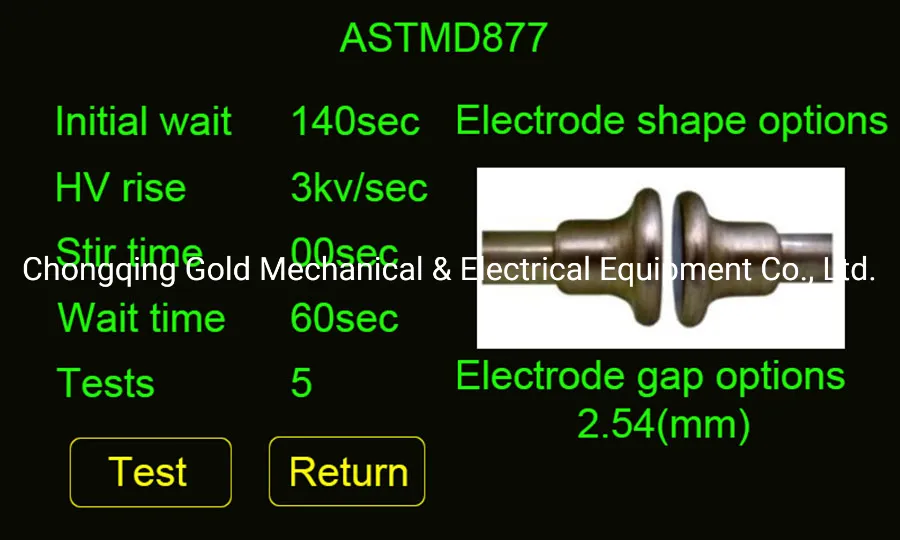

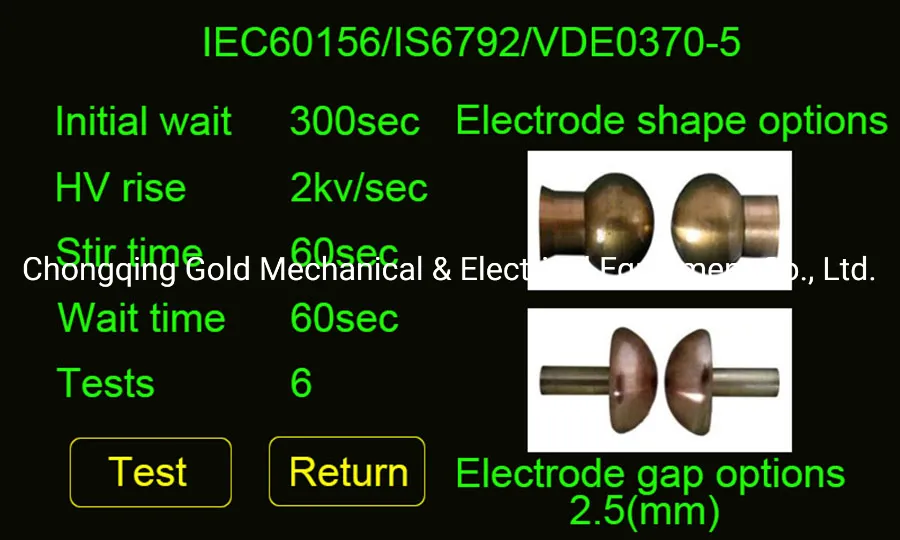

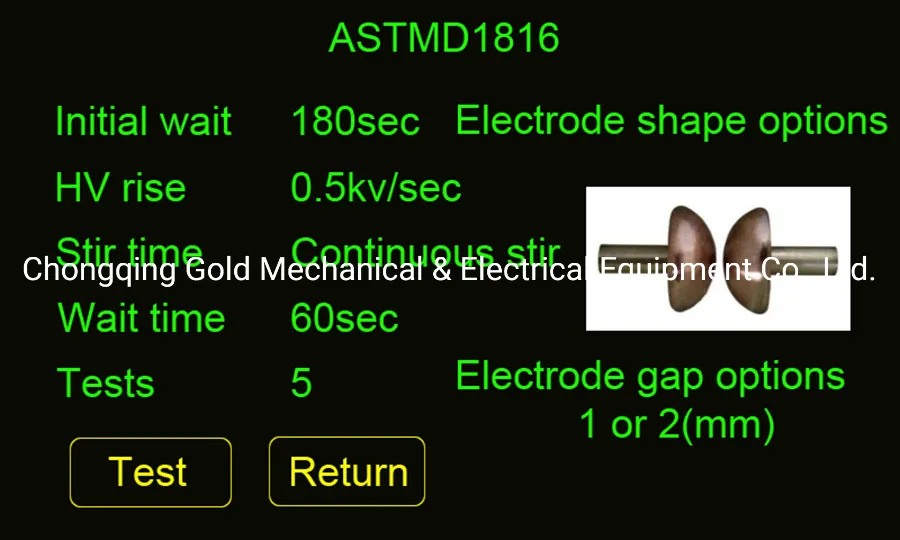

Interface of Test Standards:

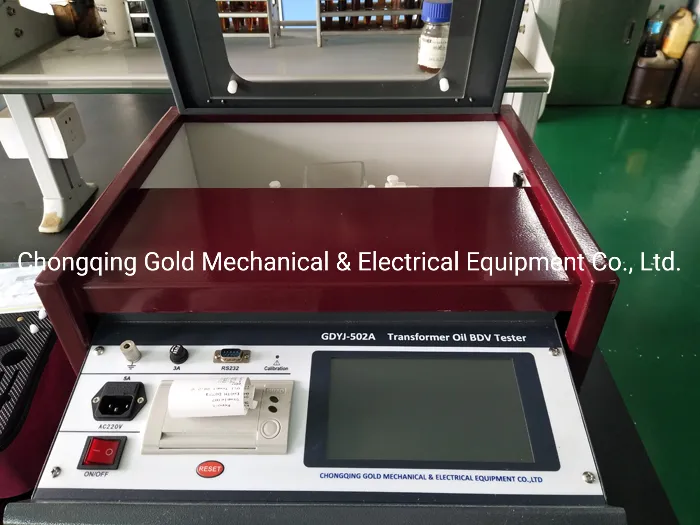

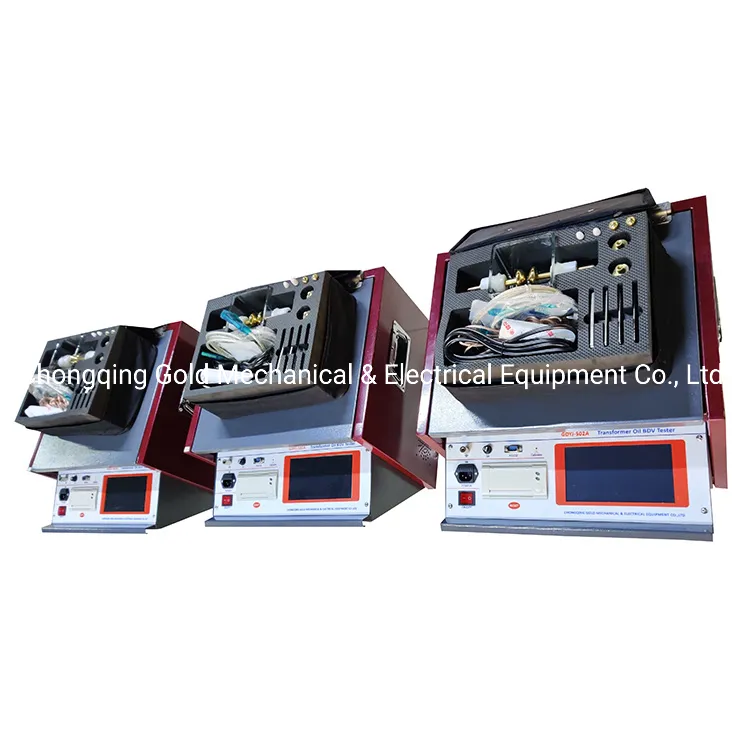

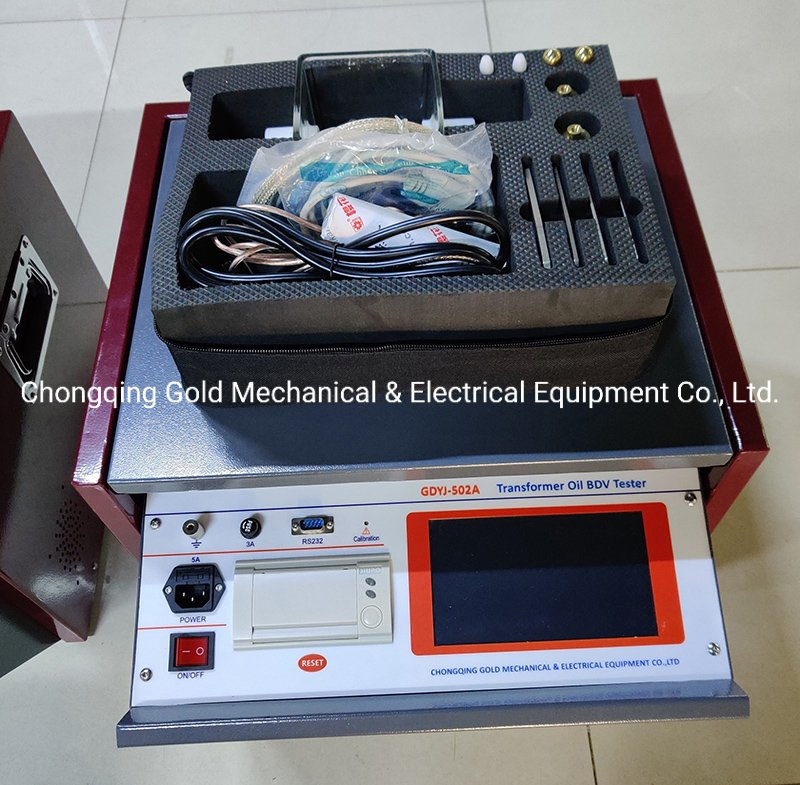

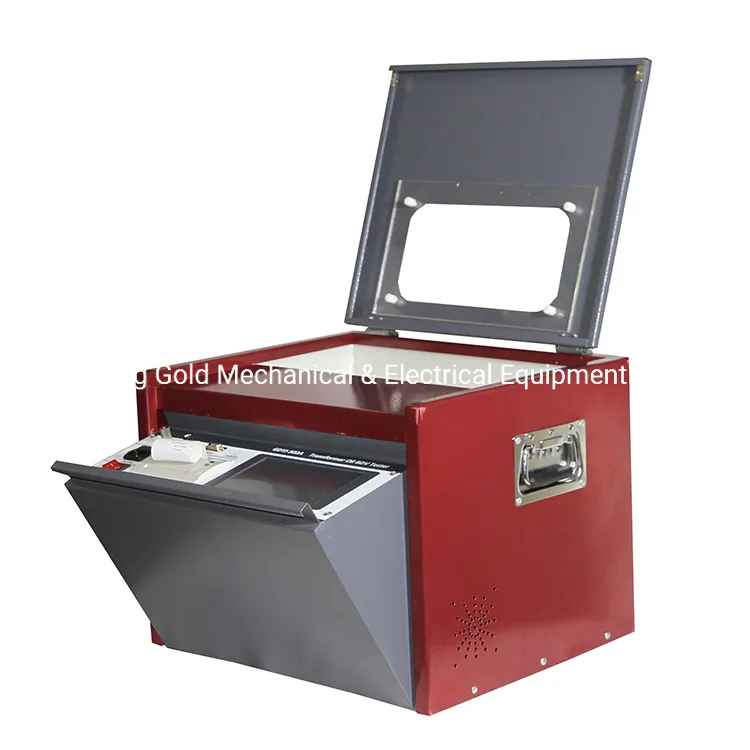

Real Pictures:
Packing List:
| No. | Item Name | QTY |
| 1 | GDYJ-502A | 1 Unit |
| 2 | Power line | 1 Unit |
| 3 | Grounding line | 1 Unit |
| 4 | Test vessel | 1 Unit |
| 5 | Electrodes(Mushroom, Flat and Spherical type) | 1pair each |
| 6 | Feeler gauge(1mm,2mm,2.5mm,4mm) | 1pc each |
| 7 | Stirrer | 2 units |
| 8 | High voltage column | 1pair |
| 9 | USB-RS232 connection line | 1 Unit |
| 10 | Thermal print paper | 2 units |
| 11 | Fuse(5A/3A) | 2 units/2 units |
| 12 | Instruction manual | Instruction manual |
| 13 | disk | 1unit |
| 14 | Inspection report | 1unit |
