Gdz-2 High-Pressure Type Consolidation Testing Apparatus
GDZ-2 High Pressure Consolidation Apparatus and Oedometer front loadingStandard:BS 1377:5 ASTM D2435, D3877Application: The instrument is used to carry out the compression test of soil, determine the relationship between soil deformation and pressure or pore ratio and pressure, and the relationship......
Send Inquiry
Product Description

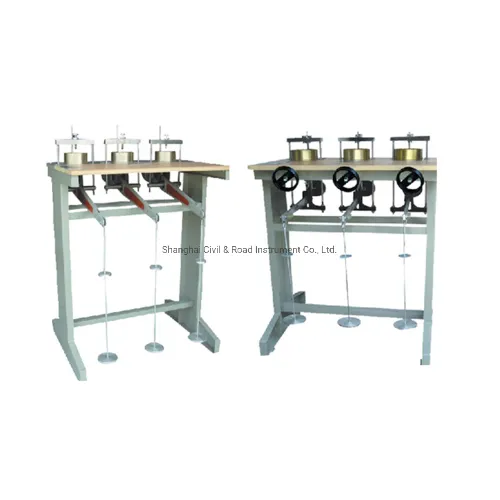

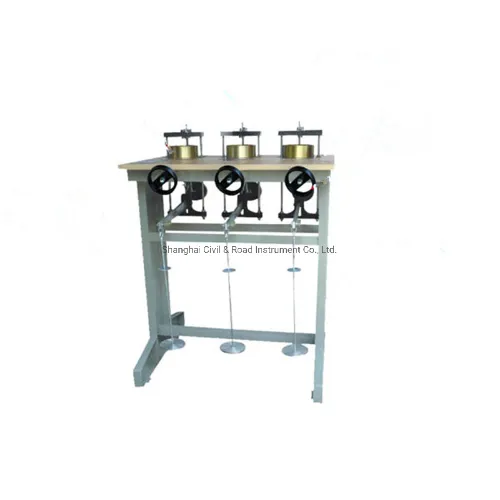

GDZ-2 High Pressure Consolidation Apparatus and Oedometer front loading
Standard:BS 1377:5 ASTM D2435, D3877
Application:
The instrument is used to carry out the compression test of soil, determine the relationship between soil deformation and pressure or pore ratio and pressure, and the relationship between deformation and time, calculate the unit settlement of soil, compression coefficient and index, rebound index, compression modulus, Consolidation factor, etc., the measurement items are determined by engineering needs.
It is a midium pressure consolidation instrument after the low pressure consolidation instrument. It can be used for both low pressure test and medium pressure test.
Features: This machine is mainly composed of compression containers and pressurized equipment, weight, etc. In the tripli form.Stress points use bearing structure.
Technical Parameters:
Standard:BS 1377:5 ASTM D2435, D3877
Application:
The instrument is used to carry out the compression test of soil, determine the relationship between soil deformation and pressure or pore ratio and pressure, and the relationship between deformation and time, calculate the unit settlement of soil, compression coefficient and index, rebound index, compression modulus, Consolidation factor, etc., the measurement items are determined by engineering needs.
It is a midium pressure consolidation instrument after the low pressure consolidation instrument. It can be used for both low pressure test and medium pressure test.
Features: This machine is mainly composed of compression containers and pressurized equipment, weight, etc. In the tripli form.Stress points use bearing structure.
Technical Parameters:
| Specimen area | 30cm2, 50cm2 |
| Specimen number | 3 |
| Pressure range | 12.5-1600KPa, 12.5-3200KPa |
| Load grade | 12.5, 25, 50, 100, 200, 300, 400, 800, 1600,3200 |
| Lever ratio | 12: 1 (mid and low pressure) Lever ratio : 12:1 (Mid and low pressure) 20:1, 24:1 (High pressure) |
| Frame | Steel structure |
