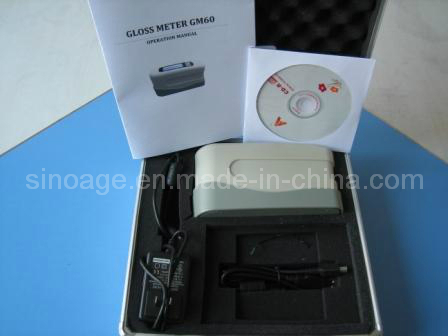

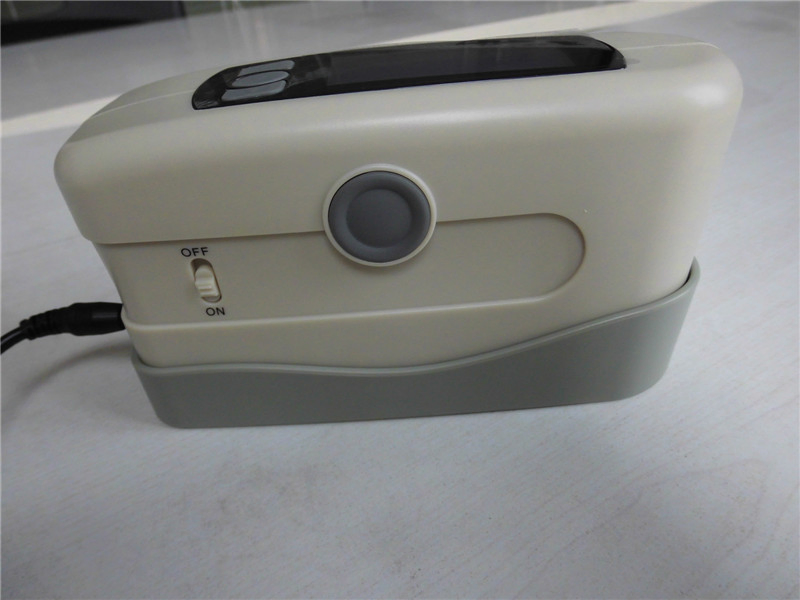

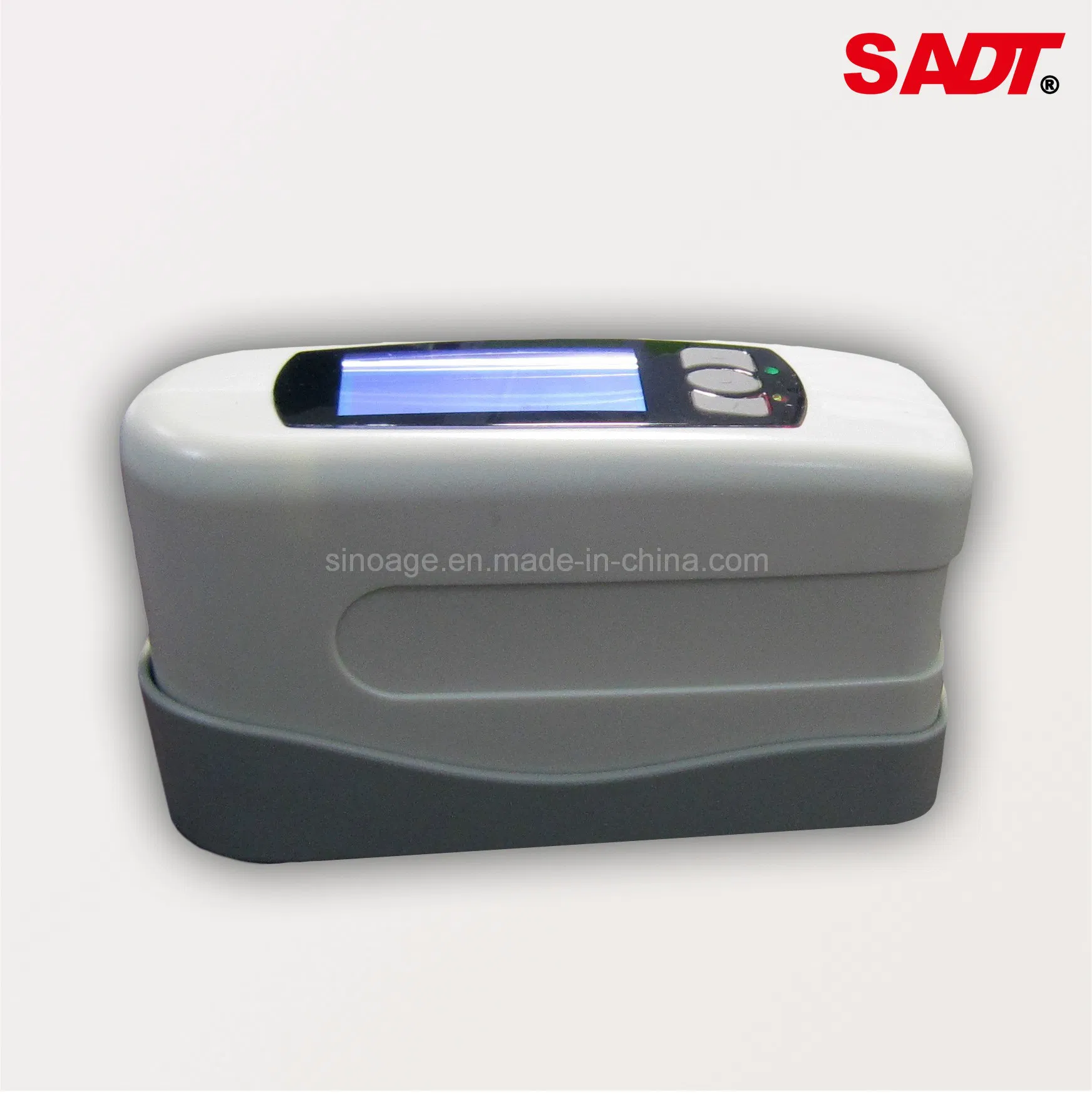

Glossmeter GM60 , Single Angle, Data Managing Software
Gloss Meter GM Series introduction:GM Series gloss meters are designed and manufactured according to internation standards ISO2813, ISO7668, ASTM D523, ASTM D2457 and China standards GB/T9754, GB/T13891, GB/T7706 and GB/T8807. The technical parameters is up to JJG696-2002.GM Series gloss meters can ......
Send Inquiry
Product Description
Gloss Meter GM Series introduction:
GM Series gloss meters are designed and manufactured according to internation standards ISO2813, ISO7668, ASTM D523, ASTM D2457 and China standards GB/T9754, GB/T13891, GB/T7706 and GB/T8807. The technical parameters is up to JJG696-2002.
GM Series gloss meters can be widely used to measure painting, coating, plastic, ceramics, leather products, paper, printing, floor materials and so on.
KEY FEATURES:
Precision appearance design, more suitable for human charac teristic, easy to use.
Large memory for measurement data.
Latest Bluetooth func tion and removable memor y card to transmit data conveniently.
Speical designed gloss sof tware to analysis data and output.
Prompt for low batter y and full memory.
With internal Bluetooth module (only avalaible for GMS) or USB interface, GM gloss meter can transfer data with PC easily. The measuring data also can be exported to printer via printing interface. Optional SD card makes the memory as large as you want.
GM Series gloss meters are designed and manufactured according to internation standards ISO2813, ISO7668, ASTM D523, ASTM D2457 and China standards GB/T9754, GB/T13891, GB/T7706 and GB/T8807. The technical parameters is up to JJG696-2002.
GM Series gloss meters can be widely used to measure painting, coating, plastic, ceramics, leather products, paper, printing, floor materials and so on.
KEY FEATURES:
Precision appearance design, more suitable for human charac teristic, easy to use.
Large memory for measurement data.
Latest Bluetooth func tion and removable memor y card to transmit data conveniently.
Speical designed gloss sof tware to analysis data and output.
Prompt for low batter y and full memory.
With internal Bluetooth module (only avalaible for GMS) or USB interface, GM gloss meter can transfer data with PC easily. The measuring data also can be exported to printer via printing interface. Optional SD card makes the memory as large as you want.
| Model | GM60 | GMS |
| Application | Painting, printing, floor material, plastic, ceramics, leather, hardware, plating | |
| Measuring Range(Gs) | 0~120, 120~2000 @ 20° 0~120, 120~1000 @ 60° 0~120, 120~160 @ 85° | 0~120, 120~1000 @ 60° |
| Readout Error(Gs) | ±1.5 (0~120) ±1.5%(120~2000) | ±1.5 (0~120) ±1.5%(120~1000) |
| Repeatability | ±0.5 (0~120) ±0.5%(120~2000) | ±0.5 (0~120) ±0.5%(120~1000) |
| Aperture (mm) | 20°, 60°, 85° | 60° |
| Measurement Spot (mm) | 10×10 @ 20° 9×15 @ 60° 5×38 @ 85° | 9×15 |
| Memory | 900 data or 30 groups, CF card (optional) | |
| Interface | USB / printer /Bluetooth (Bluetooth is only avalaible for GMS) | |
| Software | Data managing software | |
| Power Supply | +5V, AA*4 | |
| Working Environment | 10~40ºC, <85%RH, | |
| Dimension (mm) | 164×58×88 | |
| Net Weight(g) | 520 | |
| Standards | ISO2813, ISO7668, ASTMD 523, ASTM D2457, GB/T9754, GB/T13891, GB/T7706, GB/T8807 | |
