Hand Held Spray Tester for IEC60529 Ipx4

Spray Nozzle

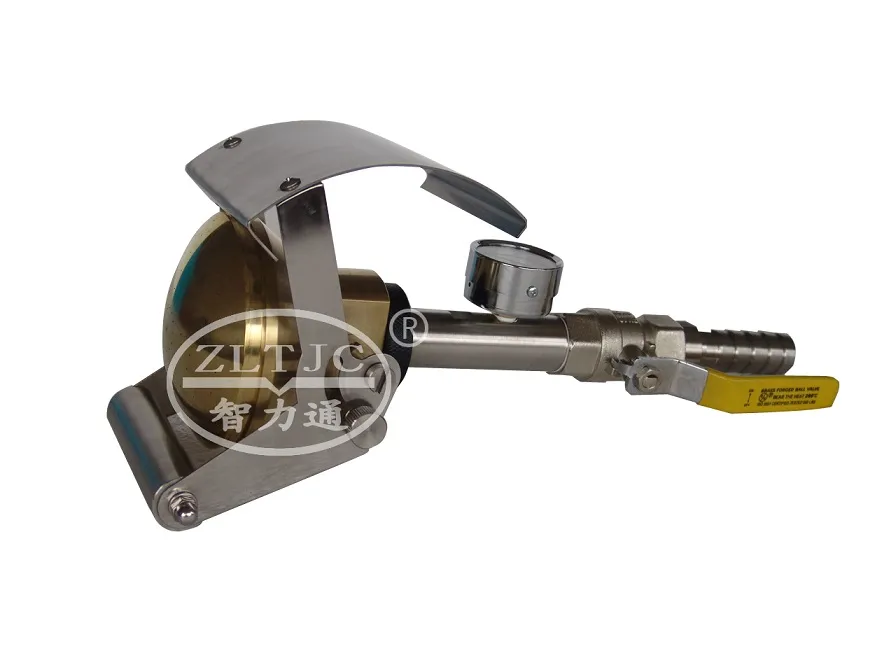

Product details: Model ZLT-JL1.
For checking the protection against ingress of water to prove the degrees of protection with the second characteristic numerals 3 "Protected against Spraying Water" and 4 "Protected against Splashing Water", in accordance with IEC60529 figure 5, IEC60335 clause 15.1.1, IEC60598.
Standard Outfit:
1 nozzle head, outside diameter 102 mm, radius 75, 5 mm, with 121 holes of diameter 0, 5 mm, in two parts, dismountable for cleaning and deliming,
1 moving shield with counterweight, removable, to screen all jets which deviate more than 60° From the vertical, independent of the nozzle direction,
1 handle, internal diameter 15 mm, handle sleeve of plastic,
1 flow control and stop valve with hose connection,
1 hose, diameter 19 mm, 3 m long, with 2 hose clamps.
Nozzle head and some small parts is made of brass, all other metallic parts of stainless steel.

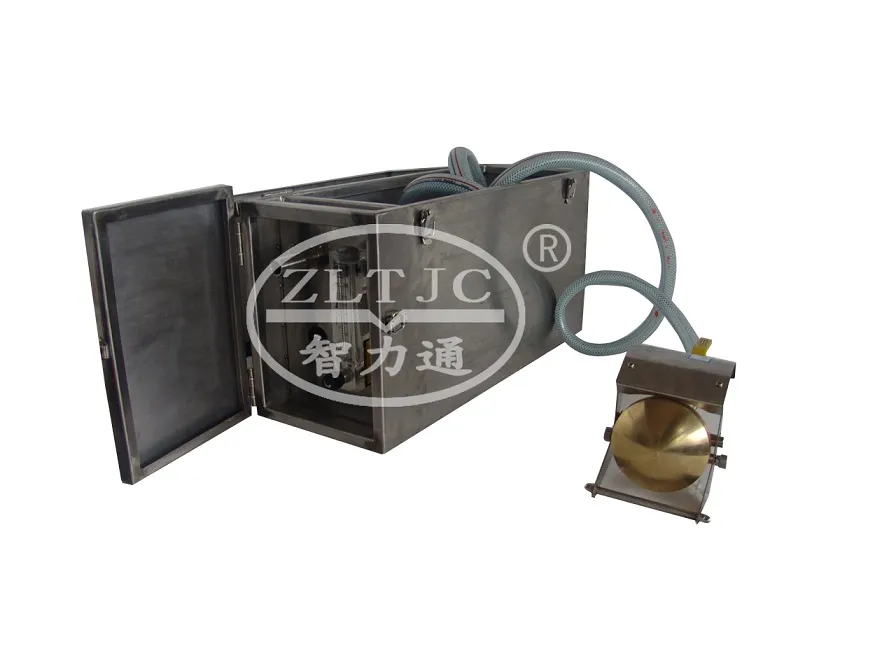

Model: ZLT-JL1A, as type ZLT-JL1, with 1 flow meter and 1 stainless steel box, measuring range 10L/min± 5%.
