Hardness Tester Corrugated Carton Compression Strength Test Machine
YT-YSKNYT-YSKN series compression tester is a testing machine specially used to test the compression resistance of cardboard boxes. It is suitable for the compression test of packaging parts such as corrugated boxes and honeycomb boxes. It is also suitable for compression test of containers such as ......
Send Inquiry
Product Description
YT-YSKN

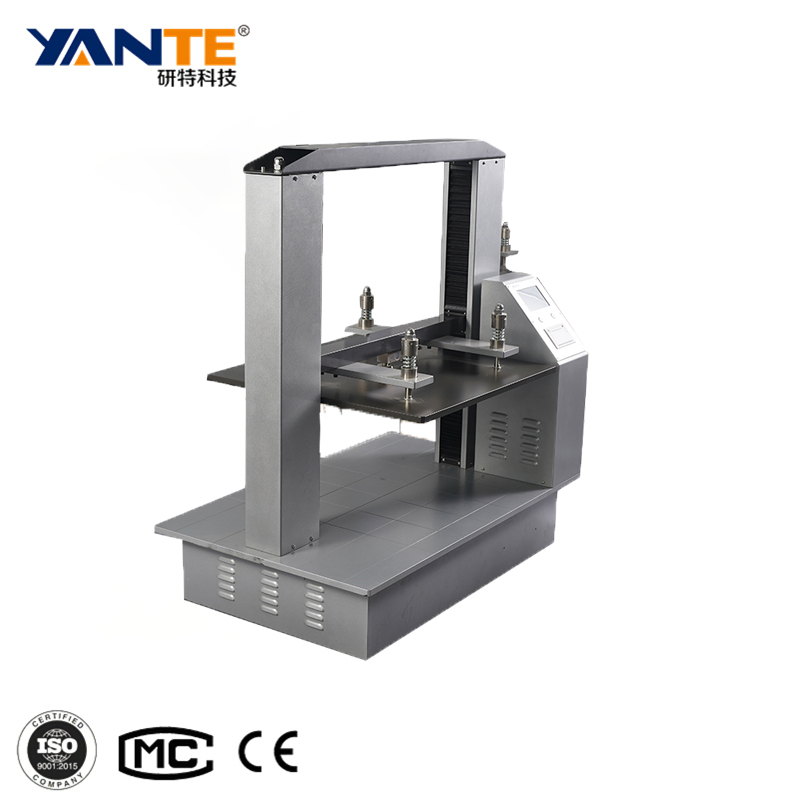

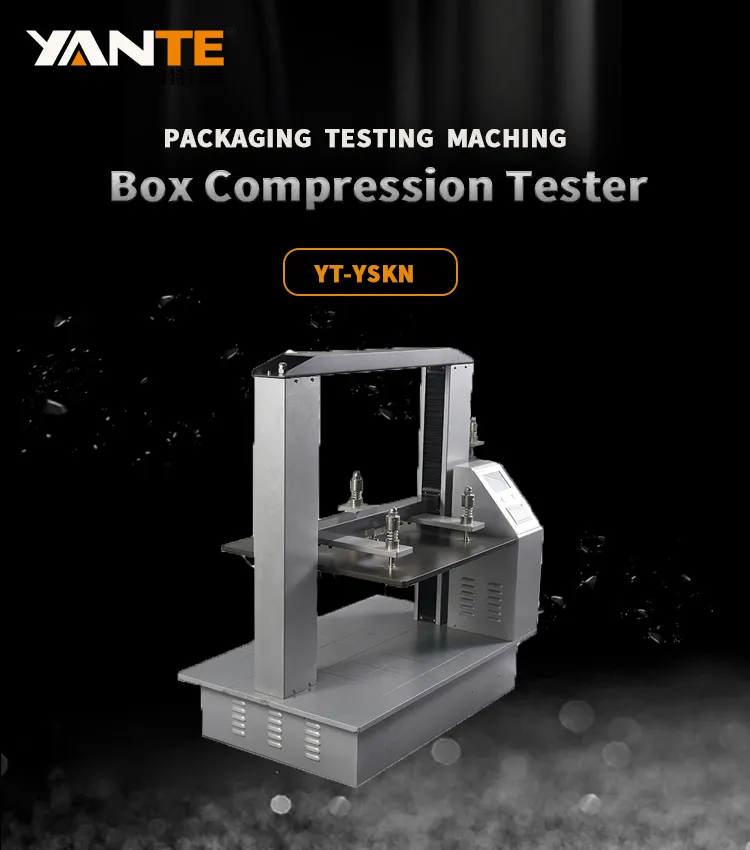

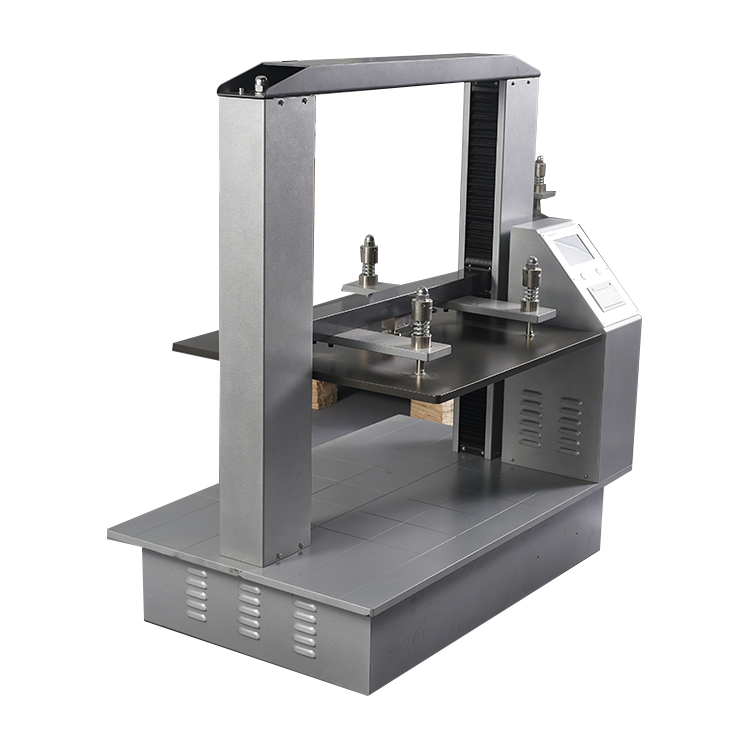

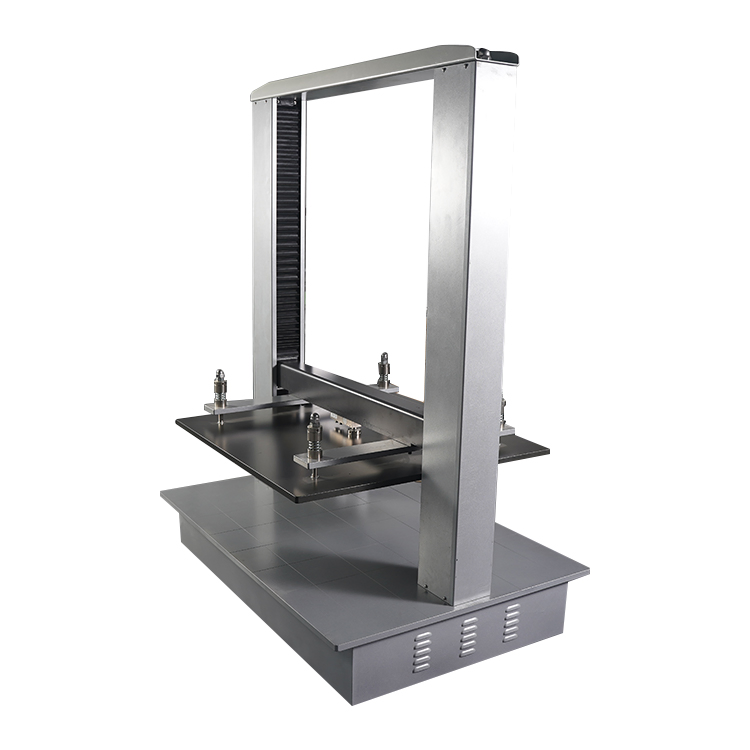

YT-YSKN series compression tester is a testing machine specially used to test the compression resistance of cardboard boxes. It is suitable for the compression test of packaging parts such as corrugated boxes and honeycomb boxes. It is also suitable for compression test of containers such as plastic drums (edible oil, mineral water), paper drums, paper boxes, paper cans, container drums (IBC barrels).
Application Function
Measure compression strength, stacking strength, constant value
| Power Supply | 220±V10% 50Hz 1000~2000W(can be customized) |
| Working Environment | (10~35)ºC,Humidity≤85% |
| Measuring Range | (0-5)kN /(0-10)kN/(0-20)kN/(0-30)KN/(0-50)kN |
| Resolution | 1N |
| Indication Accuracy | ±1% |
| Measured Area | 600×600,800×800,1000×1000 mm |
| Work Capacity | 600,800,1000 (According require to make) mm |
| Press Speed | 10 (self set)mm/min |
| Depth of Parallelism Between Top Board to Lower Platen | ≤1mm(600*600mm)/≤1.5mm(800×800mm)/≤2 (1000×1000mm) |
| Return Speed | 1~120(self set)mm/min |
| Built-in thermal printer | |
| Communication interface | RS232 |
Carton,beer box,paper tube,paper cup, color box,milk box, etc.
Instant noodles for food and beverage packaging, cosmetic packaging, beer packaging, grain and oil packaging, etc.
Product Features
sampling algorithm software, which greatly improves the measurement accuracy of the instrument
Thermal printer core, no need to use ink and ribbon, no noise when working, fast printing speed, etc.
The instrument is equipped with a standard RS232 interface, which can be used with PC software for communication (optional)
Non-standard design processing according to user requirements
