High Accuracy Fully Automatic Karl Fischer Water Content Tester Tp-2100
Fully Automatic Karl Fischer Water Content Tester TP-2100Application:This TP-2100 water content tester adopts the global recognized classical moisture testing method - Karl Fischer Coulometric Method which is the most accurate method with low cost. With the universal standard and analyzing method, i......
Send Inquiry
Product Description

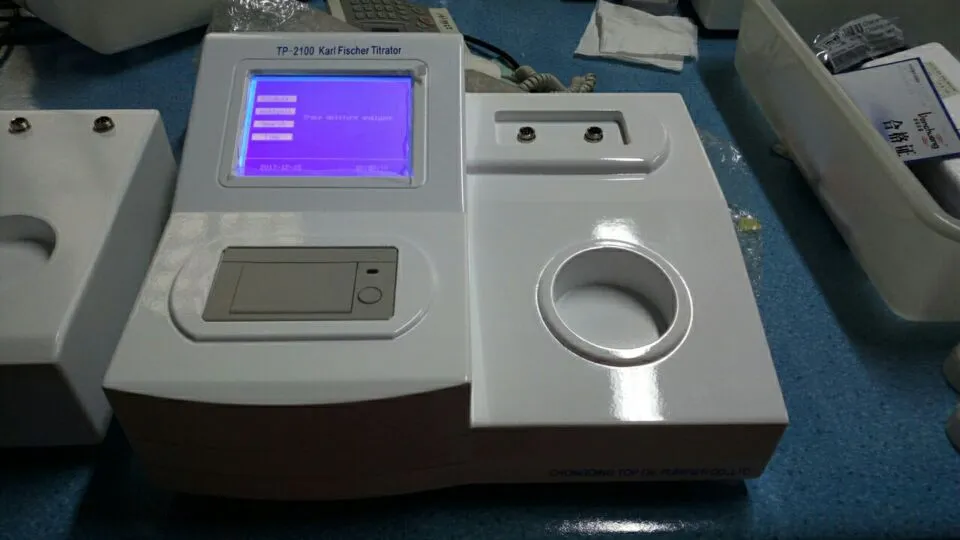

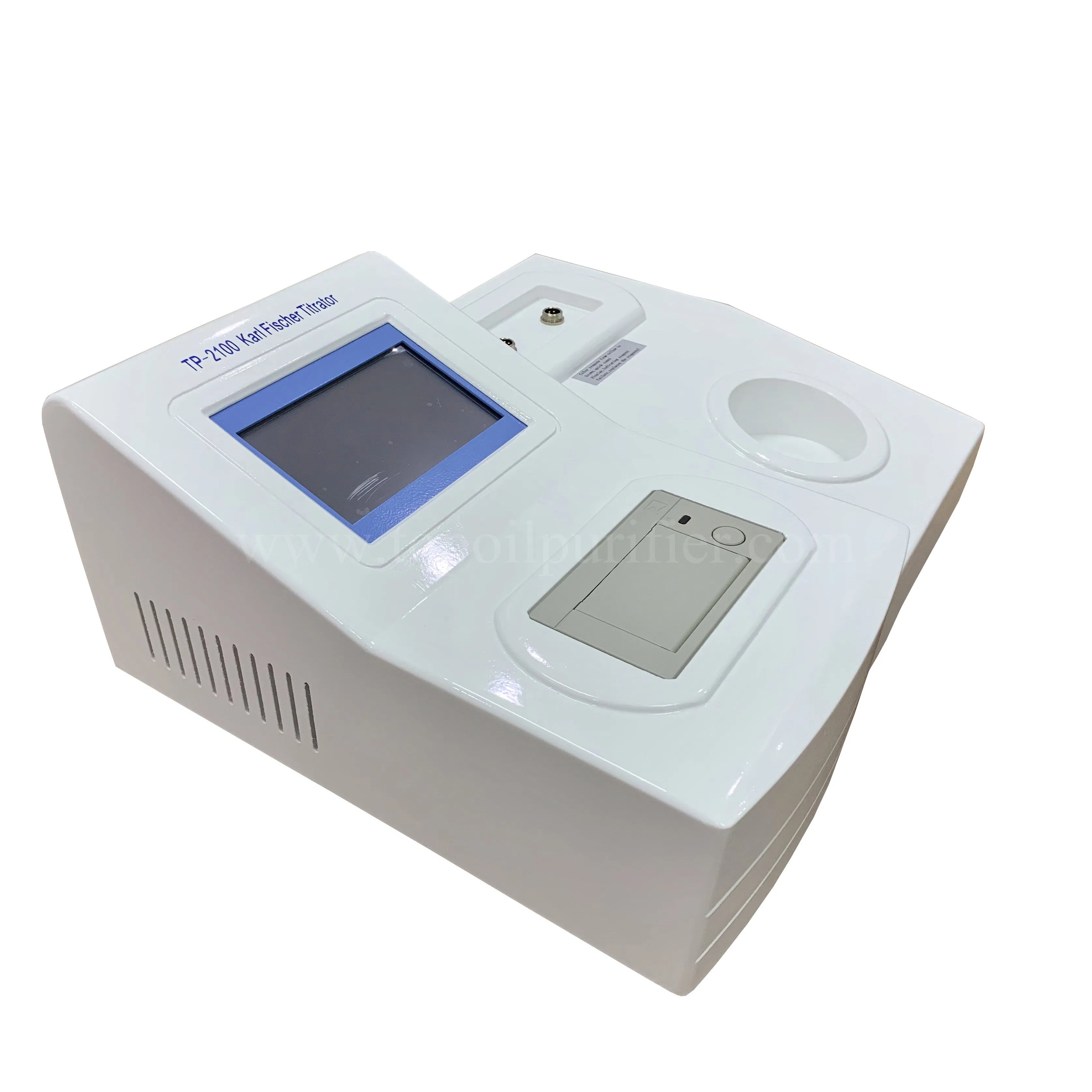

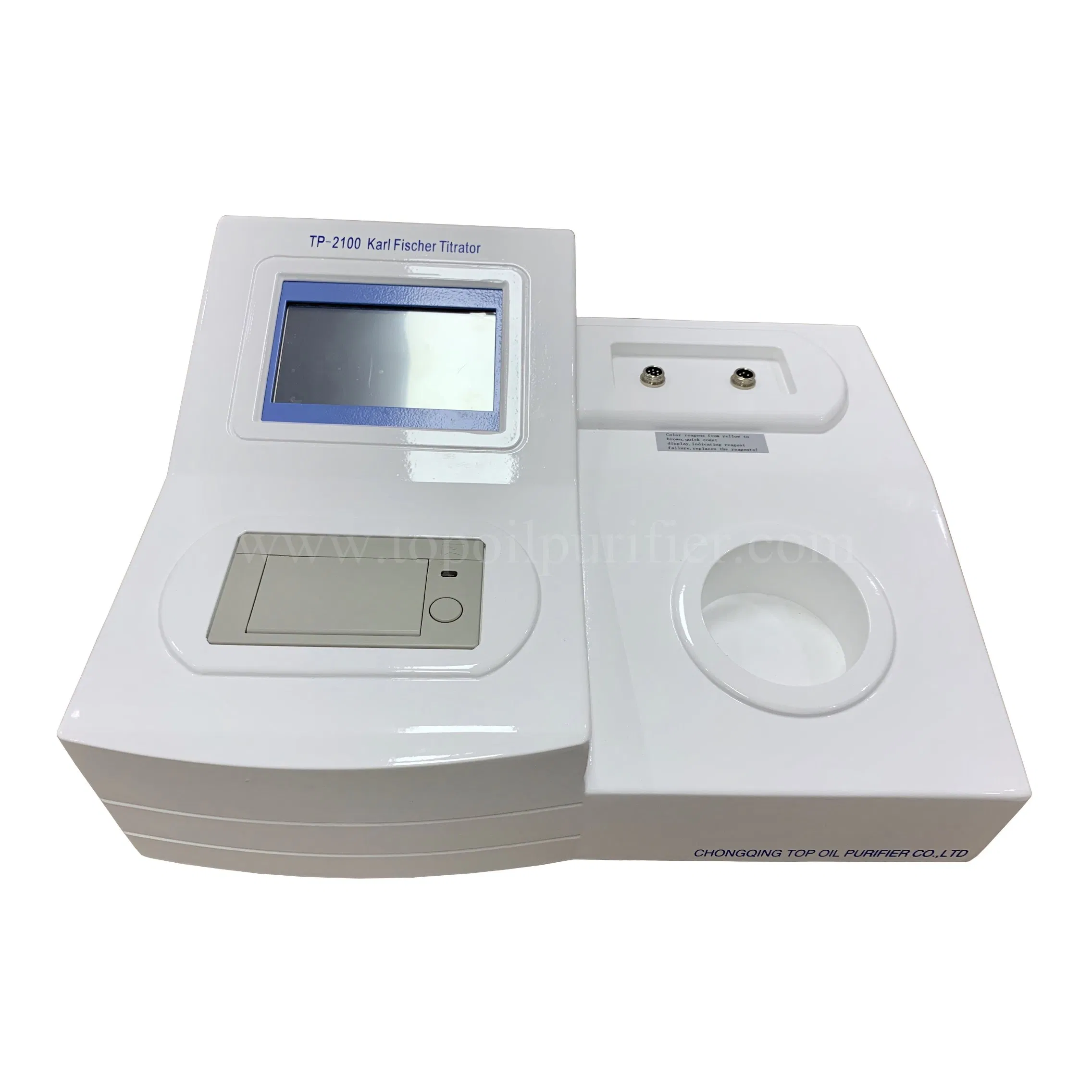

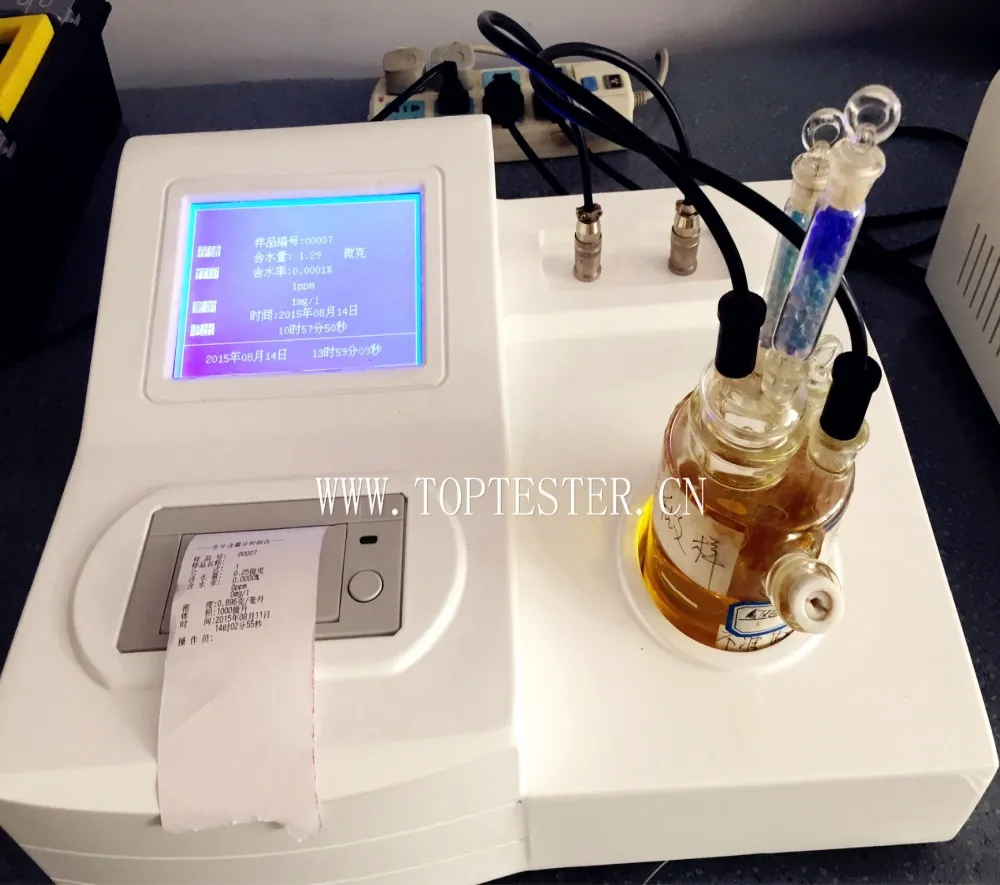

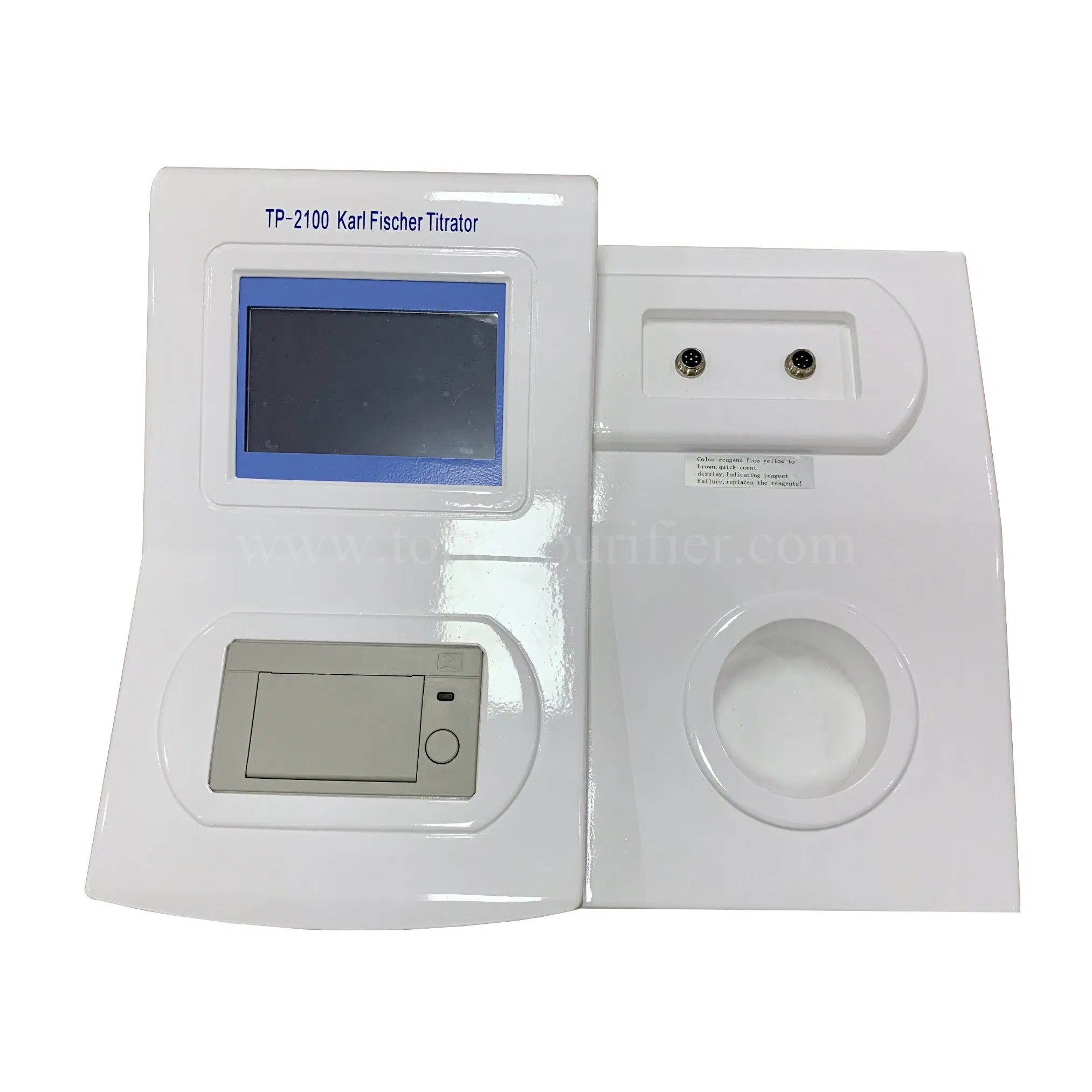

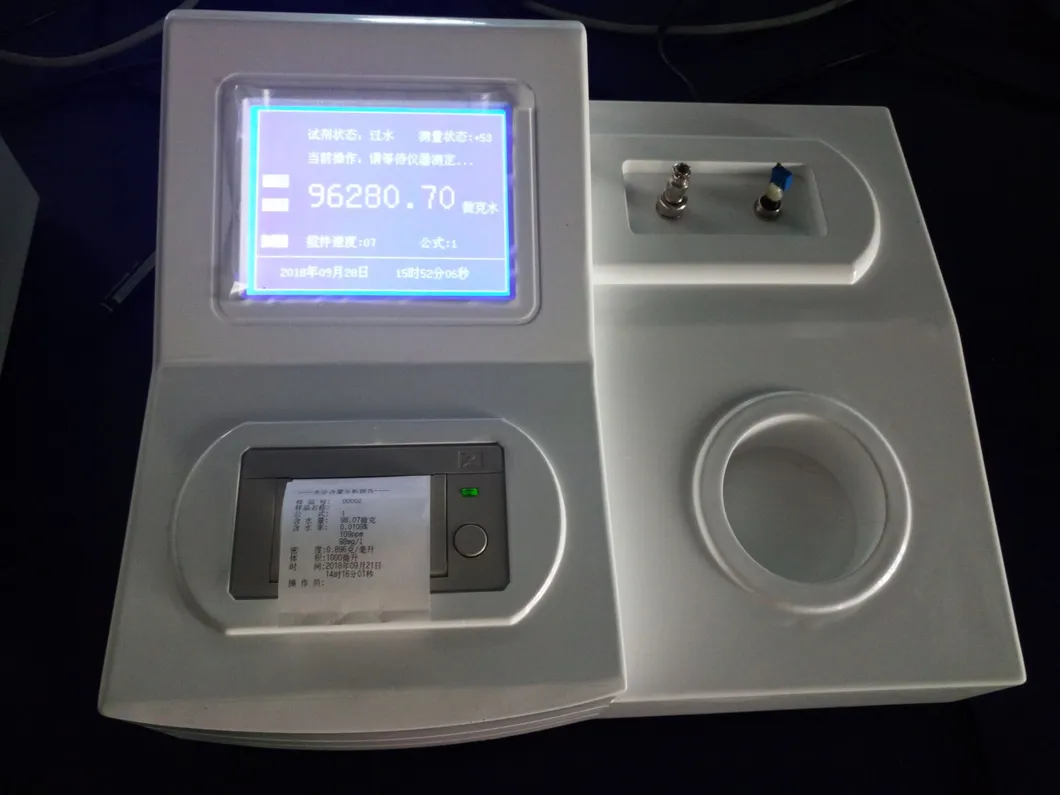

Fully Automatic Karl Fischer Water Content Tester TP-2100
Application:This TP-2100 water content tester adopts the global recognized classical moisture testing method - Karl Fischer Coulometric Method which is the most accurate method with low cost. With the universal standard and analyzing method, it can quickly analyze the moisture content in liquid, solid and gas and directly display testing results, with testing range from 0.0001%(1ppm) to 100%. Therefore, this testing method has been widely used in institutions and enterprises of petroleum, chemical industry, power, pharmaceuticals, pesticide, railways, research, etc.
The whole testing process is automatically controlled by this tester itself. Its auto-stirring and analyzing would be finished within 60seconds, and results would be displayed directly. Totally closed titration system avoids damage to operator from reagent. Equipped with 500ml Karl Fischer Reagent, which could test about 1000 times sample continuously, completely avoiding big deviations of other moisture testing method and thus improving quality index of products.
Application Area:
| Liquid | Chemical Industry:alcohols, ethers, esters, alkenes, benzenes, amines, organic solvents, phenols and other organic products applicable to Karl Fischer Method for determination Petroleum and Power Industry:Insulation Oil, Transformer Oil, Turbine Oil, etc. Pharmaceutical Industry :medicine materials Pesticide Field:emulsifier Other Industry:electrolyte of lithium battery |
| Solid | Various mineral salt, citric acid, explosives, paraffin and other solids with good solubility |
| Gas | Natural gas, liquefied gas, Freon, butadiene, chloromethane, etc. |
Features:
1. Powerful Itanium and double CPU; direct A/D conversion of testing electrode data.
2. 7 inch color touch LCD display in English. Function of reagent failure prompt, extending the service time of it.
3. Completely closed titration system avoids direct touch between people and the reagent as well as the influence of environmental humidity.
4. The outer shell is made of high-quality cold-rolled steel plate with electrostatic sprayed surface, anti-corrosion and easy to clean.
5. Auto-control and compensation of electrical current via MCU contributes to quick balance of reagent.
6. Auto-control electrolysis current within 430mA ensures high sensitivity and fast analyzing speed.
7. Preinstalled with cubature (including 3 pieces of formula), statistical calculation (including average calculation, standard deviation calculation and rate of change calculation) and elementary arithmetic, with the advantages of auto-analysis and calculation.
8. Automatically tests the sample, analyzes and displays results, and calculates the average value of several times of test.
9. Infinite capacity of results storage is convenient to consult previous testing data whenever necessary.
10. Automatically calculates and prints the following content: ug / ppm / percentage / mg/L / sample number / experimenter / testing date, etc.
11. Network management available by connection with laptop or computer communications through USB or RS232 interface.
12. Multilanguage display available. The program of tester can be upgraded accordingly if related national standard is revised.
Technical Parameters
| Method of Display | 7 inch color touch LCD with English display |
| Method of Testing | MPU controlled electrolysis(Karl Fischer Coulometric Method) |
| Rate of Electrolysis | 2.4mgH2O/min |
| Electrolysis Current | Auto-control within 430Ma |
| Testing Range | 0.01ugH2O-200mgH2O |
| Water Content Range | 0.0001%(1ppm)-100% |
| Sensitivity | 0.01ugH2O |
| Accuracy | Water Content: 2ugH2O-100ugH2O; Deviations≤±1ug, Water Content: 100ugH2O-1000ugH2O; Deviations≤±2.9ug, Water Content: >1000ugH2O; Deviations≤±0.2%(excluding deviations of sample injection) |
| Drift Compensation | Auto-control via MPU |
| Stirring Speed | Adjustable and steerable |
| End-point Indication | LCD display /output via printing / voice warning / end-point indication light |
| Data Input | Input via touch screen |
| Sample Number | Numbered by users |
| Storage | Infinite storage capacity |
| Printer | Thermal printer, high-speed, low-consumption, with 44 millimeter-wide paper |
| Printing Content | ug / ppm / mg/L / sample number /experimenter / date |
| Calendar/Clock | automatic display and print analyzing time and date |
| Self-checking | Breakdown self-checking |
| Special Function | Work independently or connected with laptop or other computers |
| Power Consumption | <40W |
| Dimension | 390×270×190mm |
| Working Environment | Temperature: 5ºC-40ºC,Humidity: <85% |
| Power Supply | AC220V±10% 50HZ±2.5HZ |
| Weight | About 7kg |
