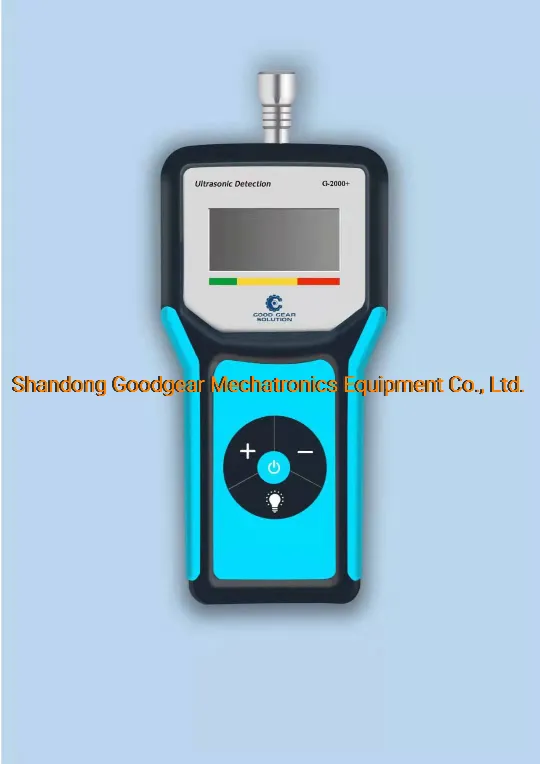

High Sensitivity Ultrasonic Leakage Detector Shooter

High Sensitivity Ultrasonic leakage detector shooter

Application range
Petrochemical, gas transportation, power electronics, defense military, ship aviation, machinery manufacturing, automobile manufacturing, transportation, metal smelting, medical and health, food and beverage, mining cement, glass manufacturing, light industrial textile, paper printing, subway fan, Large air conditioners, cleaning systems, engineering installations, water treatment and other fields.
Air separation system leak
  Pressure vessel, pipeline gas leak
Compressed air unit and pipeline leakage
. Vacuum container, equipment leak
Air-cooled island leak
Vacuum equipment, tank
Air tightness test
Natural gas station, pipeline
. Electrical equipment partial discharge
Partial discharge of transmission lines
. Valve internal leak detection
Steam trap leak
.Mechanical failure of the motor
Cleaning machine room, laboratory leak
Suitable for any pressure gas leak



Product performance characteristics
1. Anti-interference Effectively shield electromagnetic interference and non-leakage noise; accurately locate leaks and faults in noisy and complicated environments;
2. Fully intelligent One-click test, easy to learn and understand, can quickly grasp the use method.
3. Sensitive external probe can detect fine leakage; minimum leak detection rate (for He) ≤ 5×10-12Pa.m3/s; leakage medium is air, when the minimum pressure difference is greater than 0.01Mpa, it can be detected close to Leakage of 0.05mm diameter small holes;
4. Adjustable gain The gain can be adjusted according to the field leakage source and environmental interference, and the instrument is adjusted to the best test state, so that the tiny leak is invisible.
5. Quickly quickly detect leaks by scanning;
6. Accuracy Through the laser sight, the leak point can be accurately positioned to facilitate the plugging work;
7. Multi-function Configure the contact probe probe to detect leaks in the valve and monitor mechanical fault noise.
8. Precise positioning Equipped with precision focus positioning probe, anti-interference, and used to accurately locate leak points at close range.
9. Remote Use remote collector for remote detection; according to different positive and negative pressure systems, the longest detection distance is up to 50 meters, avoiding blind climbing and unnecessary assistance during the detection process, saving time and effort;
10. Widely applicable to detect any pressure gas leakage, vacuum leakage, electrical discharge, tank seal detection;
11. Convenient Hand-held, light weight, easy to operate; convenient for daily inspection;
12. Environment Operating temperature -25 ° C - 70 ° C, dustproof and high temperature.
13. Headphones Advanced professional noise canceling headphones can reduce noise by 35dB. Support wearing safety helmets, suitable for strong noise environment in factories; guarantee accurate test. The soft leather thickening material can fully isolate the noise and ensure the wearer's comfort for a long time.
14. Anti-fall protection cover with SBS (TPE) material protection cover, anti-drop 1.5 meters.
15. Working time The instrument can work continuously for more than 24 hours and standby time is more than 72 hours; suitable for long-term testing.
