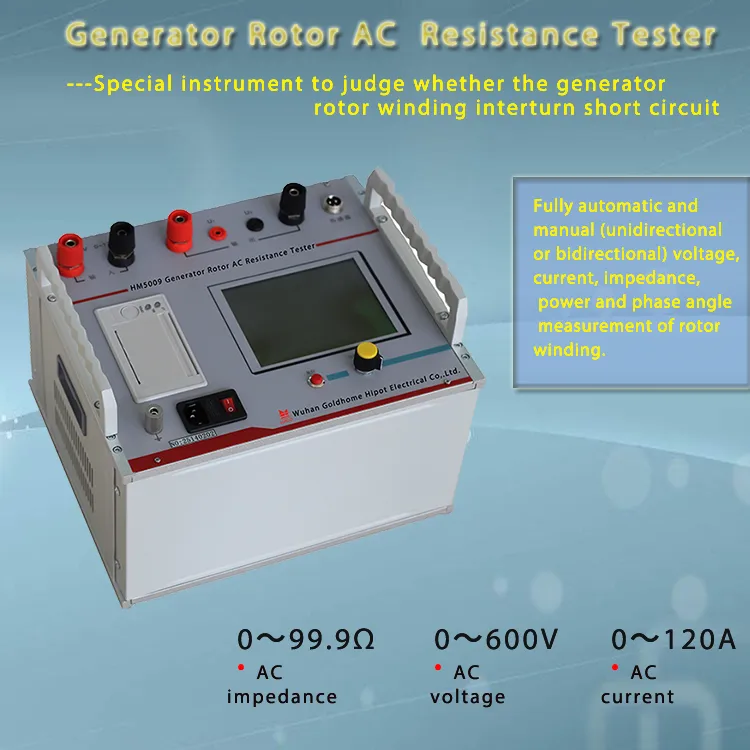

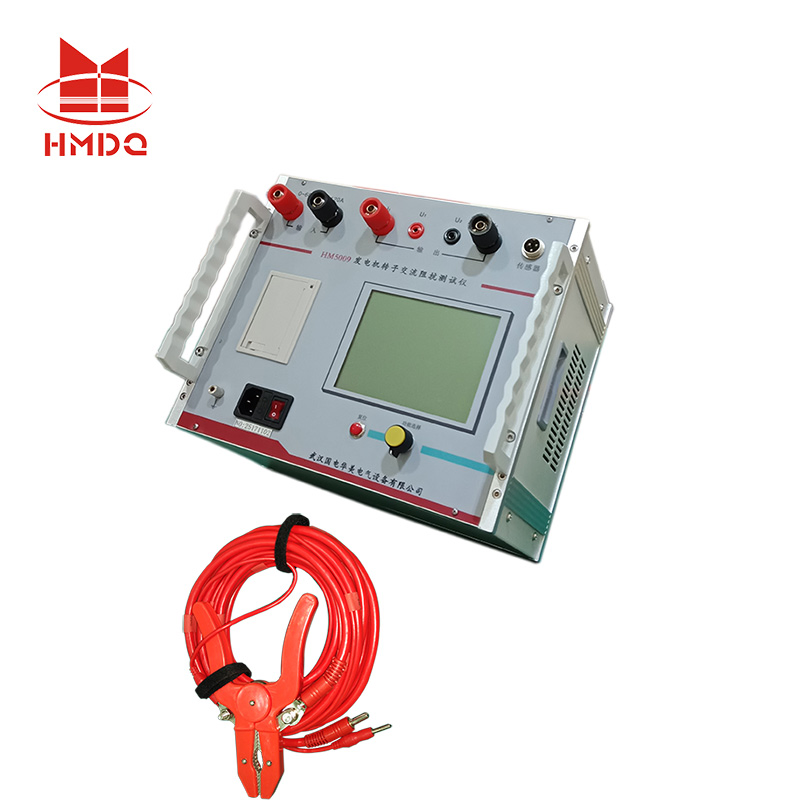

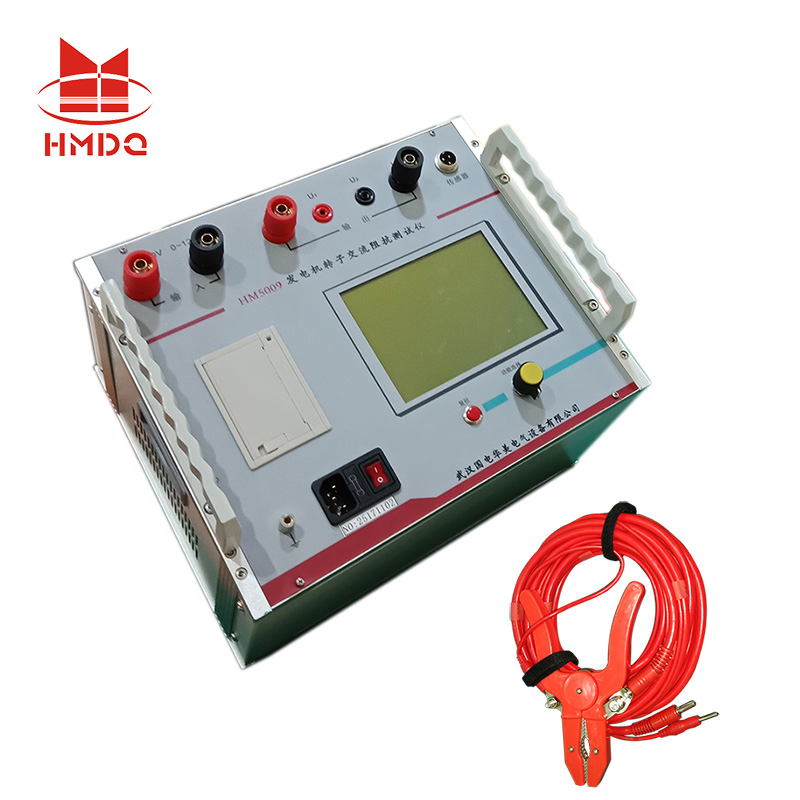

Hm5009 Generator Rotor AC Impedance Tester
SummaryGenerator rotor impedance tester is a special instrument to judge whether the generator rotor winding interturn short circuit, fully automatic and manual (unidirectional or bidirectional) voltage, current, impedance, power and phase angle measurement of rotor winding. Functions and features:1......
Send Inquiry
Product Description
Summary
Generator rotor impedance tester is a special instrument to judge whether the generator rotor winding interturn short circuit, fully automatic and manual (unidirectional or bidirectional) voltage, current, impedance, power and phase angle measurement of rotor winding.
Functions and features:
1.Mouse rotation, operation is more convenient.
2.Two ways arbitrary operation selection: manual and fast automatic measurement.
3.Large screen menu interface, real-time display of test data and curve.
4.Data storage, built-in micro printer, print test data and real-time curve.
5.It automatically adjusts parameters according to test of protection action value, ensure the safety of equipment.
6.It can be used as a single-phase transformer no-load, short-circuit test and voltage (current) volt ampere characteristic test of transformer, arc suppression coil.
Technical parameters
1. AC impedance: 0 ~ 99.9 ohm, 0.2 level
2. AC voltage: 0 ~ 600V, 0.2 level
3. AC current: 0 ~ 120A , 0.2 level
4. Active power: 0 ~ 72KW , 0.5 level
5. Frequency: 45 ~ 75Hz, 0.2 level
6. Power supply: AC 220V ± 10%, 50Hz
7.Demension: 415 x 225 x 200mm
8.Weight: 5kg
Accessaries
1.Host ............................................................1 unit
2.Test line (120A red, black)..........................1 set
3.Input line (connecting regulator) ................2 units
4.Power line (AC 220V) ................................2 units
5.Ground wire.................................................1 unit
6.Fuse 2A........................................................5 units
7.Calibration...................................................1 unit
8.Manual.........................................................1 unit
Generator rotor impedance tester is a special instrument to judge whether the generator rotor winding interturn short circuit, fully automatic and manual (unidirectional or bidirectional) voltage, current, impedance, power and phase angle measurement of rotor winding.
Functions and features:
1.Mouse rotation, operation is more convenient.
2.Two ways arbitrary operation selection: manual and fast automatic measurement.
3.Large screen menu interface, real-time display of test data and curve.
4.Data storage, built-in micro printer, print test data and real-time curve.
5.It automatically adjusts parameters according to test of protection action value, ensure the safety of equipment.
6.It can be used as a single-phase transformer no-load, short-circuit test and voltage (current) volt ampere characteristic test of transformer, arc suppression coil.
Technical parameters
1. AC impedance: 0 ~ 99.9 ohm, 0.2 level
2. AC voltage: 0 ~ 600V, 0.2 level
3. AC current: 0 ~ 120A , 0.2 level
4. Active power: 0 ~ 72KW , 0.5 level
5. Frequency: 45 ~ 75Hz, 0.2 level
6. Power supply: AC 220V ± 10%, 50Hz
7.Demension: 415 x 225 x 200mm
8.Weight: 5kg
Accessaries
1.Host ............................................................1 unit
2.Test line (120A red, black)..........................1 set
3.Input line (connecting regulator) ................2 units
4.Power line (AC 220V) ................................2 units
5.Ground wire.................................................1 unit
6.Fuse 2A........................................................5 units
7.Calibration...................................................1 unit
8.Manual.........................................................1 unit
