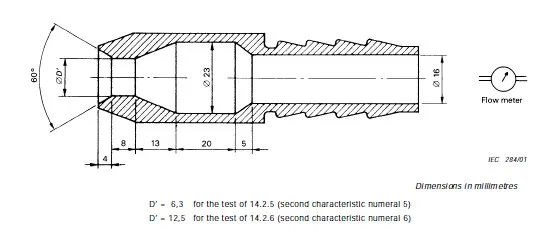

IEC 60529 Figure 6 Hose Nozzle Testing Equipment
Water Jet Nozzle SetProduct details: Model ZLT-JL2.For checking the protection against ingress of water to prove the degrees of protection with the second characteristic numerals 5 "Protected against water jets" or 6 "Protected against powerful water jets", in accordance with IEC......
Send Inquiry
Product Description
Water Jet Nozzle Set
Product details: Model ZLT-JL2.
For checking the protection against ingress of water to prove the degrees of protection with the second characteristic numerals 5 "Protected against water jets" or 6 "Protected against powerful water jets", in accordance with IEC60529 figure 6, IEC60335-1 clause 15.1.1, EN60950, IEC60598 figure 8.

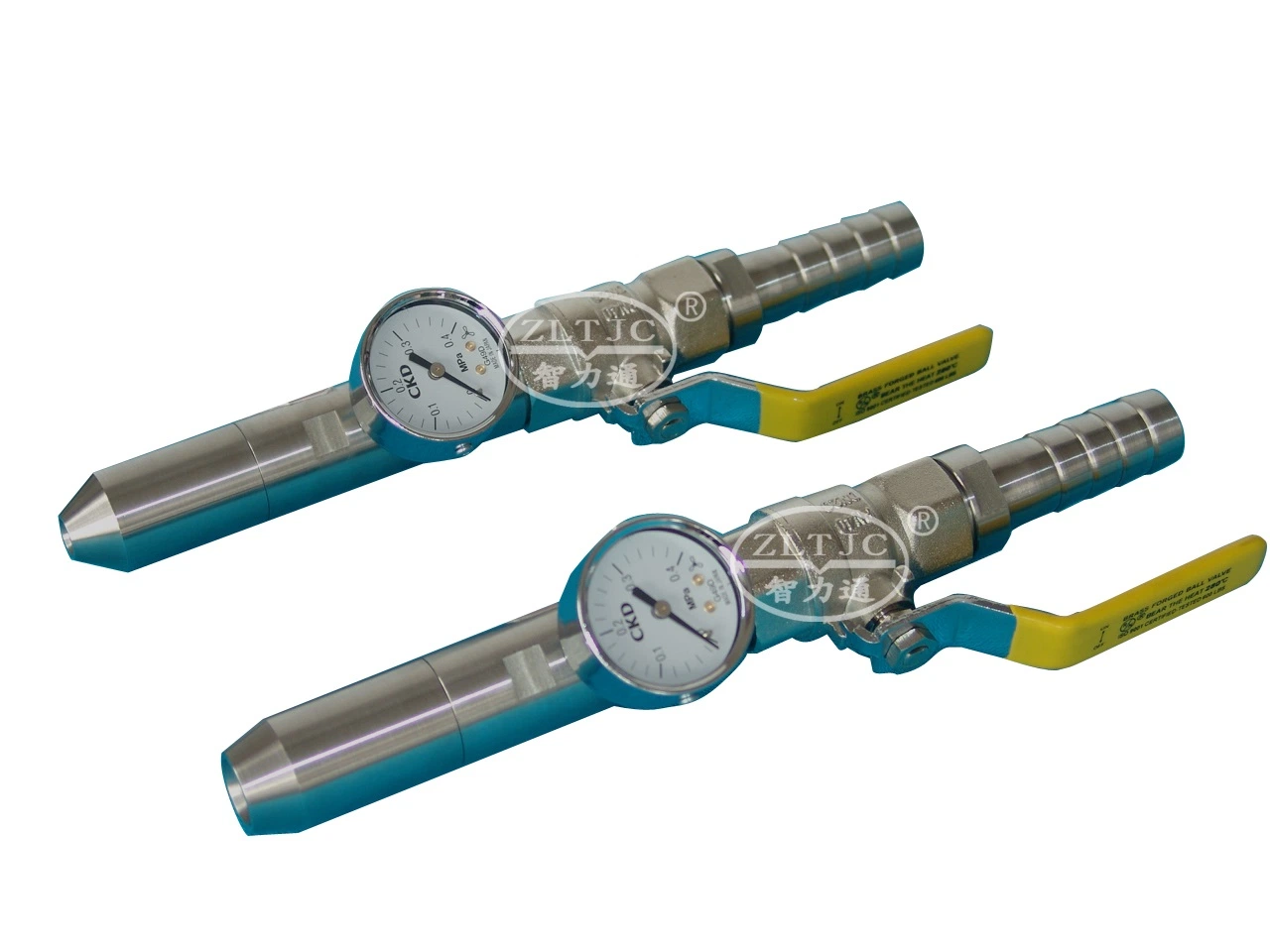

Test Set consists of a jet handle that is equipped with a pressure meter. The interchangeable nozzles assemble easily to the jet handle. The nozzle element and tube within the handle of stainless steel.
Standard Outfit:
1 nozzle element,
1 handle, internal diameter 16 mm,
1 pressure gauge, almost independent of position,
1 flow control and stop valve with hand-wheel to adjust the water flow, with spout for hose of diameter 19 mm,
1 hose, diameter 19 mm, 3 m long, with 2 hose clamps.
Product details: Model ZLT-JL2.
For checking the protection against ingress of water to prove the degrees of protection with the second characteristic numerals 5 "Protected against water jets" or 6 "Protected against powerful water jets", in accordance with IEC60529 figure 6, IEC60335-1 clause 15.1.1, EN60950, IEC60598 figure 8.
Test Set consists of a jet handle that is equipped with a pressure meter. The interchangeable nozzles assemble easily to the jet handle. The nozzle element and tube within the handle of stainless steel.
Standard Outfit:
1 nozzle element,
1 handle, internal diameter 16 mm,
1 pressure gauge, almost independent of position,
1 flow control and stop valve with hand-wheel to adjust the water flow, with spout for hose of diameter 19 mm,
1 hose, diameter 19 mm, 3 m long, with 2 hose clamps.
| Nozzle diameter | for degree of protection: | measuring range Of flow meter: | Model |
| 6,3 mm | 5 | 12,5±0,625l/min | ZLT-JL2.5 |
| 12,5 mm | 6 | 100±5l/min | ZLT-JL2.6 |
