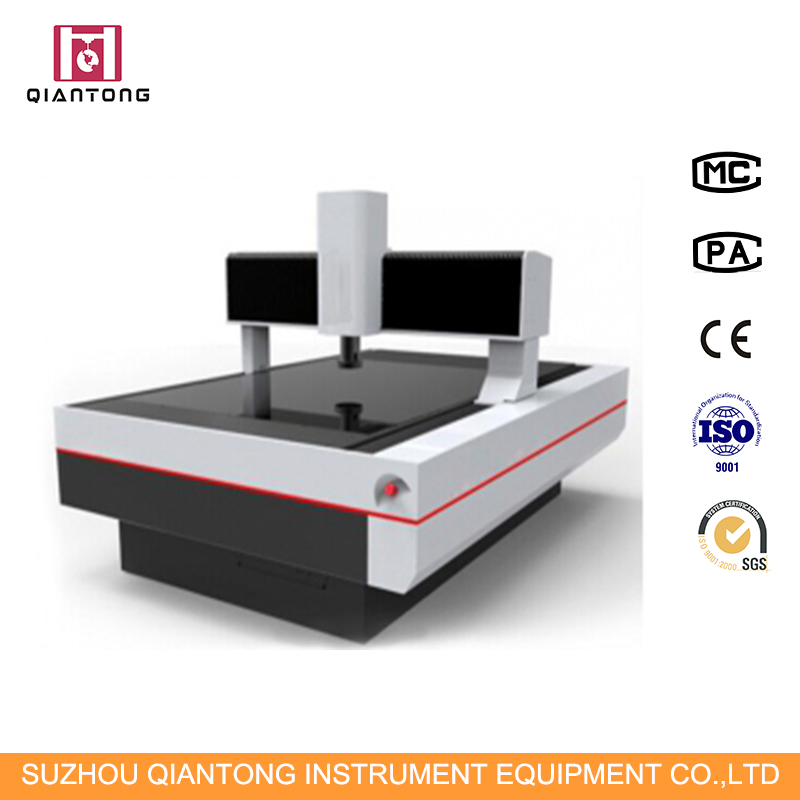

China Image Measurer 2.5D Testing Machine with Computer Control

Product Description

1. Qiantong main scope of testing machine

Electronic universal material testing machine, Horizontal tension testing machine, Hydraulic universal testing machine, MFI, Charpy Impact, Izod Impact, HDT-Vicat tester, Hardness tester, Torsion tester, Metallographic series, Oven and so on. (We accept customization.)

2. Quadratic property

1)Take advantage of optical principle, non-contact testing measurement;
2)Adopt all of fields for the purpose of 2 coordinate measurement;
3)It it the best measurement solution for small, thin, soft and parts;
4)Accurate measurement for points, lines, circles, angles and other elements;
5)Has a strong function for report output with high quality, economical and practical

3. Main features

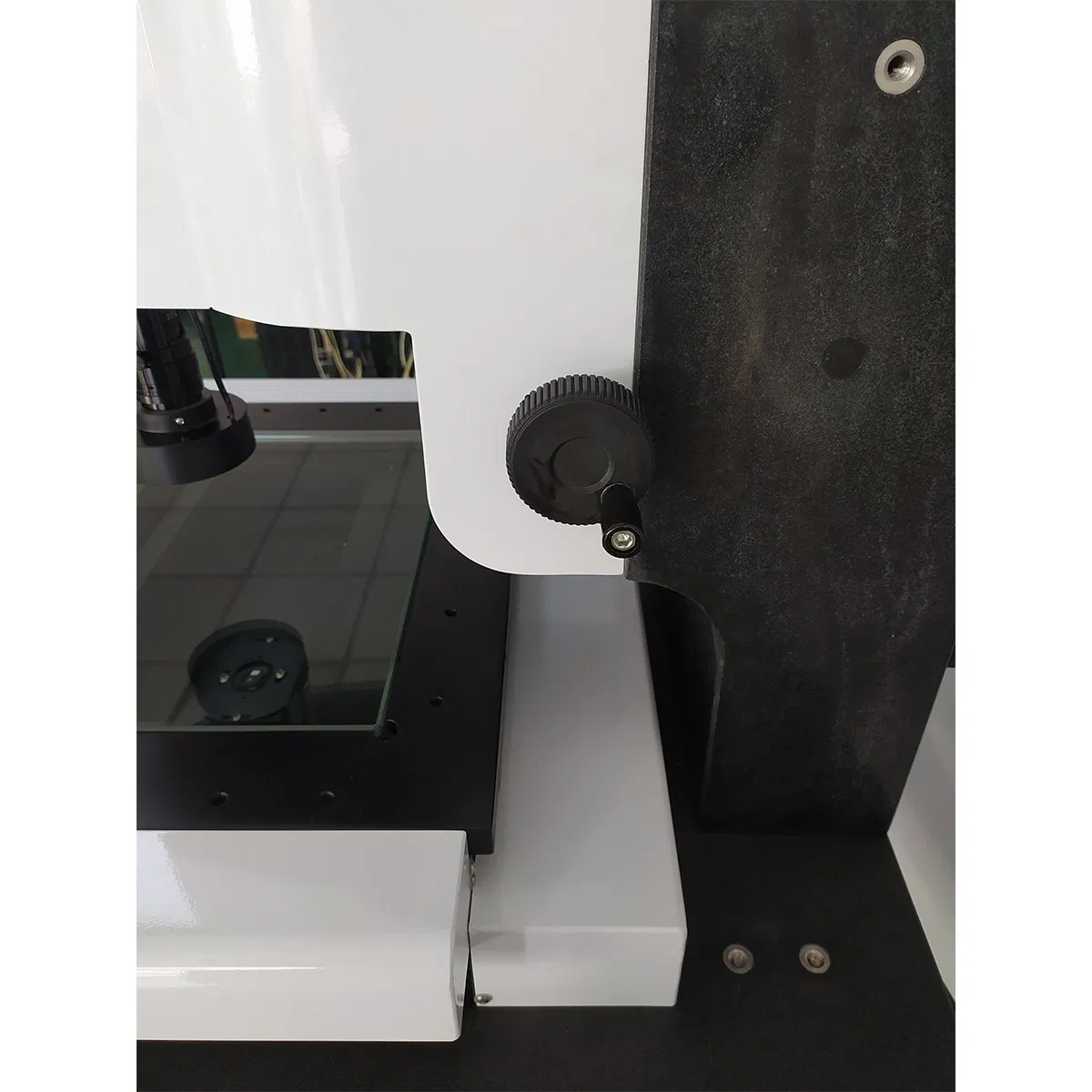

It has precision transmission equipment design and can achieve rapid movement.
High precision marble base, stable and reliable column frame.
Precision p-grade linear guide and v-type guide, with extremely high linearity.
SONY color CCD, has a higher resolution measurement screen.
Contour light, surface light, coaxial light (optional) flexible lighting, high definition, extremely accurate measurement.

4. Technical parameters

Type		DL2010	DL3020	DL4030	DL5040
Stroke (mm)		200100200	300200200	400300200	500 400200
Shape size(mm)		5256779080	6257771080	7258771180	82510771280
Working table size (mm)		360*260	460*360	560*460	660*560
Weight (kg)		220 kg	280 kg	350 kg	420 kg
Loading (kg)		20 kg	20 kg	20 kg	20 kg
Precision (um)		XY(3.0 + L / 200)μm **Z axis precision:5μm
Grating scale resolution		1μm
Guide rail		Taiwan HIWIN P grade
Vidicon		American TEO color industrial HD CCD
illuminant	rimming light	White LED,Brightness is continuously adjustable
	Surface light	White LED,Brightness is continuously adjustable
Optical lens		Manual continuous doubling and electronic card position lens (optional)
magnification***		Optical magnification: 0.7-4.5 image magnification: 30-225 times
distance		90 mm
Software		DL measurement software(DL manual)
Control		Manual control
work environment		Temperature:20ºC±5ºC temperature variation<2ºC/hr humidity:30-80%
		vibration<0.002g lower than15Hz
Power		220 V ± 10% ,50 Hz Reliable grounding for electrical equipment: grounding resistance less than 4 ohms

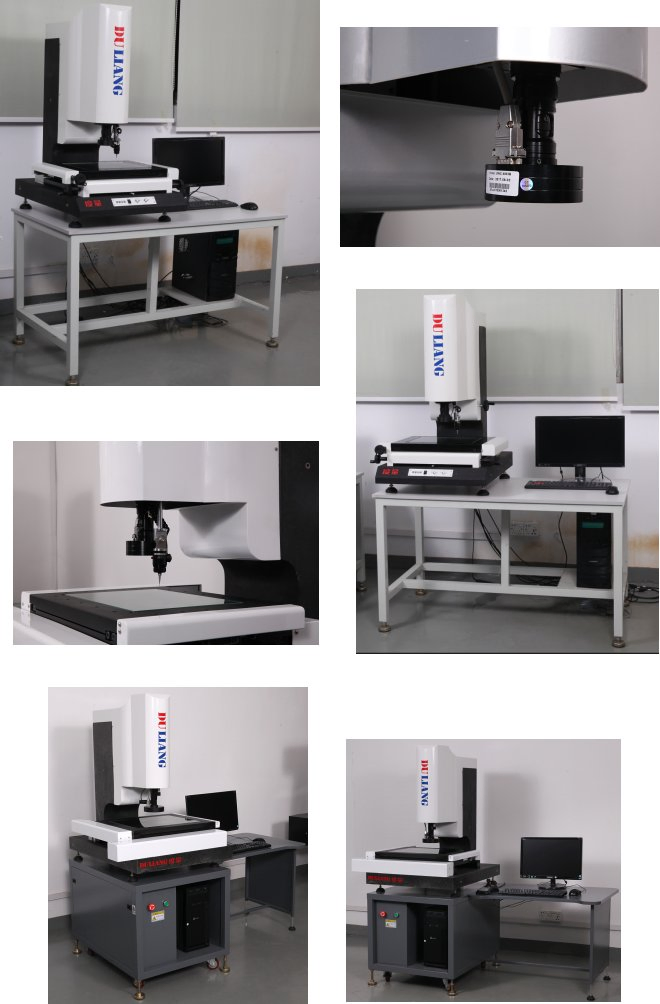

Image Measurer 2.5D Testing Machine with Computer Control

FAQ
Q:Are you a trade company or factory?
A:Our company is a factory and directly sales.
Q:Can your company accept customization?
A: Yes. Our machines can be customized by client.
Q:How to guarantee your after-sales service?
A:Our philosophy is one year warranty and lifetime service. After the warranty period is exceeded, if there is any problem, we will provide support for you in time. (only charge travel expense and parts cost at most.)
Q:What is the language about software?
A:It can switch between Chinese and English.
Q:May the customer not use your company's computer?
A:Sure. But please tell us what type your computer is. We need to confirm your computer can install the software. And we can subtract the price of computer from offer.
