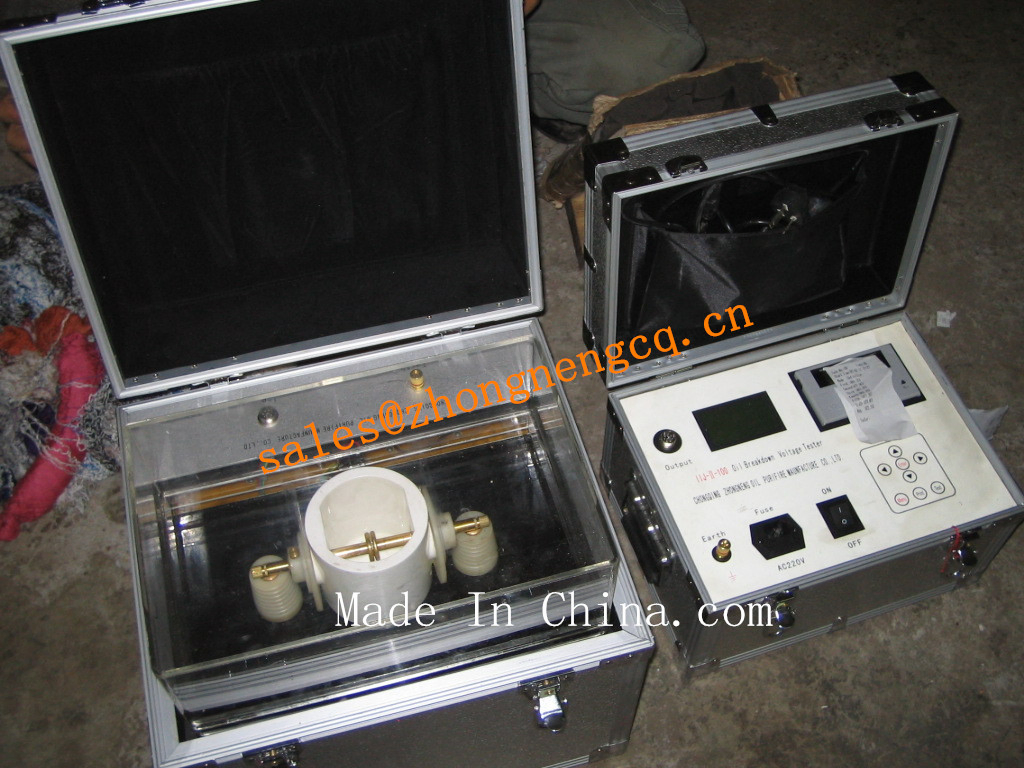

Insulating / Transformer Oil Tester / Measure Meter80/100kv

Application:
IIJ automatic tester is designed by IEC156 to test dielectric strength of insulating oil. Adopt industrial single Plate integrated circuit, new model I/O connection, with unique inspection and anti-jamming technology which largely improve its reliability & functionality.

Features:
1.Simple operation, automatically (can be finished just press on key).
2.Menu controlled.Input data is clear.
3.Can store 99 groups of oil testing data, which is convenient to reading and print.The testing data can keep 10 years under the condition of power off.
4.System time can go on running under power off;(The system time is just for reference which can not be the standard of timing).
5.High capacity of anti-jamming, high precision of testing.
6.Small volume, light, which can be operated in the open air very conveniently.

Technology and parameter data:
1.Power supply:AC220V +-10% , 50 HZ
2.Output voltage:0 to 60KV, 80KV, 100KV (100KV should be special designed)
3.Capacity:1.6KVA, 2.0KVA
4.Speed of Voltage increase:About 2 kva/s
5.Voltage inspection accuracy:3%
6.Dielectric strength sensitivity :Less than 2KV
7.Wave form distortion :Less than 3%
8.Time of dielectric strength:Less than 10ms
9.Working Environment:Temperature:0ºC~ 40ºC, humidity:Max relative humidity 85%
10.Storage environment:Temperature:-20ºC~ 60ºC, humidity:Max relative humidity 75%
11.Work height:1500m(If over 1500M, It can be customized)

Other supply:
Vacuum Transformer Oil Purifier,
Switch oil filtration,
Turbine oil purifier,
Hydraulic oil purifier,
Diesel oil purifier,
Gear oil purifier,
Fuel oil purifier,
Fire-resistant oil purifier,
Light oil purifier,
Insulating oil purifier,
Lube oil Purifier
