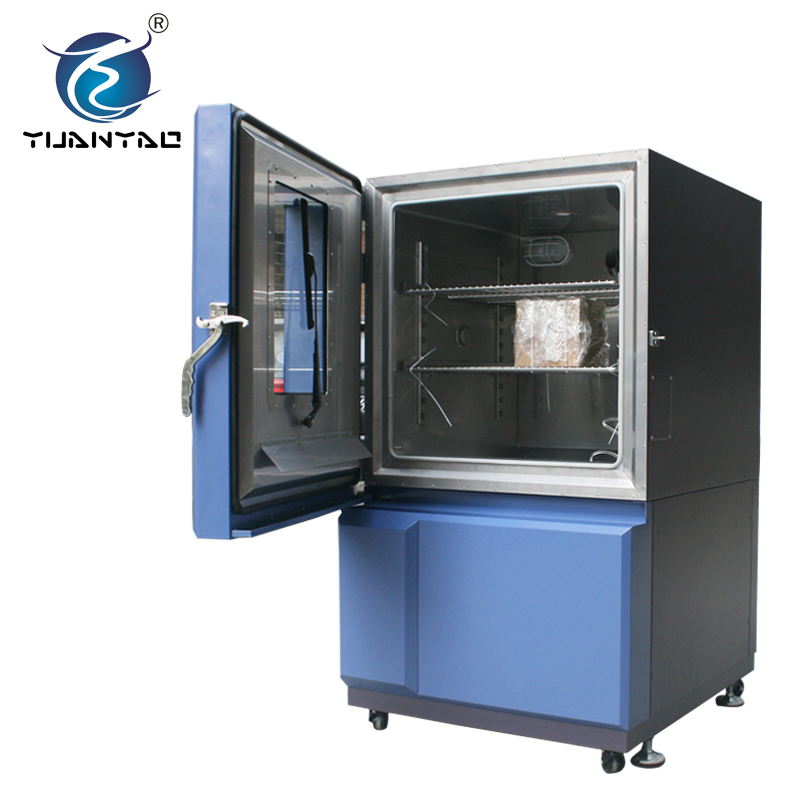

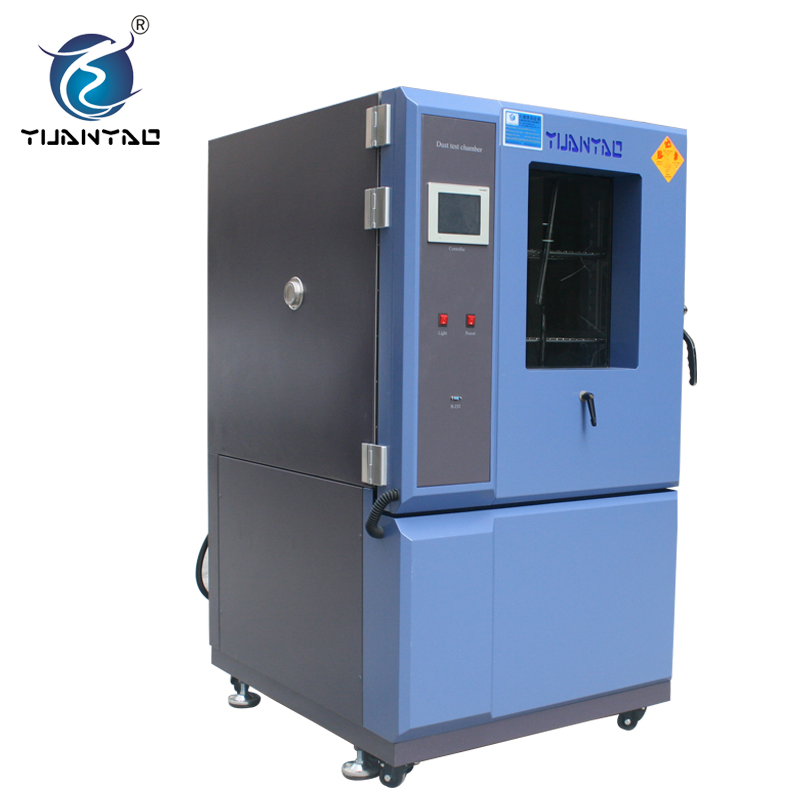

Ipx5 Ipx6 Dust Test Chamber (YSDT-1000-C(IEC-529))

Product Description

Ipx5 Ipx6 Dust Test Chamber (YSDT-1000-C(IEC-529))

Application:

Dust Proof Testing Instrument is applied to test the performance of electronic electrical products, automotive, motorcycle parts, seal the pieces in the sand and dust environment of using, storage, transportation. Adopts large size clear acrylic observation window, easy for users to check specimen status directly.

Ipx5 Ipx6 Dust Test Chamber (YSDT-1000-C(IEC-529))

Technical Specifications

1. Equipped with a large viewing glass window
2. Operating easy, maintenance quickly
3. Excellent performance

Test standard

       Comply with China's national defense industry standard GJB150.12 and major international test standards for different foreign markets,
such as: IEC-529 (shell protection grade - IP code), GB4208-93, DIN40050 and JIS-DO207-F2.

Advantages

   1). Professional technology support and agent brand equipment;
   2). Reasonable price and high quality;
   3). Fast shipment by reputed shipping line, delivery in time

Feature

       1. The interior chamber used stainless steel, and the outer used cold-rolled sheet with electrostatic spraying. With import intelligent temperature control table.
2. Small type programmable controller, the system has the protection function.
3. Mess diameter: 50μ M
4. Wire spacing: 75μ M
5. Stone powder quantity: 2kg/m3~4kg/m3
6. Suitable for for electrical, electronic, automobile, motorcycle LED and other products, spare parts etc dust test.

Technical parameters

Dust-proof Test Chamber
Model		YSDT-512-C	YSDT-1000-C	YSDT-1500-C
Inner chamber size W×H×D(cm)		80×80×80	100×100×100	100×100×150
External chamber size W×H×D(cm)		130×170×120	150×190×140	150×190×190
Time setting range		0~999h adjustable
Temperature setting rangr		RT+10~50ºC
Test dust		Talcum powder
Dust dosage		2~4kg/m³
Vacuum degree		0~10.0KPa,,adjustable
Dust reduction method		Free dust falling
Controller		Programmable touch screen controller
Vacuum system		Equipped with pressure gauge, air filtration, pressure regulation, connecting pipe, vacuum pump
Circulation fan		Low noise , multi-blade centrifugal fan
Protective device		Leaksge protection, short circuit proection
Dust heating system		Stainless steel heating tube
Material	Inner chamber	Cold rolled sheet with power coating
	External chamber	SUS#304 Stainless steel plate
Other components		Wiper, caster adjuster
Power supply		AC 1ψ 220V,3ψ 380V 60/50Hz,
Customization service		No-standard or special requirements are all welcome

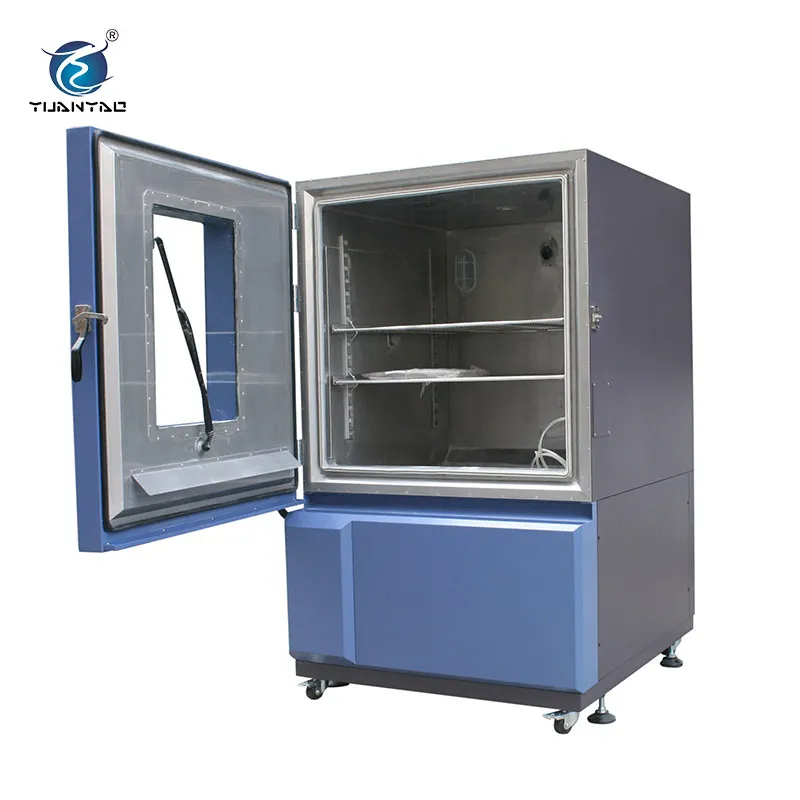

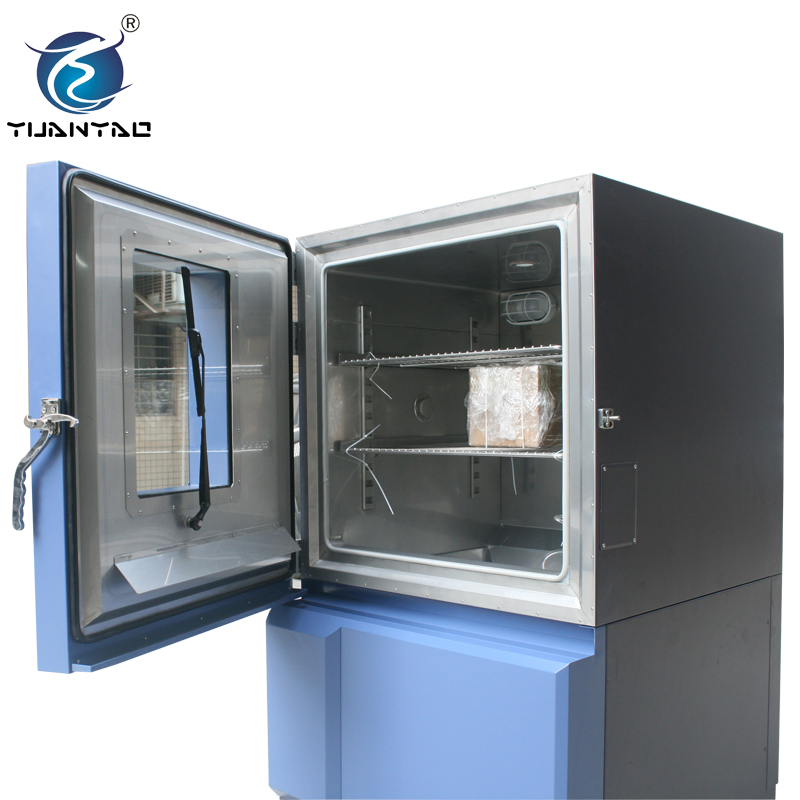

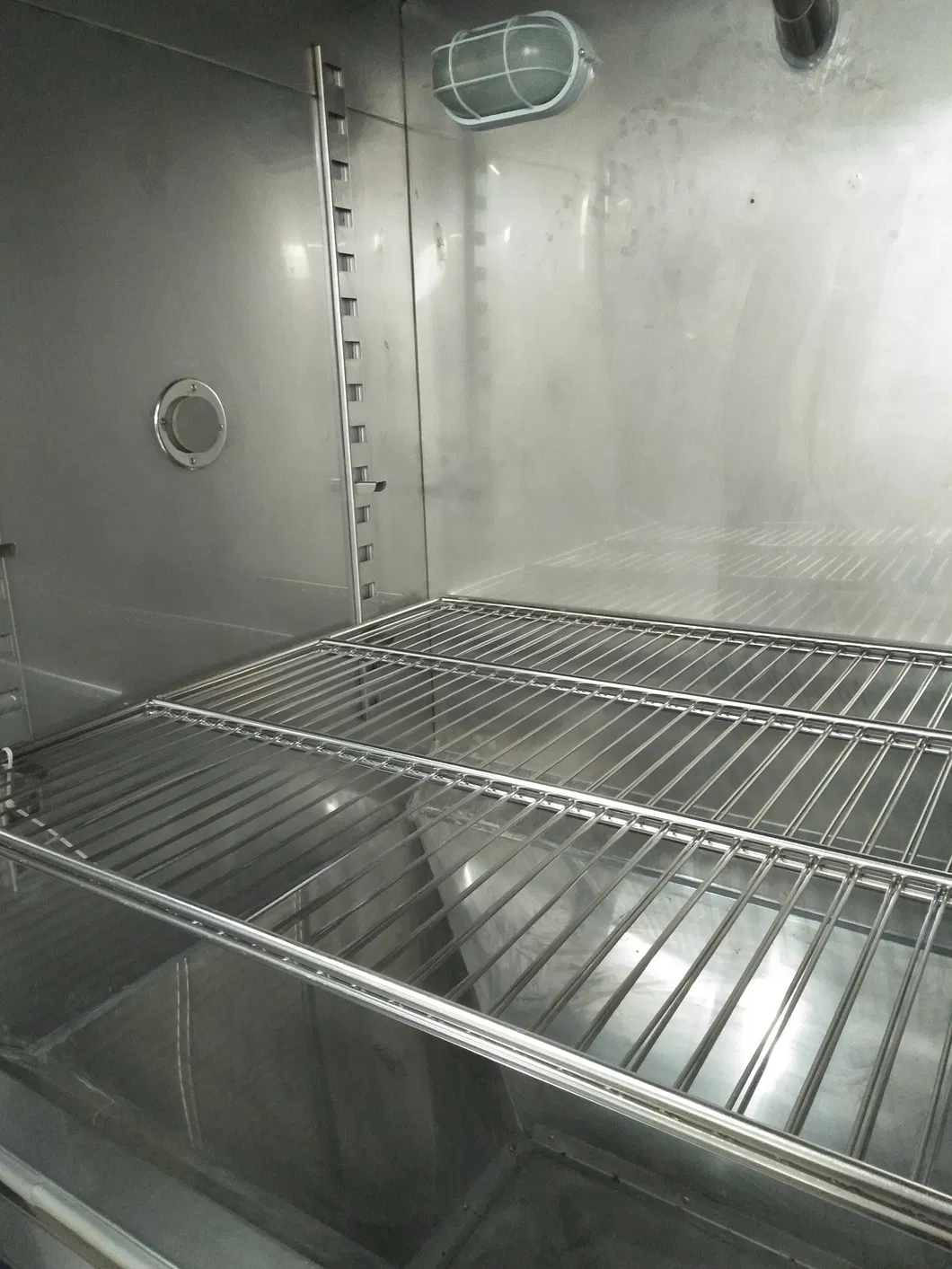

Detailed images

Ipx5 Ipx6 Dust Test Chamber (YSDT-1000-C(IEC-529))

In addition to dust-proof test chamber, we are also manufacturing:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal
Shock Tester, Liquid Thermal Shock Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration
Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester,
Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
