Is1293 Test Machine for Testing The Cord Retention
Cord Anchorage Testing MachineProduct details: Model ZLT-DY1.For testing cable connections with intermittent tensile load in according to IEC60884/2006 figure 20, VDE0620 Bild 20, IEC 60950 clause 3.2.6,IEC60320 figure ......
Send Inquiry
Product Description

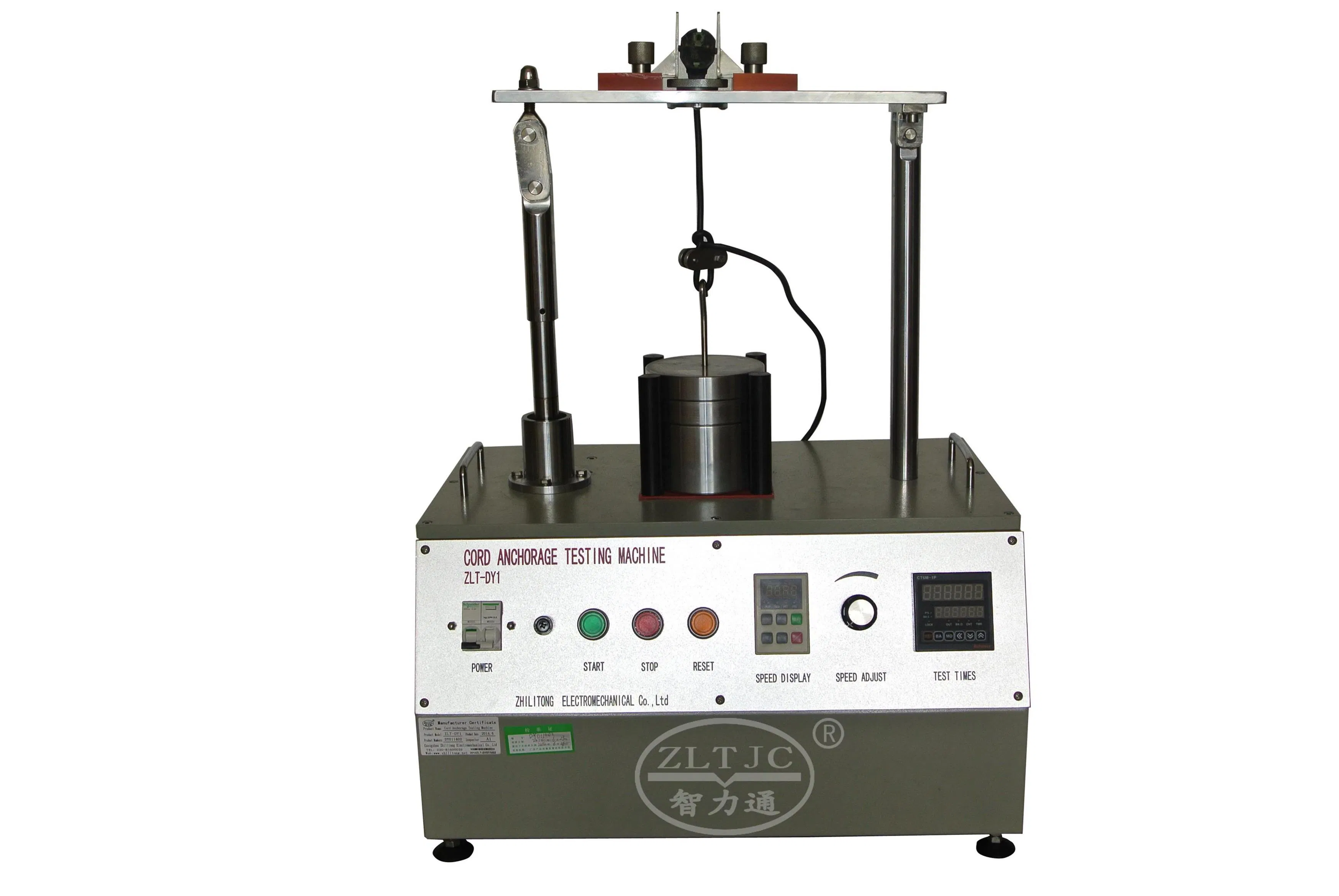

Cord Anchorage Testing Machine
Product details: Model ZLT-DY1.
For testing cable connections with intermittent tensile load in according to IEC60884/2006 figure 20, VDE0620 Bild 20, IEC 60950 clause 3.2.6,IEC60320 figure 16,IS 1293 Fig.14.
Standard Outfit:
1 basic frame, with housing,
1 eccentric disc, diameter 125 mm, eccentricity 32, 5mm,
1 A. C. Geared motor with additional gear reduction to approx. 60rpm,
1 lever for the specimen, with track wheel,
1 clamping mechanism with various gripping dies to match the cord size and shape,
1 set of weights for loads 10N*1-60N*1-20N*2,
1 electrical predetermining counter, four-digit, resettable, to indicate the number of strokes,
For connection to A. C. 220V50Hz, other voltages or frequencies on request.
Product details: Model ZLT-DY1.
For testing cable connections with intermittent tensile load in according to IEC60884/2006 figure 20, VDE0620 Bild 20, IEC 60950 clause 3.2.6,IEC60320 figure 16,IS 1293 Fig.14.
Standard Outfit:
1 basic frame, with housing,
1 eccentric disc, diameter 125 mm, eccentricity 32, 5mm,
1 A. C. Geared motor with additional gear reduction to approx. 60rpm,
1 lever for the specimen, with track wheel,
1 clamping mechanism with various gripping dies to match the cord size and shape,
1 set of weights for loads 10N*1-60N*1-20N*2,
1 electrical predetermining counter, four-digit, resettable, to indicate the number of strokes,
For connection to A. C. 220V50Hz, other voltages or frequencies on request.
