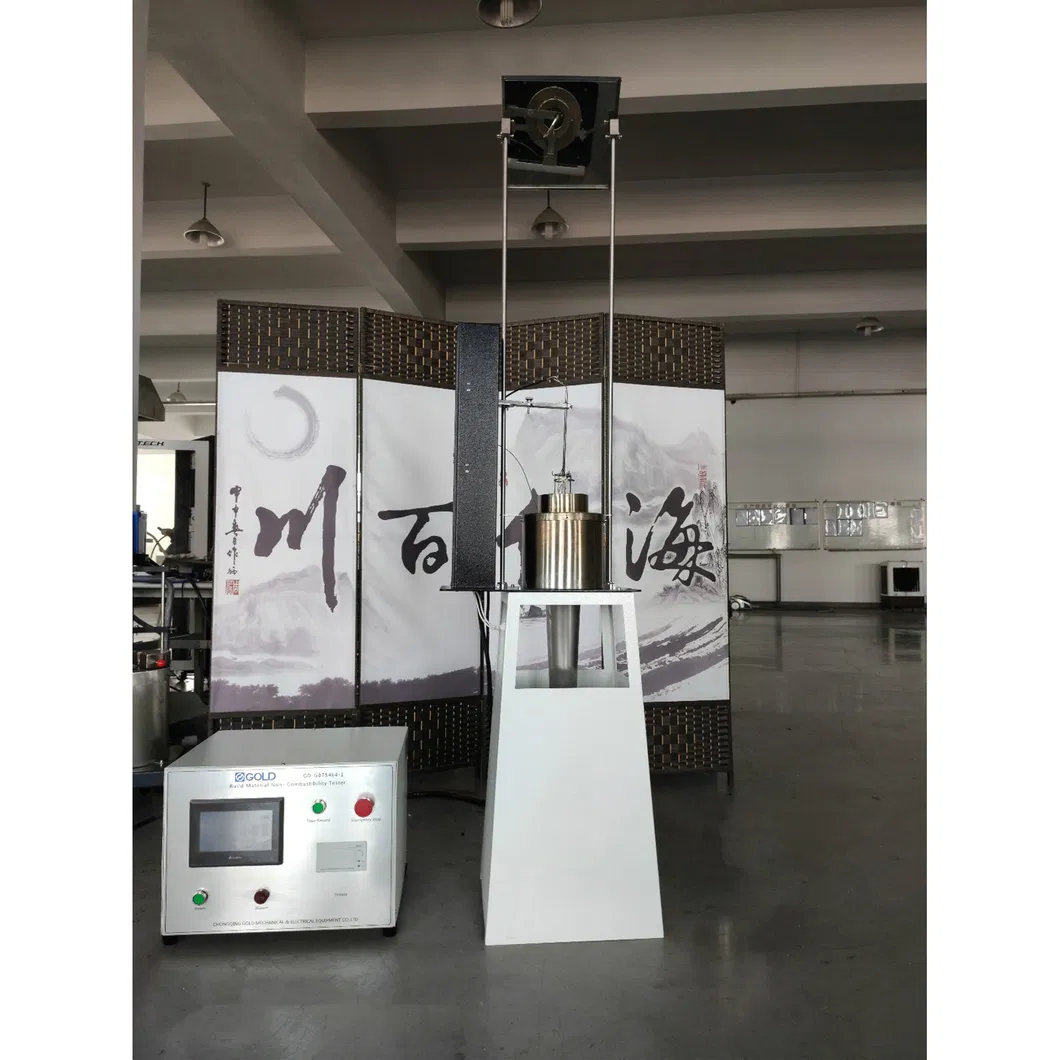

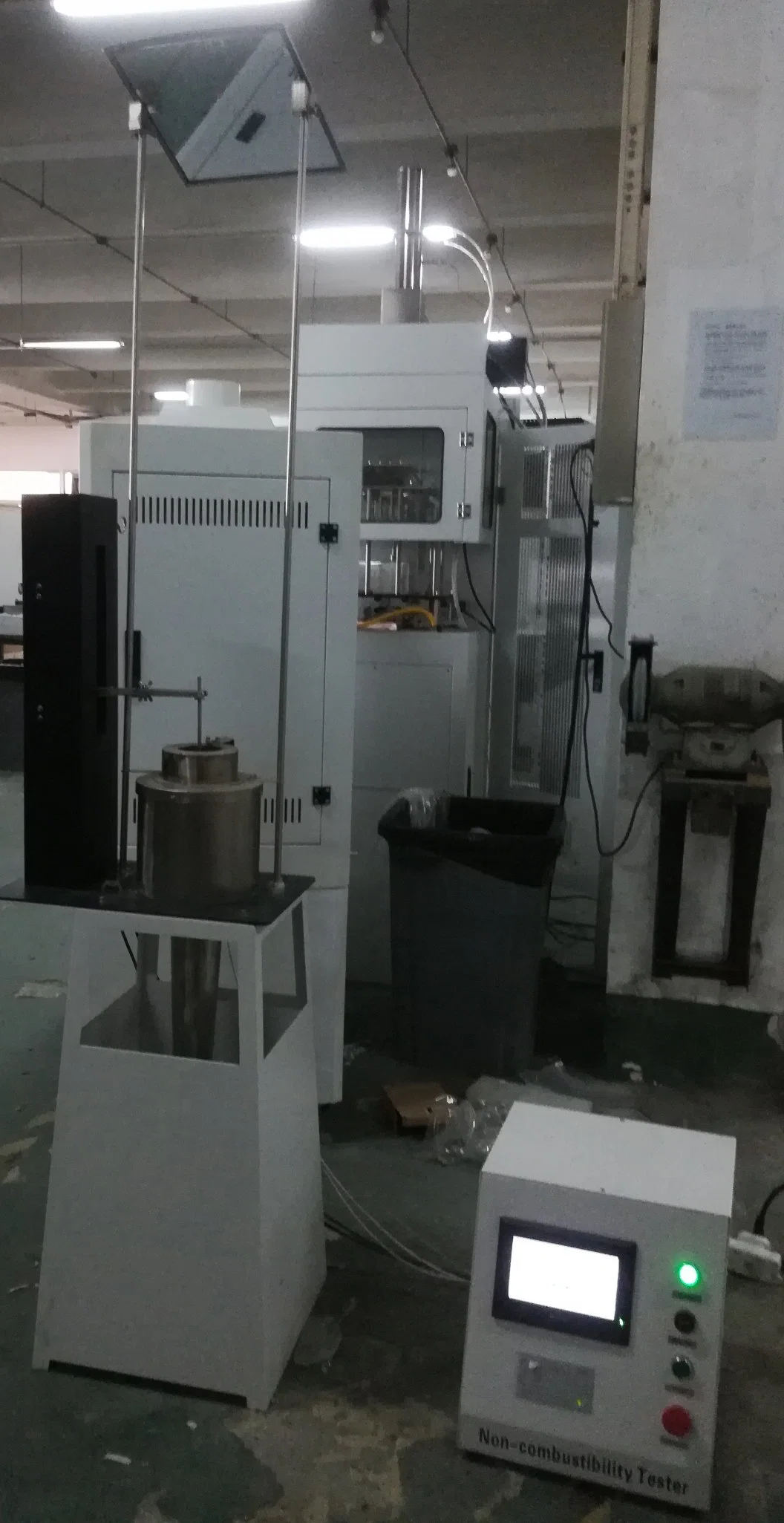

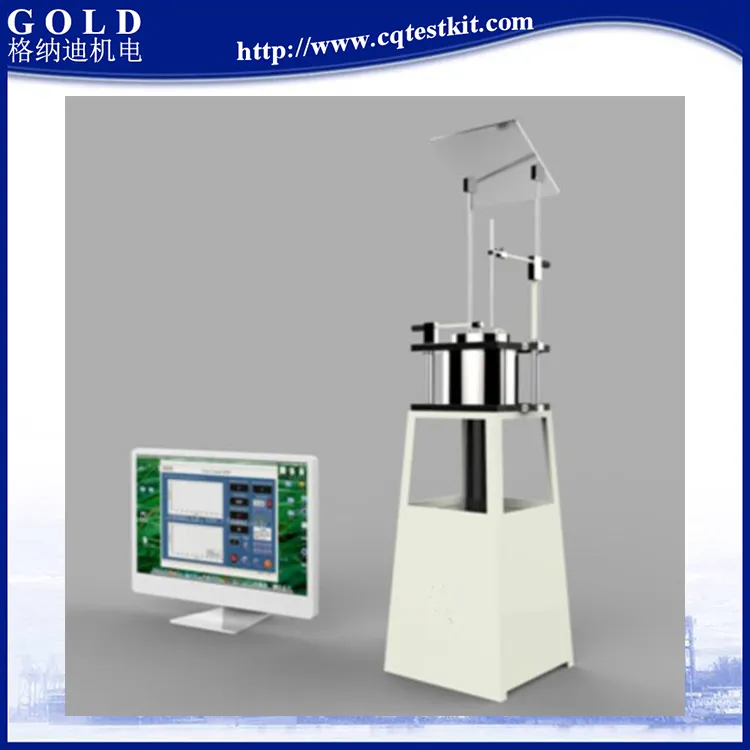

ISO 1182 Building Materials Non-Combustibility Test Apparatus

ISO1182 Building Materials Non-Combustibility Apparatus



Introduction:
Incombustible test furnace, according to ISO 1182 and GB/T 5464 building materials incombustible test method developed, mainly used in building materials incombustible test method, suitable for testing building materials GB8624 combustion performance classification of the class A fire retardant material combustion performance classification. The incombustible test furnace can be used for composite products, as well as testing the components of the products. The test instrument can also be used for BS 476-4-11 and IMO FTP Part 1 standards, and for fire testing of British building materials, railway locomotive materials, and non-metallic products of ships.

Standard:
• ISO 1182: Reaction to fire tests for building products - Non - combustibility test
• KS F ISO 1182: Method of a non-combustibility test of building products
• KS F 2271: a Testing method for the incombustibility of internal finish material and elements of buildings.

Application:
Building Material
Rail
Shipping Material
Other

Features:
• Single Zone Furnace operable at up to 900 ºC with the NIKROTHAL Ribbon Heater
• 750±5ºC temperature auto control with TPR
• Furnace facilitating maintenance and replacement
• Up/down automatic moving system for correct positioning of the test sample and user's convenience
• Mirror to observe the ignition quality of test sample
• RS 232C communication and DAQ Board-adopted interface
• Auto testing by DAQ Board and PC
• Alarm temperature-based overcurrent shut-off system for user's safety
• Software (Non-Comb 2005) to print out reports based on exact data results and each standard.

Test Result:

  * Mass Loss(g) and Rate(%)

  * Ignition Time(s) and Sustained Flaming(s)

  * Initial & Maximum Furnace Temperature(ºC)

  * Final Furnace Temperature(ºC)

  * Maximum Specimen Center Temperature(ºC)

  * Final Specimen Center Temperature(ºC)

  * Furnace Temperature Rise(ºC)

  * Specimen Center & Surface Temperature Rise(ºC)

  * Differential Test Result by Standards

  (ISO 1182:1990, KS F ISO 1182: 2004, IMO FTPC Pt.1: 1998, KS F 2271: 1998)
